Connector Identification

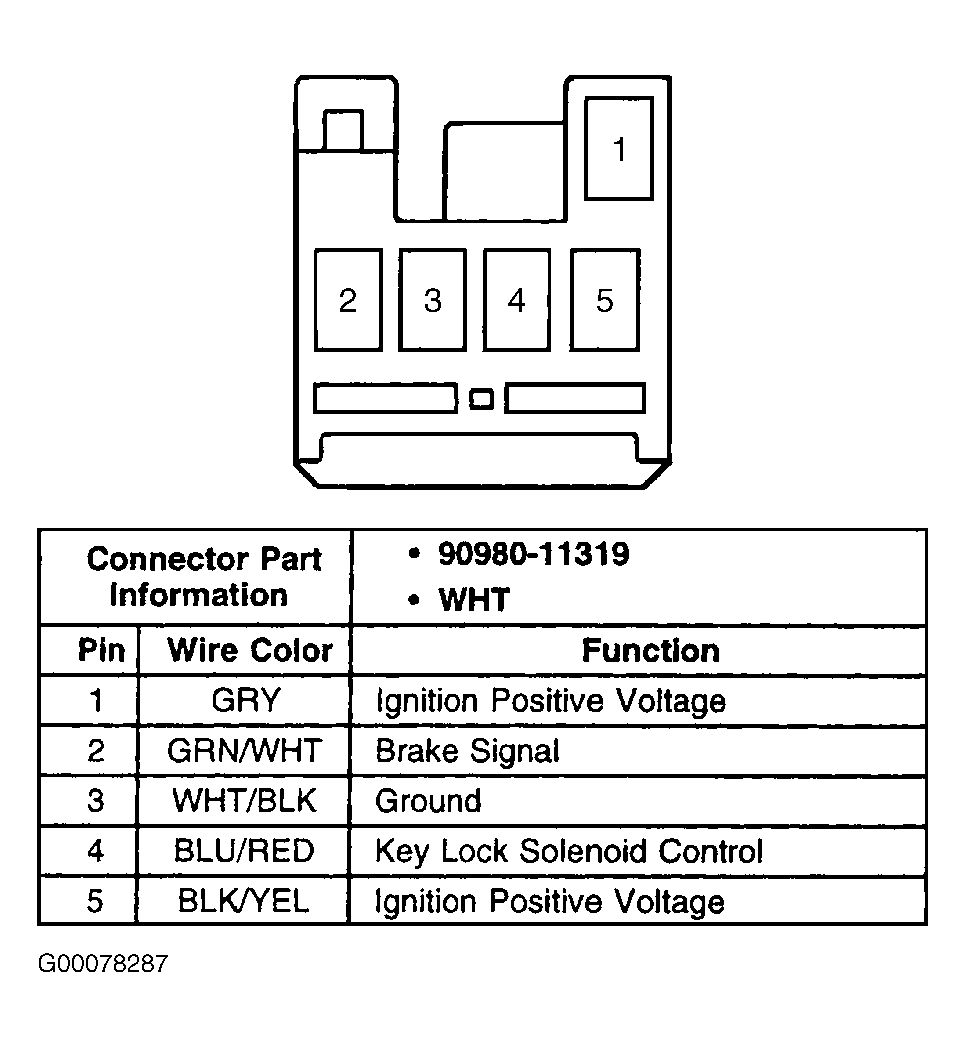

Fig 1: Identifying Shift Lock Control Module Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

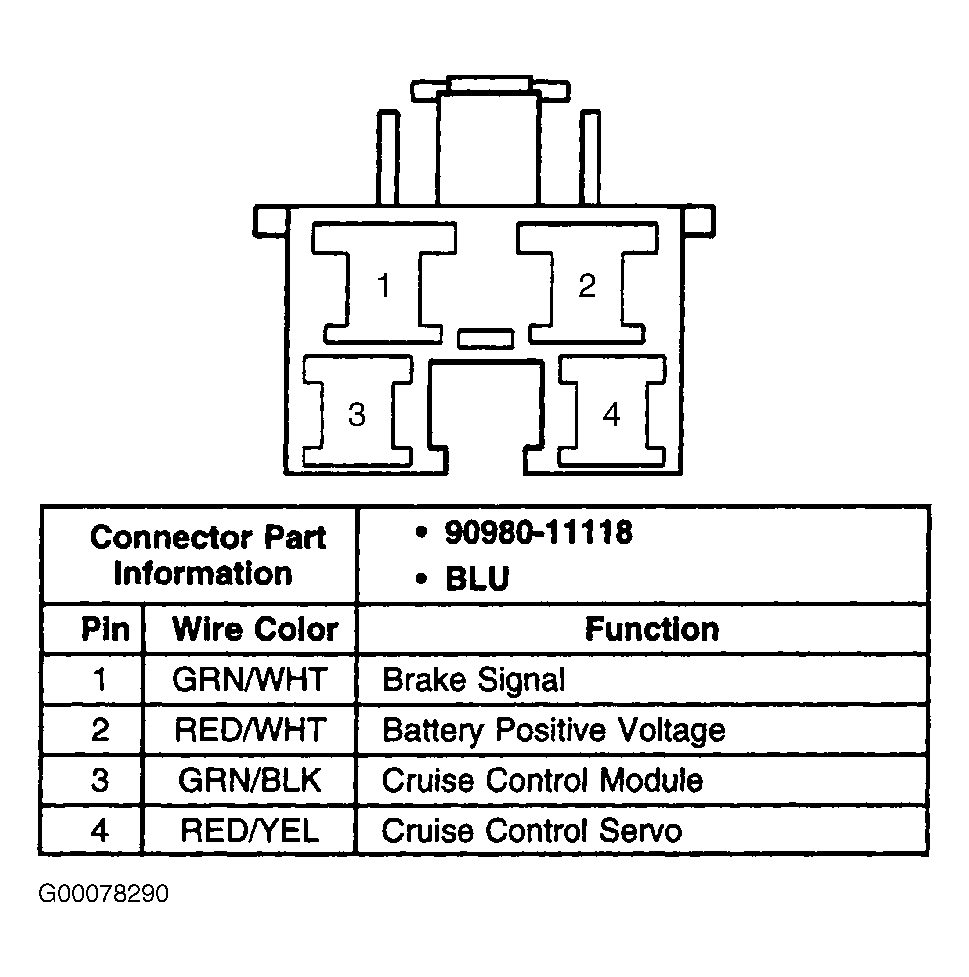

Fig 2: Identifying Stoplamp Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Junction Block No. 3 Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Junction Block No. 3 Harness Connector (C3) Terminals

Courtesy of GENERAL MOTORS CORP.
