Removal & Installation: Radio: Installation

Connect the radio electrical connector. Connect the antenna lead (1) to the radio (2). Install the radio (1) to the instrument panel. Secure the radio with the 4 screws (2). Install the instrument panel accessory center trim plate. See INSTRUMENT PANEL CENTER TRIM PLATE  .

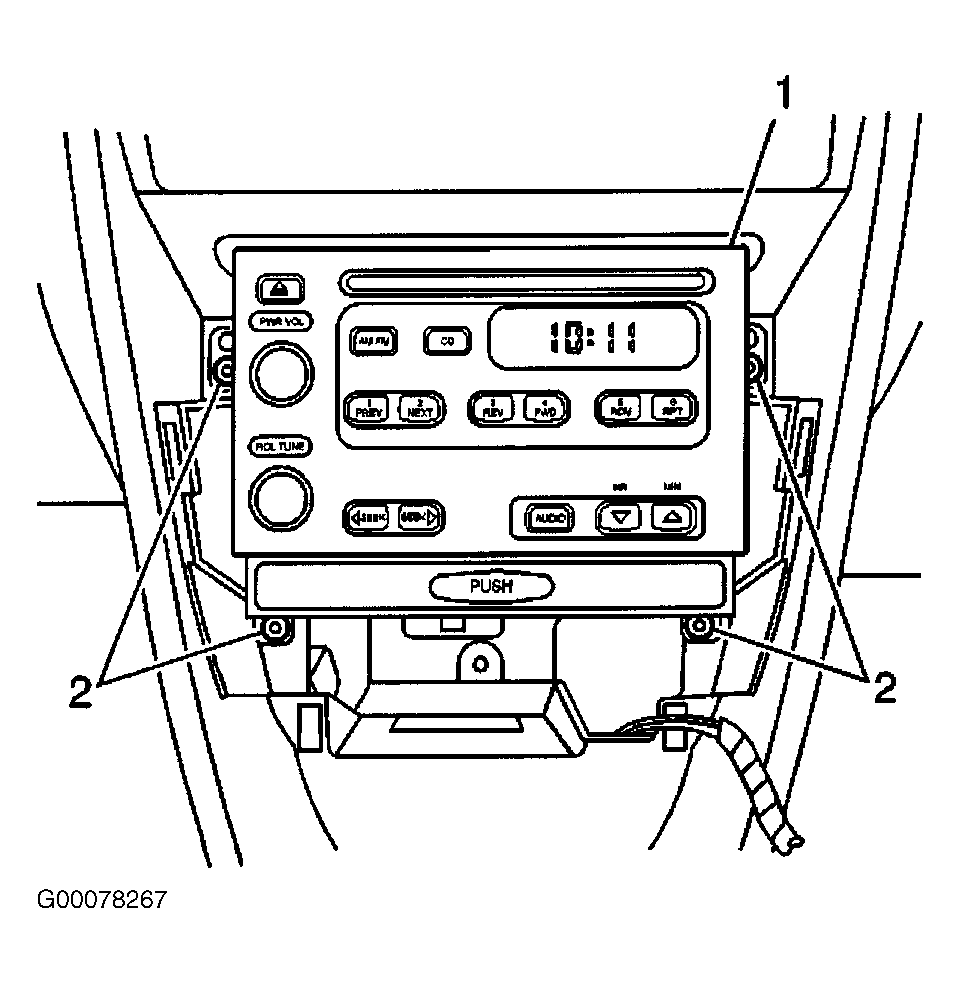

Fig 1: Removing & Installing Radio Fasteners

Courtesy of GENERAL MOTORS CORP.

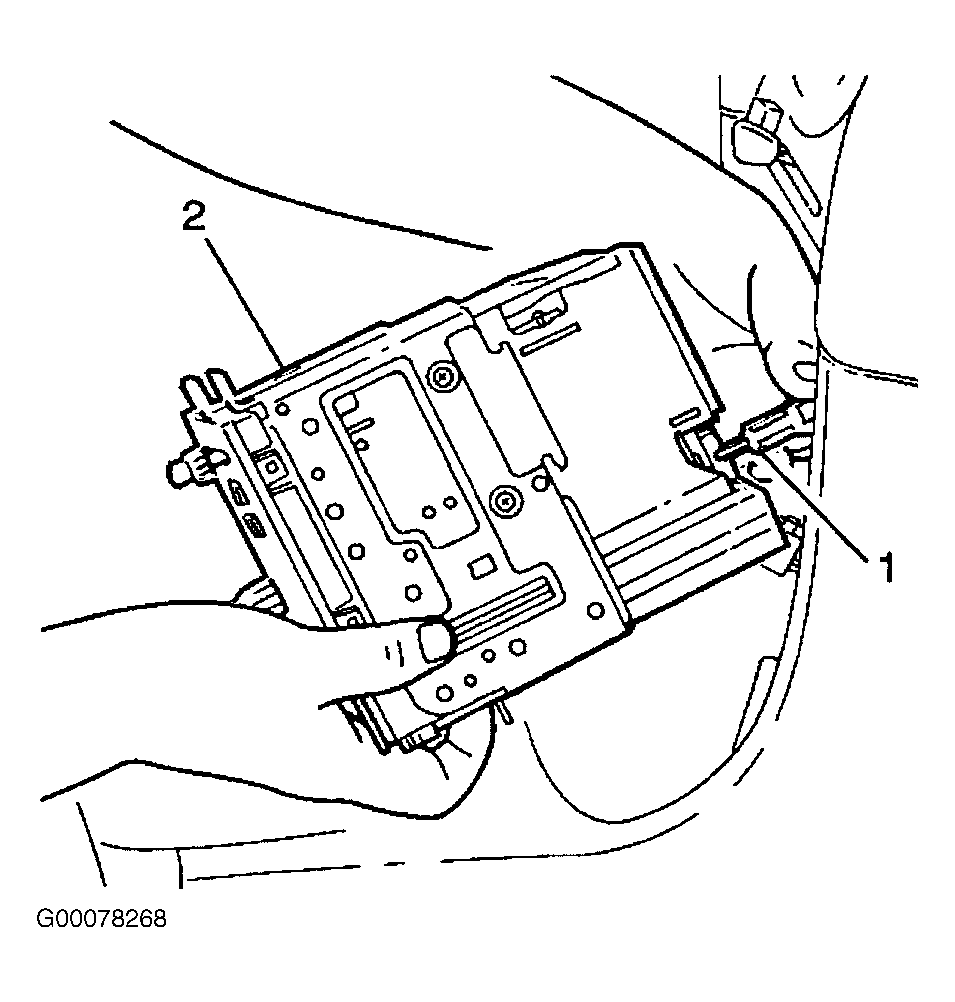

Fig 2: Removing & Installing Antenna Lead In Cable

Courtesy of GENERAL MOTORS CORP.
