Shift Lock Solenoid/Switch Assembly: Installation

1. Install the shift lock solenoid and shift lock switch assembly (2) to gearshift selector (1). Secure with 2 screws. See Fig 2 .
   NOTE: Upon completion of the shift lock solenoid and the shift lock switch assembly installation, perform the following steps in order to ensure the proper operation:

   • Temporarily install the negative battery cable.
   • When the ignition switch is turned to LOCK position, solenoid is NOT energized.
   • When the ignition switch is turned to ON position, and the brake pedal is not depressed, the solenoid is NOT energized.
   • When the ignition switch is turned to ON position, and the brake pedal is depressed, the solenoid is energized.
   • Disconnect negative battery cable.
2. Install the shift lock solenoid and the shift lock switch electrical connectors (2, 3) to the shift lock solenoid and the shift lock switch assembly. Reposition the shift indicator to its original position. See Figure .
3. Install the 4 screws to the shift indicator. Install the gearshift selector illumination light (1) into the shift indicator (2), see Fig 1 . Install the floor consoles. See FRONT FLOOR CONSOLE  and REAR FLOOR CONSOLE  . Connect the negative battery cable.

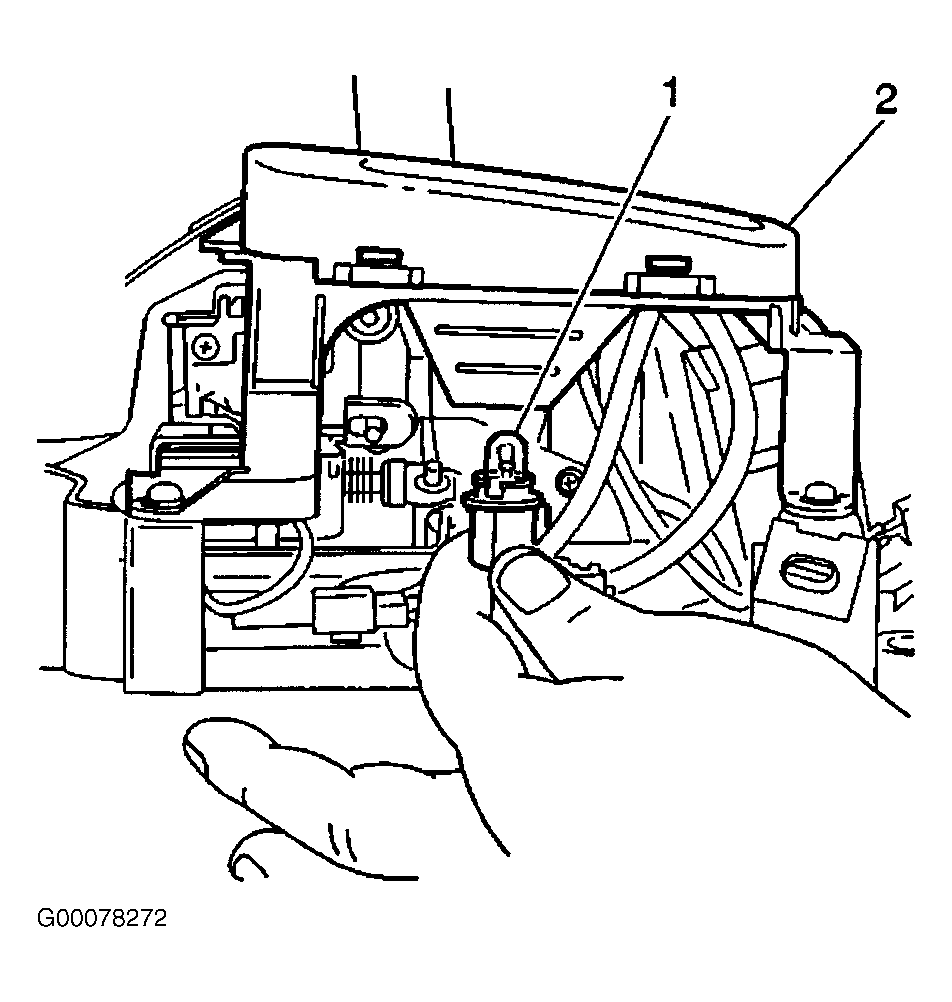

Fig 1: Removing & Installing Shift Indicator Light

Courtesy of GENERAL MOTORS CORP.

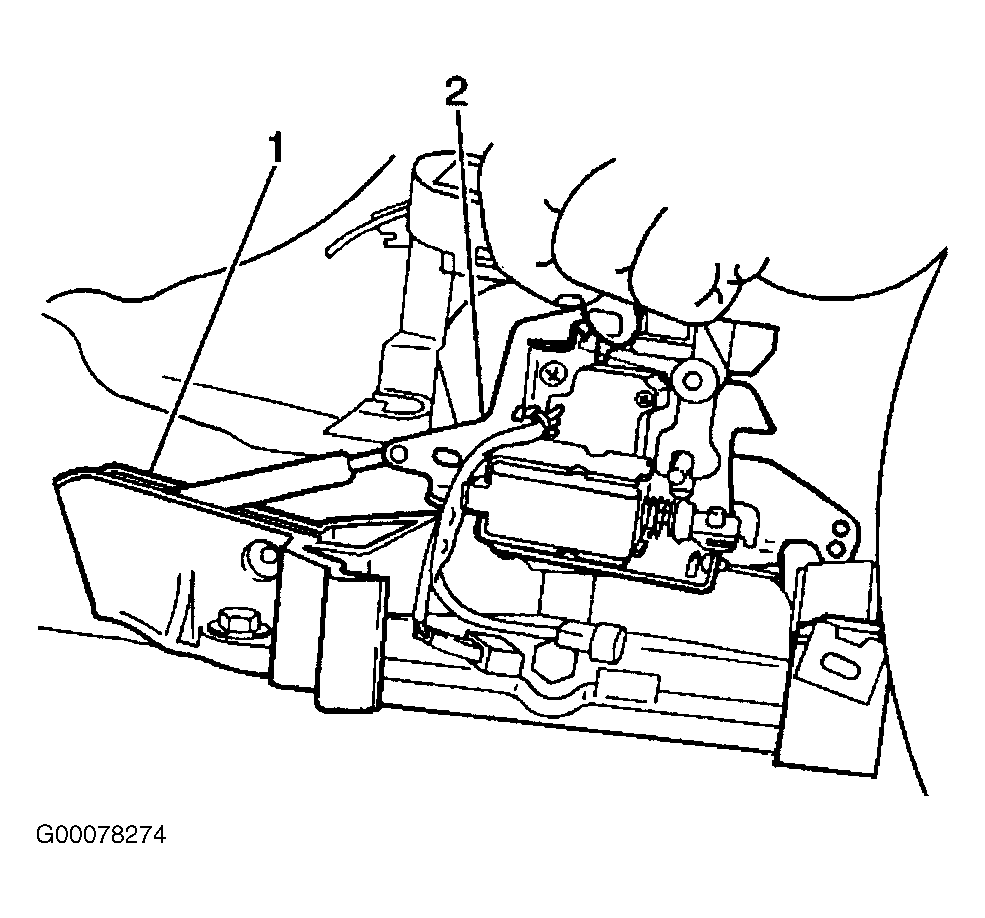

Fig 2: Removing & Installing Shift Lock Solenoid/Switch Assembly

Courtesy of GENERAL MOTORS CORP.
