Data Link Communications Connector End Views (Data Link Connector, Under Hood)

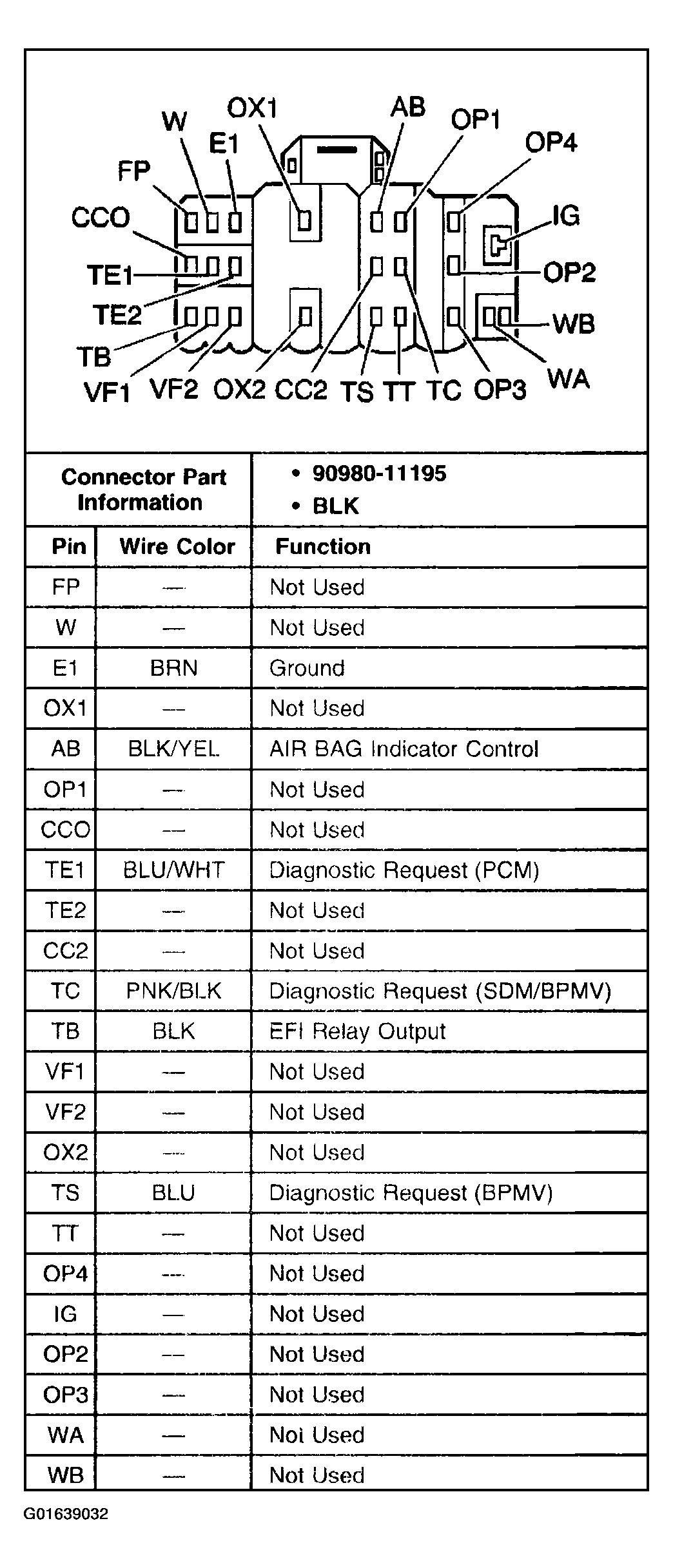

Fig 1: Data Link Connector (Under Hood) Connector End View
G01639032Courtesy of GENERAL MOTORS CORP.
