Keyless Entry Connector End Views

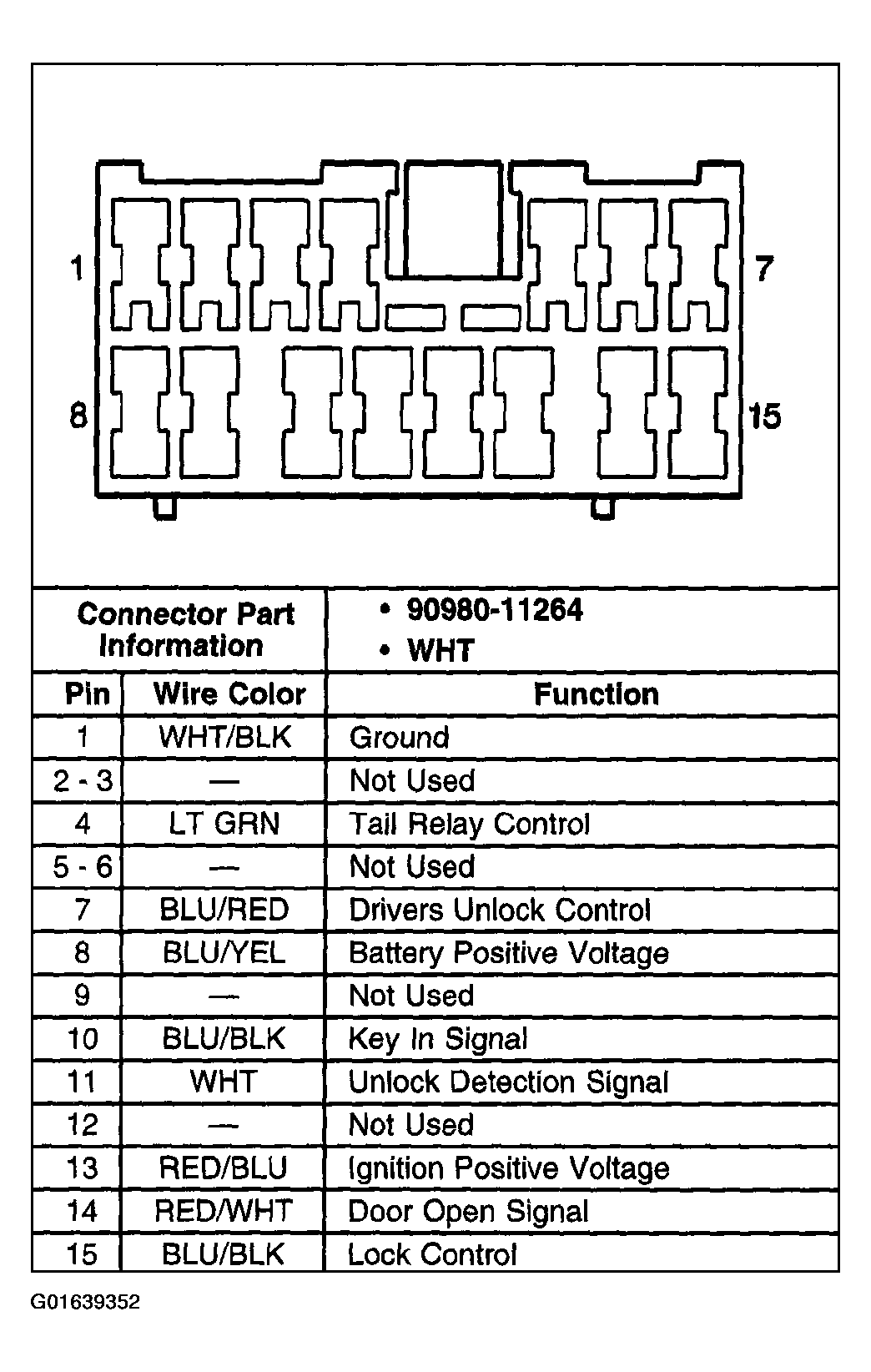

Fig 1: Remote Control Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
