Removal Procedure

  1. Place the remote control door lock receiver transmitter face down on a clean surface.
  2. Insert a small screwdriver into the slot on the bottom of the transmitter.
  3. Carefully turn the screwdriver in the slot until the cover releases.

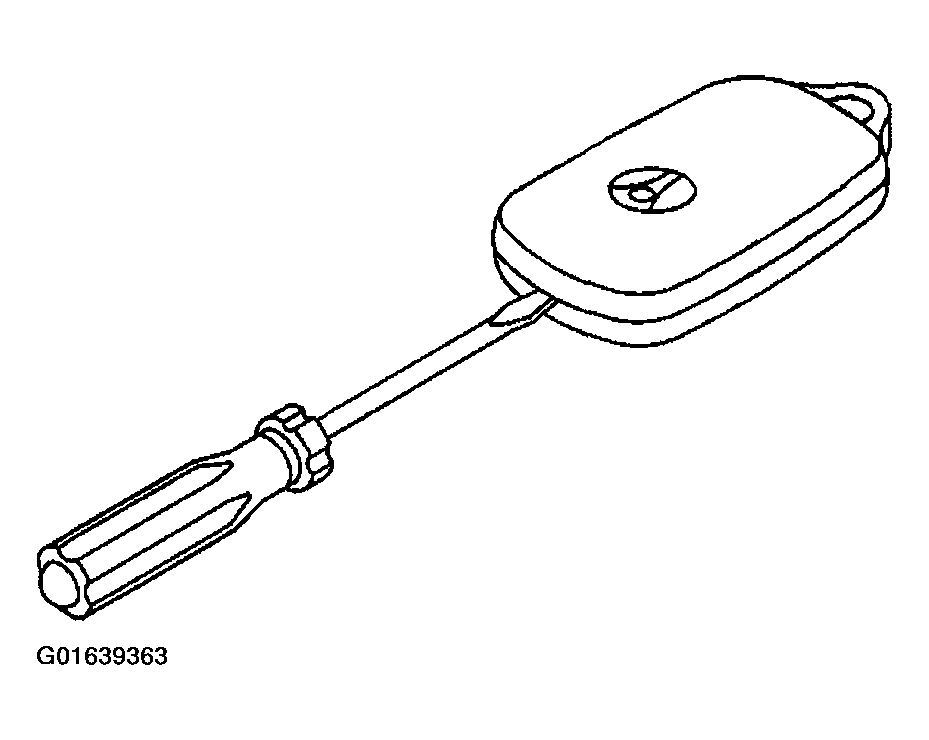

    Fig 1: Turning Screwdriver In Slot
    G01639363Courtesy of GENERAL MOTORS CORP.
  4. Remove the cover while being careful not to damage the seal.
  5. Remove the battery from the transmitter.

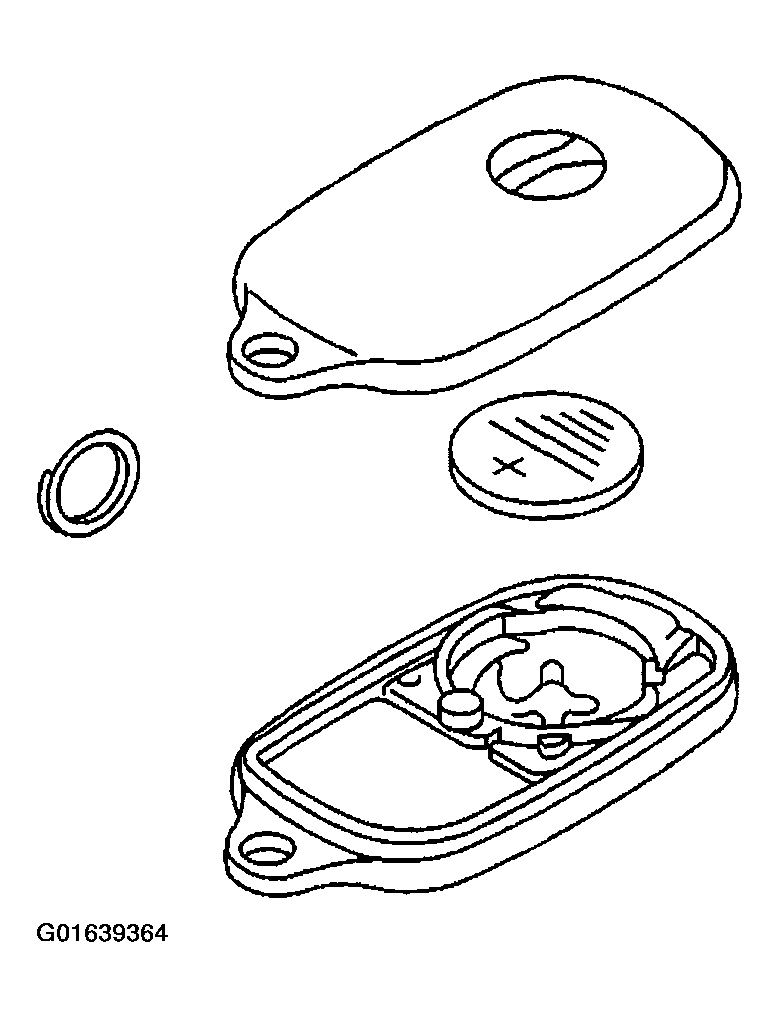

    Fig 2: Removing battery from the transmitter
    G01639364Courtesy of GENERAL MOTORS CORP.
