Component Locations

COMPONENT LOCATIONS

Component

Location

Powertrain Control Module (PCM)

Front Of Center Console, Below Radio

Starter ⁽¹⁾

LH Front Of Engine Compartment, Below Intake Manifold

ST Fuse

In Instrument Panel Fuse Block

ST Relay

In Rear Driver's Side Engine Compartment Fuse Block

⁽¹⁾	See Fig 1 .

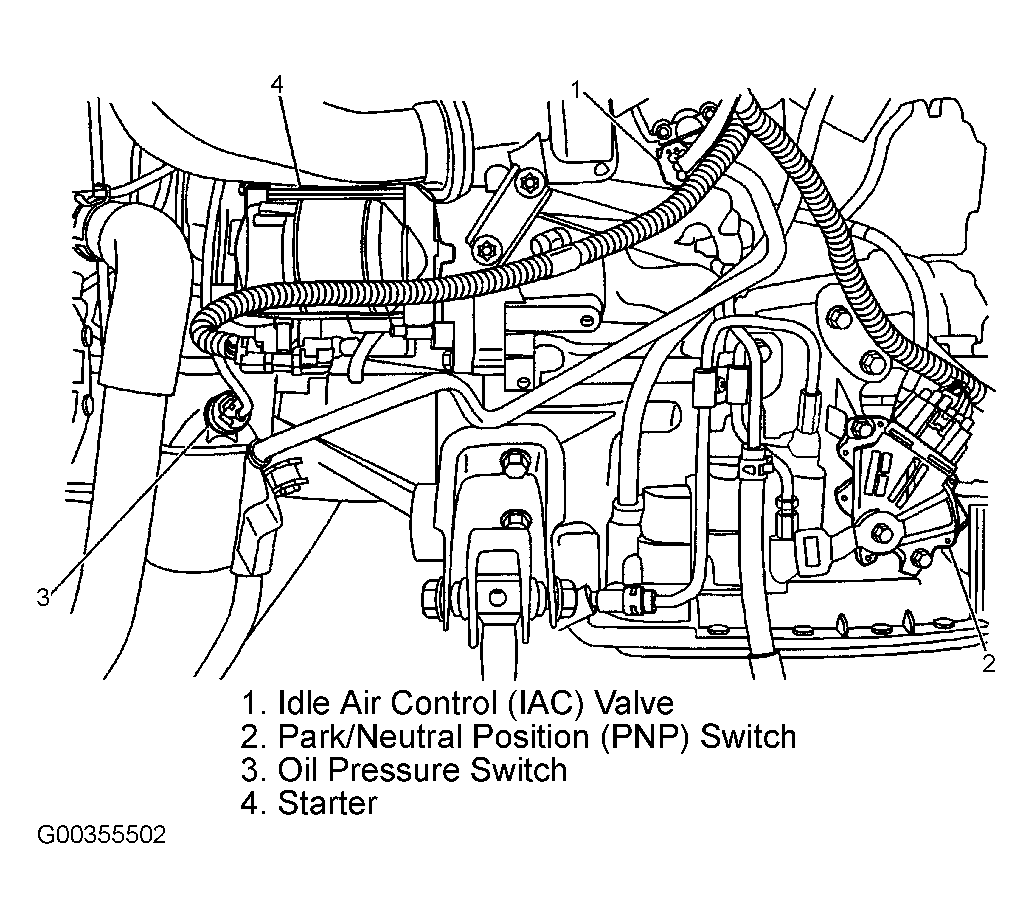

Fig 1: Locating Starter

Courtesy of GENERAL MOTORS CORP.
