Component Locations

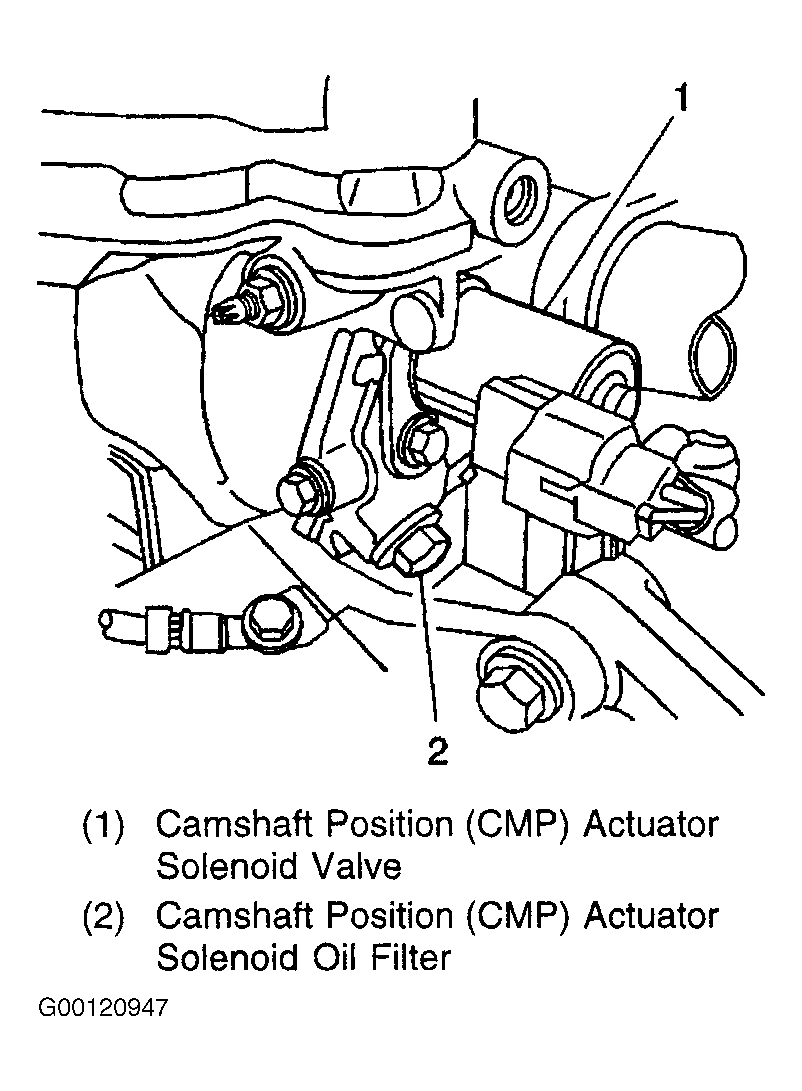

Fig 1: Locating Camshaft Position (CMP) Sensor Actuator Solenoid

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Crankshaft Position (CKP) Sensor & Power Steering Pressure (PSP) Switch

Courtesy of GENERAL MOTORS CORP.

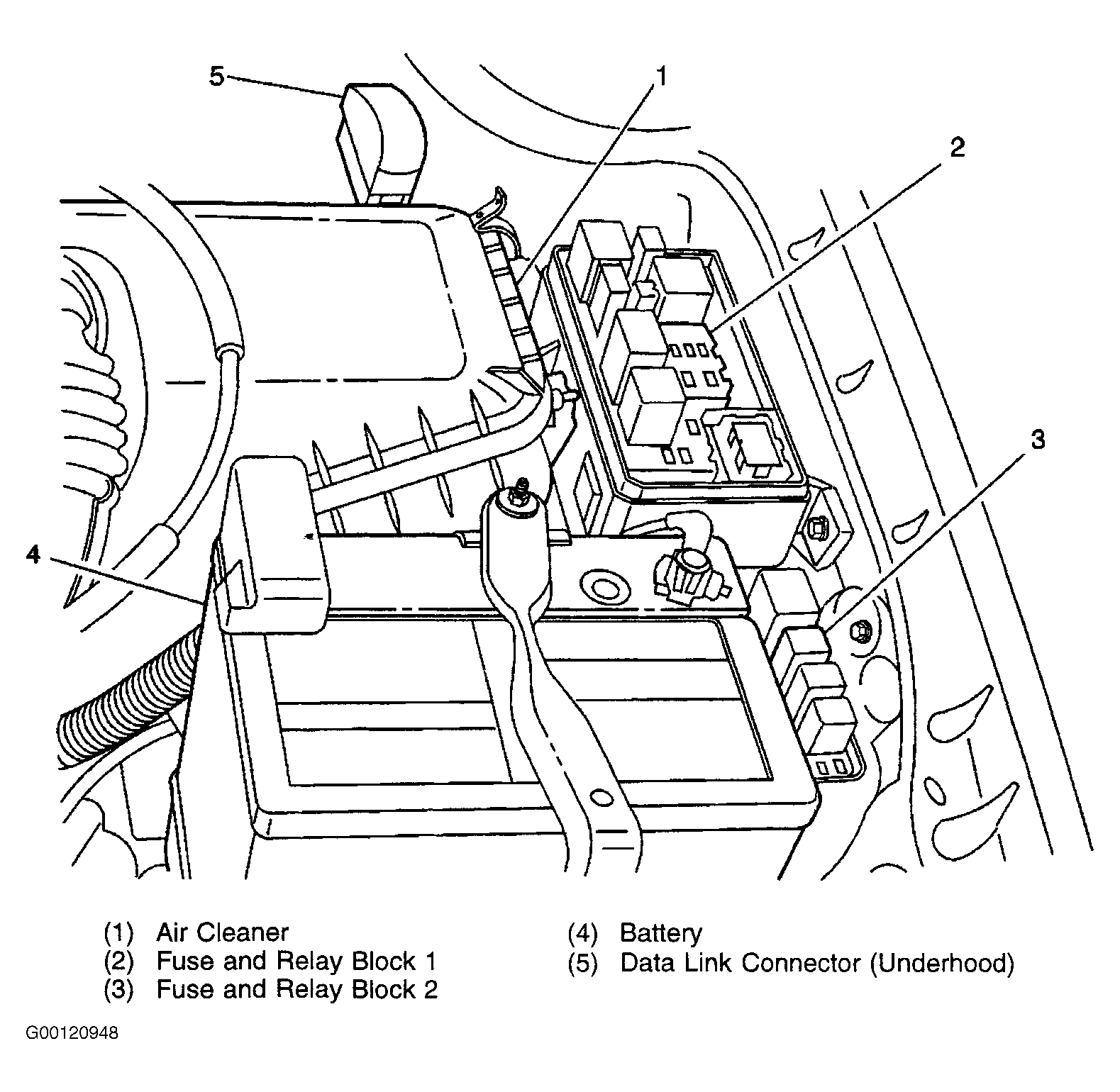

Fig 3: Locating DLC (Underhood) & Fuse/Relay Blocks No. 1 & 2

Courtesy of GENERAL MOTORS CORP.

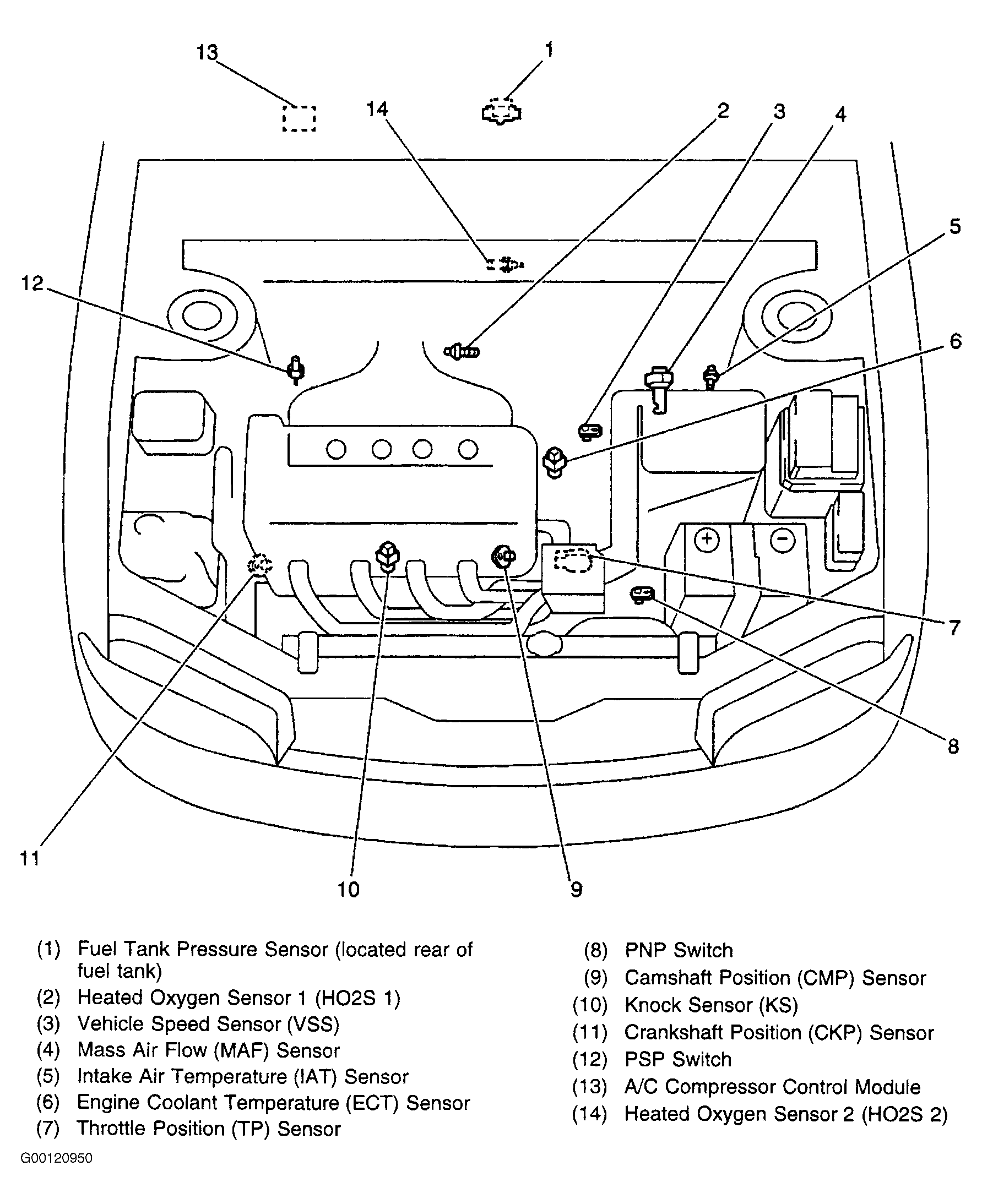

Fig 4: Locating Engine Control Information Sensors & Input Devices

Courtesy of GENERAL MOTORS CORP.

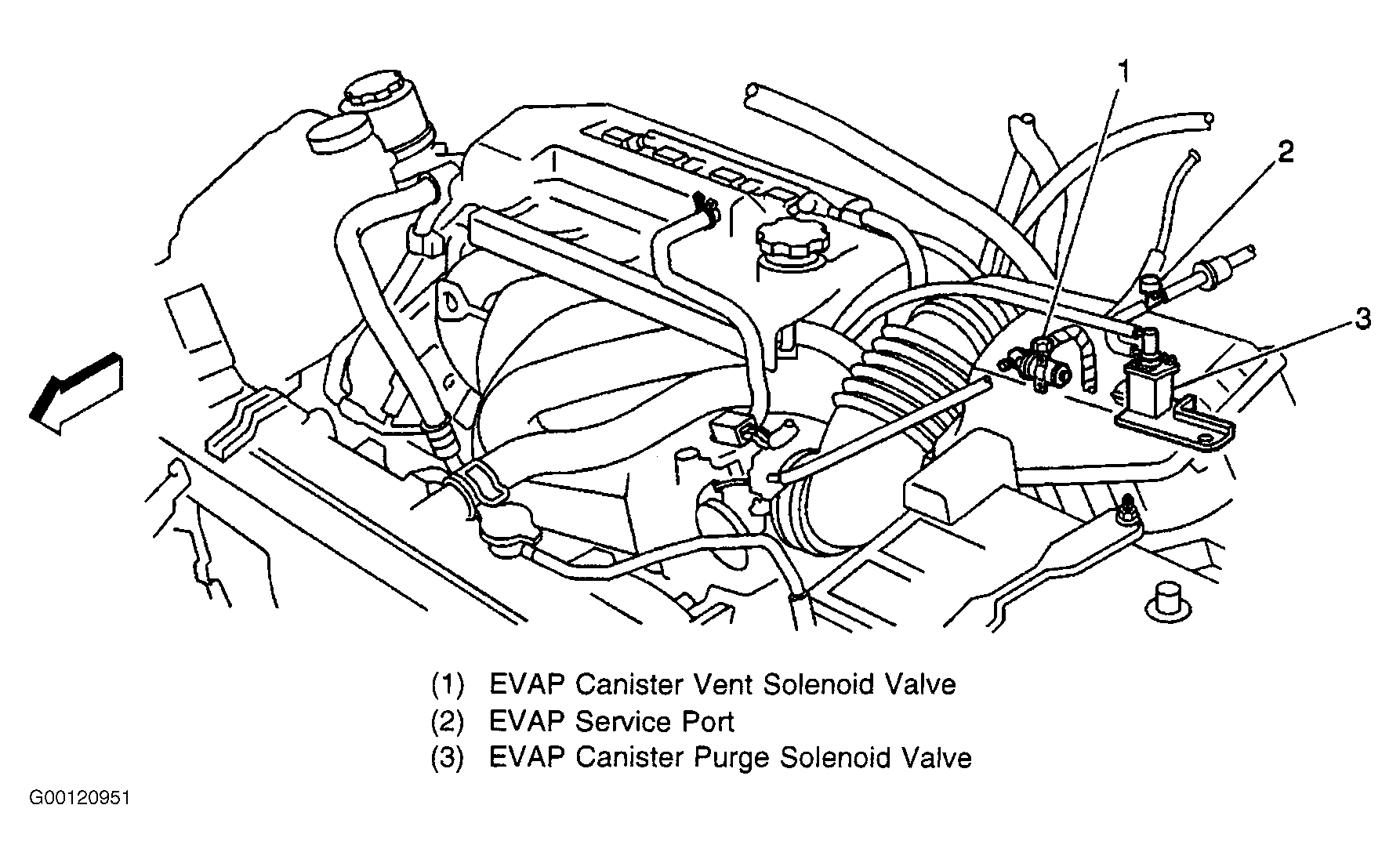

Fig 5: Locating EVAP Purge & Vent Solenoids

Courtesy of GENERAL MOTORS CORP.

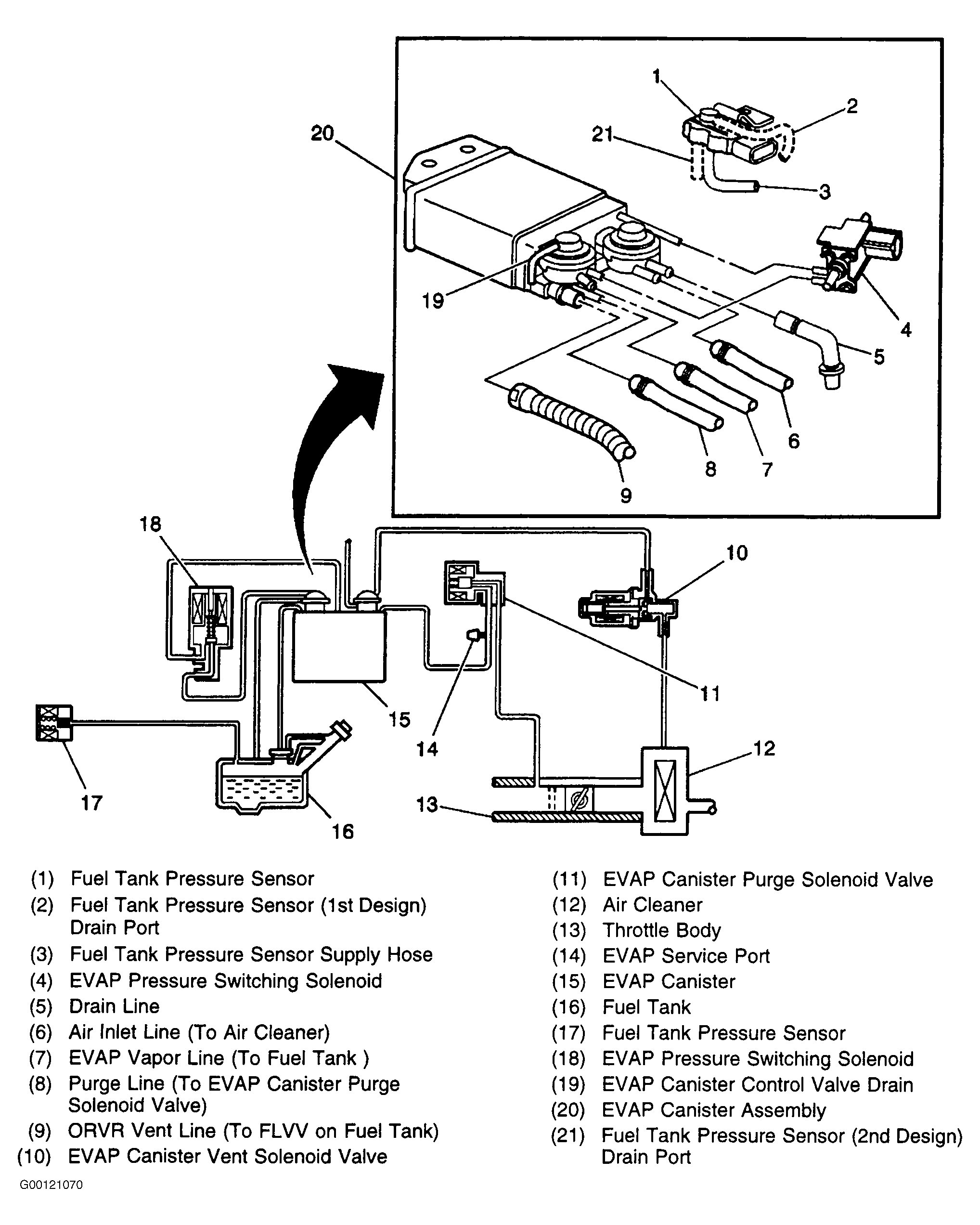

Fig 6: Locating & Identifying EVAP Control System Components & Hoses

Courtesy of GENERAL MOTORS CORP.

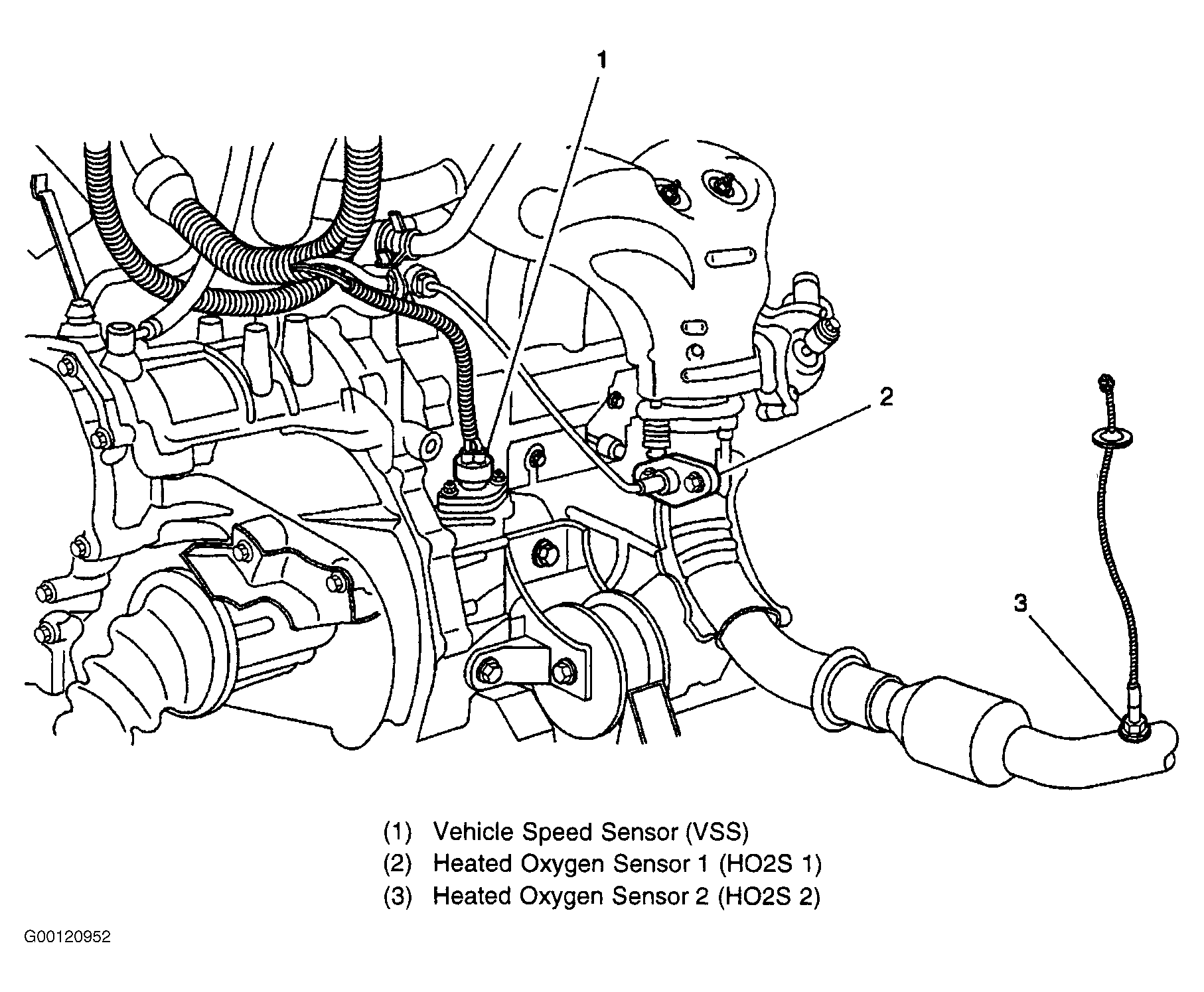

Fig 7: Locating HO2S Sensors & Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.

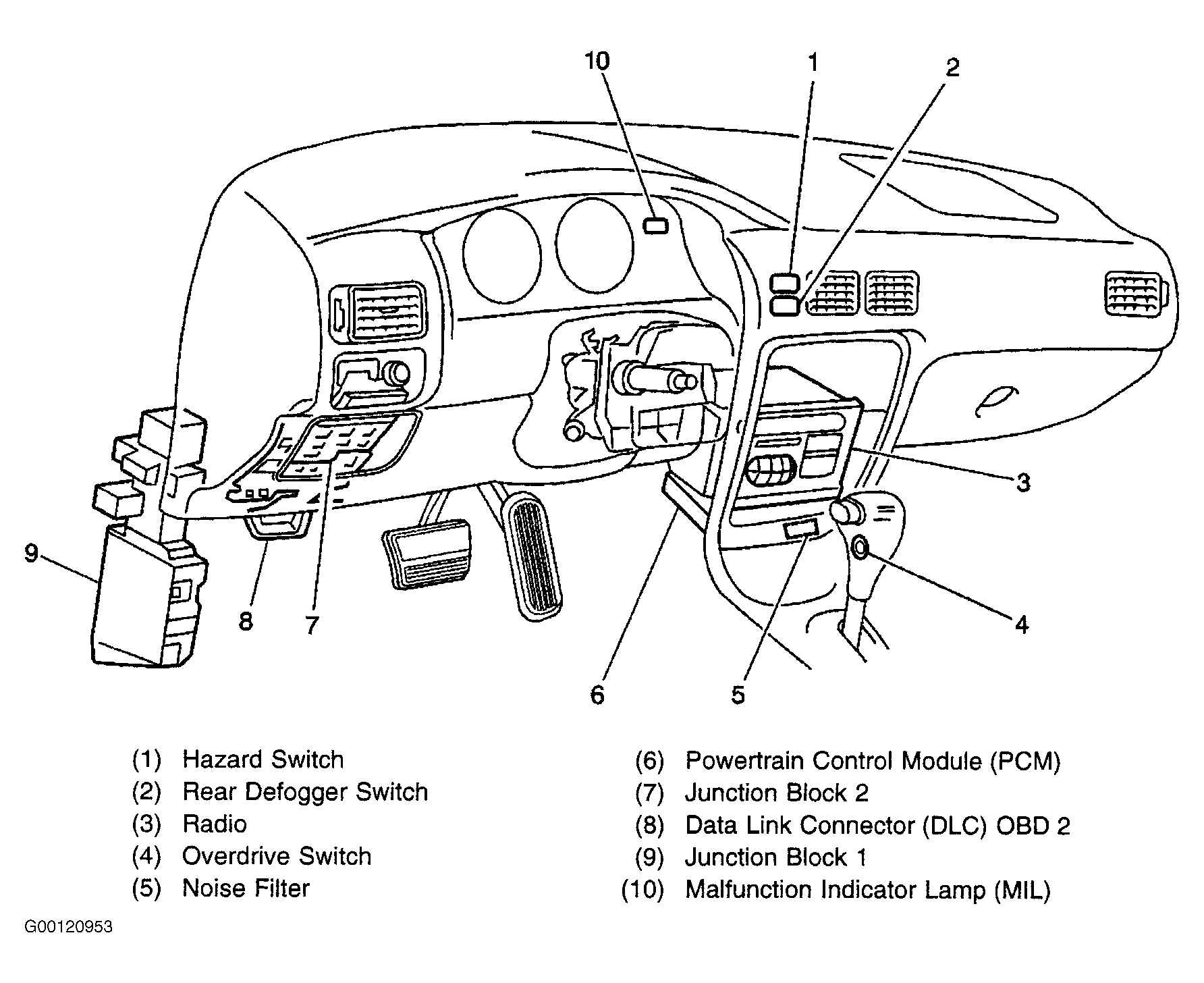

Fig 8: Locating PCM, OBD-II DLC & Junction Block No. 1

Courtesy of GENERAL MOTORS CORP.

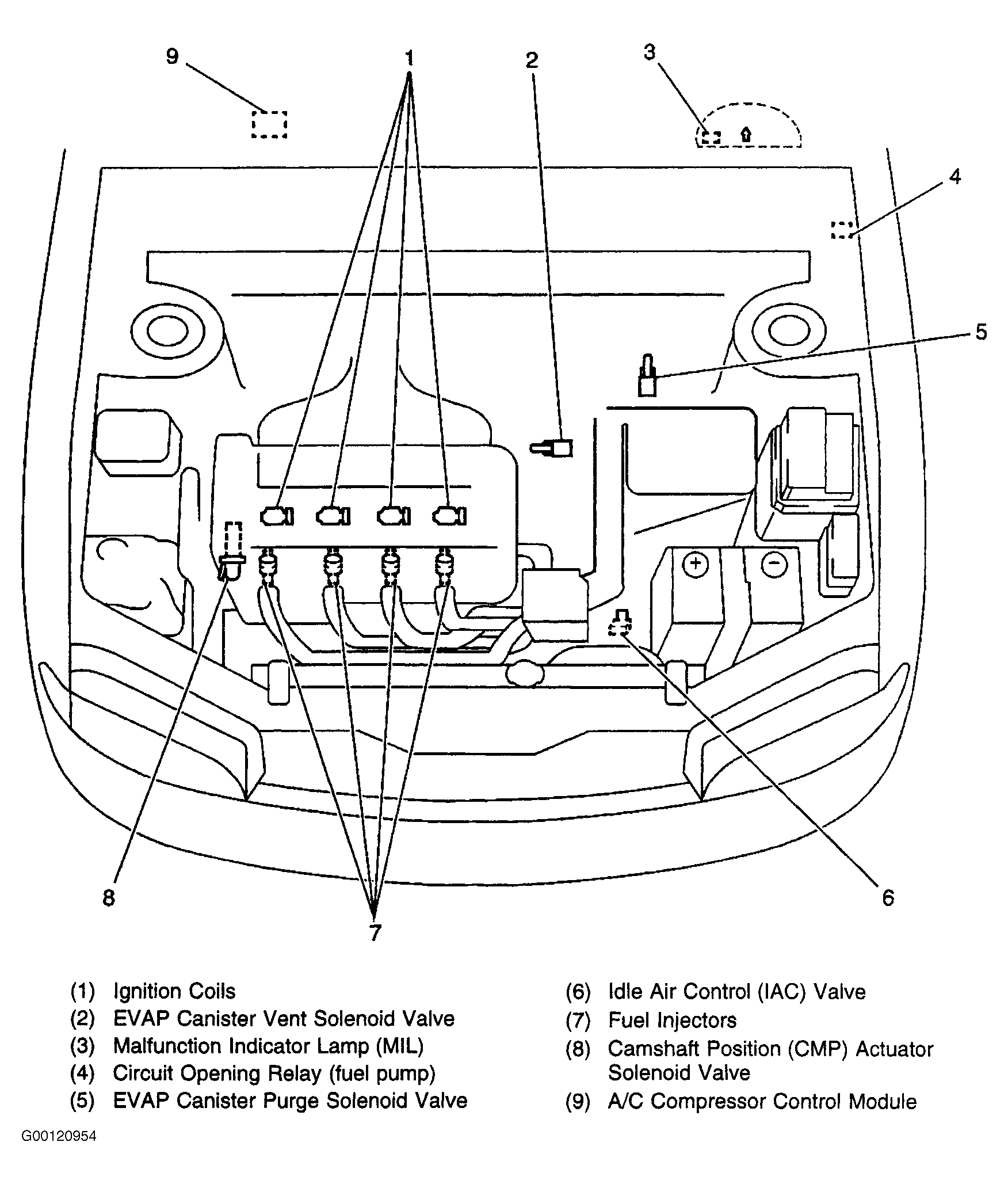

Fig 9: Locating PCM Controlled Devices

Courtesy of GENERAL MOTORS CORP.

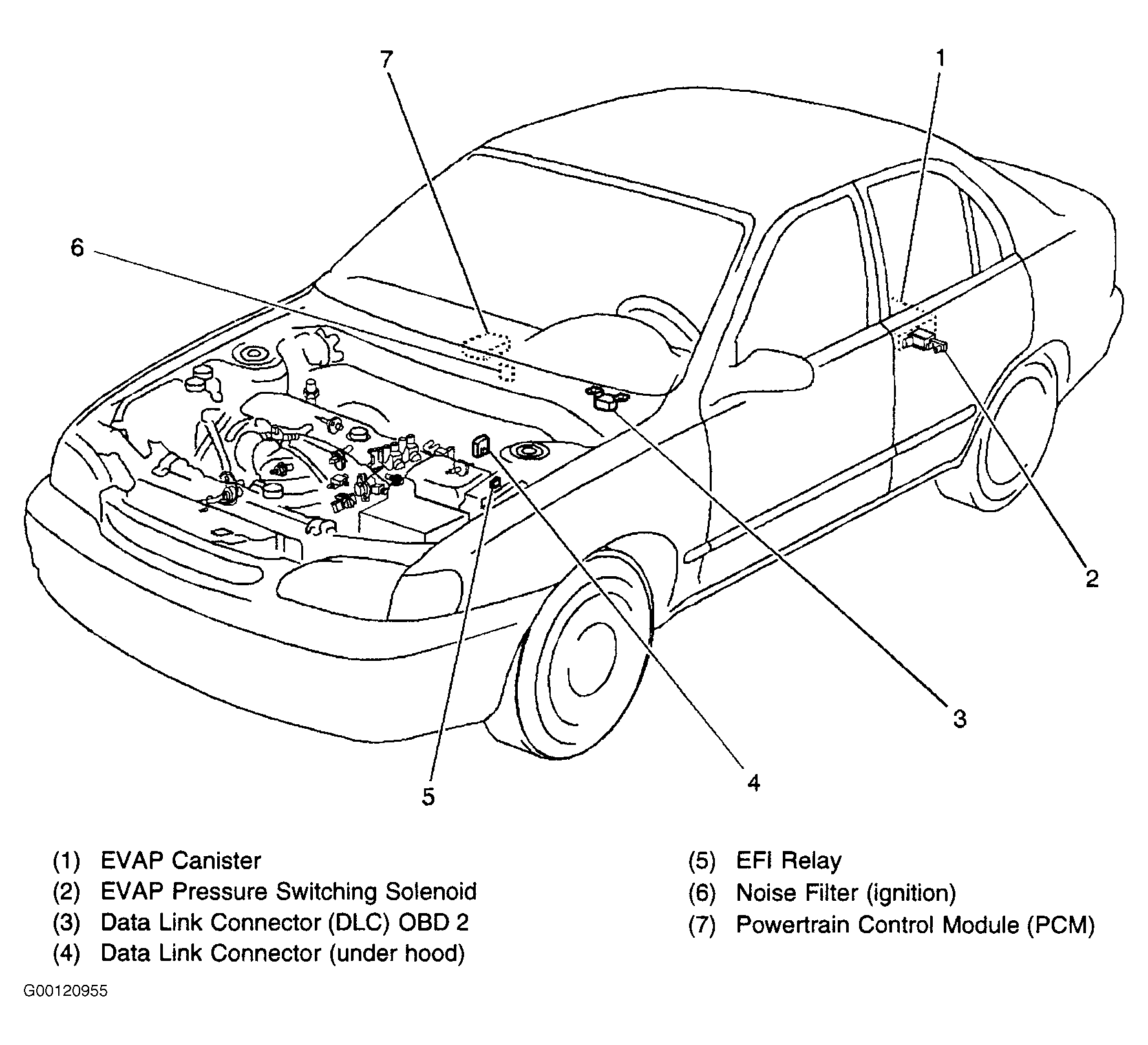

Fig 10: Locating Other Engine Control Devices/Components

Courtesy of GENERAL MOTORS CORP.
