Connector Identification

Fig 1: Identifying PCM Harness Connector C1 Terminals (M/T & 3-Speed A/T Only)
G00120956Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying PCM Harness Connector C2 Terminals (M/T & 3-Speed A/T Only)
G00120957Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying PCM Harness Connector C3 Terminals (M/T & 3-Speed A/T Only)
G00120958Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying PCM Harness Connector C1 Terminals (4-Speed A/T Only)
G00120959Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying PCM Harness Connector C2 Terminals (4-Speed A/T Only)
G00120960Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying PCM Harness Connector C3 Terminals (4-Speed A/T Only)
G00120961Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying PCM Harness Connector C4 Terminals (4-Speed A/T Only)
G00120962Courtesy of GENERAL MOTORS CORP.

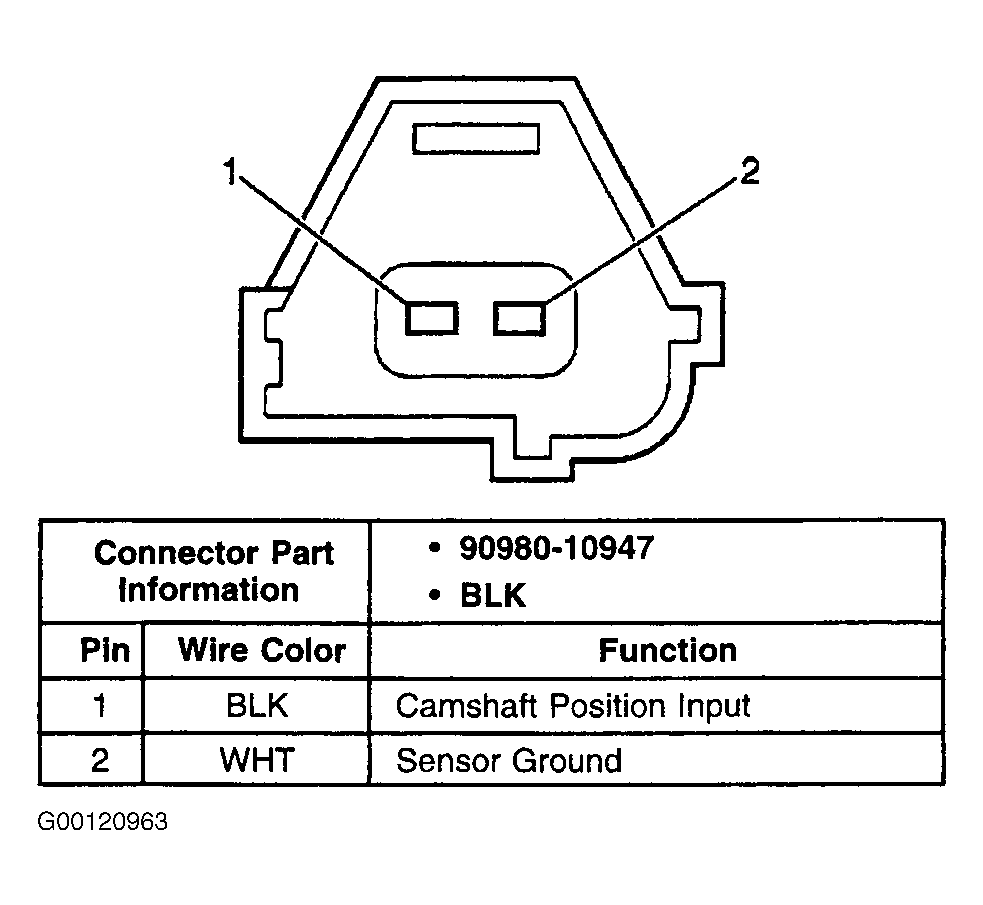

Fig 8: Identifying Camshaft Position (CMP) Sensor Harness Connector Terminals
G00120963Courtesy of GENERAL MOTORS CORP.

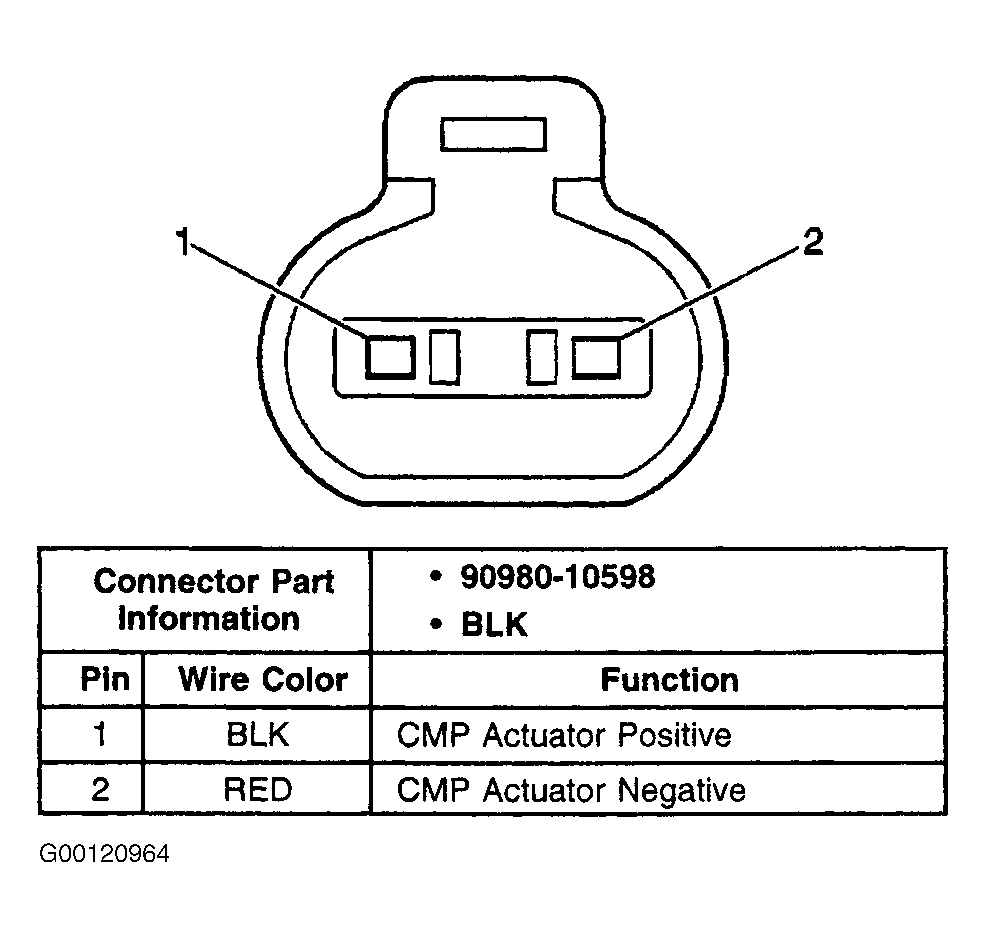

Fig 9: Identifying Camshaft Position (CMP) Actuator Solenoid Harness Connector Terminals
G00120964Courtesy of GENERAL MOTORS CORP.

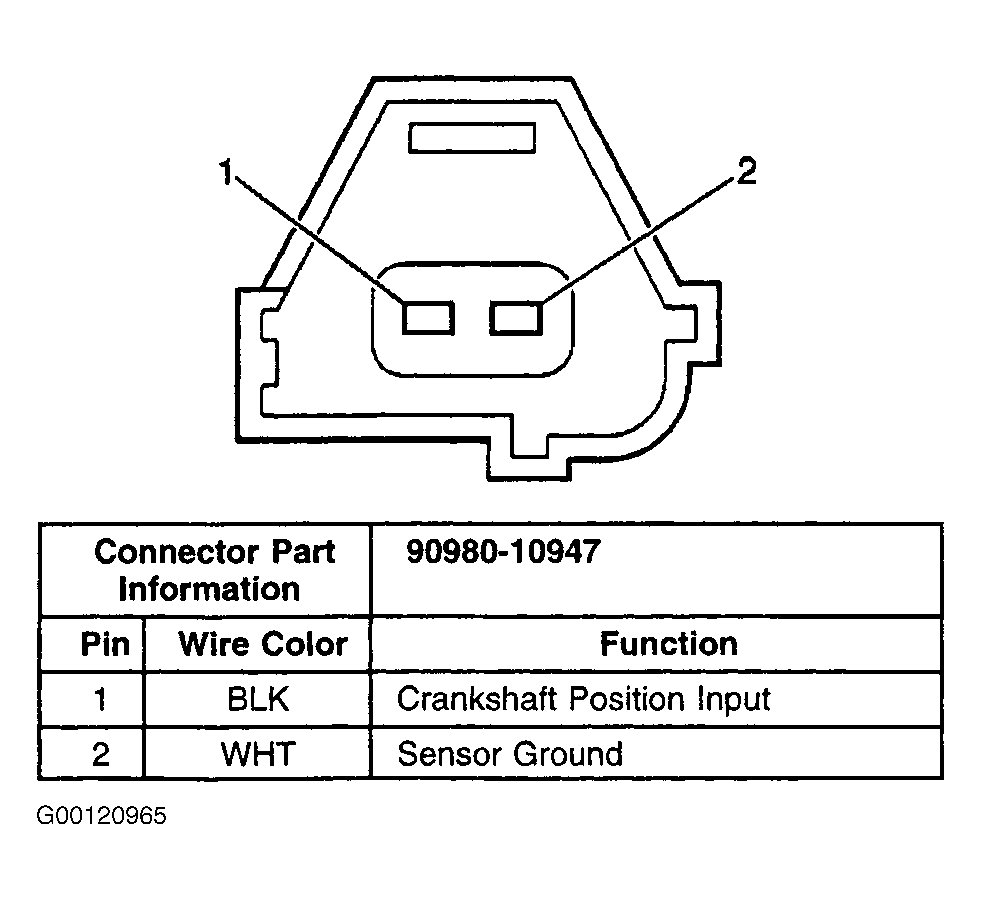

Fig 10: Identifying Crankshaft Position (CKP) Sensor Harness Connector Terminals
G00120965Courtesy of GENERAL MOTORS CORP.

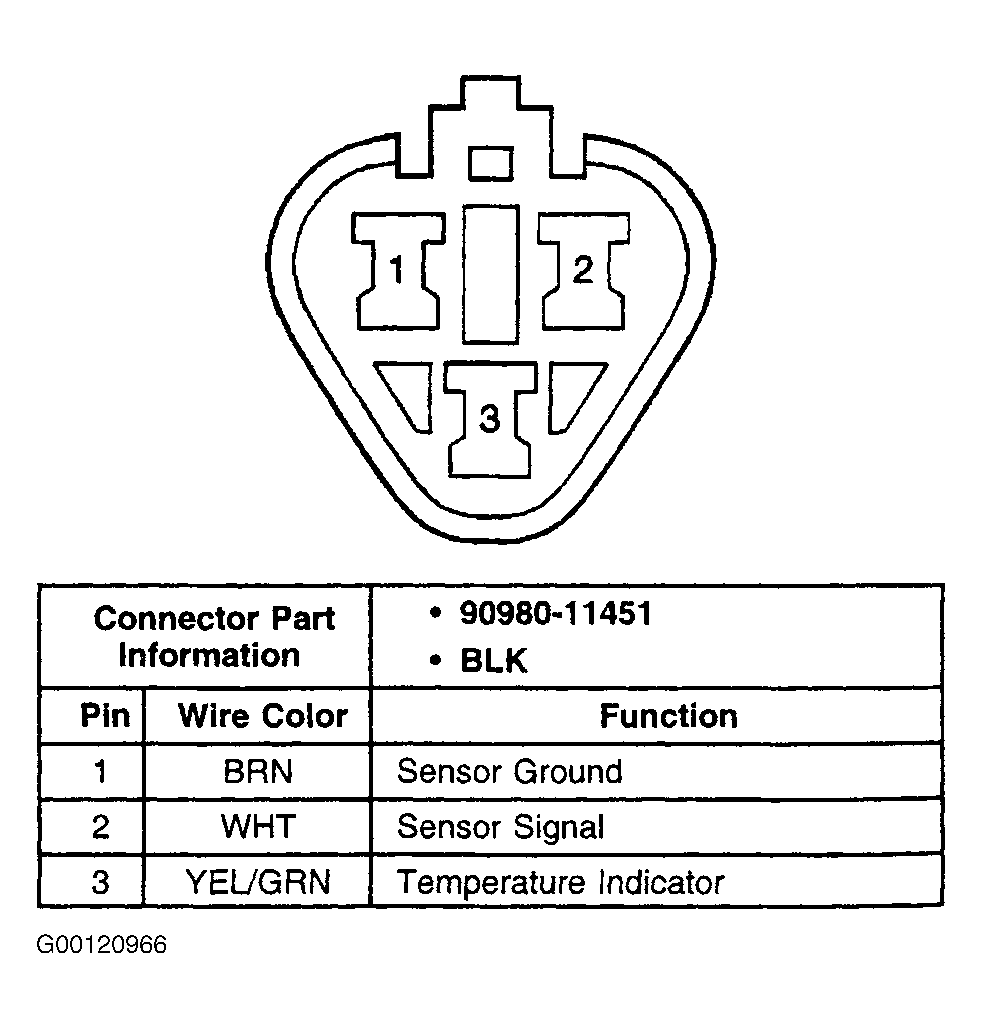

Fig 11: Identifying Engine Coolant Temperature (ECT) Sensor Harness Connector Terminals
G00120966Courtesy of GENERAL MOTORS CORP.

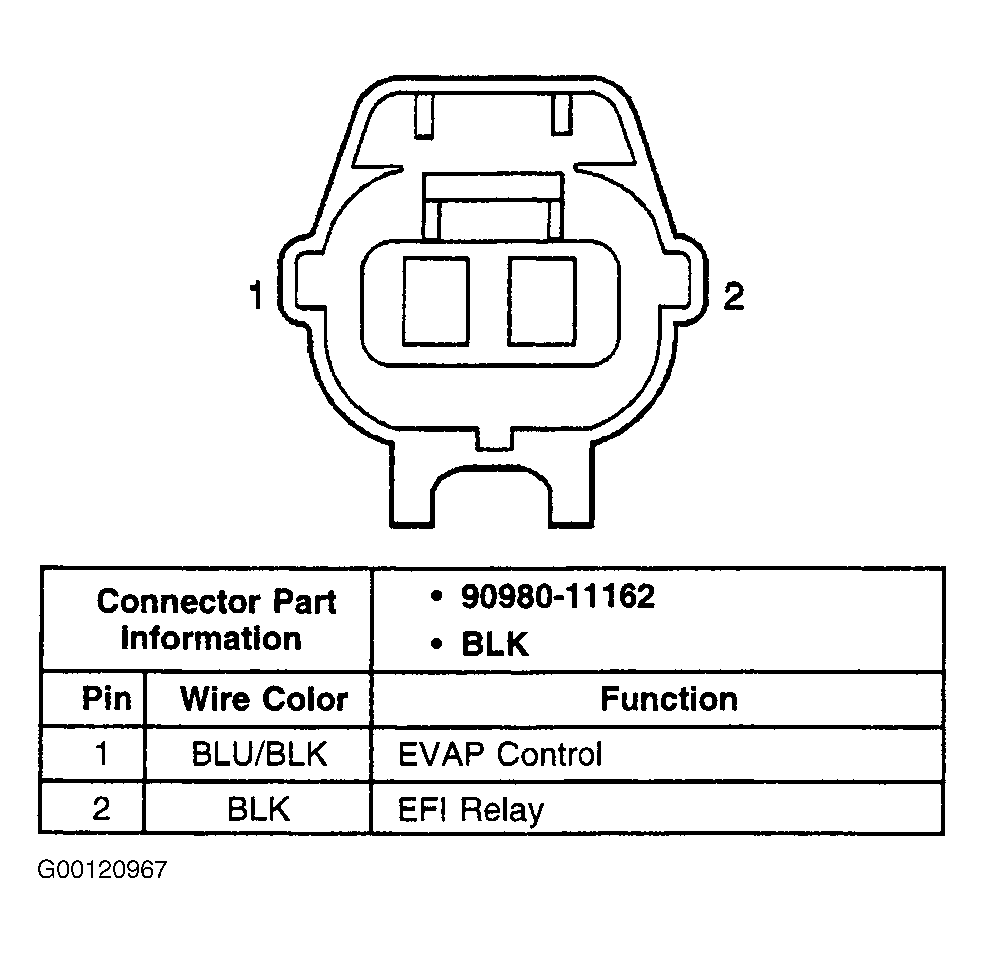

Fig 12: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals
G00120967Courtesy of GENERAL MOTORS CORP.

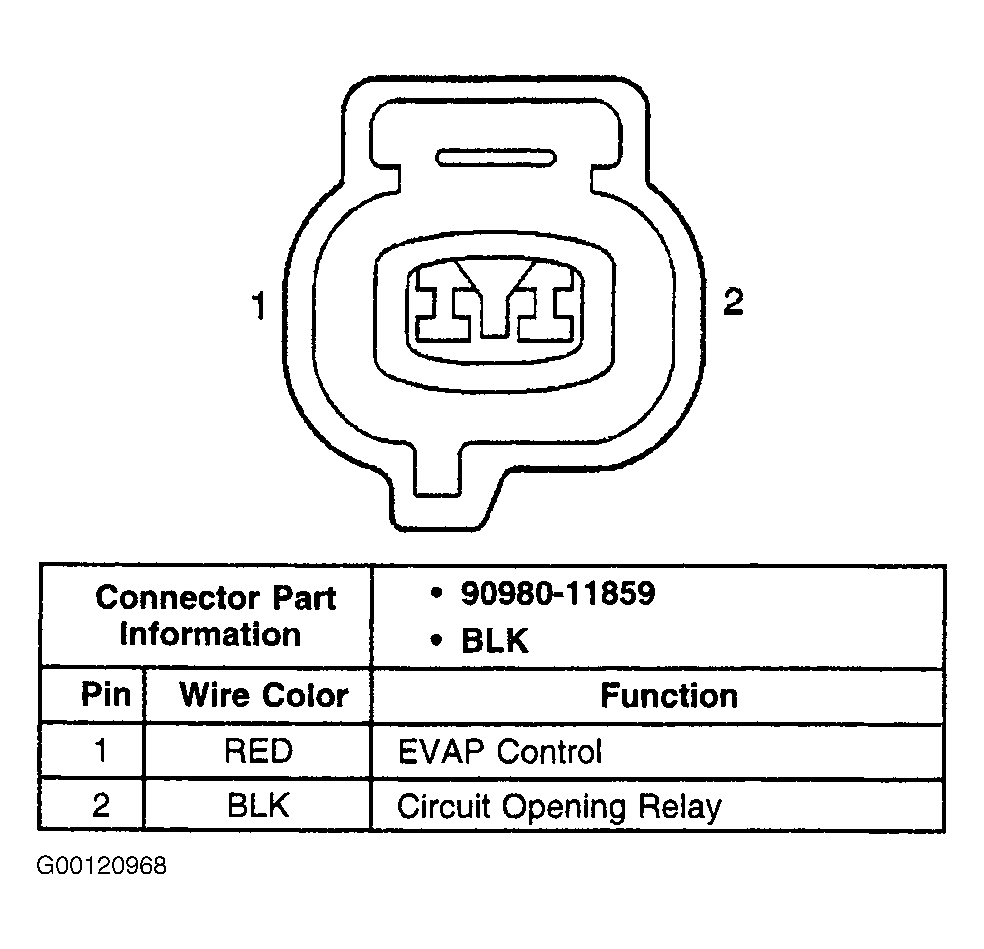

Fig 13: Identifying EVAP Pressure Switching Solenoid Harness Connector Terminals
G00120968Courtesy of GENERAL MOTORS CORP.

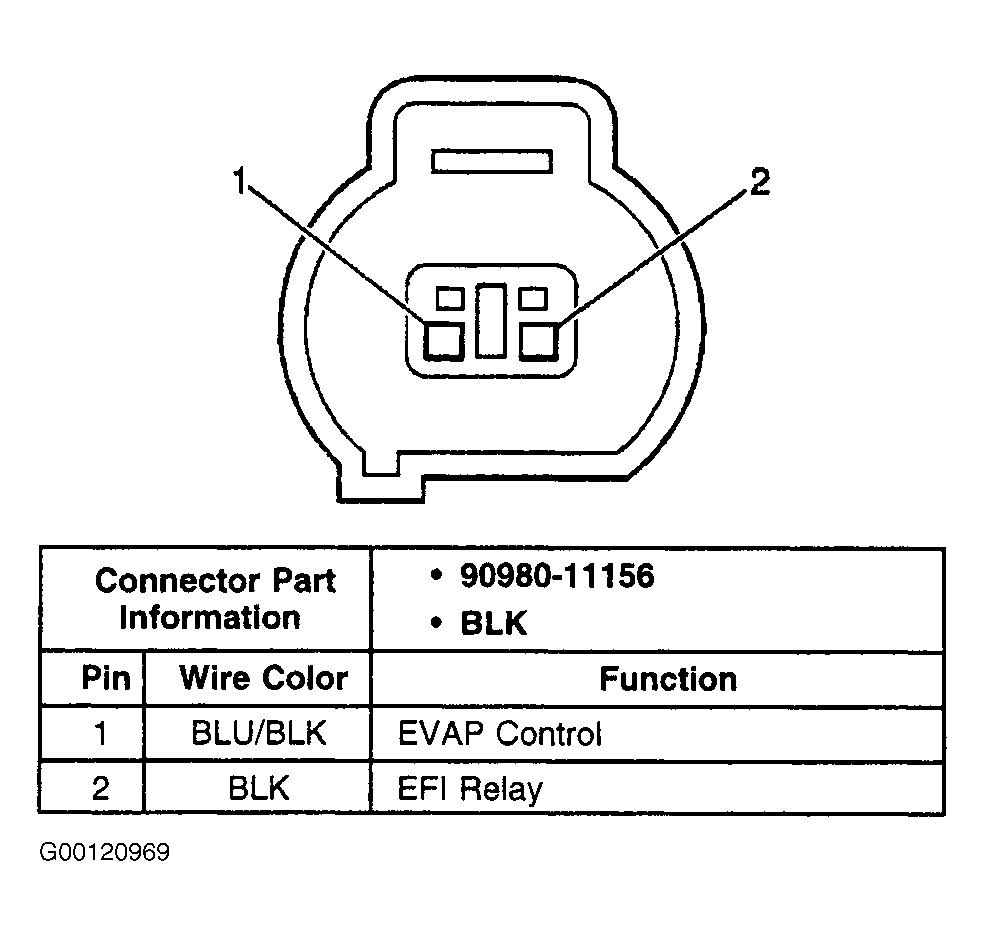

Fig 14: Identifying EVAP Purge Solenoid Valve Harness Connector Terminals
G00120969Courtesy of GENERAL MOTORS CORP.

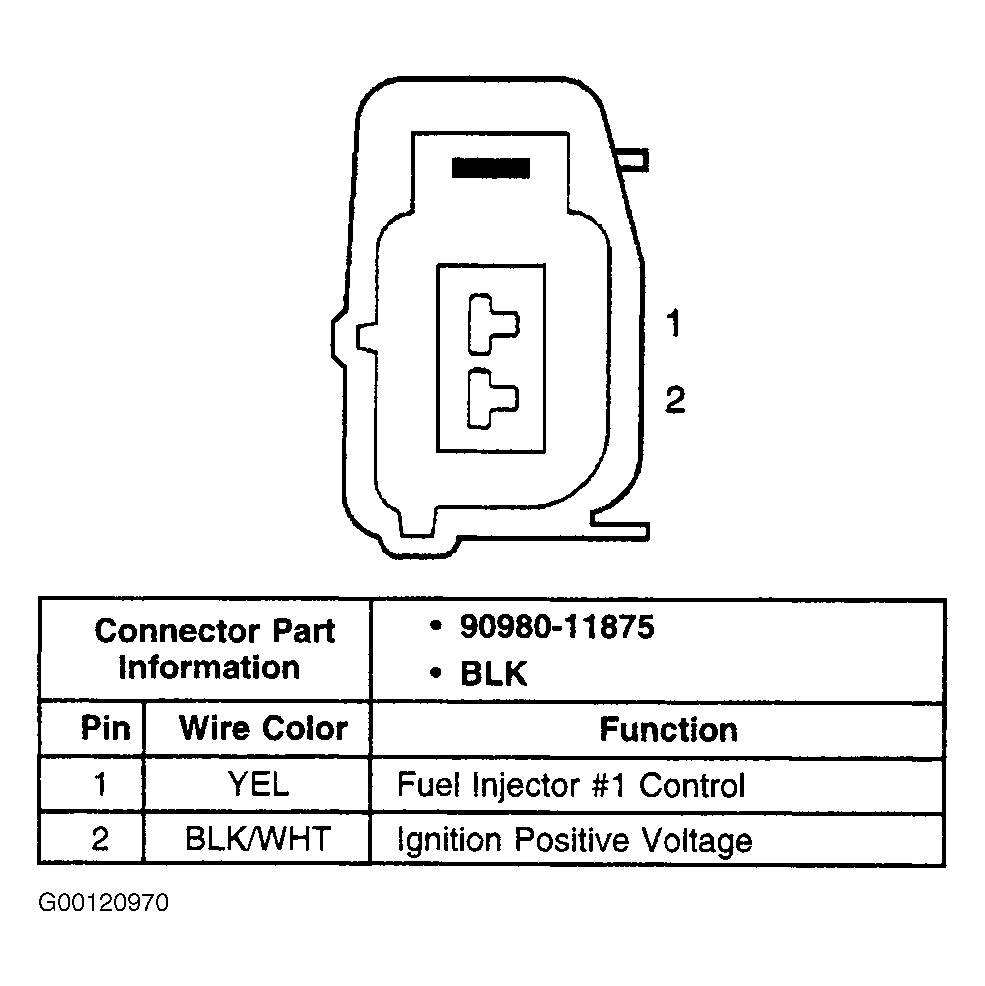

Fig 15: Identifying Fuel Injector No. 1 Harness Connector Terminals
G00120970Courtesy of GENERAL MOTORS CORP.

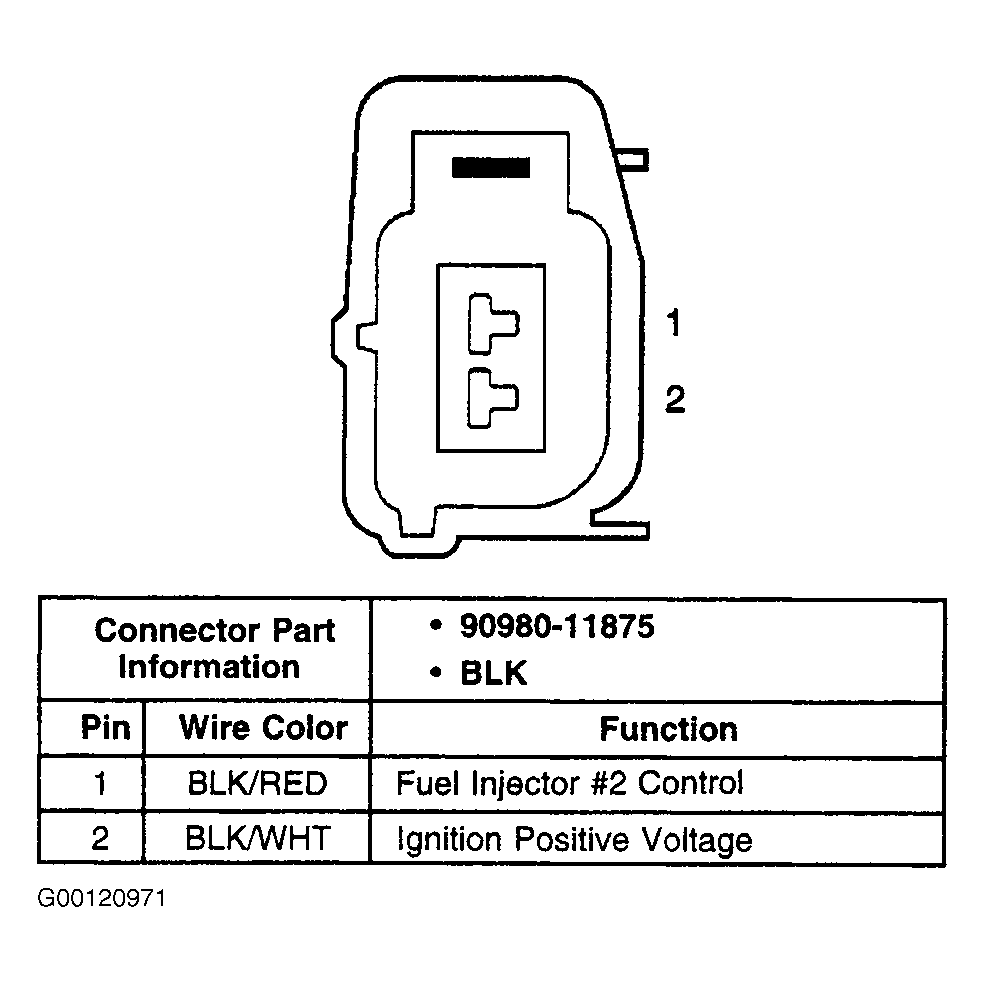

Fig 16: Identifying Fuel Injector No. 2 Harness Connector Terminals
G00120971Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Fuel Injector No. 3 Harness Connector Terminals
G00120972Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Fuel Injector No. 4 Harness Connector Terminals
G00120973Courtesy of GENERAL MOTORS CORP.

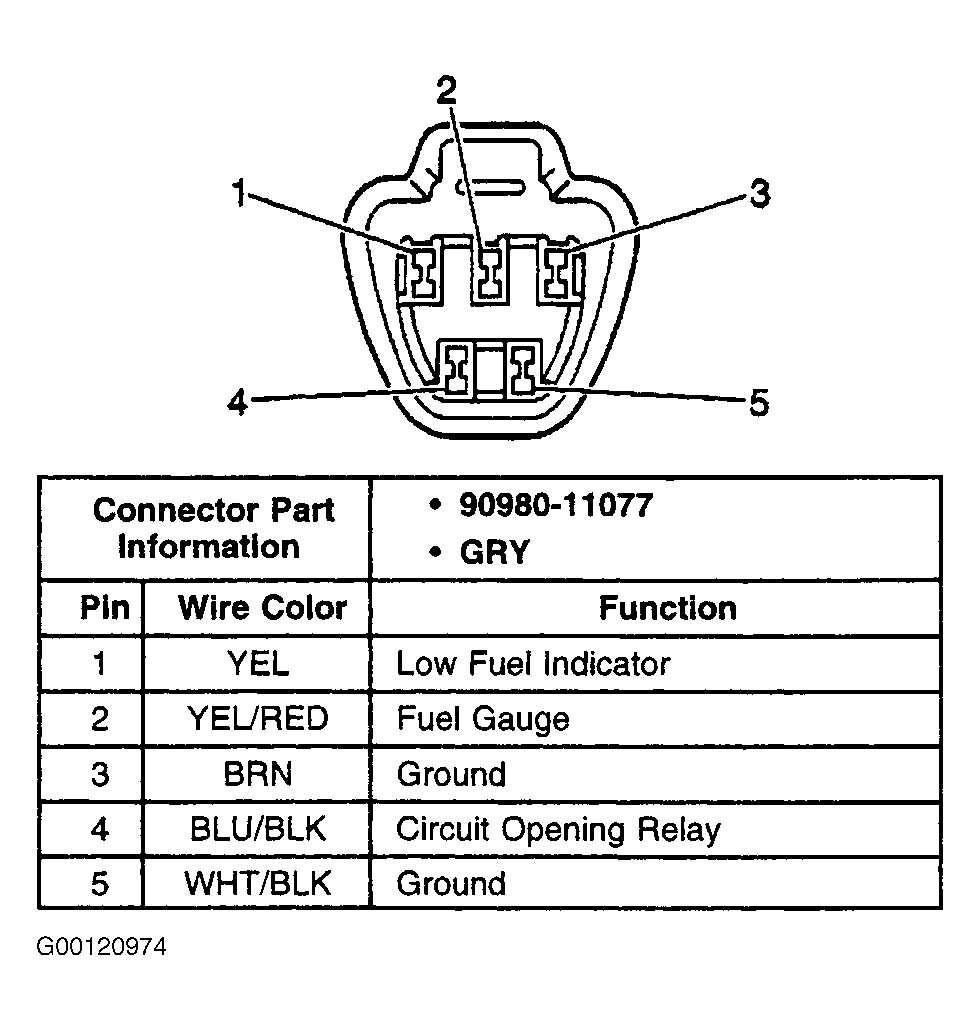

Fig 19: Identifying Fuel Sender Assembly Harness Connector Terminals
G00120974Courtesy of GENERAL MOTORS CORP.

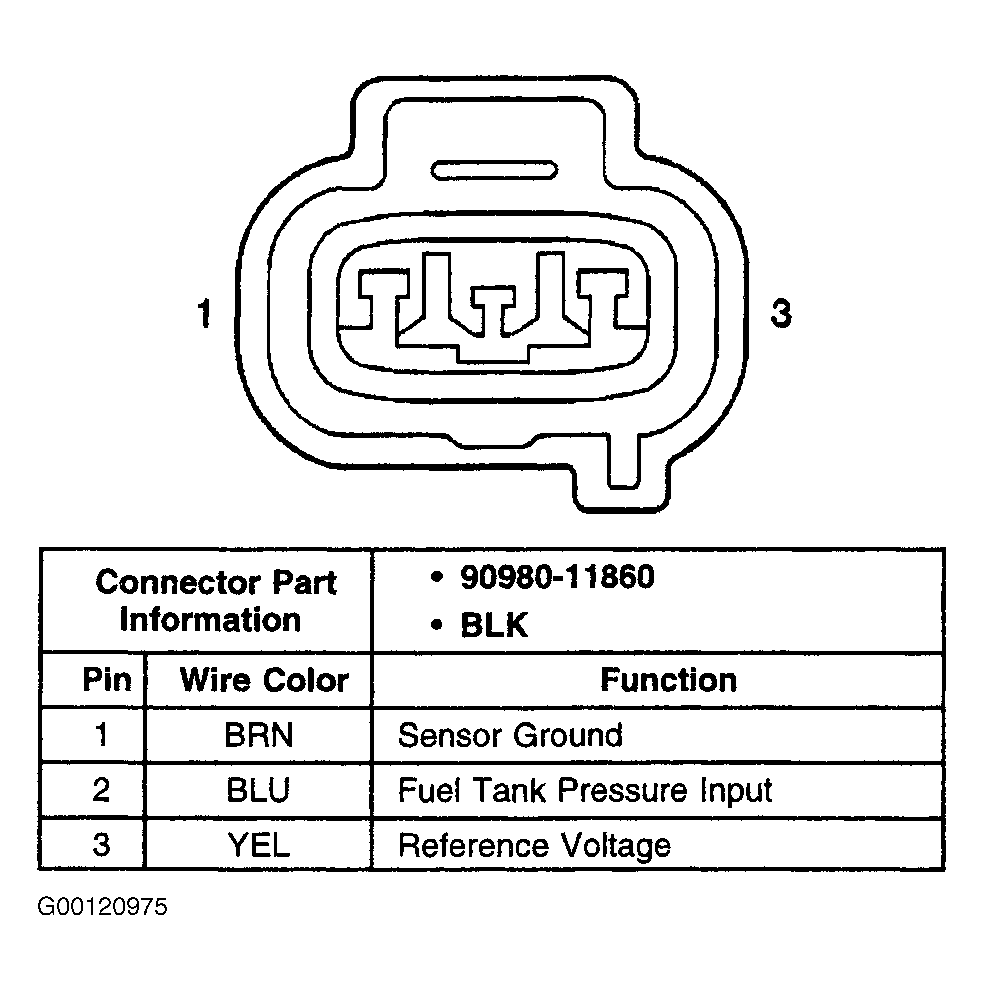

Fig 20: Identifying Fuel Tank Pressure (FTP) Sensor Harness Connector Terminals
G00120975Courtesy of GENERAL MOTORS CORP.

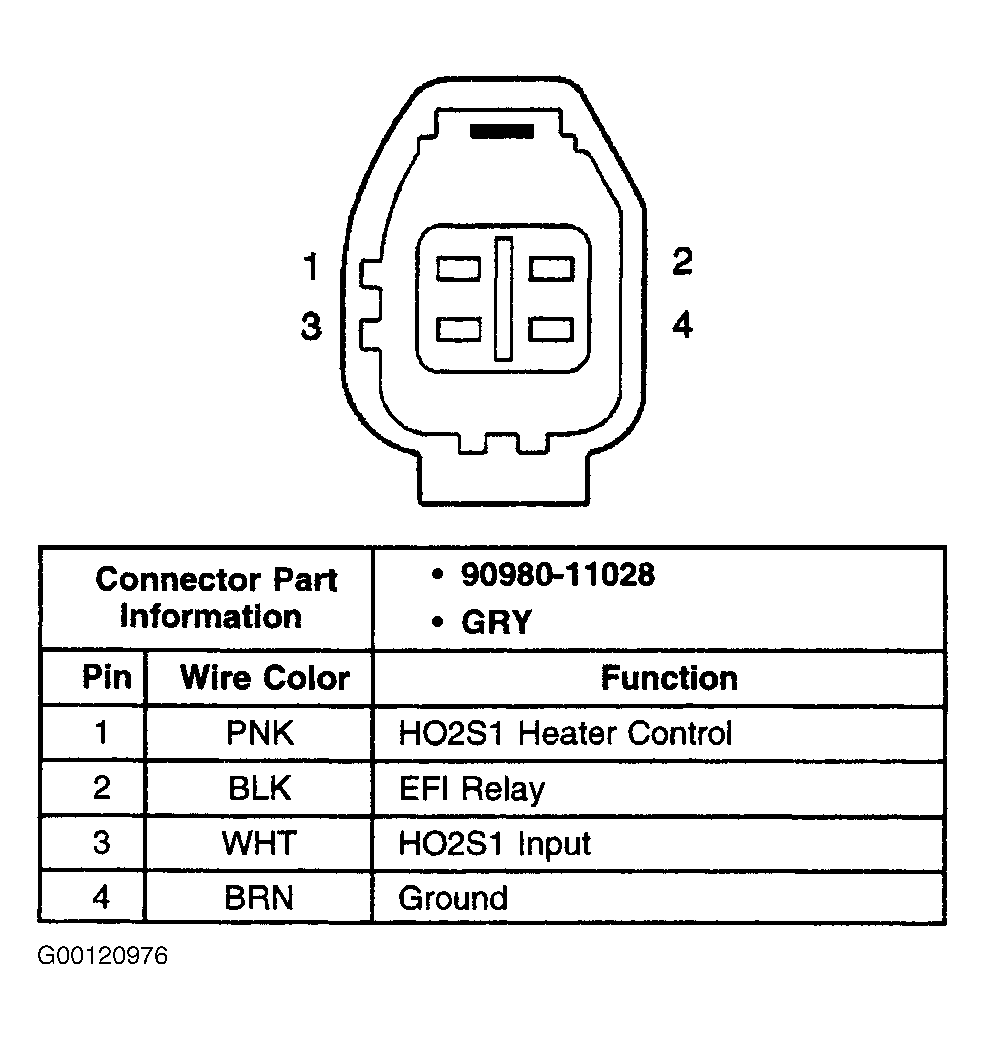

Fig 21: Identifying HO2S No. 1 Harness Connector Terminals
G00120976Courtesy of GENERAL MOTORS CORP.

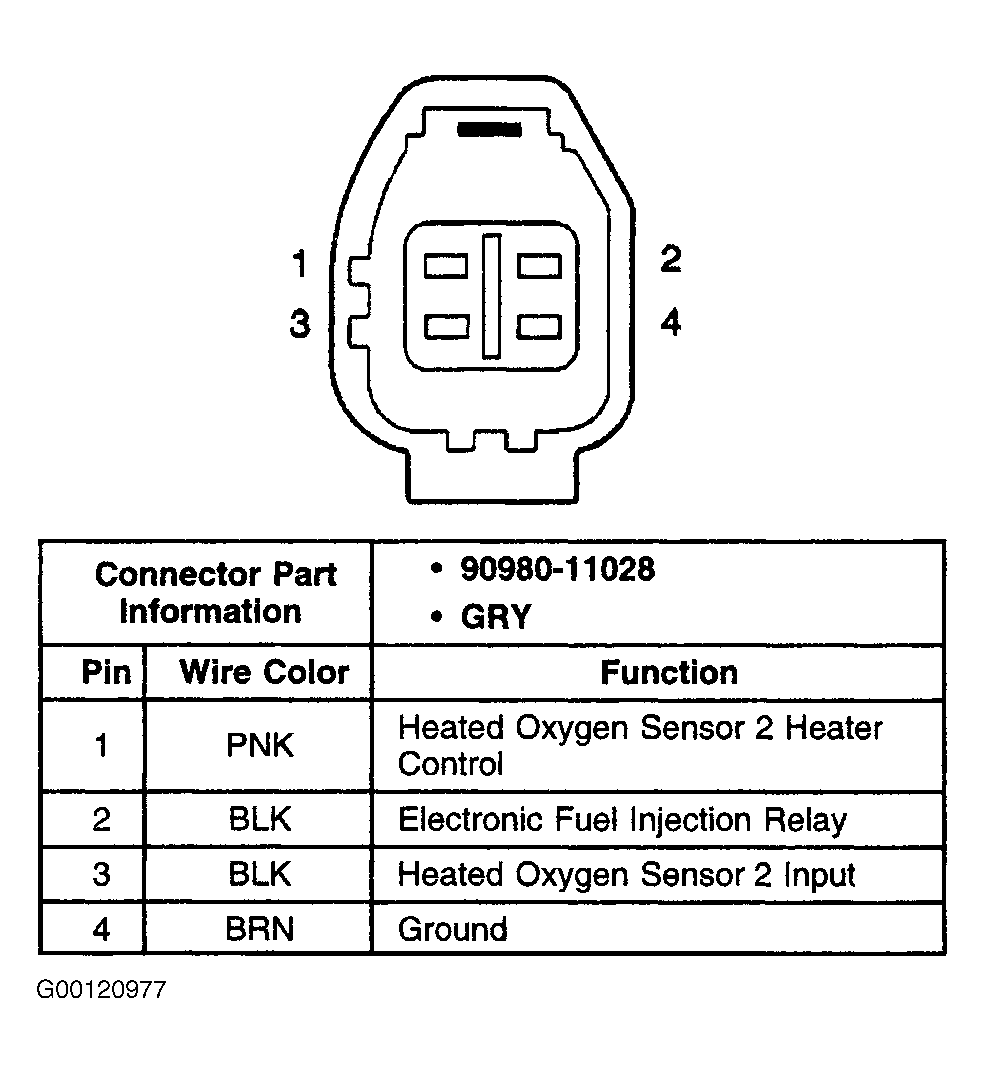

Fig 22: Identifying HO2S No. 2 Harness Connector Terminals
G00120977Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Idle Air Control (IAC) Valve Harness Connector Terminals
G00120978Courtesy of GENERAL MOTORS CORP.

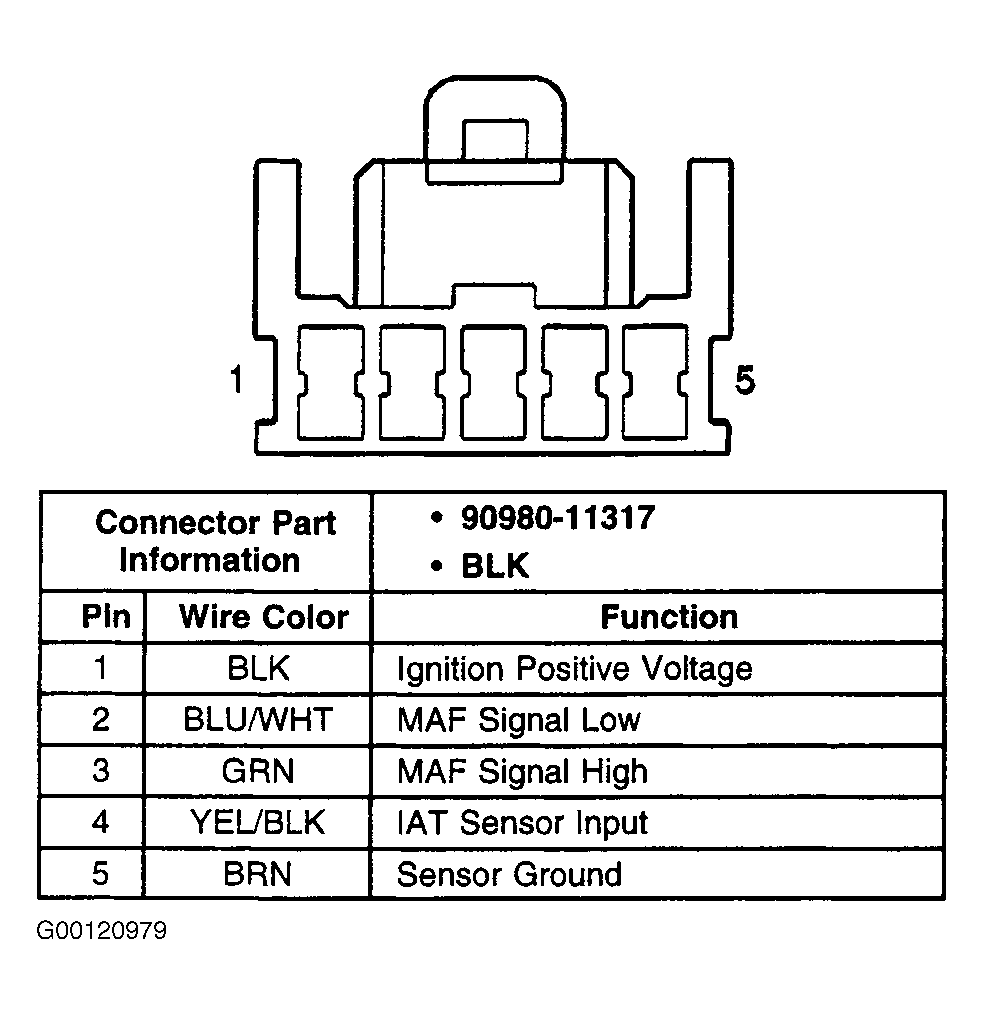

Fig 24: Identifying Mass Airflow (MAF) Sensor Harness Connector Terminals
G00120979Courtesy of GENERAL MOTORS CORP.

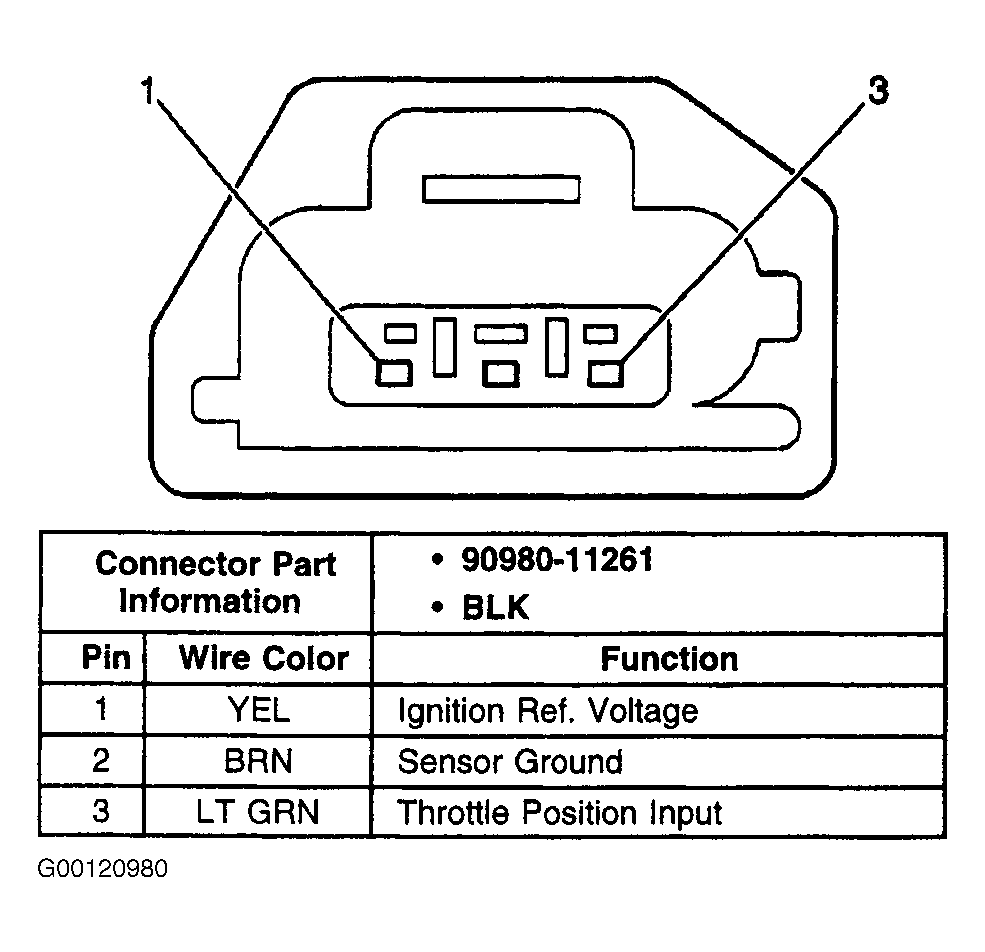

Fig 25: Identifying Throttle Position (TP) Sensor Harness Connector Terminals
G00120980Courtesy of GENERAL MOTORS CORP.
