Installation Procedure

NOTE: The inlet and outlet hoses must not be twisted during installation. Do not bend or distort the inlet or outlet hoses to make installation easier. Failure to follow these procedures could result in component damage.
  1. Install the power steering gear inlet pipe with clips and the intermediate outlet pipe to the vehicle. Secure with the LH clip bolt (12) and the RH clip bolt to the intermediate outlet pipe clip (14). DO NOT tighten the bolts.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the power steering gear inlet pipe (4) to the steering gear (7).

    Tighten

    Tighten the pipe fitting to 25 N.m (18 lb ft).

  3. Install the intermediate outlet pipe to the hose portion of the power steering gear outlet pipe. Secure with the hose clamp.

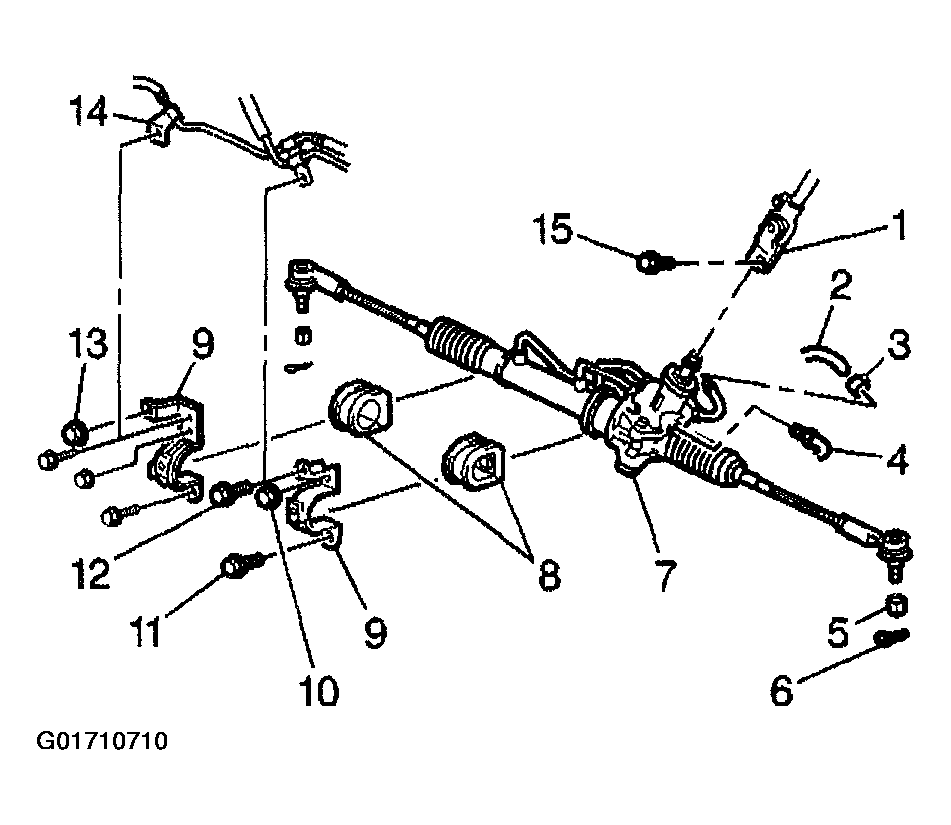

    Fig 1: Installing Power Steering Gear Inlet Pipe To Steering Gear
    G01710710Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering gear inlet pipe to the power steering pump (2). Secure with the hose fitting.

    Tighten

    Tighten the hose fitting to 54 N.m (40 lb ft).

  5. Install the power steering pressure switch (1) to the power steering inlet pipe/hose.

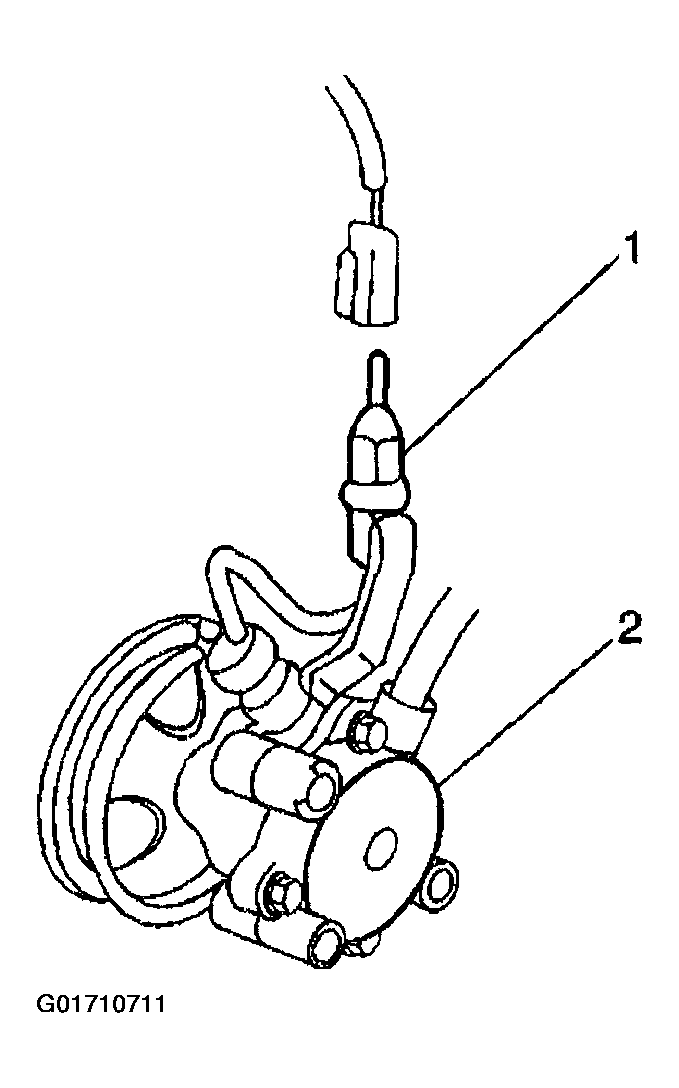

    Fig 2: Installing Power Steering Pressure Switch
    G01710711Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the power steering pressure switch to 21 N.m (15 lb ft).

  6. Connect the power steering pressure switch electrical connector.
  7. Tighten the 2 pipe clip bolts.

    Tighten

    Tighten the bolts to 5.4 N.m (48 lb in).

  8. Install the power steering gear outlet pipe heat shield. Secure with the 3 bolts.

    Tighten

    Tighten the bolts to 5.4 N.m (48 lb in).

    NOTE: When adding fluid or making a complete fluid change, always use the proper power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.
  9. Fill the power steering fluid reservoir. Refer to Checking and Adding Power Steering Fluid .
    NOTE: If the power steering system has been serviced, an accurate fluid level reading cannot be obtained unless air is bled from the steering system. The air in the fluid may cause pump cavitation noise and may cause pump damage over a period of time.
  10. Bleed the power steering system. Refer to Bleeding the Power Steering System .
