Component Locations

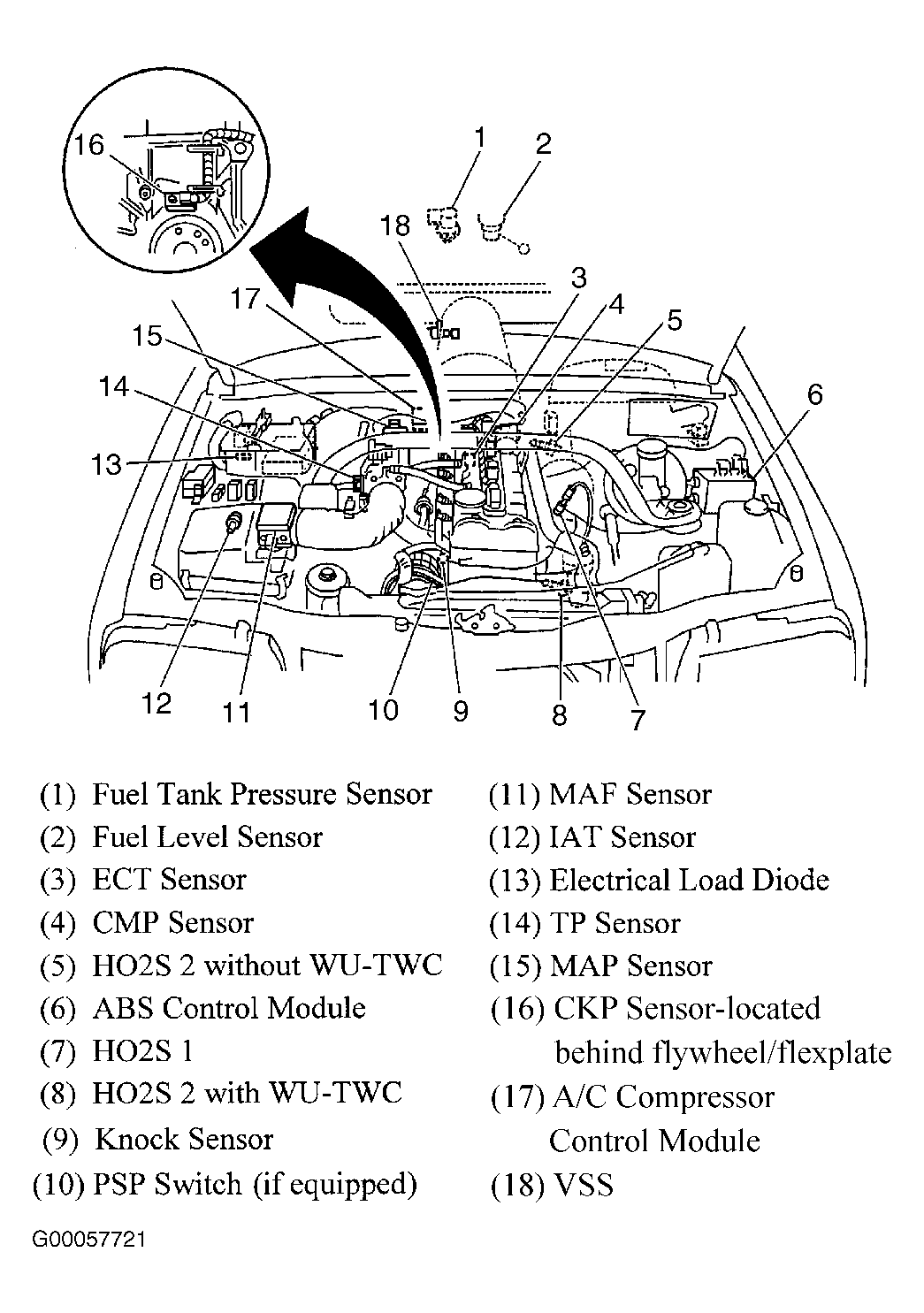

Fig 1: Locating Information Sensors & Input Devices

Courtesy of GENERAL MOTORS CORP.

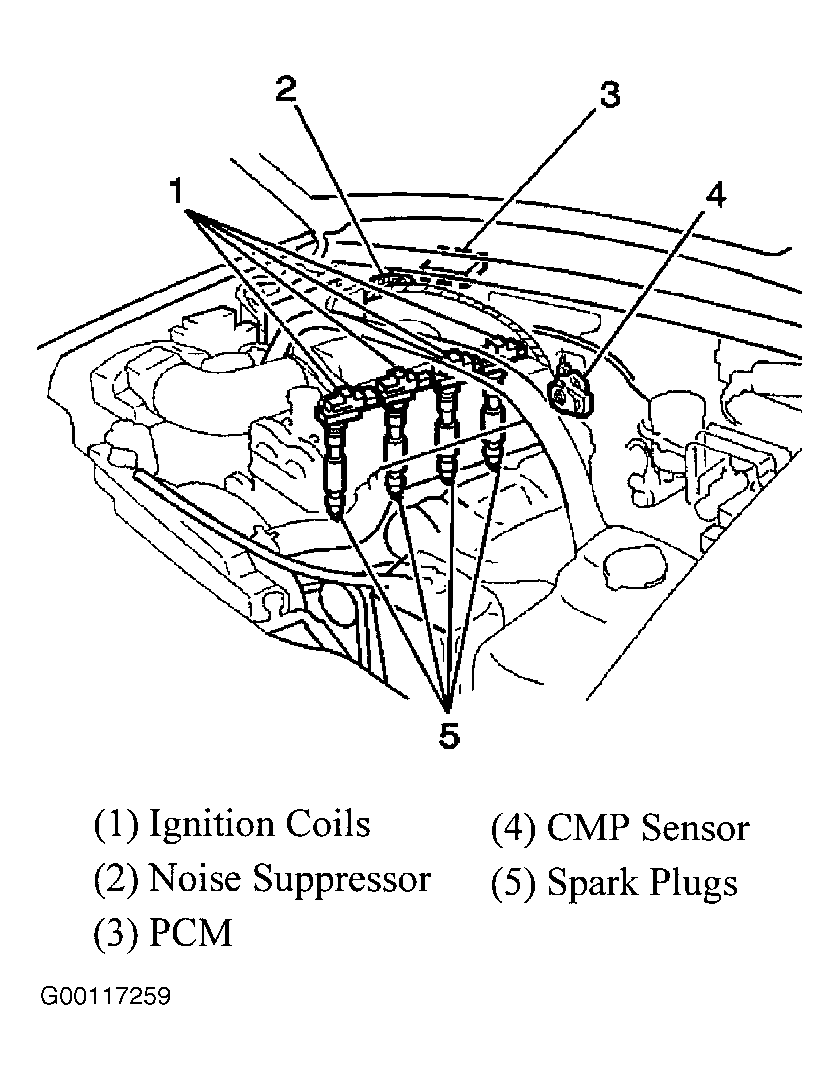

Fig 2: Locating Ignition System Components

Courtesy of GENERAL MOTORS CORP.

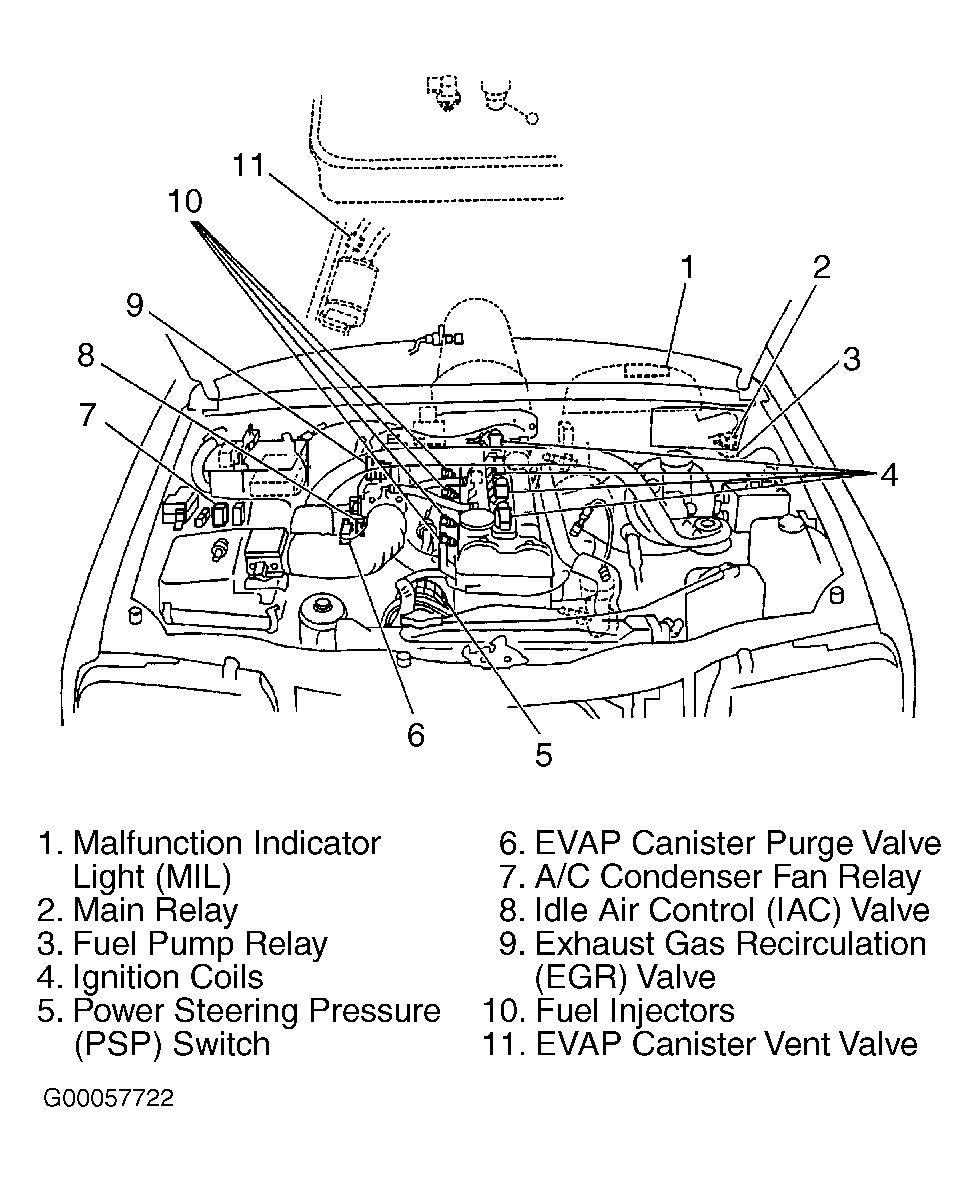

Fig 3: Locating PCM Controlled Devices

Courtesy of GENERAL MOTORS CORP.

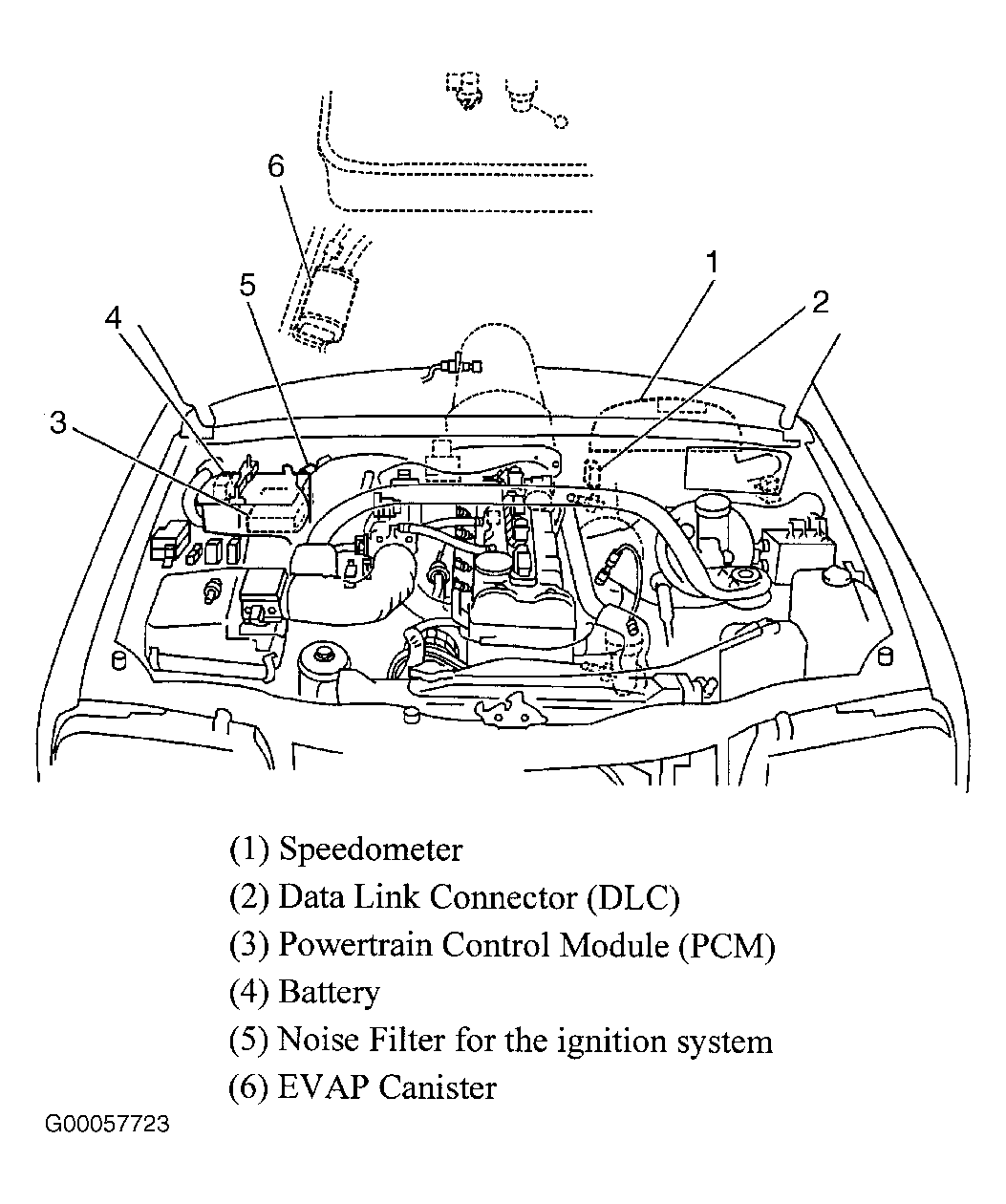

Fig 4: Locating Other Engine Control System Components

Courtesy of GENERAL MOTORS CORP.

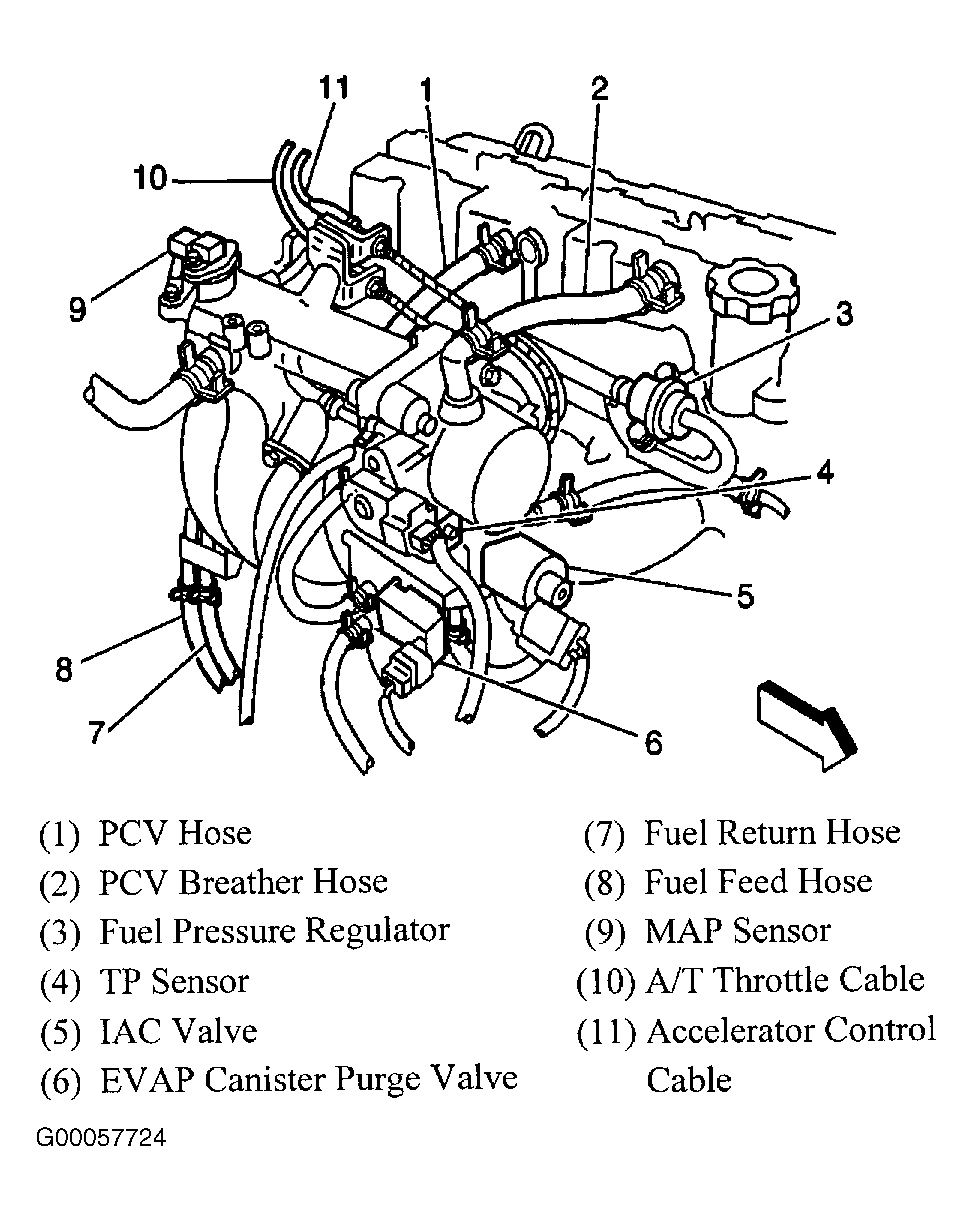

Fig 5: Locating ORVR Components In Engine Compartment

Courtesy of GENERAL MOTORS CORP.

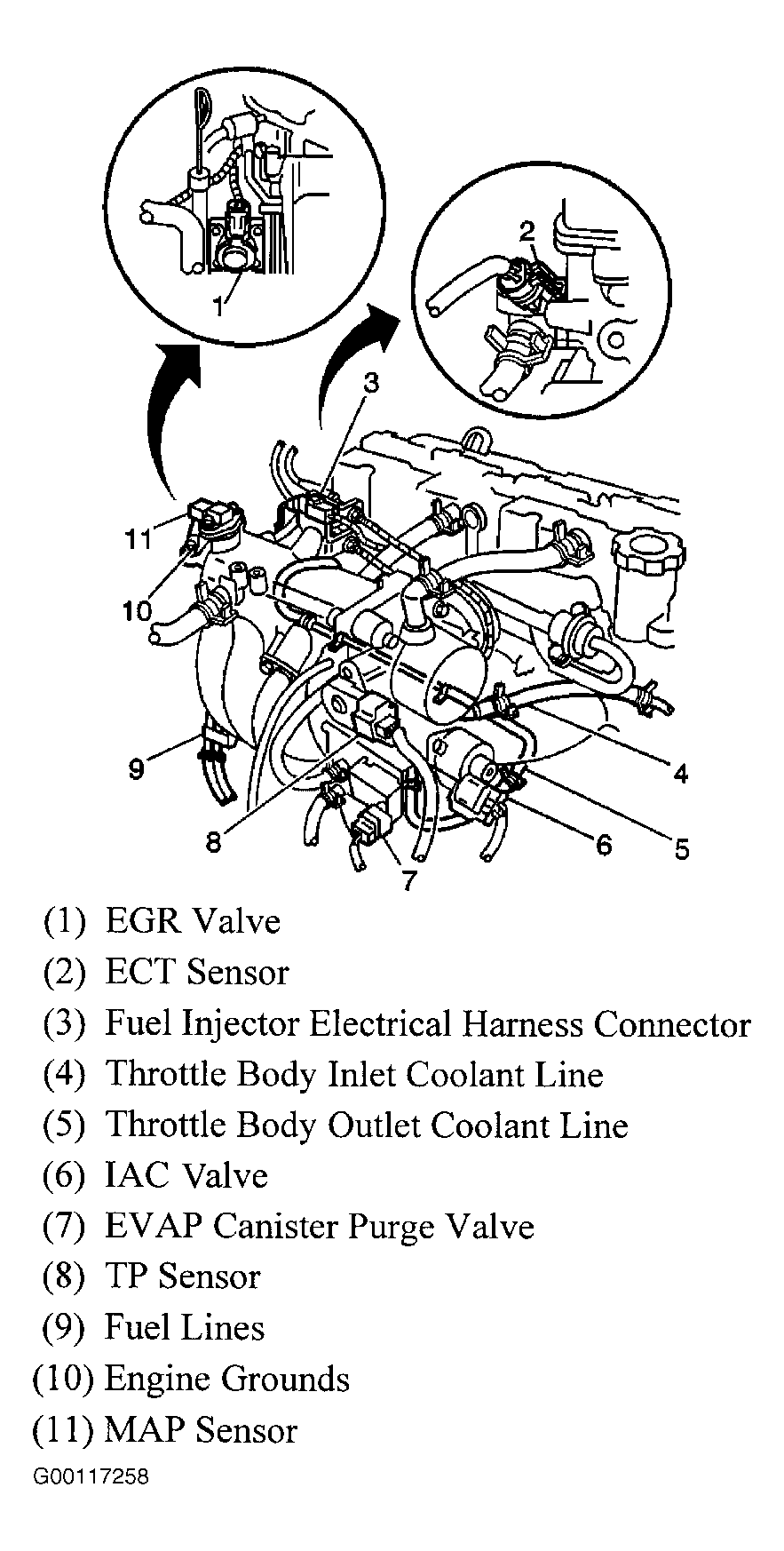

Fig 6: Locating ECT Sensor & EGR Valve

Courtesy of GENERAL MOTORS CORP.
