Connector Identification

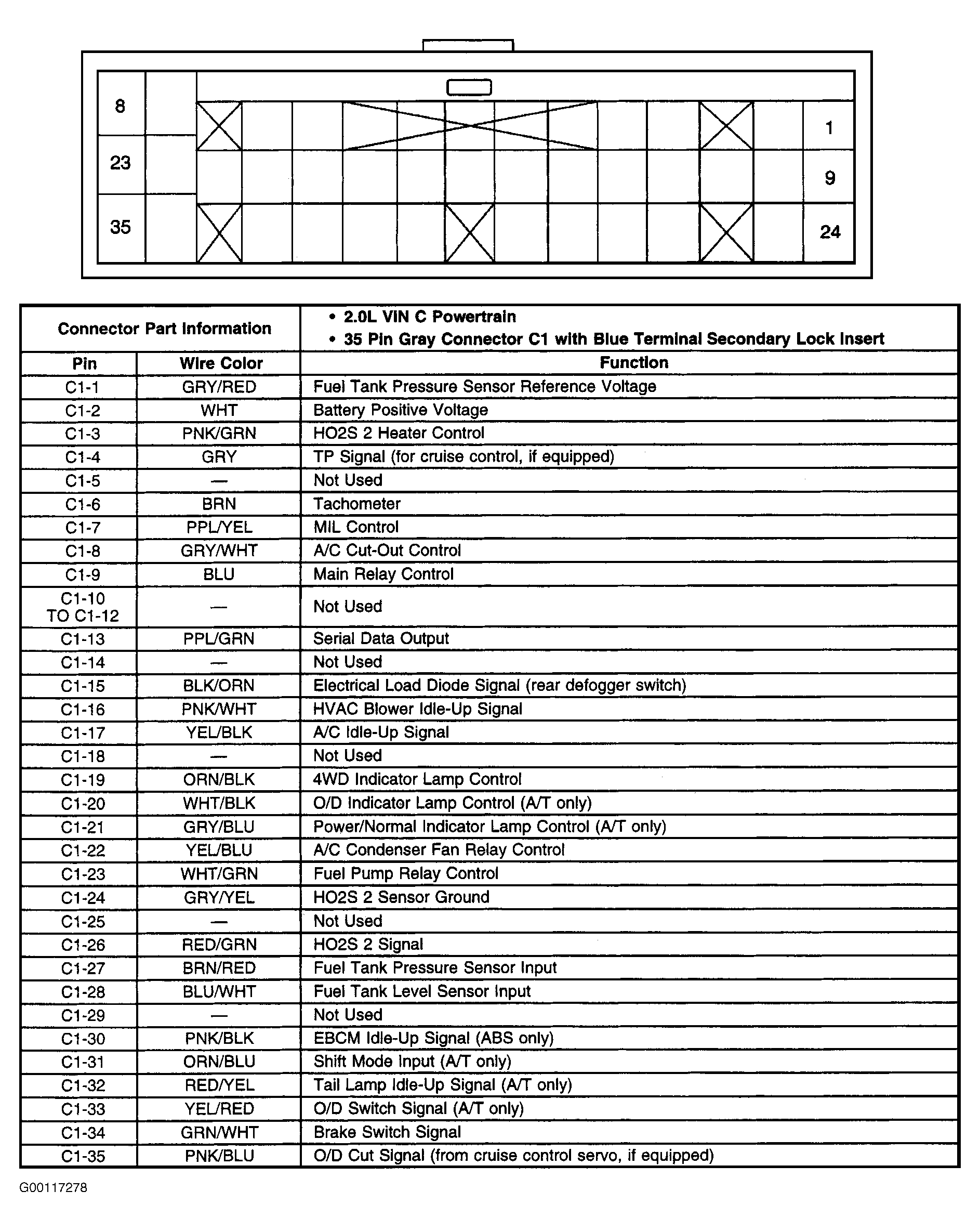

Fig 1: Identifying PCM Harness Connector C1 Terminals

G00117278

Courtesy of GENERAL MOTORS CORP.

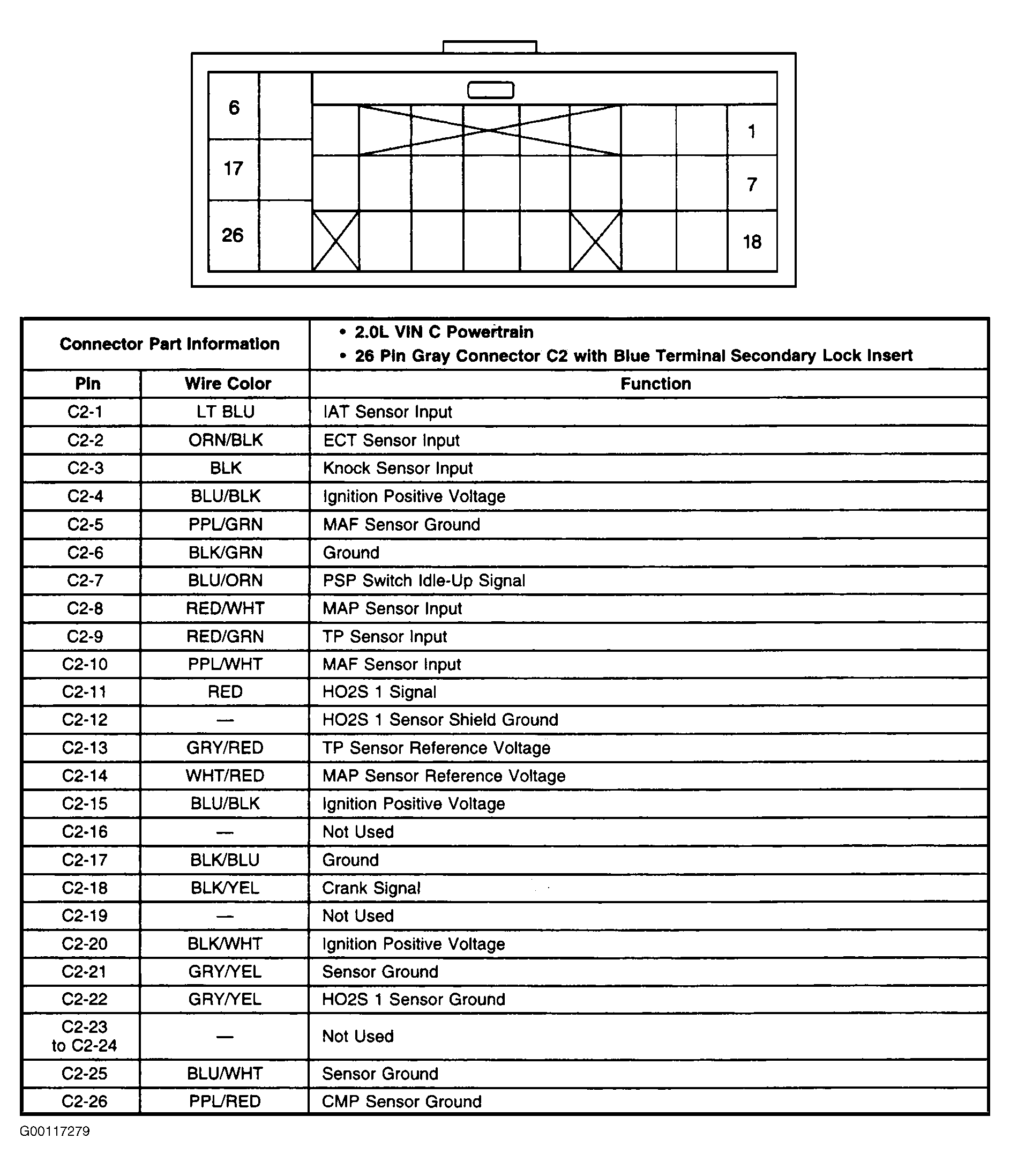

Fig 2: Identifying PCM Harness Connector C2 Terminals

G00117279

Courtesy of GENERAL MOTORS CORP.

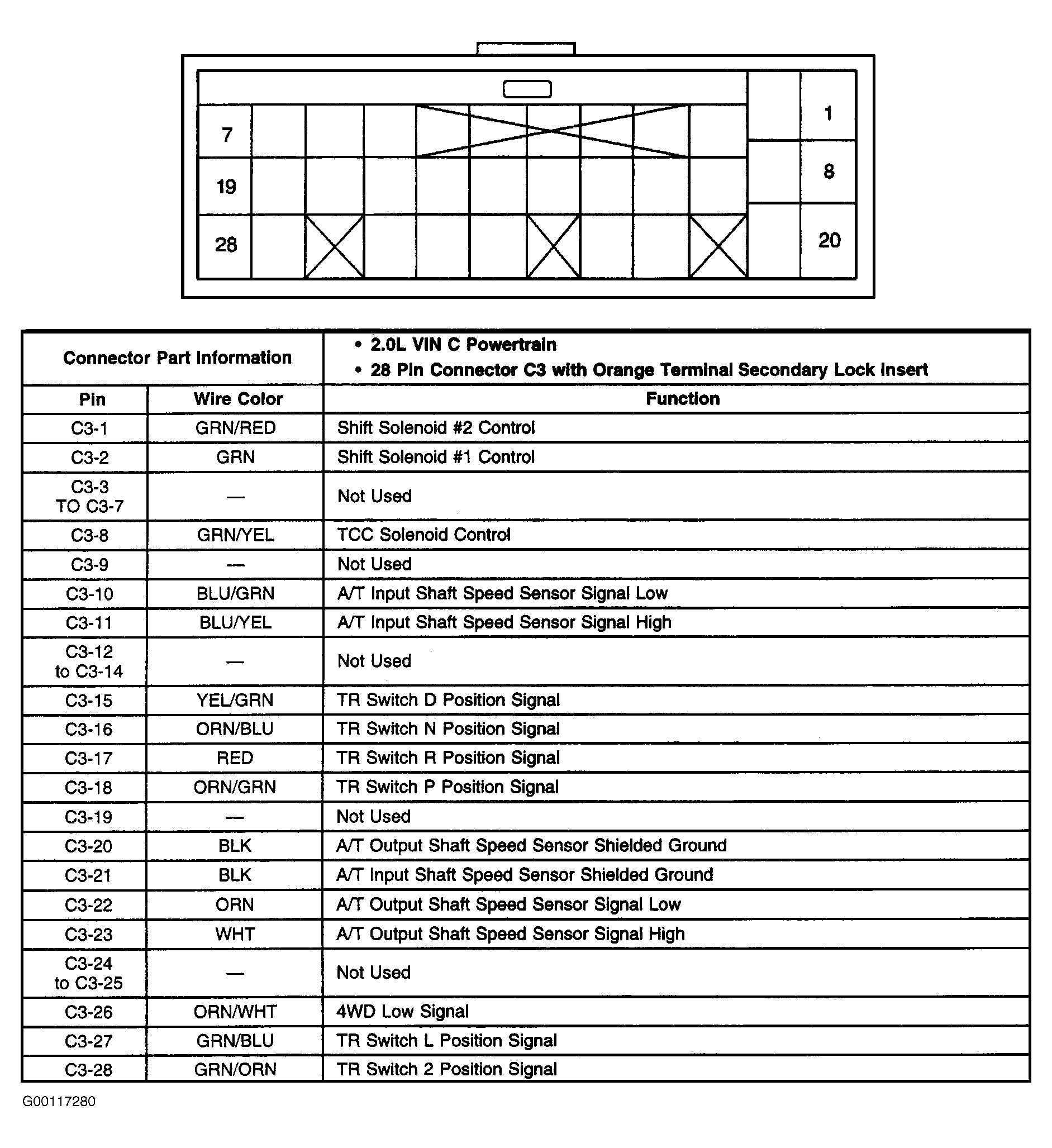

Fig 3: Identifying PCM Harness Connector C3 Terminals

G00117280

Courtesy of GENERAL MOTORS CORP.

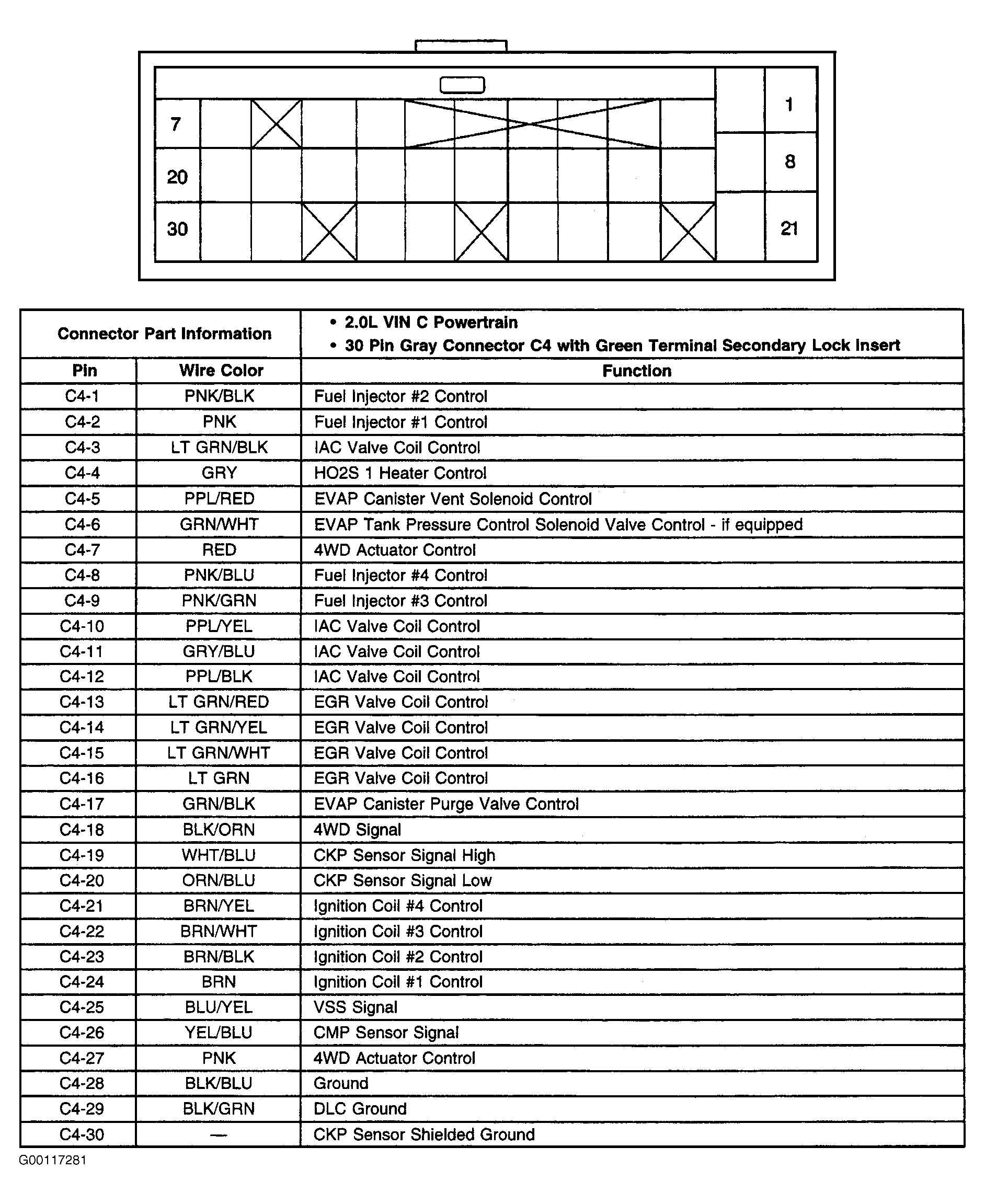

Fig 4: Identifying PCM Harness Connector C4 Terminals

G00117281

Courtesy of GENERAL MOTORS CORP.

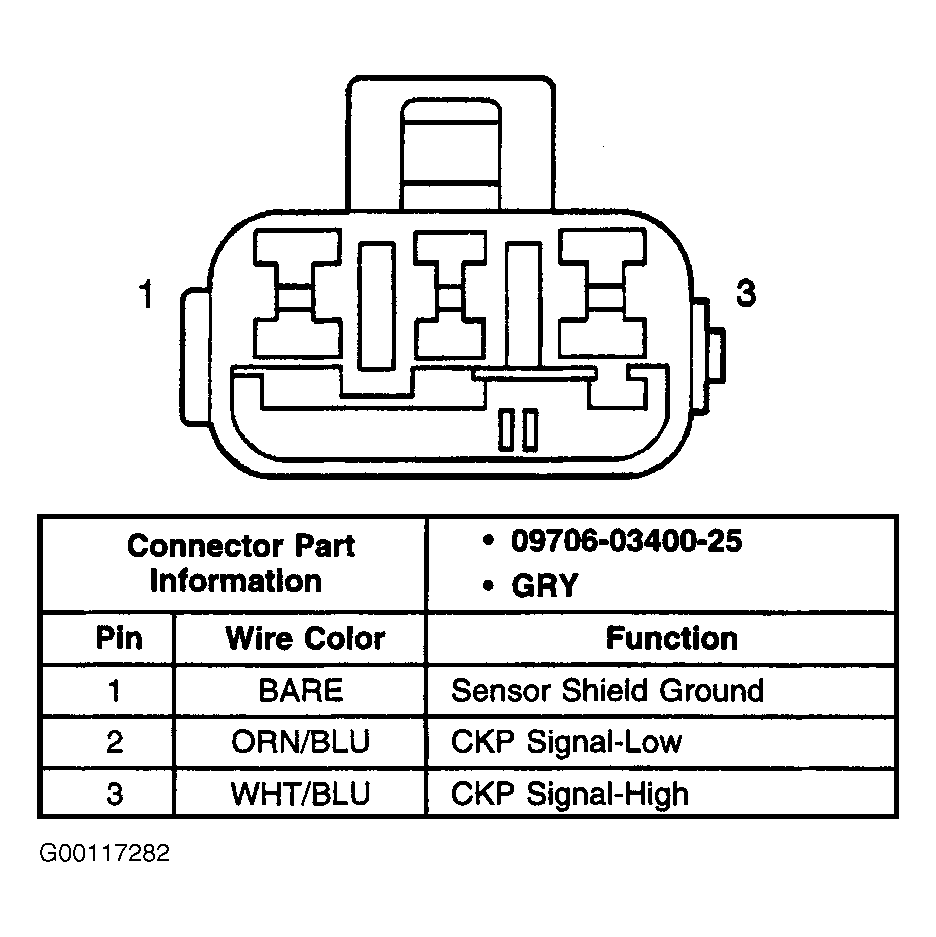

Fig 5: Identifying Crankshaft Position (CKP) Sensor Harness Connector Terminals

G00117282

Courtesy of GENERAL MOTORS CORP.

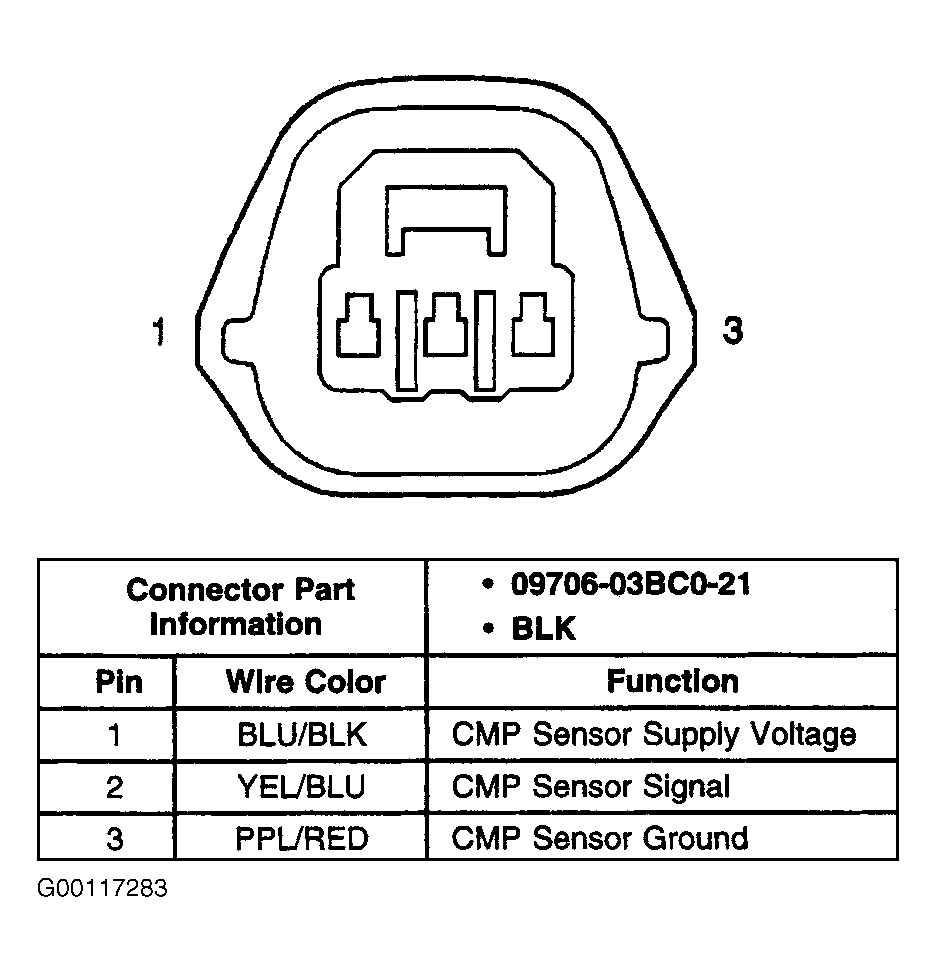

Fig 6: Identifying Camshaft Position (CMP) Sensor Harness Connector Terminals

G00117283

Courtesy of GENERAL MOTORS CORP.

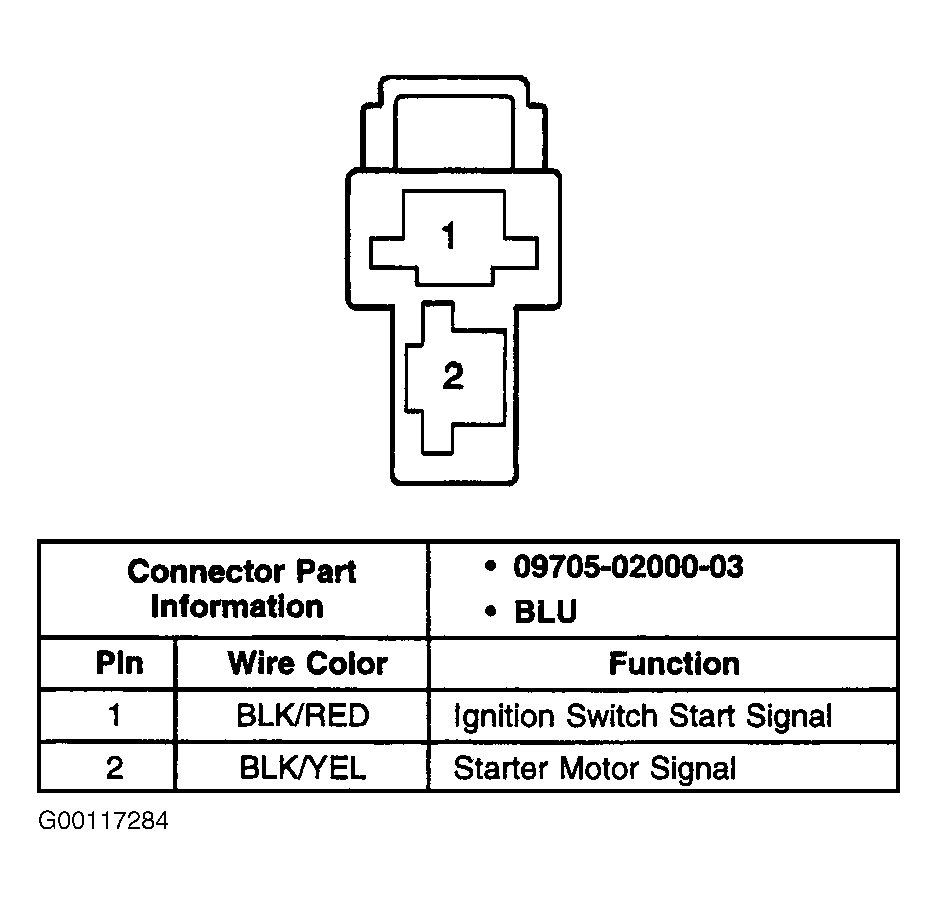

Fig 7: Identifying Clutch Pedal Position (CPP) Switch Harness Connector Terminals

G00117284

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Engine Coolant Temperature (ECT) Sensor Harness Connector Terminals

G00117285

Courtesy of GENERAL MOTORS CORP.

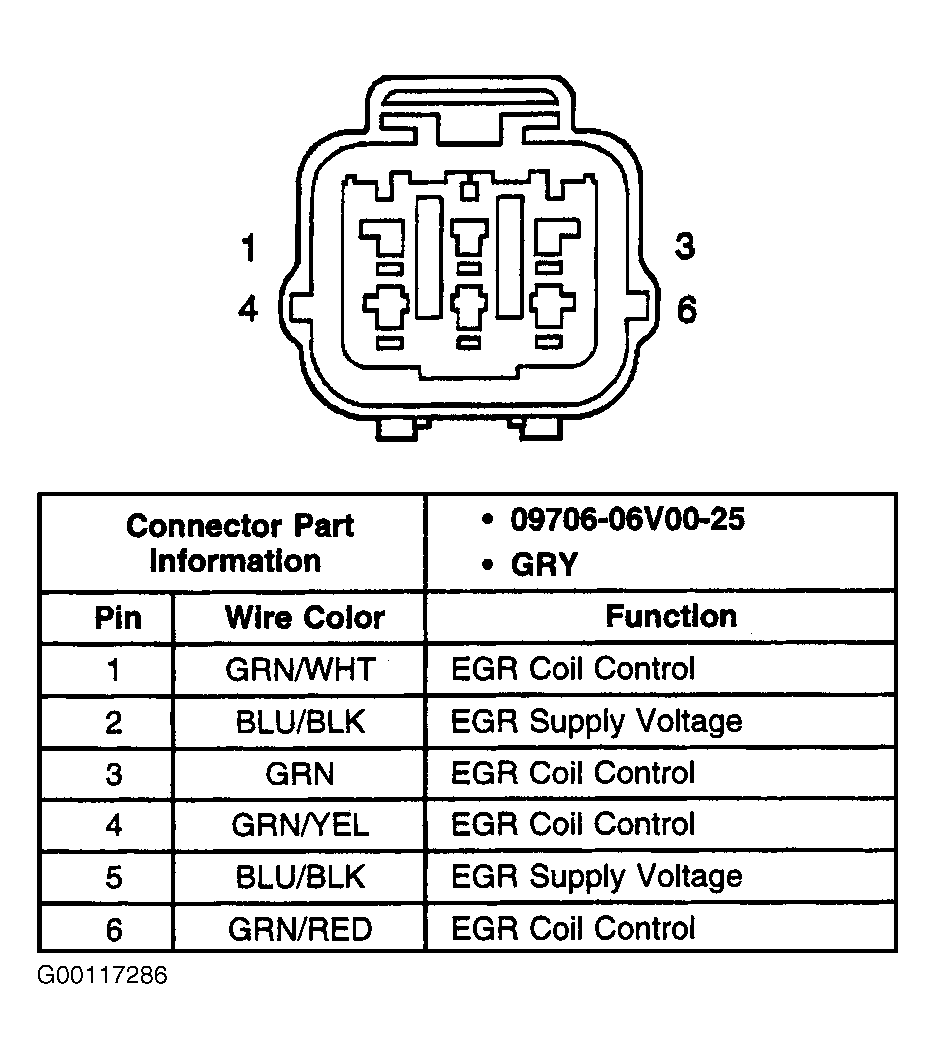

Fig 9: Identifying EGR Valve Harness Connector Terminals

G00117286

Courtesy of GENERAL MOTORS CORP.

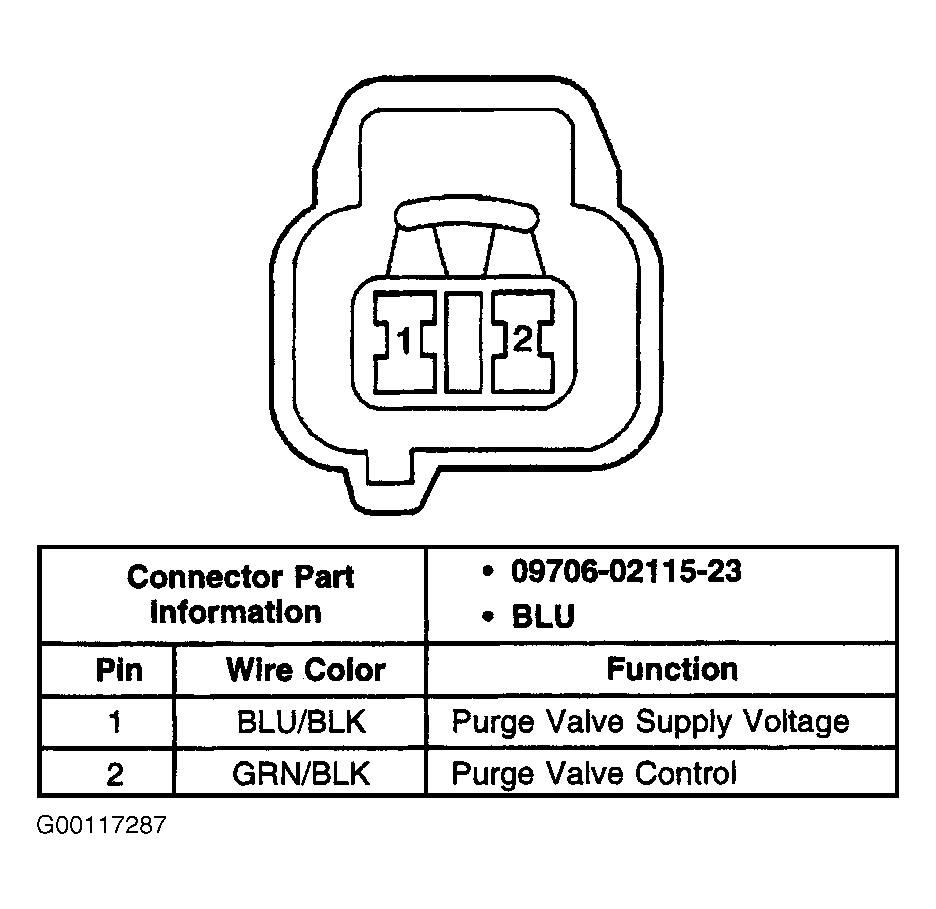

Fig 10: Identifying EVAP Canister Purge Valve Harness Connector Terminals

G00117287

Courtesy of GENERAL MOTORS CORP.

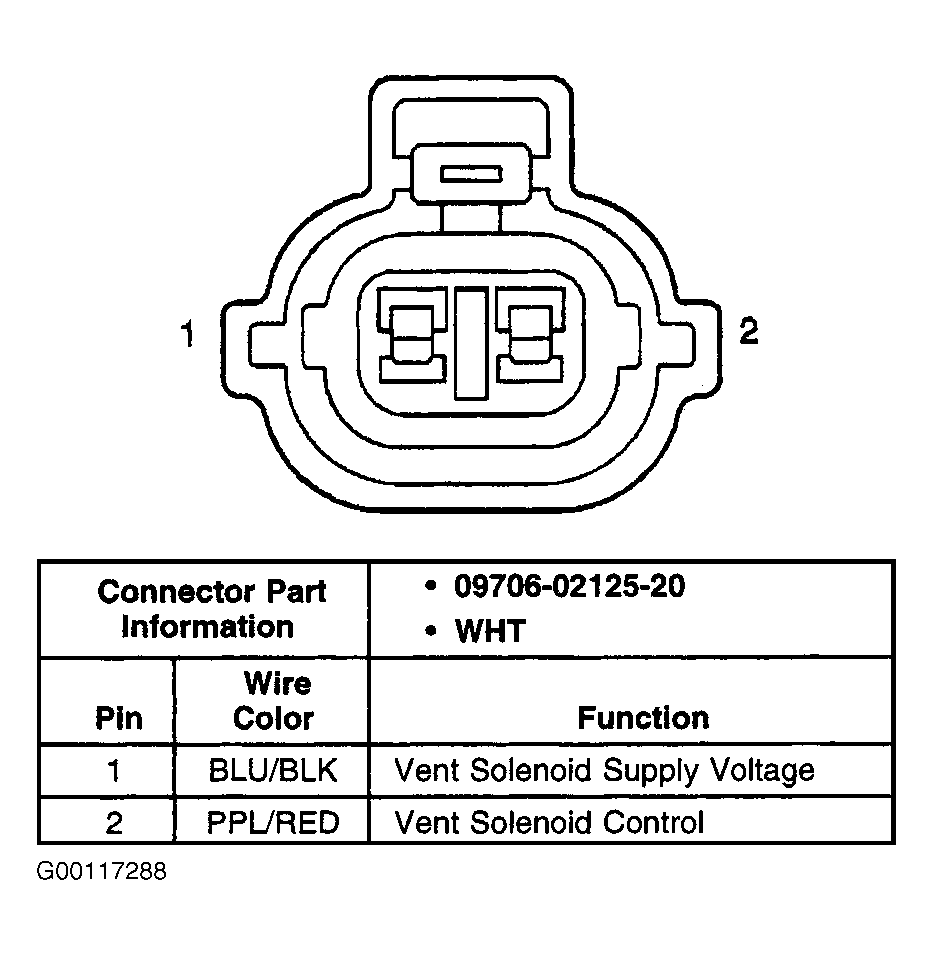

Fig 11: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals

G00117288

Courtesy of GENERAL MOTORS CORP.

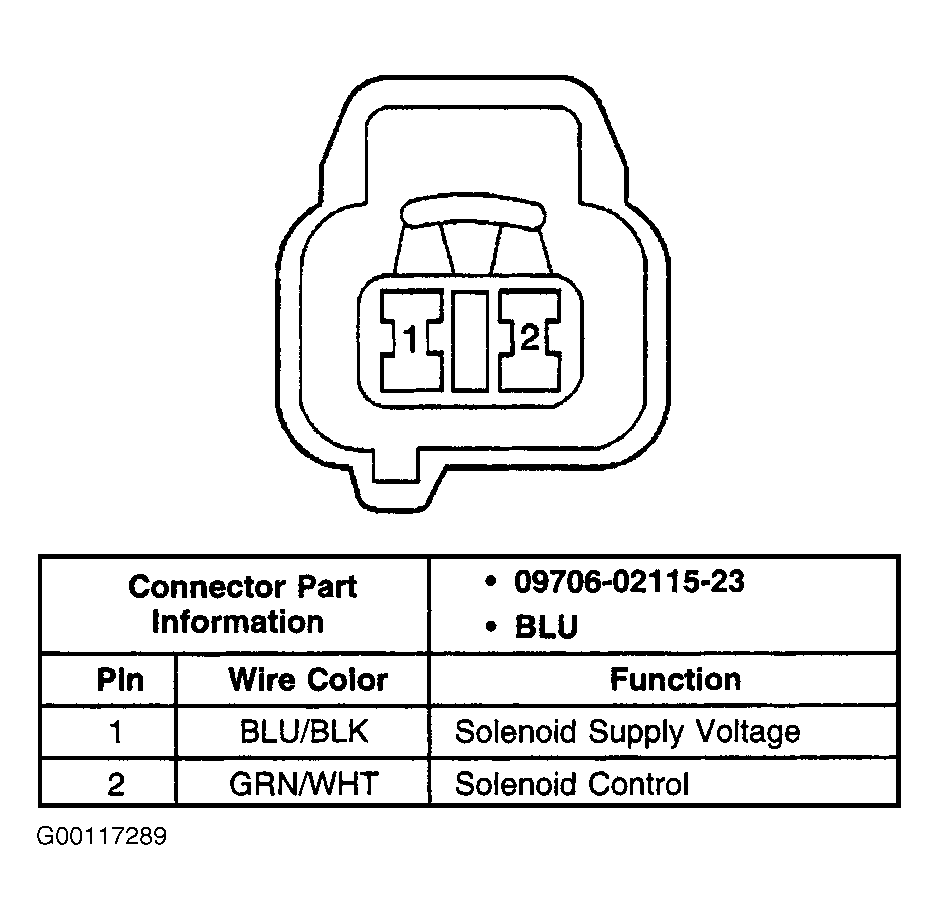

Fig 12: Identifying EVAP Tank Pressure Control Solenoid Harness Connector Terminals

G00117289

Courtesy of GENERAL MOTORS CORP.

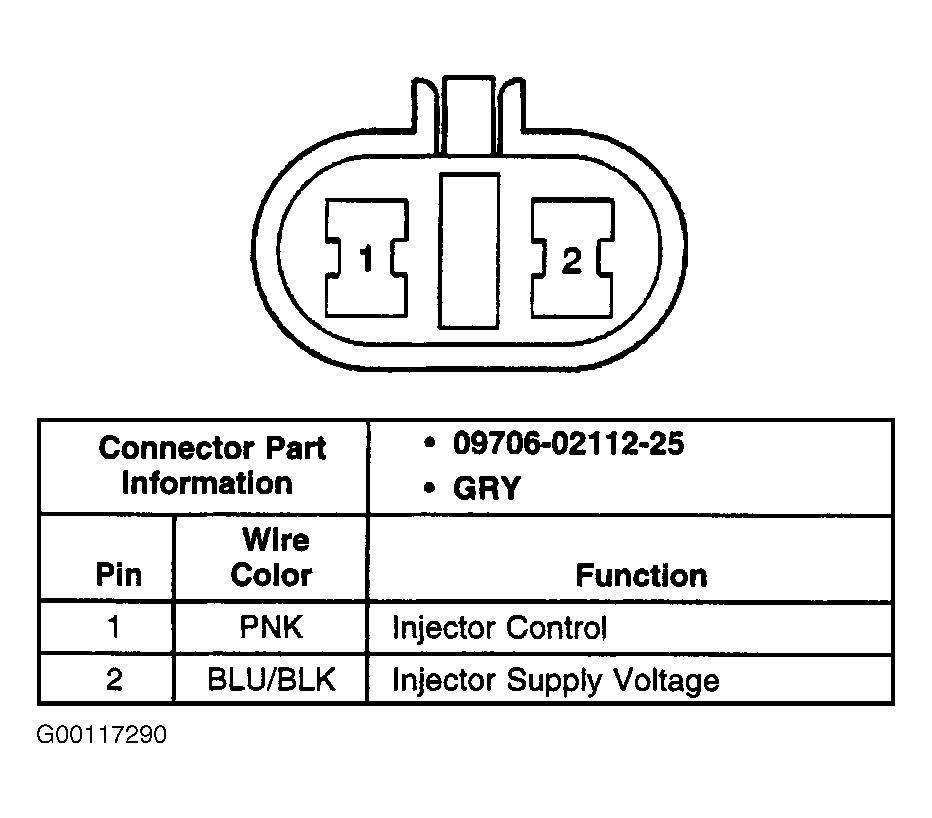

Fig 13: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00117290

Courtesy of GENERAL MOTORS CORP.

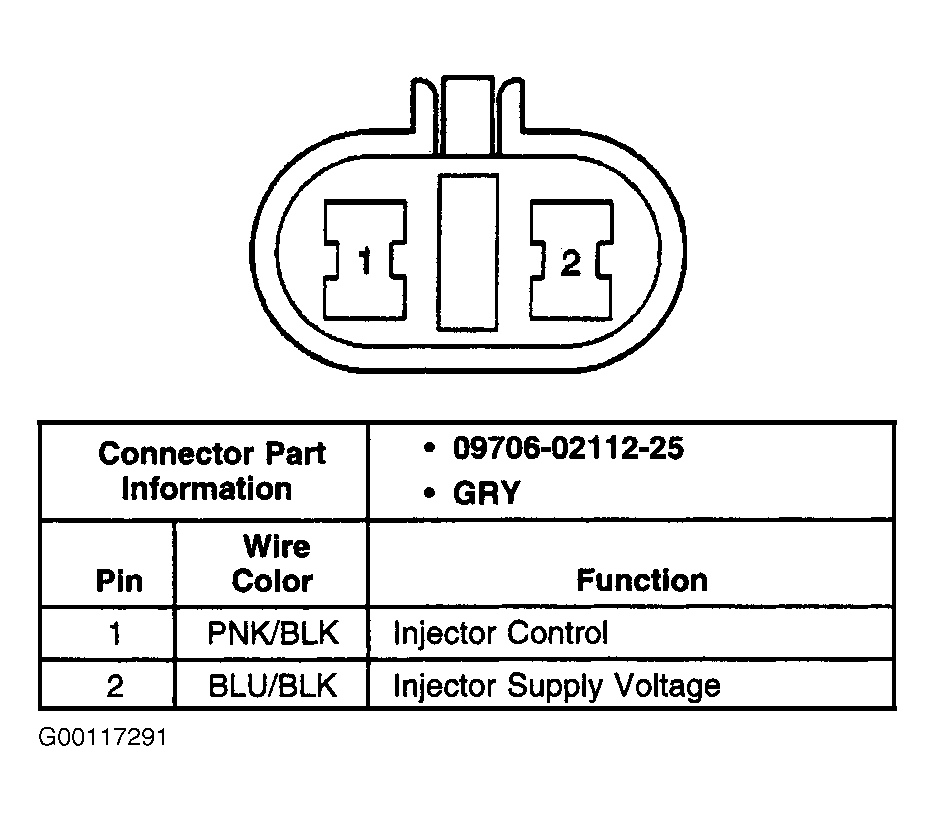

Fig 14: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00117291

Courtesy of GENERAL MOTORS CORP.

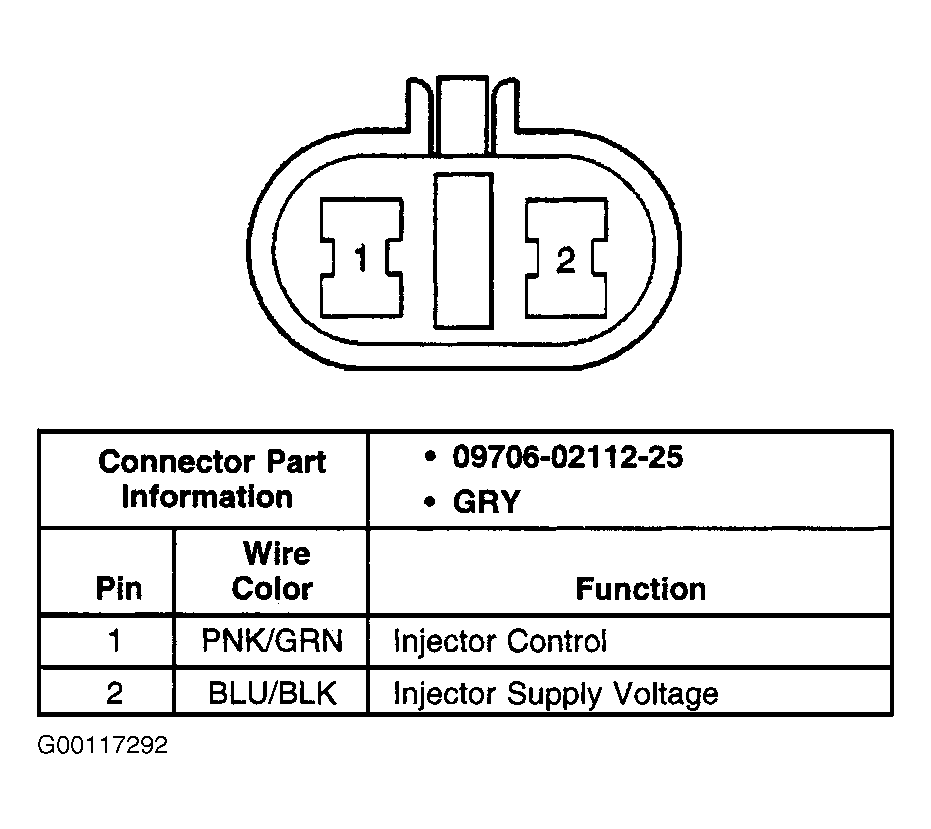

Fig 15: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00117292

Courtesy of GENERAL MOTORS CORP.

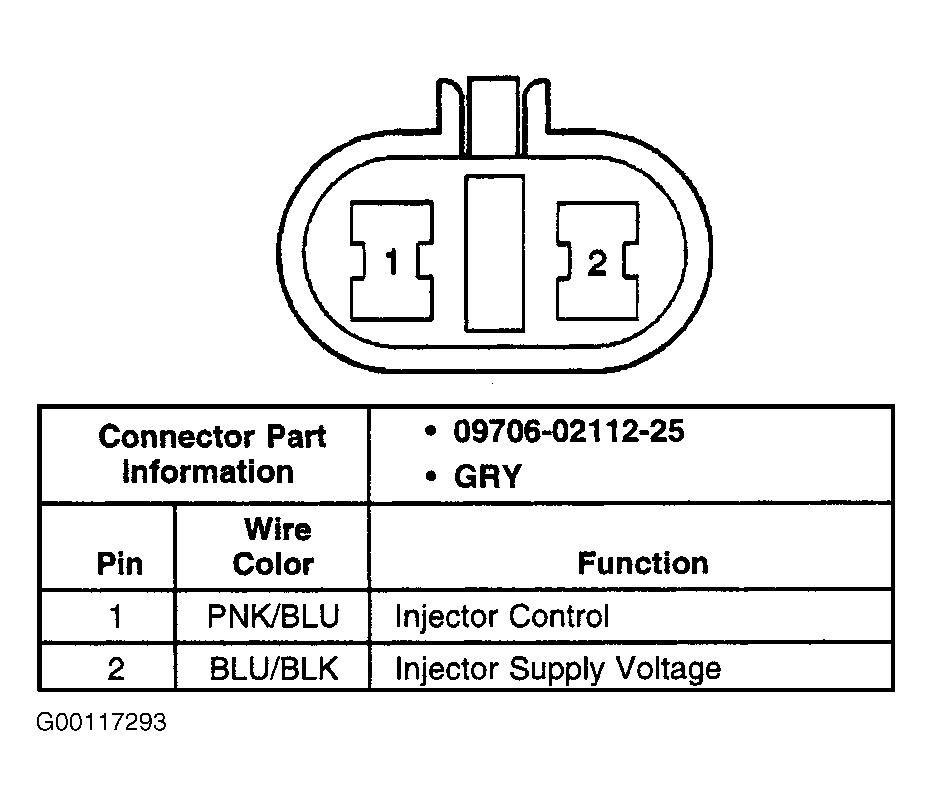

Fig 16: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00117293

Courtesy of GENERAL MOTORS CORP.

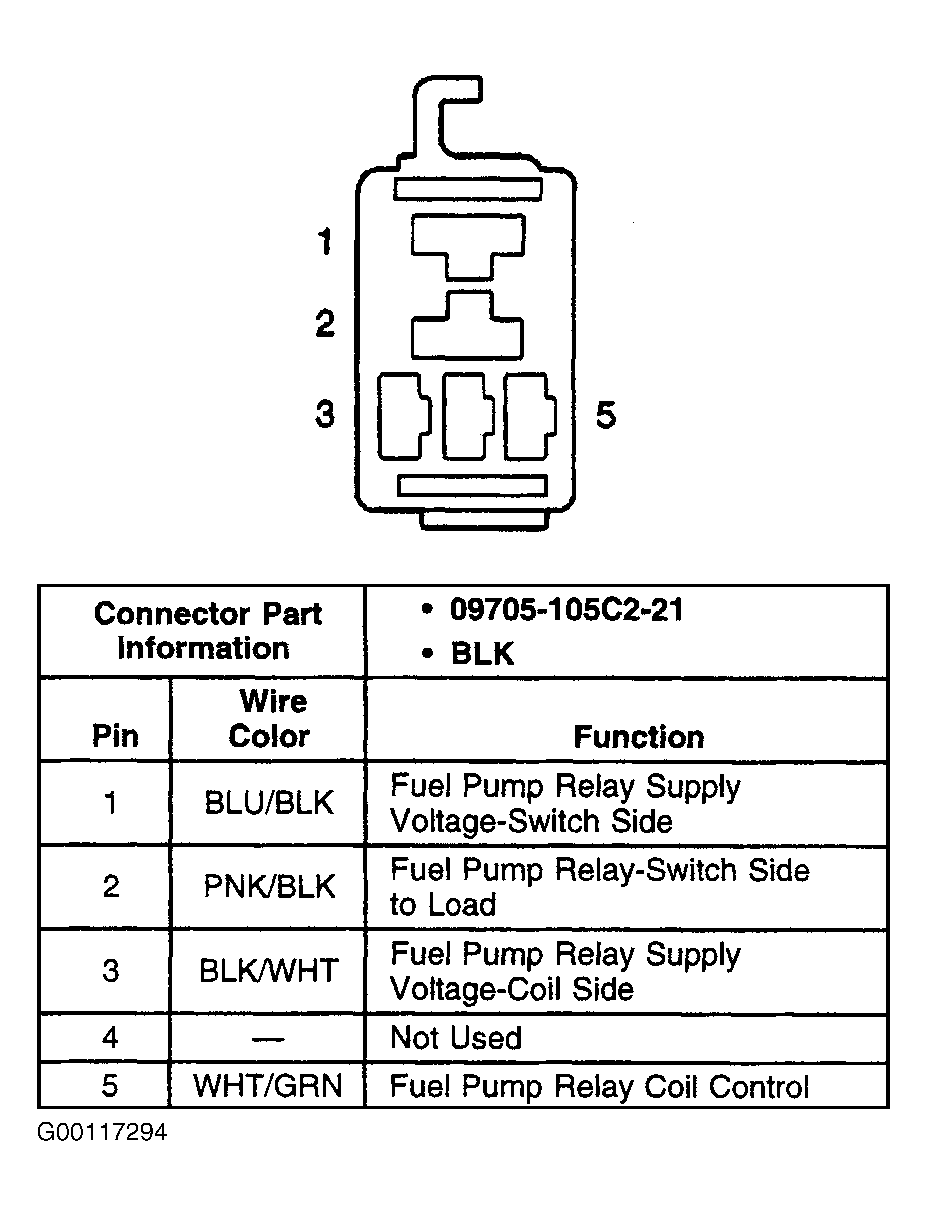

Fig 17: Identifying Fuel Pump Relay Harness Connector Terminals

G00117294

Courtesy of GENERAL MOTORS CORP.

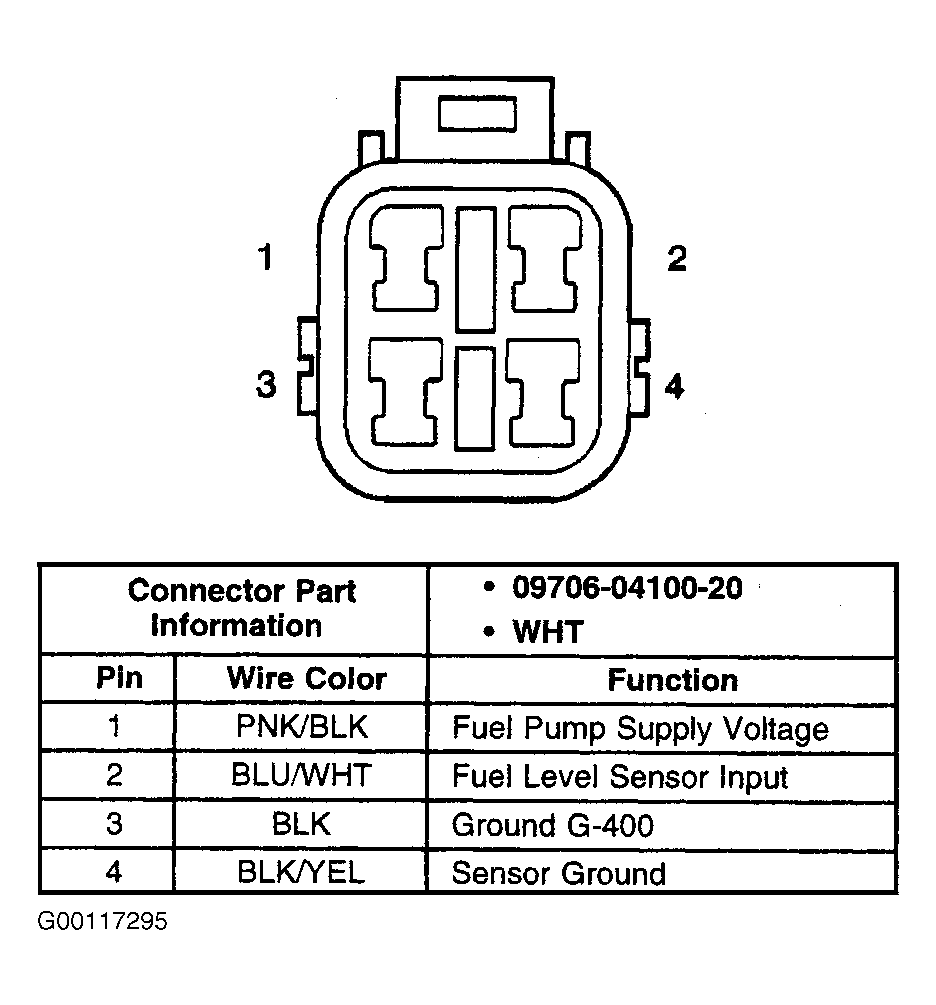

Fig 18: Identifying Fuel Sender Assembly Harness Connector Terminals

G00117295

Courtesy of GENERAL MOTORS CORP.

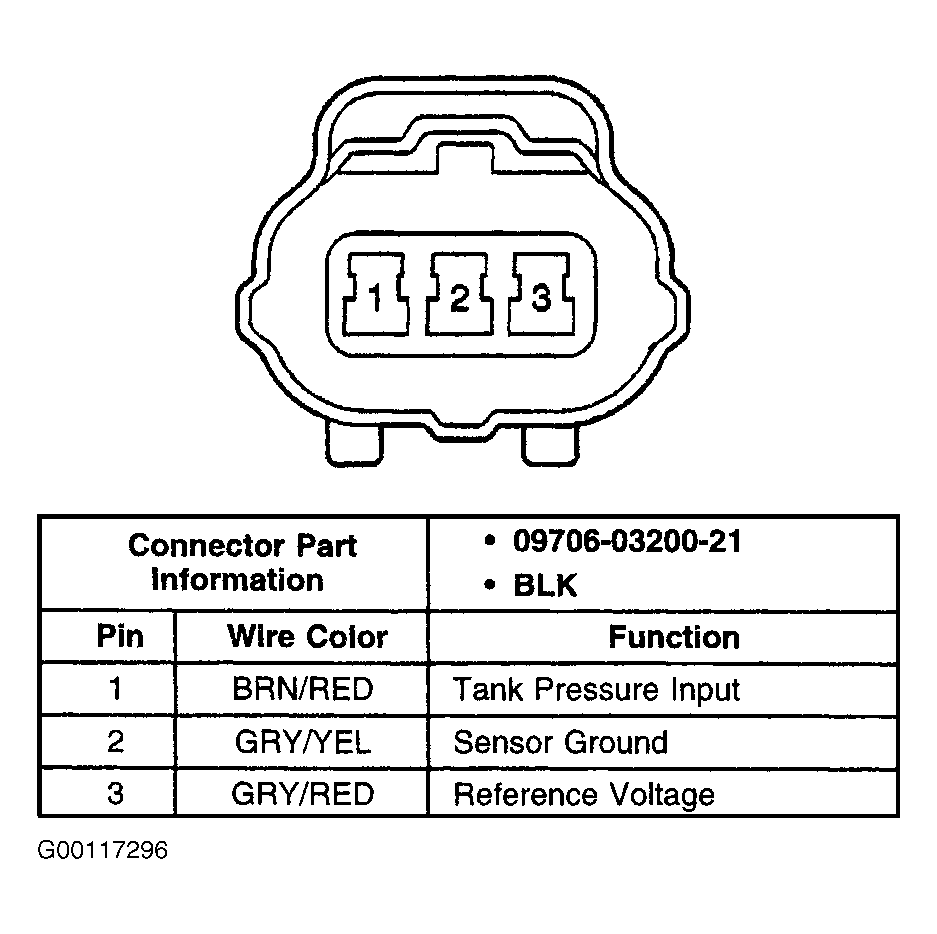

Fig 19: Identifying Fuel Tank Pressure (FTP) Sensor Harness Connector Terminals

G00117296

Courtesy of GENERAL MOTORS CORP.

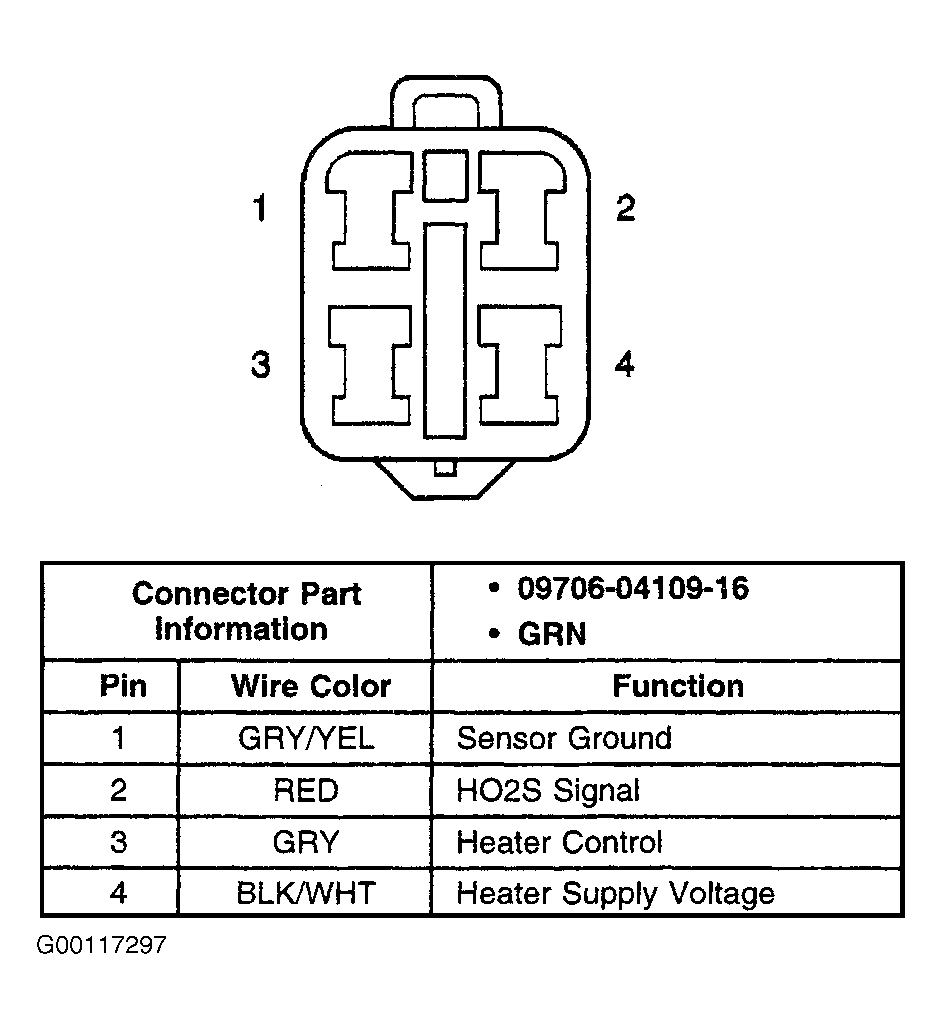

Fig 20: Identifying HO2S 1 Harness Connector Terminals

G00117297

Courtesy of GENERAL MOTORS CORP.

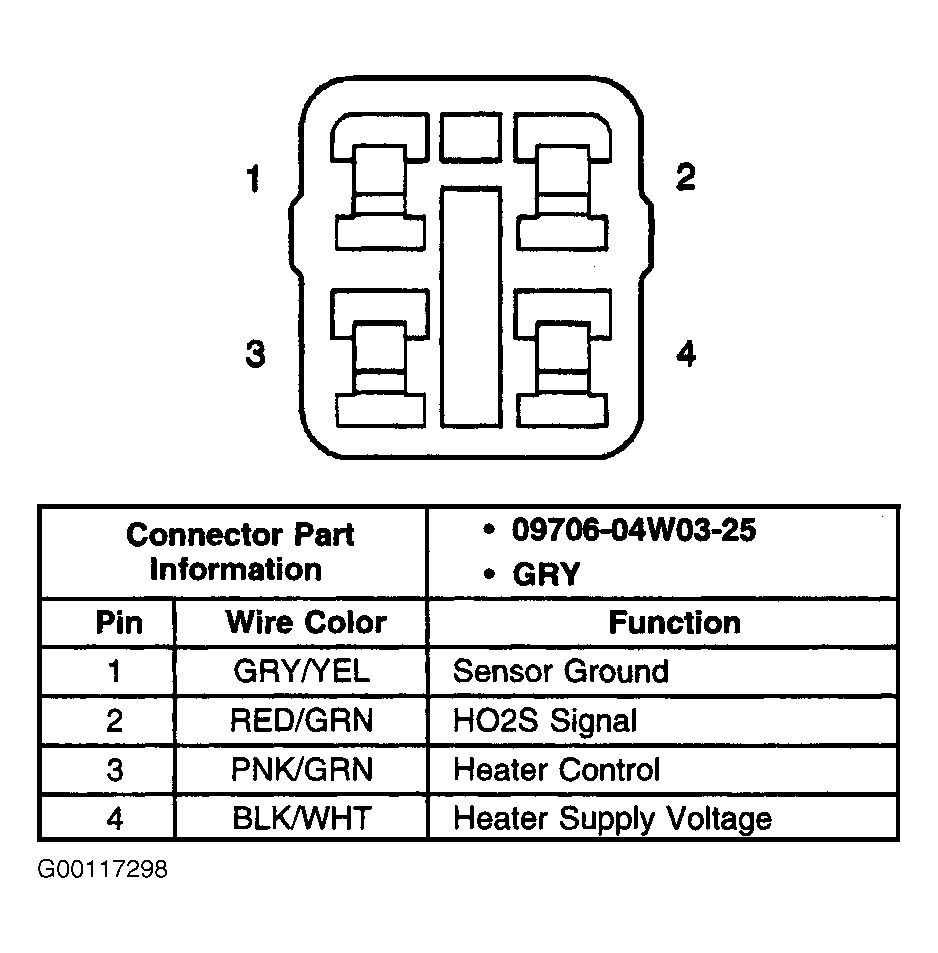

Fig 21: Identifying HO2S 2 Harness Connector Terminals

G00117298

Courtesy of GENERAL MOTORS CORP.

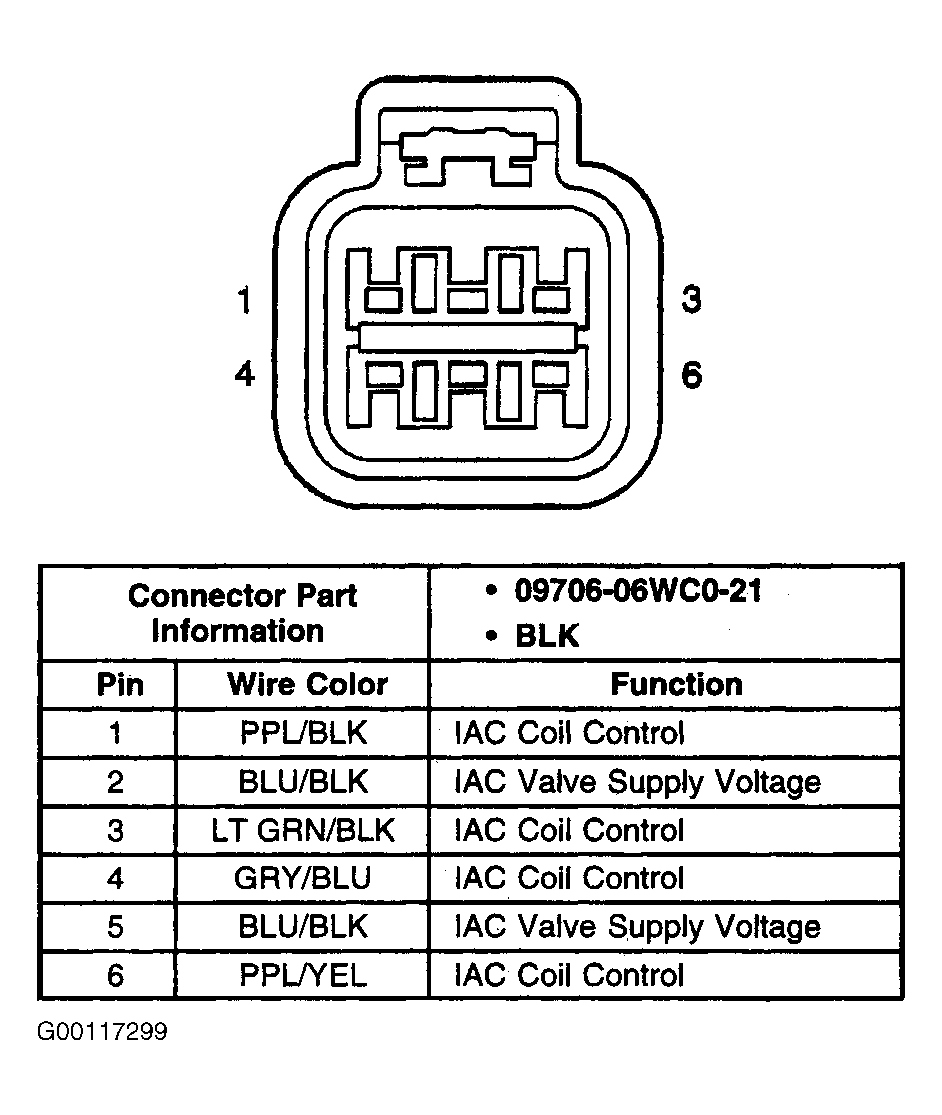

Fig 22: Identifying Idle Air Control (IAC) Valve Harness Connector Terminals

G00117299

Courtesy of GENERAL MOTORS CORP.

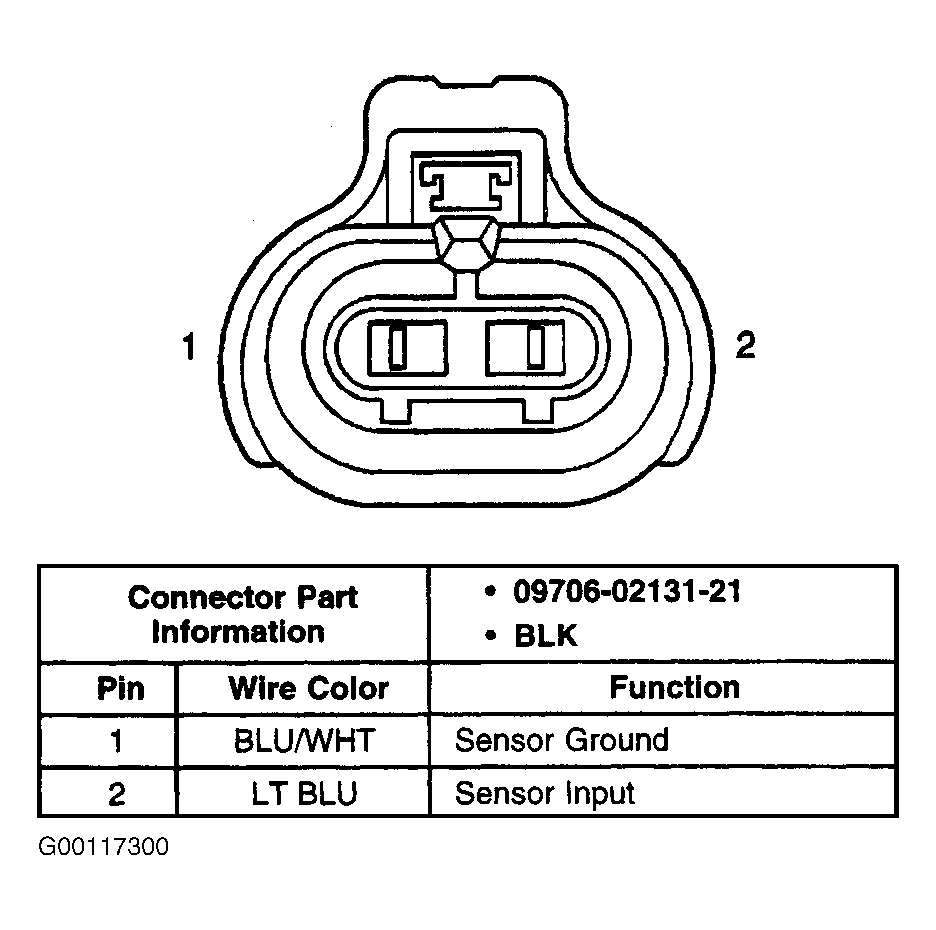

Fig 23: Identifying Intake Air Temperature (IAT) Sensor Harness Connector Terminals

G00117300

Courtesy of GENERAL MOTORS CORP.

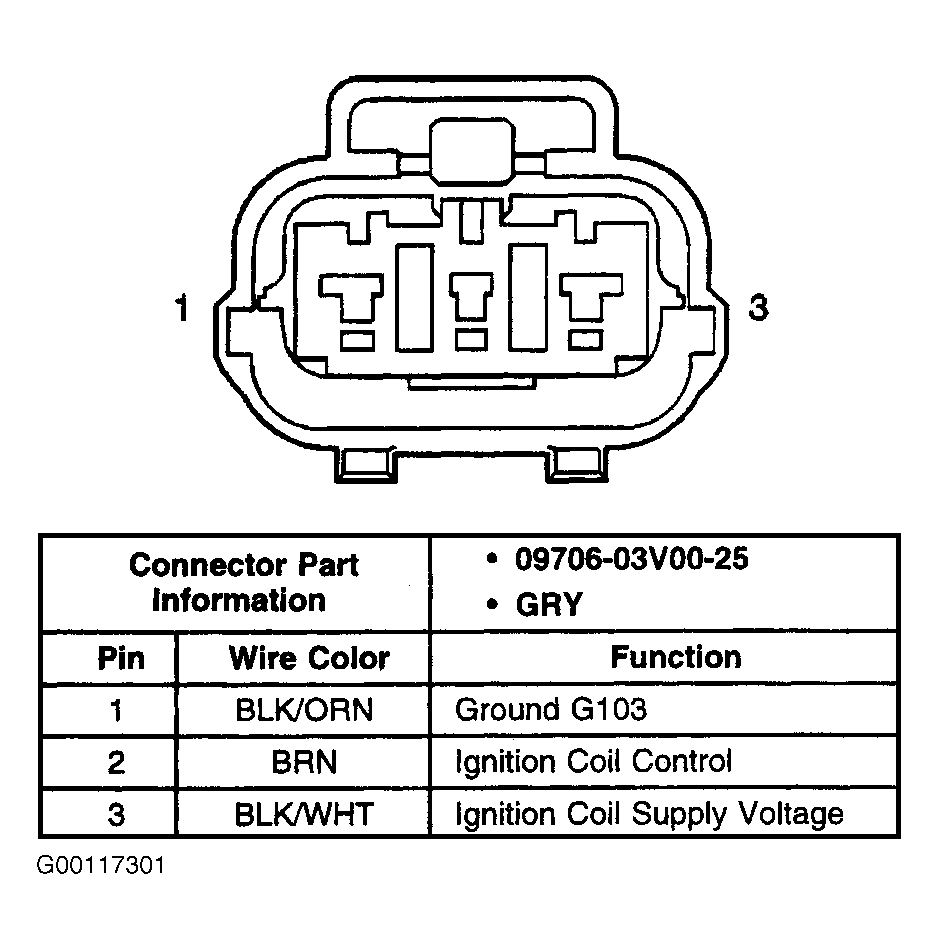

Fig 24: Identifying Ignition Coil - Cylinder No. 1 Harness Connector Terminals

G00117301

Courtesy of GENERAL MOTORS CORP.

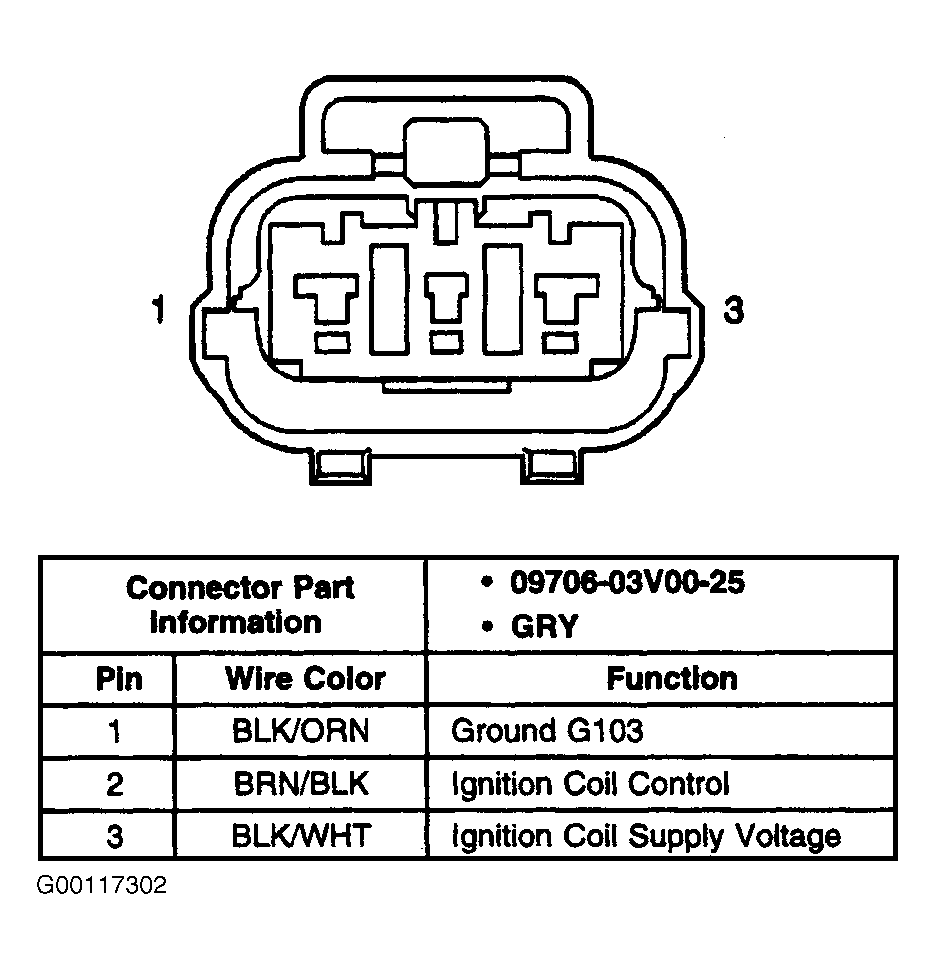

Fig 25: Identifying Ignition Coil - Cylinder No. 2 Harness Connector Terminals

G00117302

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Ignition Coil - Cylinder No. 3 Harness Connector Terminals

G00117303

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying Ignition Coil - Cylinder No. 4 Harness Connector Terminals

G00117304

Courtesy of GENERAL MOTORS CORP.

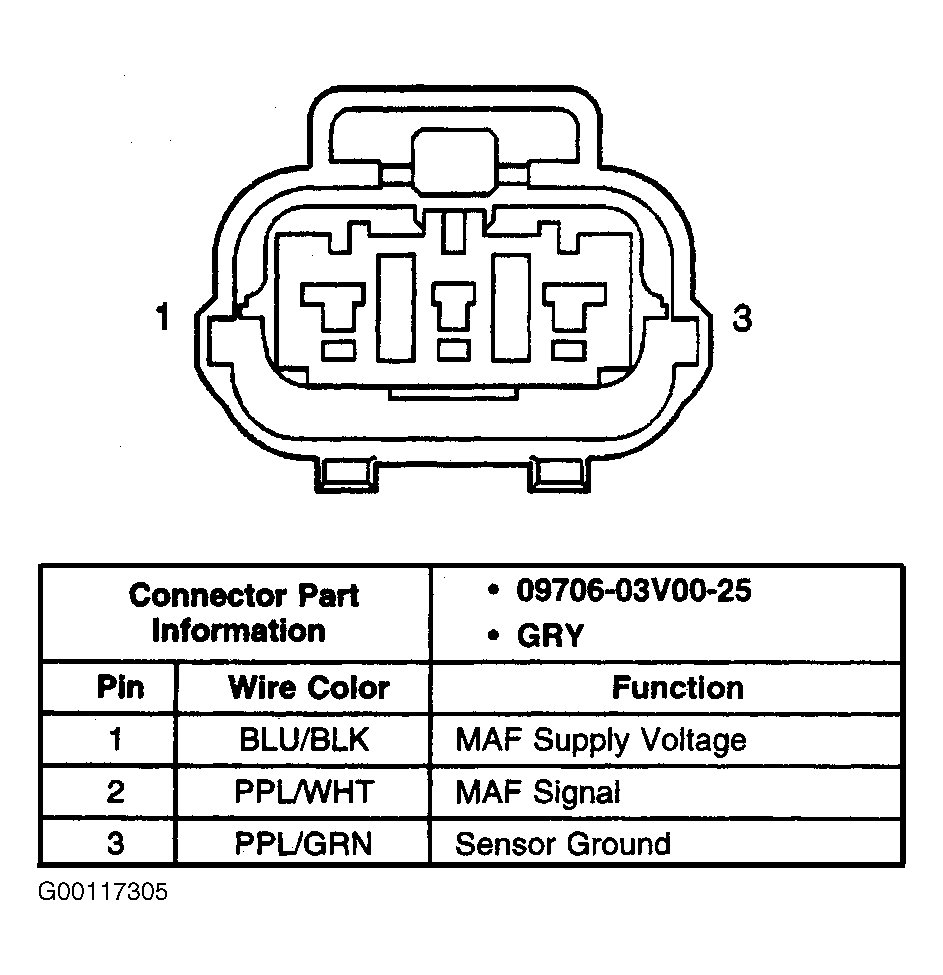

Fig 28: Identifying Mass Airflow (MAF) Sensor Harness Connector Terminals

G00117305

Courtesy of GENERAL MOTORS CORP.

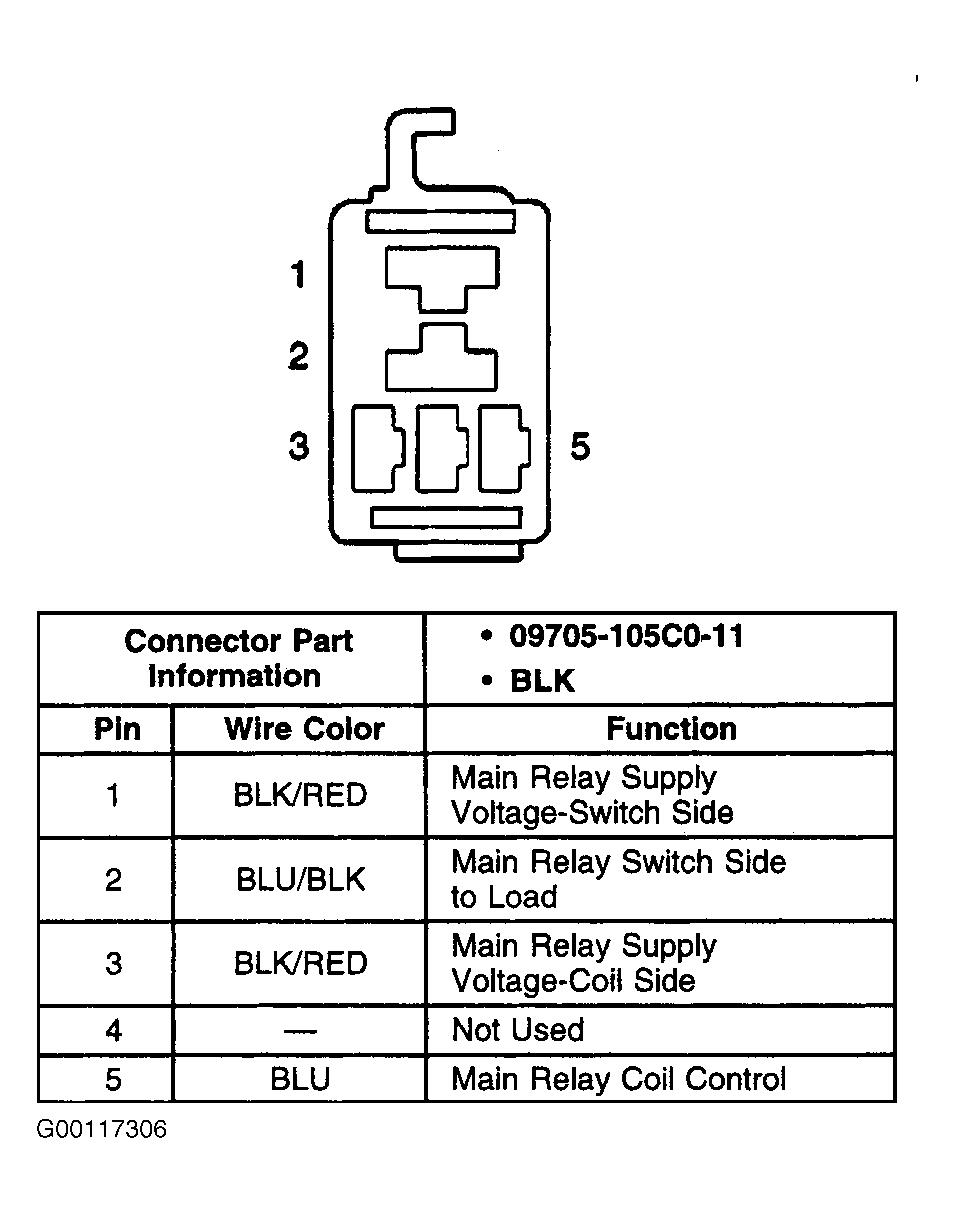

Fig 29: Identifying Main Relay Harness Connector Terminals

G00117306

Courtesy of GENERAL MOTORS CORP.

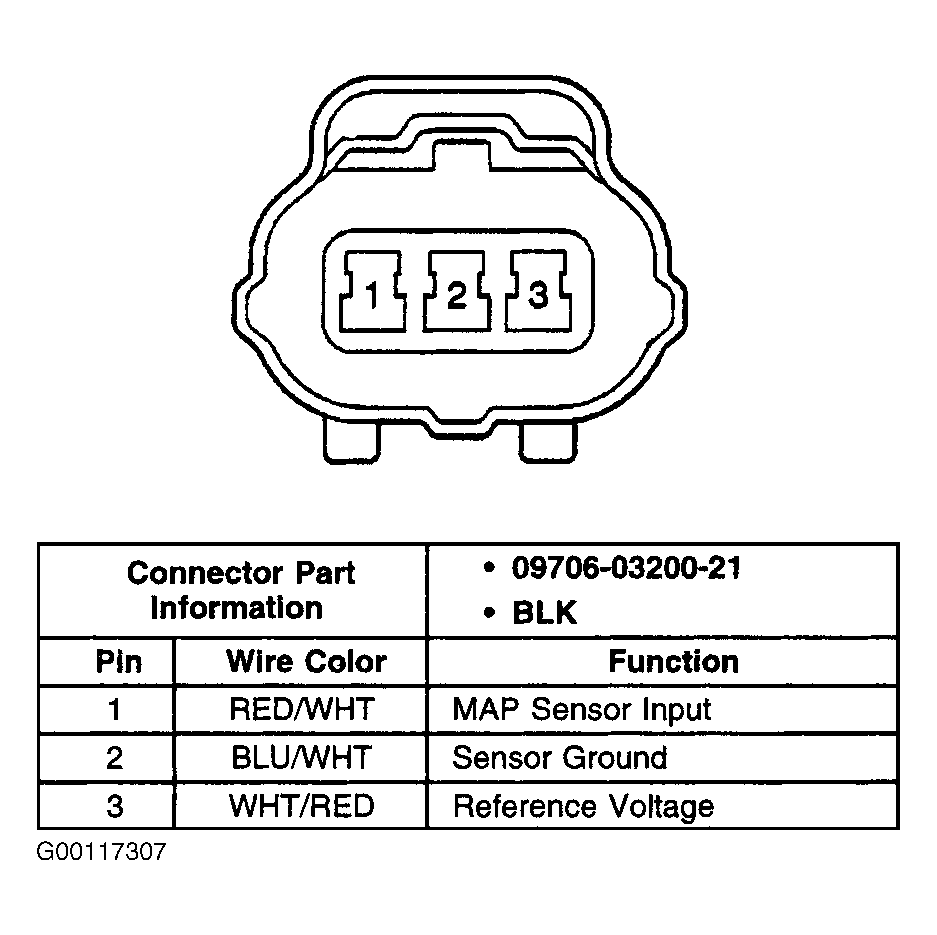

Fig 30: Identifying Manifold Absolute Pressure (MAP) Sensor Harness Connector Terminals

G00117307

Courtesy of GENERAL MOTORS CORP.

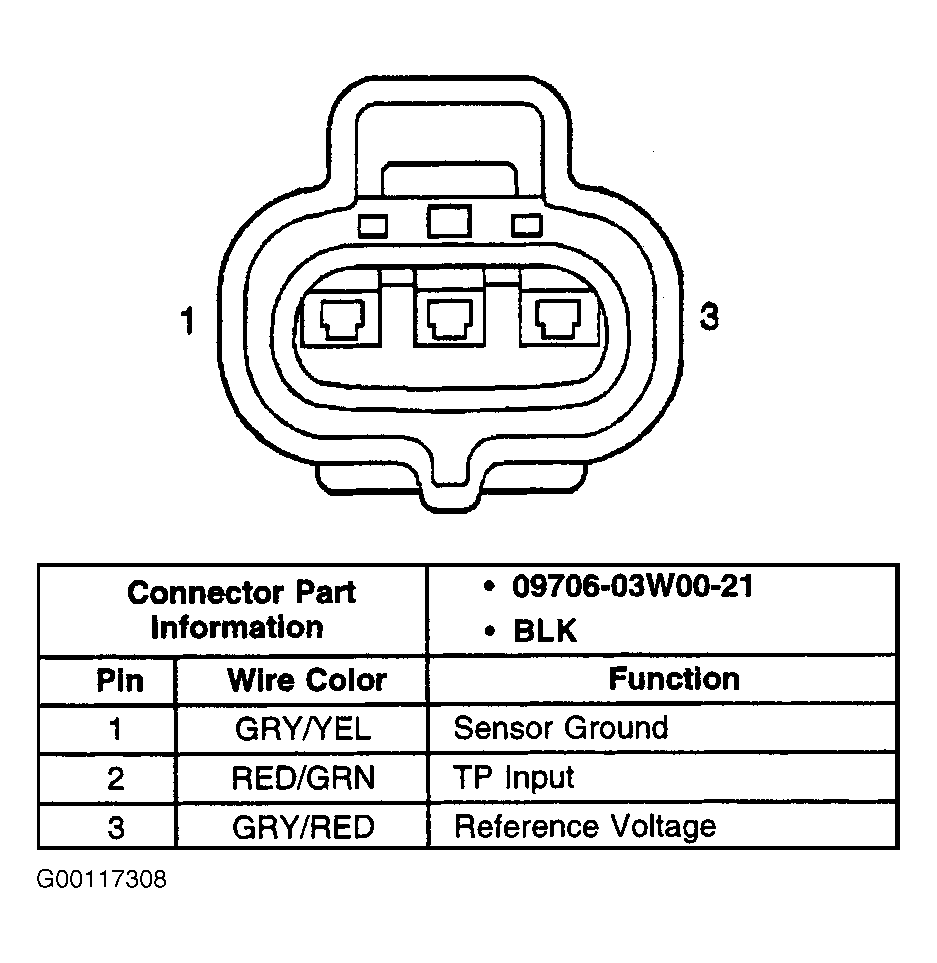

Fig 31: Identifying Throttle Position (TP) Sensor Harness Connector Terminals

G00117308

Courtesy of GENERAL MOTORS CORP.

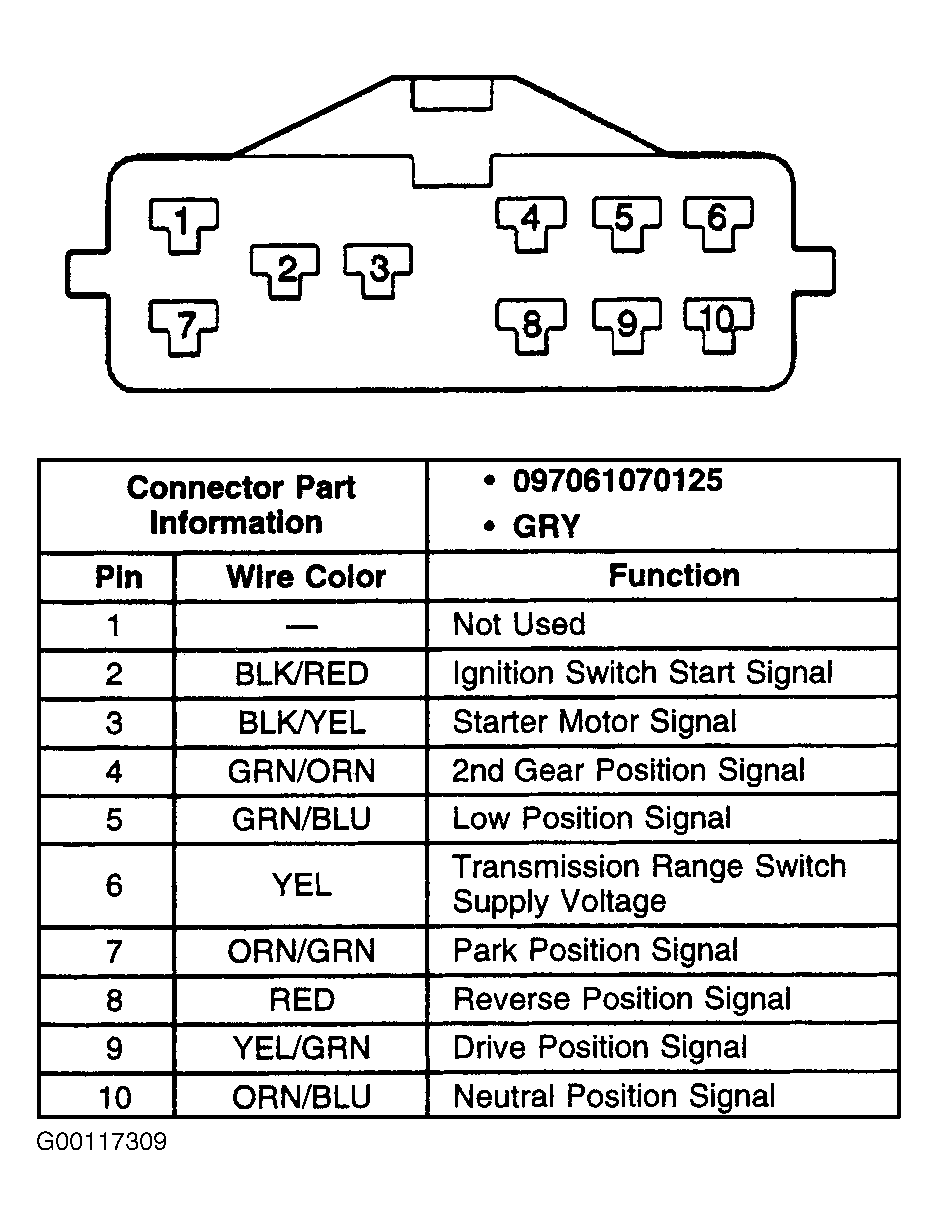

Fig 32: Identifying Transmission Range Switch Harness Connector Terminals

G00117309

Courtesy of GENERAL MOTORS CORP.

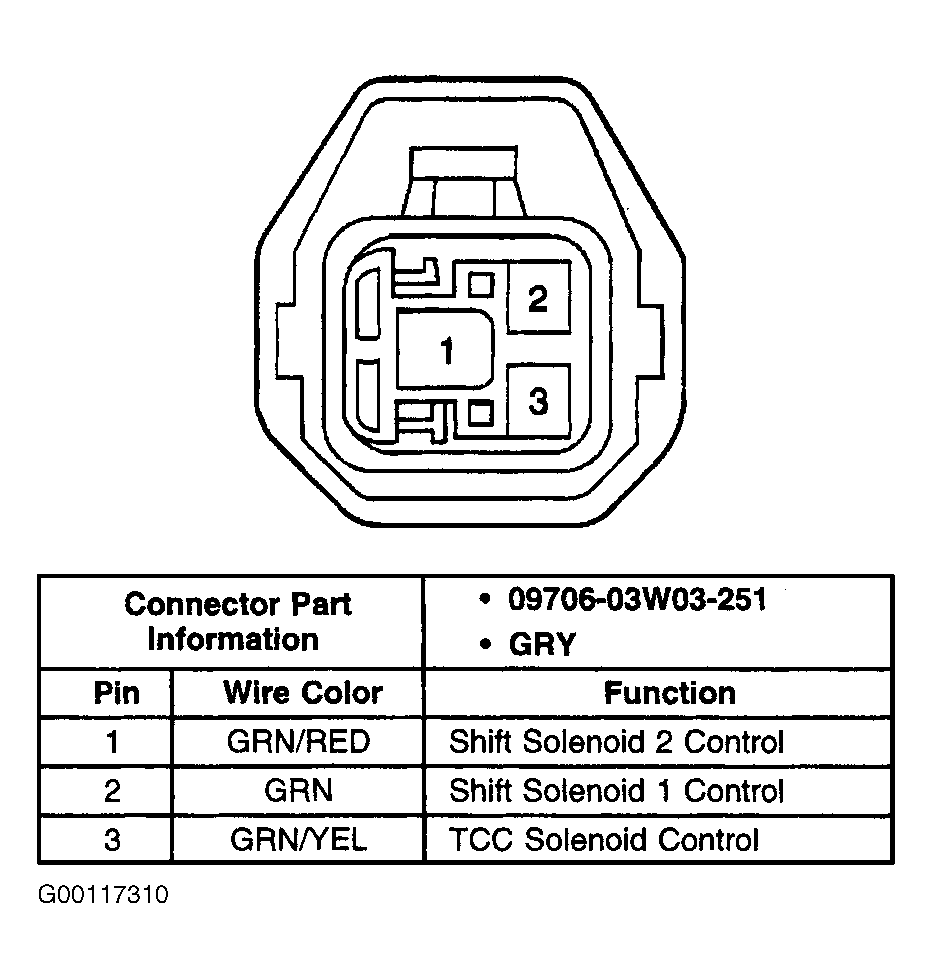

Fig 33: Identifying Transmission Shift Solenoid Harness Connector Terminals

G00117310

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying Vehicle Speed Sensor (VSS) Harness Connector Terminals

G00117311

Courtesy of GENERAL MOTORS CORP.
