STOPLAMP Switch

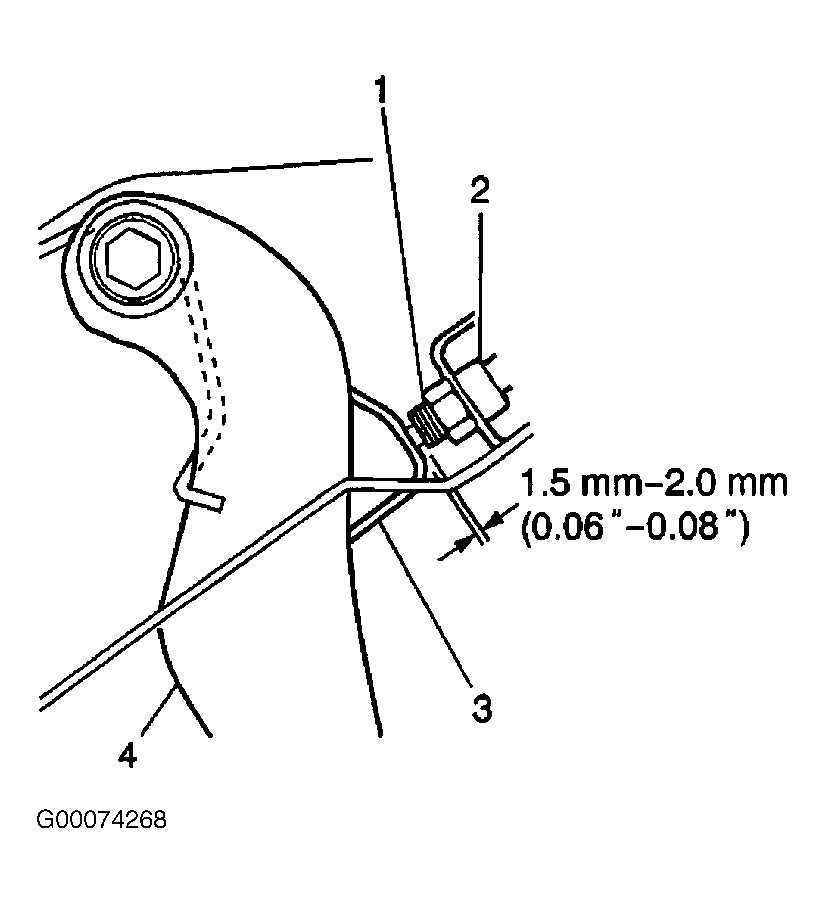

Pull up the brake pedal and hold the pedal in this position. Adjust the stop lamp switch (2). See Fig 1 . The clearance between the end of the thread and the brake pedal stopper (3) should be 1.5-2.0 mm (0.06-0.08 in). Tighten the lock nut to 66.4 INCH lbs. (7.5 N.m).
