Keyless Entry Component Views

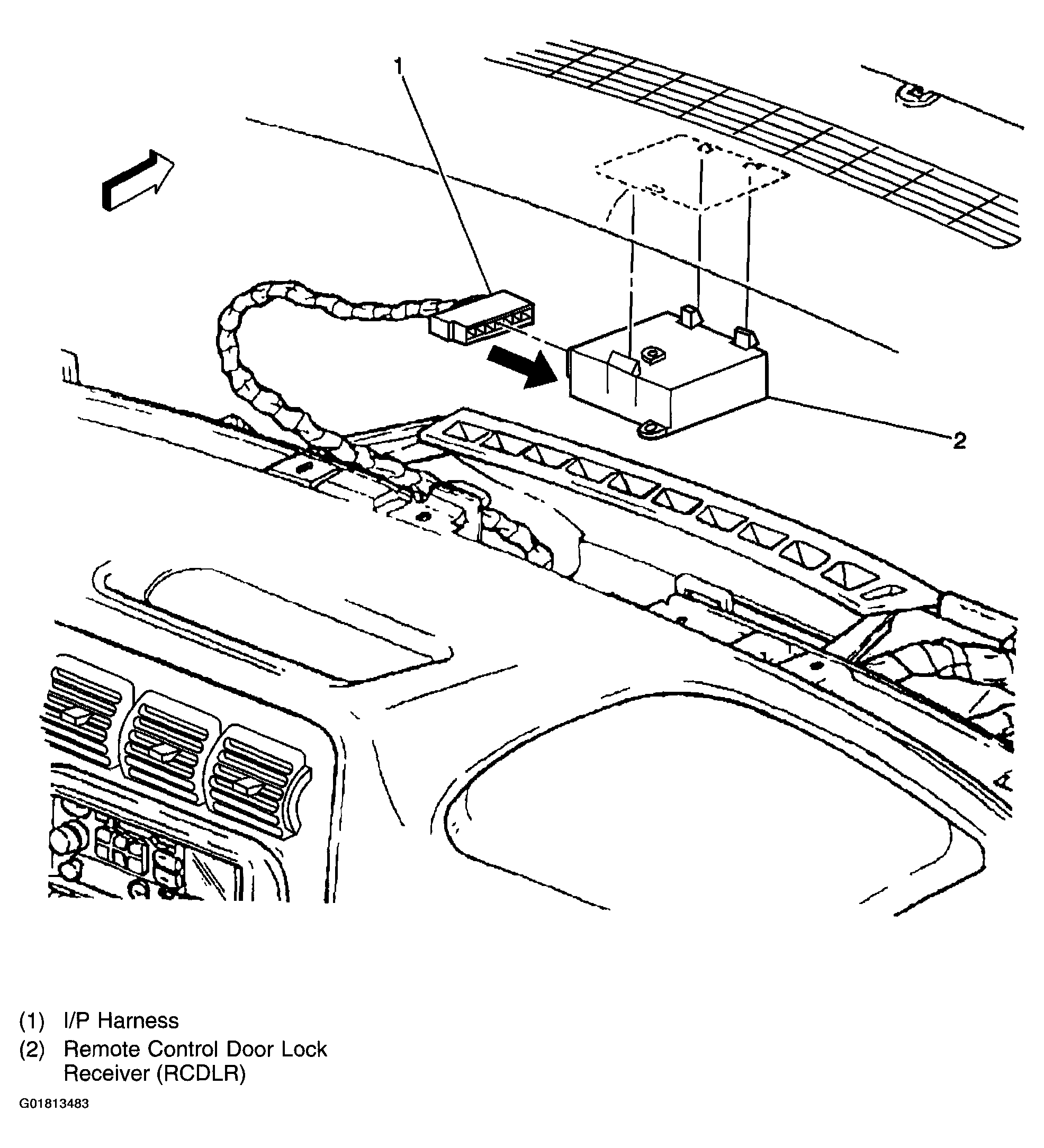

Fig 1: Center Of IP, Below Upper Panel Trim
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
