Installation Procedure

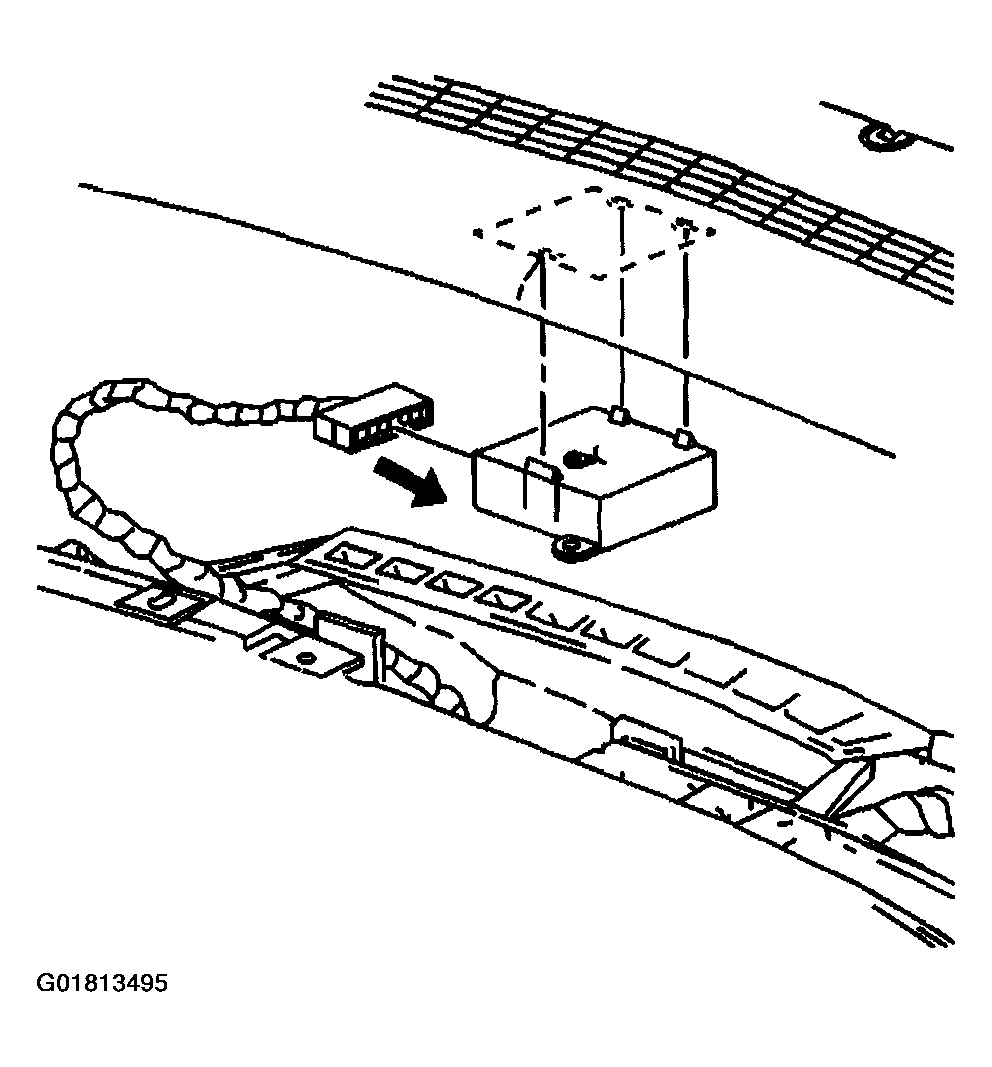

Fig 1: Connecting Electrical Connector To Door Lock Receiver
G01813495Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the door lock receiver.
  2. Engage the retaining tabs in order to install the door lock receiver to the IP upper trim.
  3. Install the IP upper trim. Refer to TRIM PAD REPLACEMENT - IP UPPER .
  4. Program transmitter to the new receiver. Refer to Transmitter Programming  .
