Stationary Windows Connector End Views

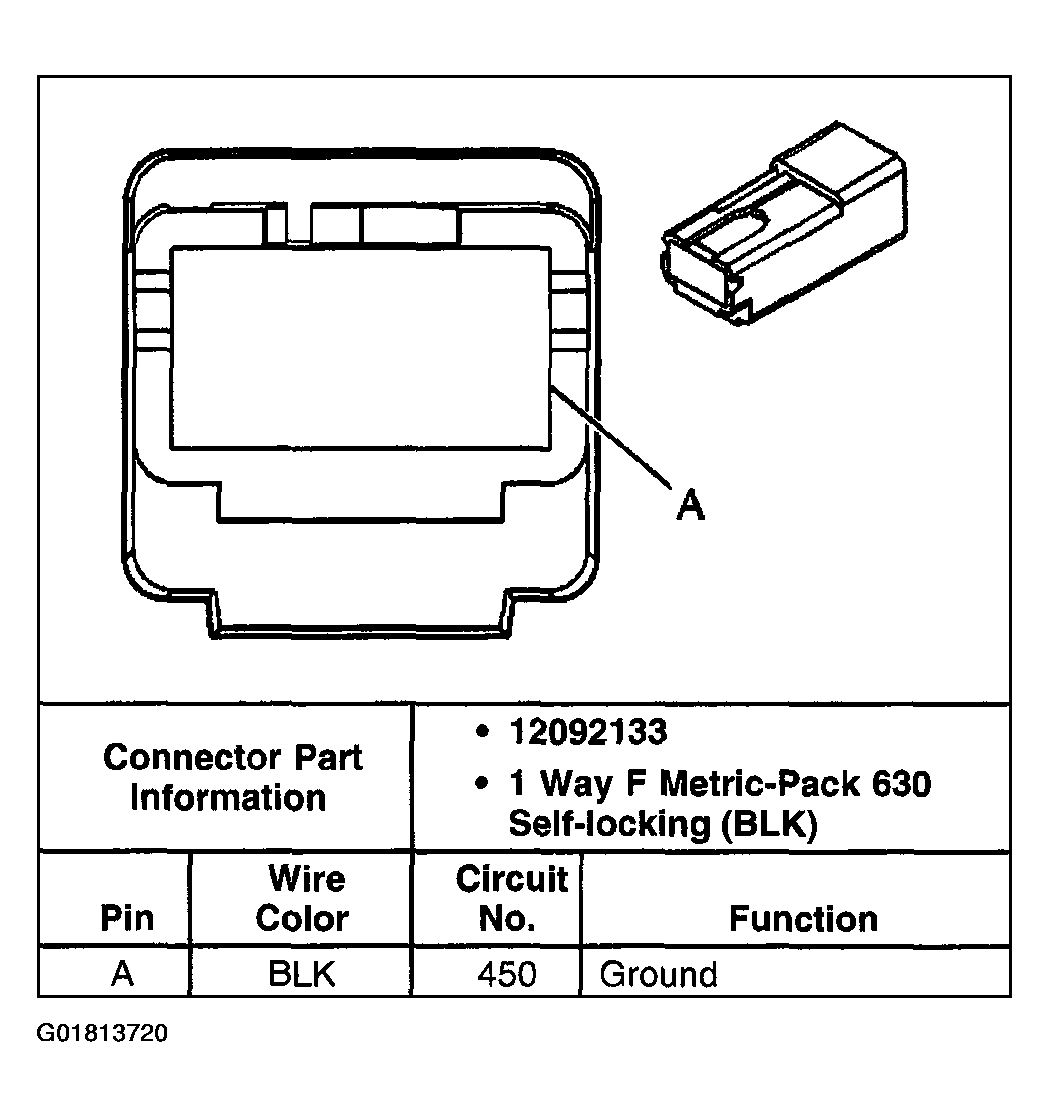

Fig 1: Rear Window Defogger Grid (C1)
G01813720Courtesy of GENERAL MOTORS CORP.

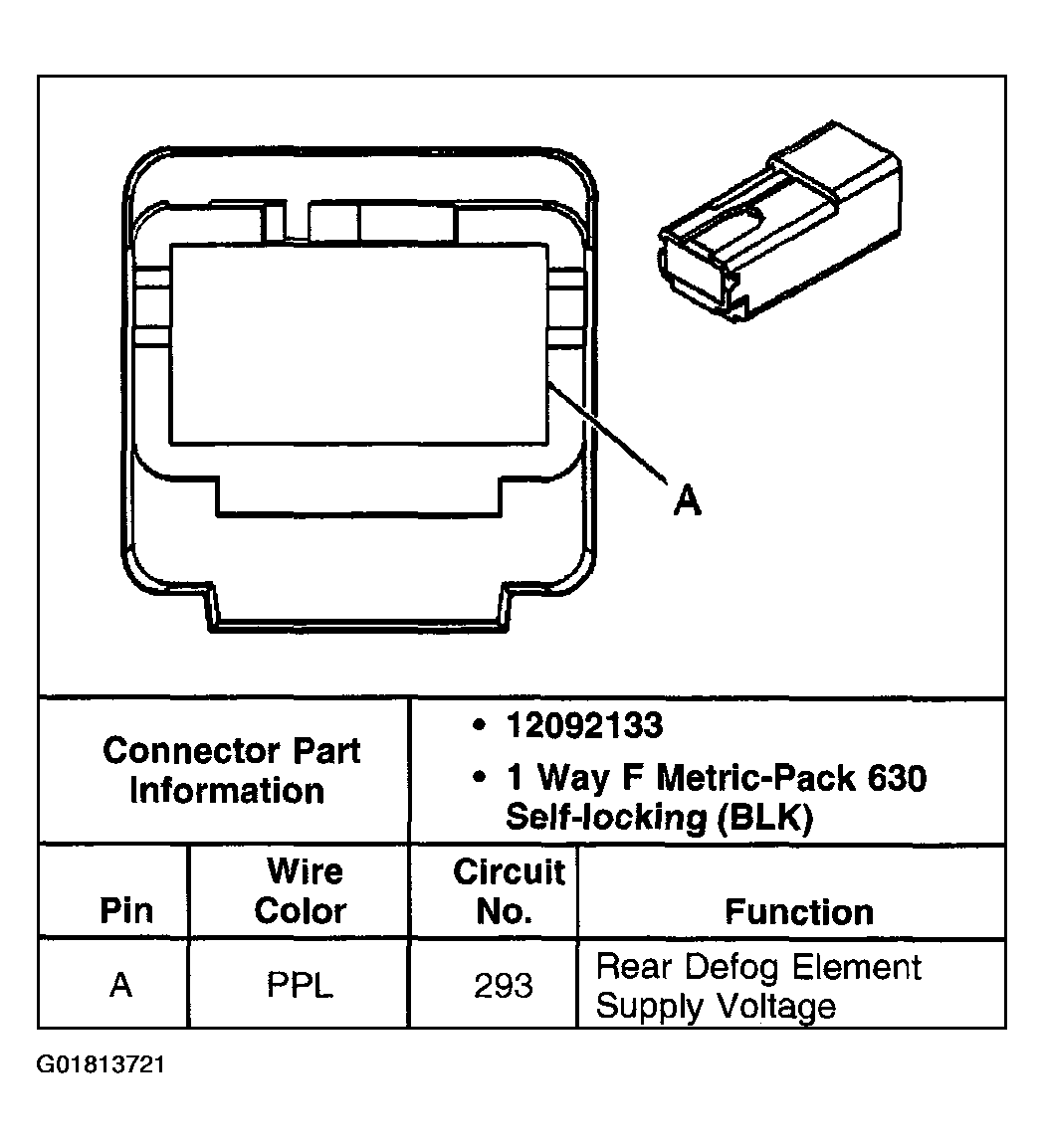

Fig 2: Rear Window Defogger Grid (C2)
G01813721Courtesy of GENERAL MOTORS CORP.
