Installation Procedure

  1. Install the rear window Defogger timer/relay (2) into the relay block (1).
  2. Install the right side instrument panel insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

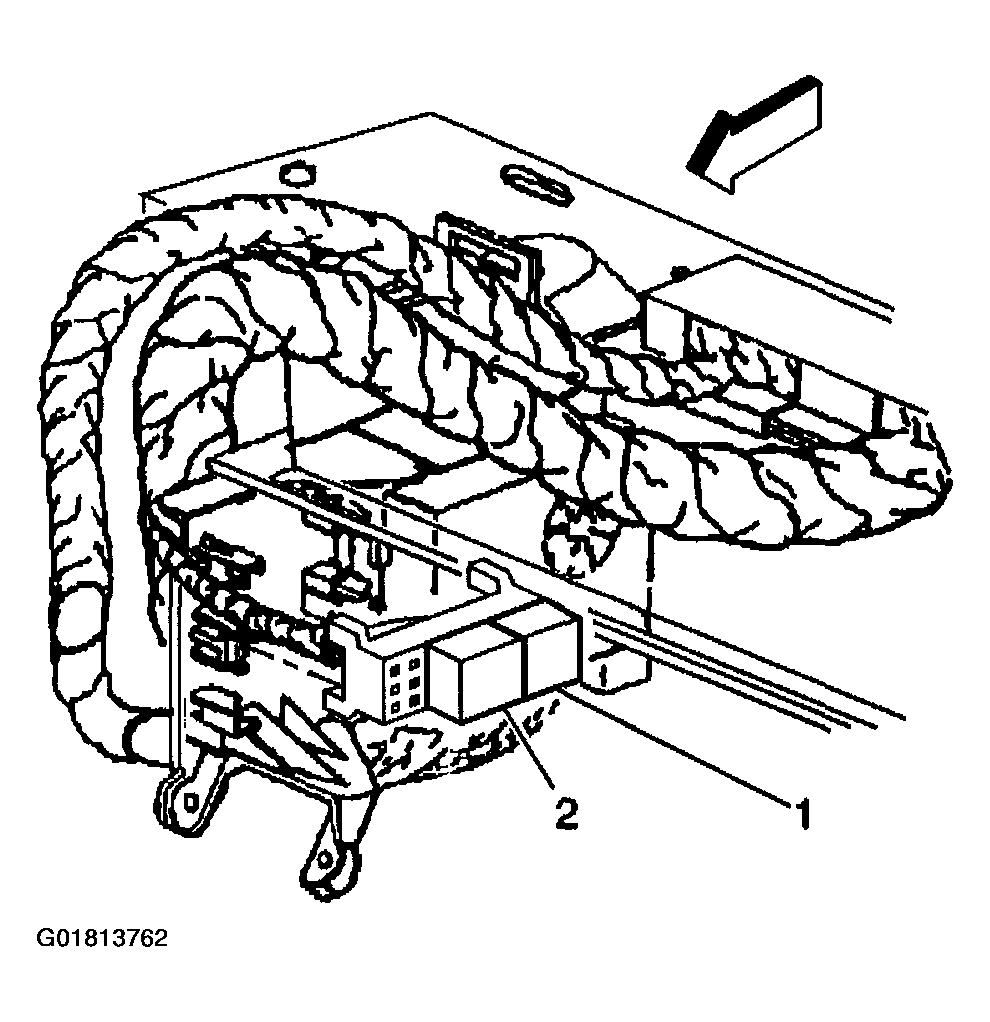

    Fig 1: Installing Rear Window Defogger Timer/Relay To Relay Block
    G01813762Courtesy of GENERAL MOTORS CORP.
