ABS Component Views

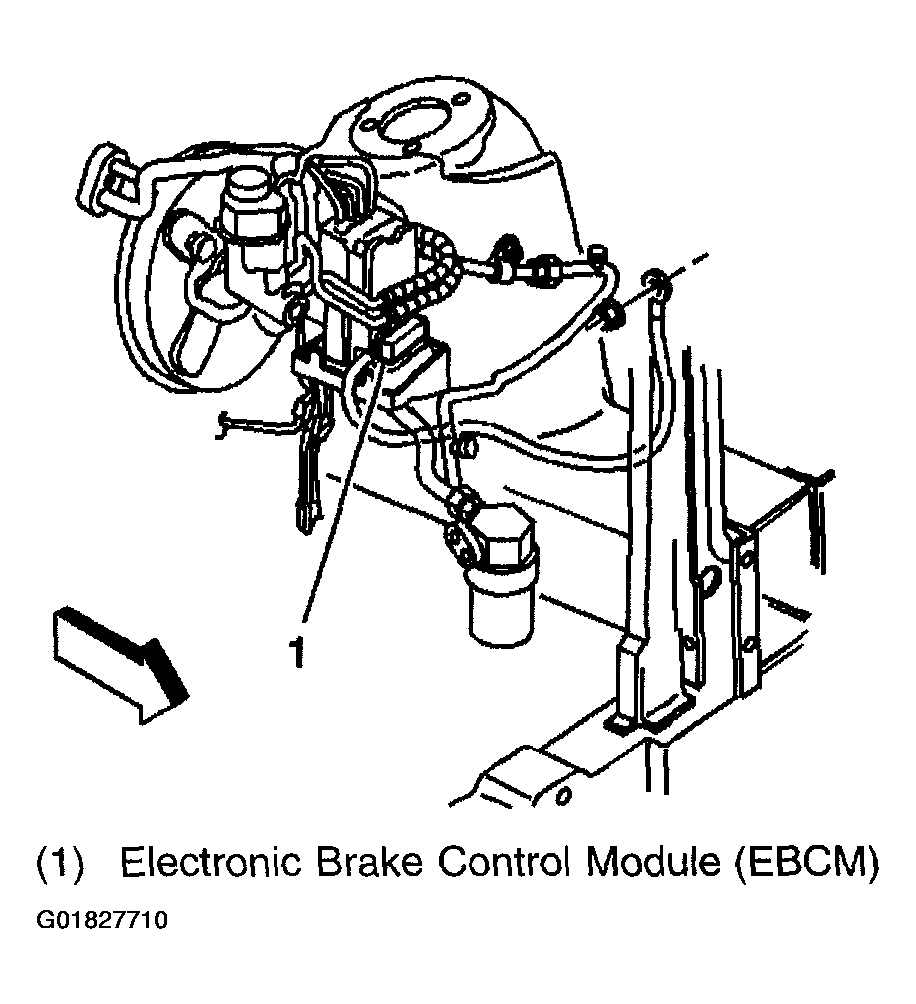

Fig 1: LH Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

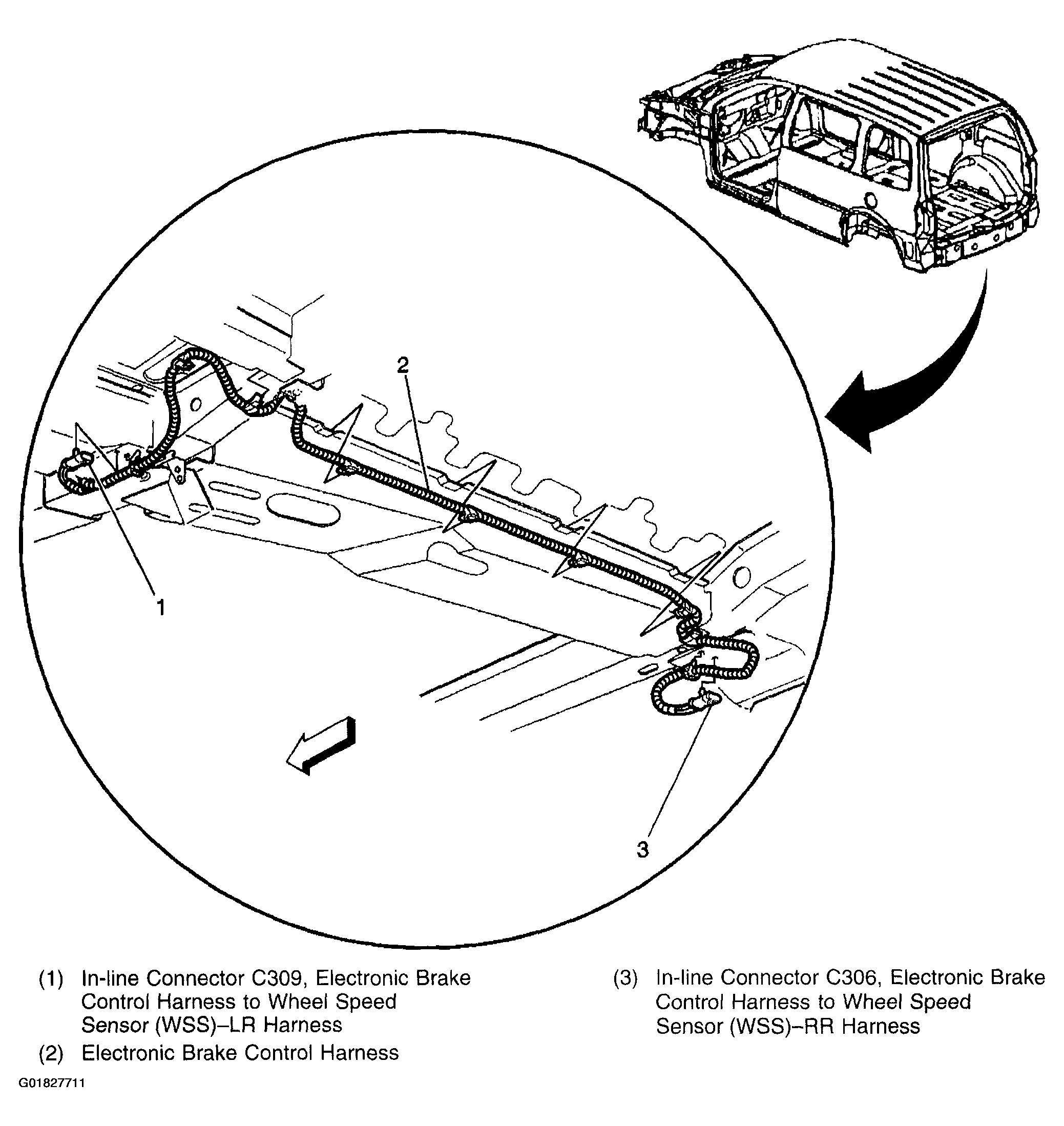

Fig 2: Underneath Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.

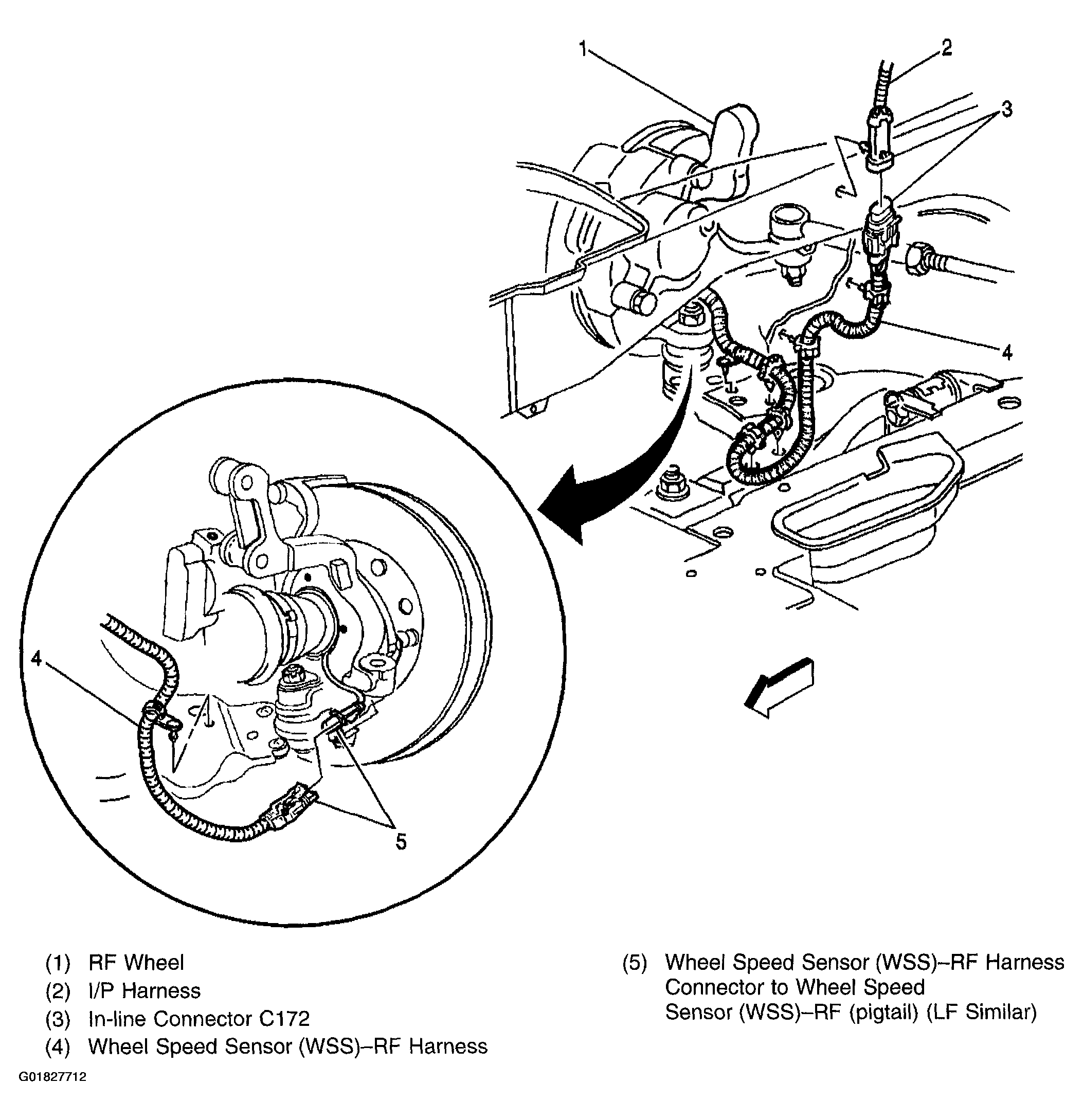

Fig 3: Wheel Speed Sensor (WSS) - RF (LF Similar)

Courtesy of GENERAL MOTORS CORP.

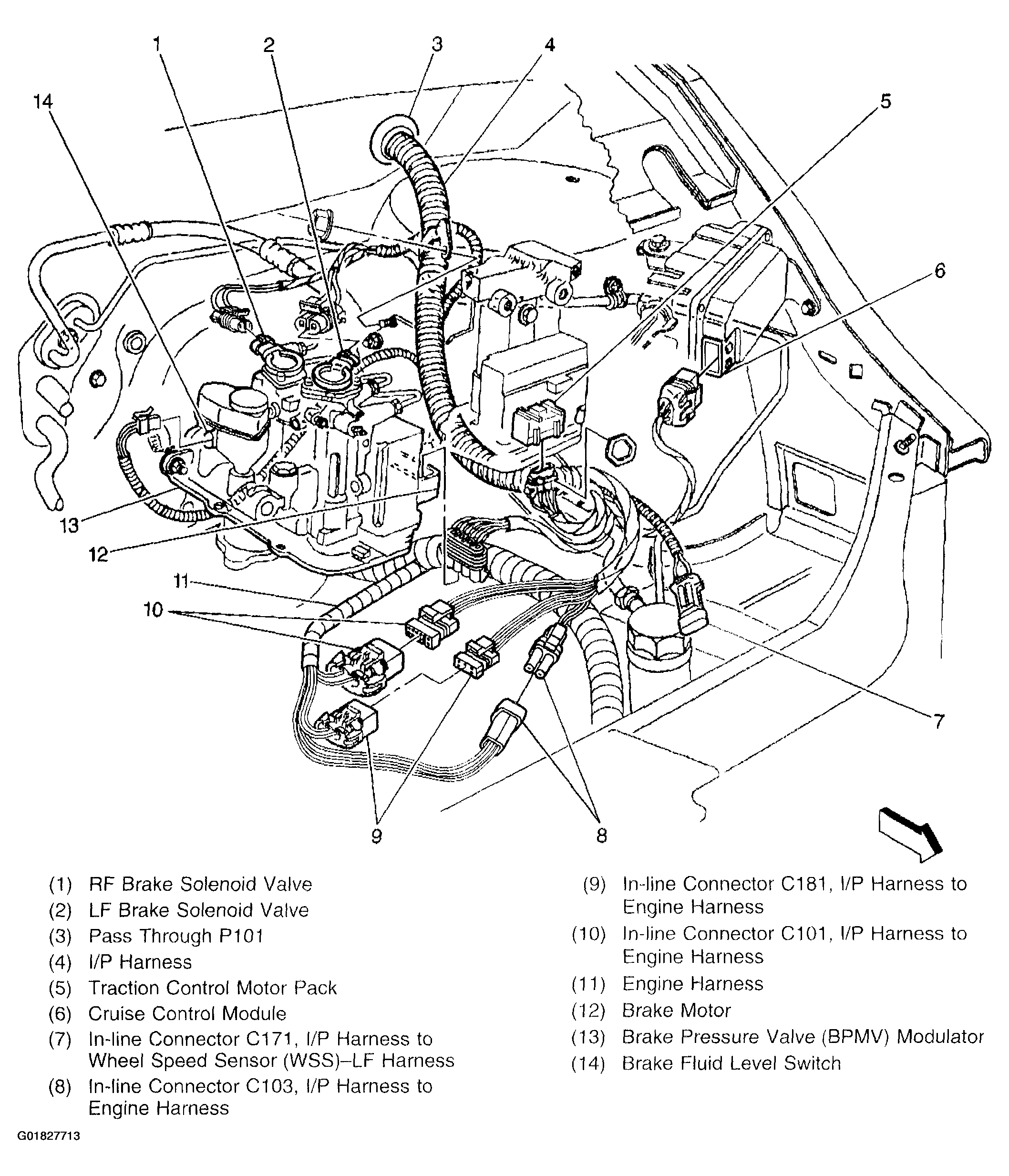

Fig 4: LH Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.
