Installation Procedure

Connect the electrical connectors.
Push in on the switch bank in order to install the switch bank.

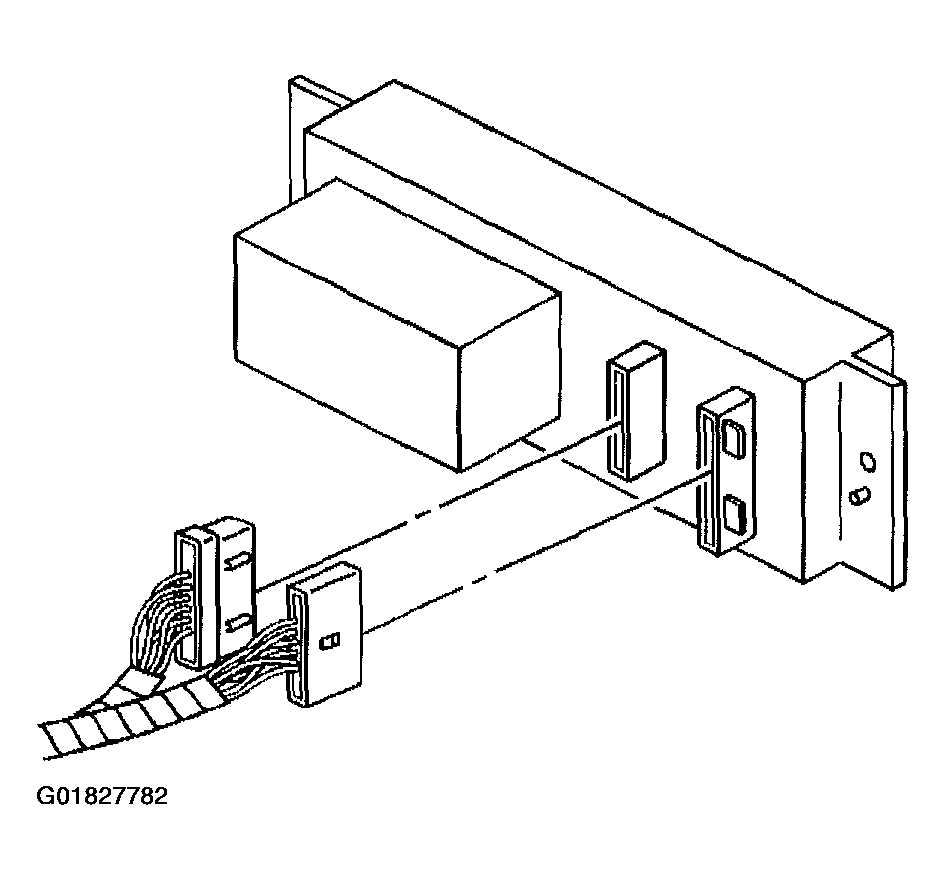

Fig 1: Connecting Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts/screws to the switch bank to instrument panel.
Tighten

Tighten the bolts/screws to 2.5 N.m (22 lb in).

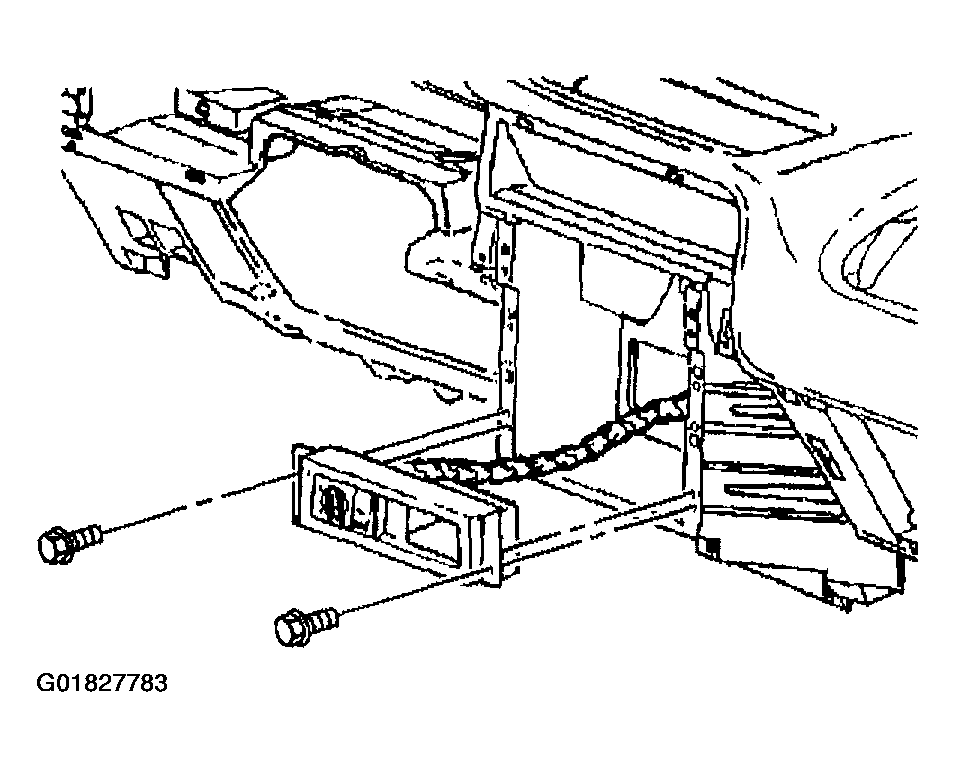

Fig 2: Installing Bolts/Screws, Switch Bank & Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .

Fig 3: Installing Instrument Panel Accessory Trim Plate
Courtesy of GENERAL MOTORS CORP.
