Removal Procedure

  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .

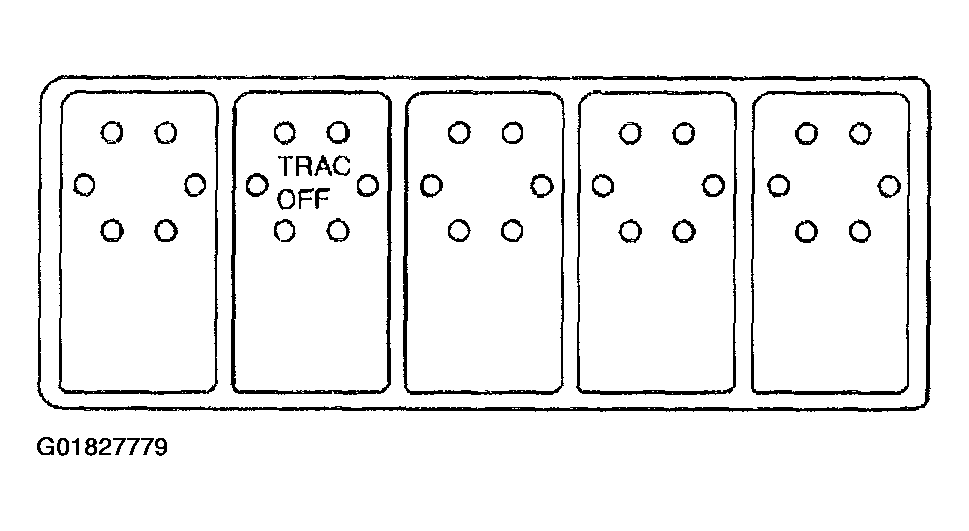

    Fig 1: Removing Instrument Panel Accessory Trim Plate
    G01827779Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts/screws from the switch bank to instrument panel.
  3. Pull straight out from the instrument panel in order to remove the switch bank from the instrument panel.

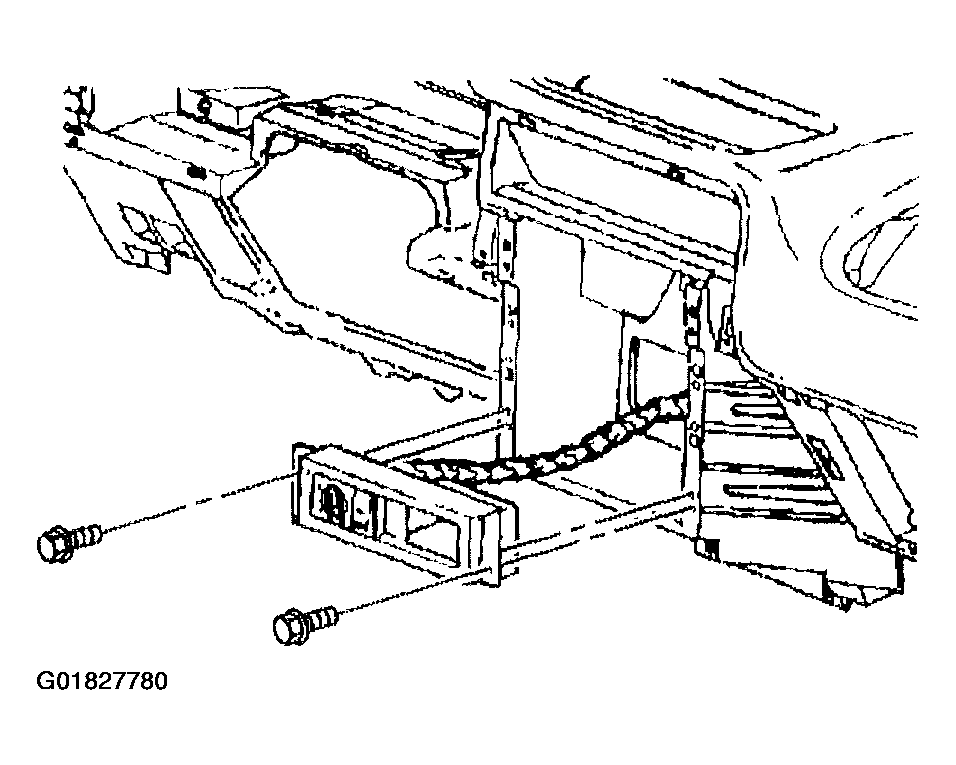

    Fig 2: Removing Bolts/Screws, Switch Bank & Instrument Panel
    G01827780Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.

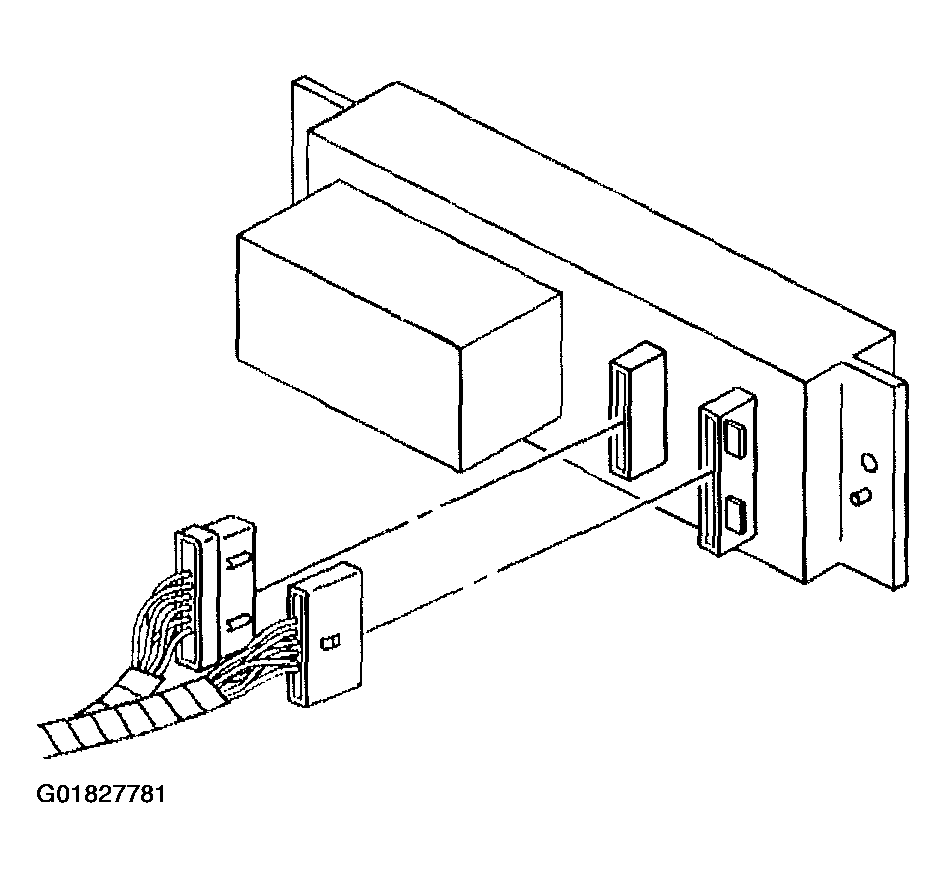

    Fig 3: Disconnecting Electrical Connectors
    G01827781Courtesy of GENERAL MOTORS CORP.
