Installation Procedure

  1. Install the hub and bearing assembly (2) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT -- FRONT .

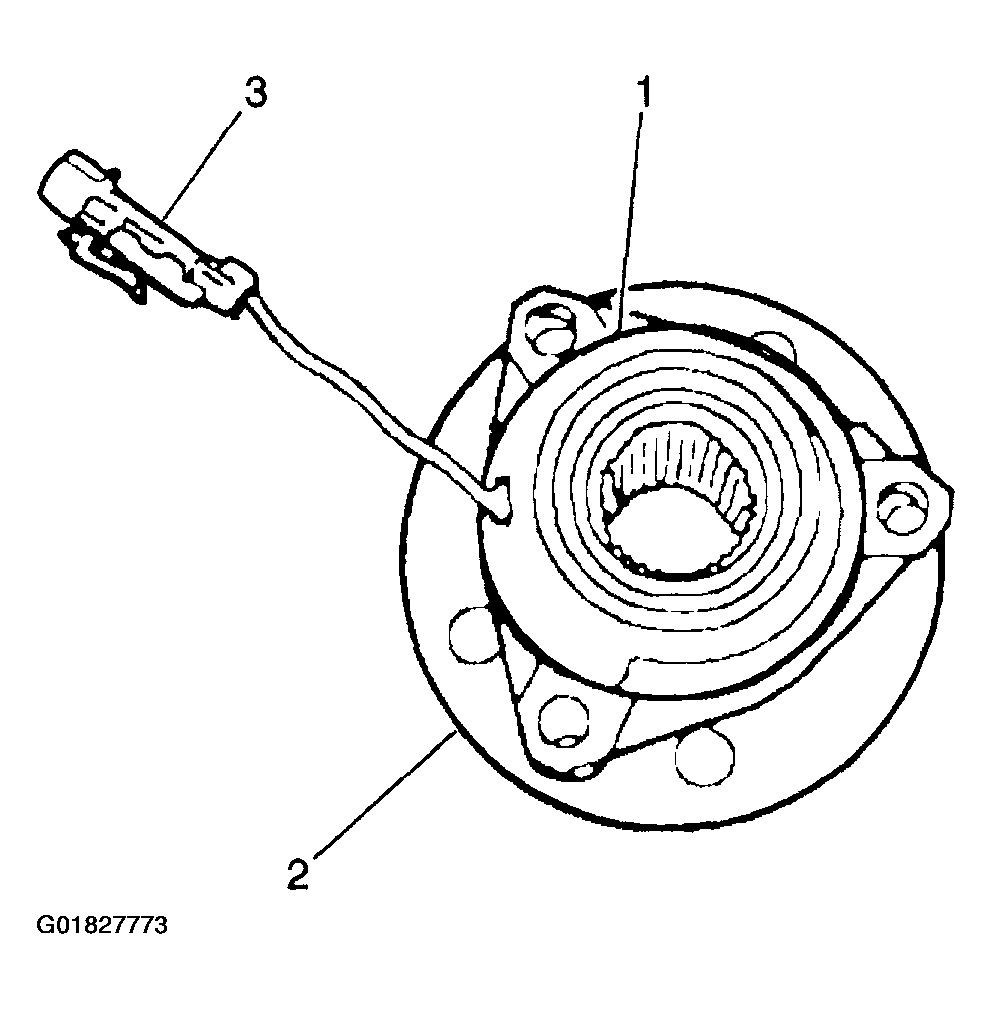

    Fig 1: Installing Hub & Bearing Assembly (Front)
    G01827773Courtesy of GENERAL MOTORS CORP.
  2. Install the front wheel speed sensor jumper harness electrical connector (1) to front wheel speed sensor connector (3).
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.
  5. Turn the ignition switch to the RUN position with the engine off.
  6. Perform Diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .

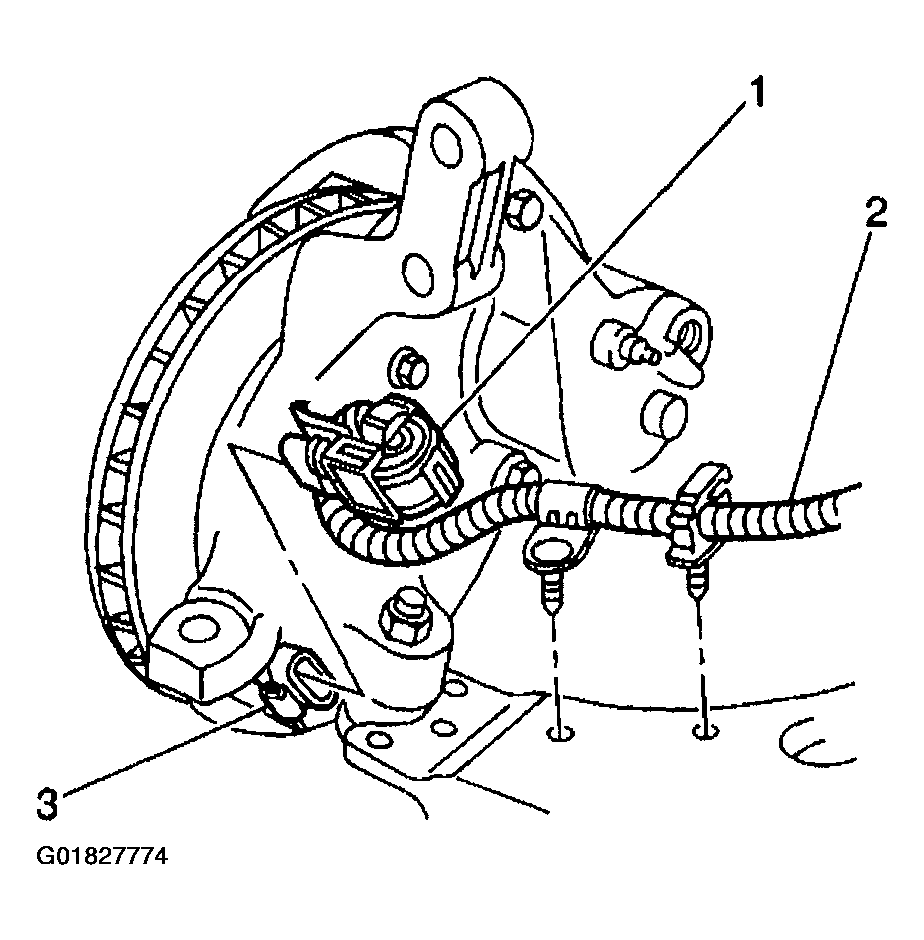

    Fig 2: Installing Front Wheel Speed Sensor Jumper Harness Electrical Connector
    G01827774Courtesy of GENERAL MOTORS CORP.
