CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Auxiliary Module | In lower center of dash. |
| Auxiliary Video Module | In overhead console. |
| Body Control Module (BCM) | Below right side of dash. |

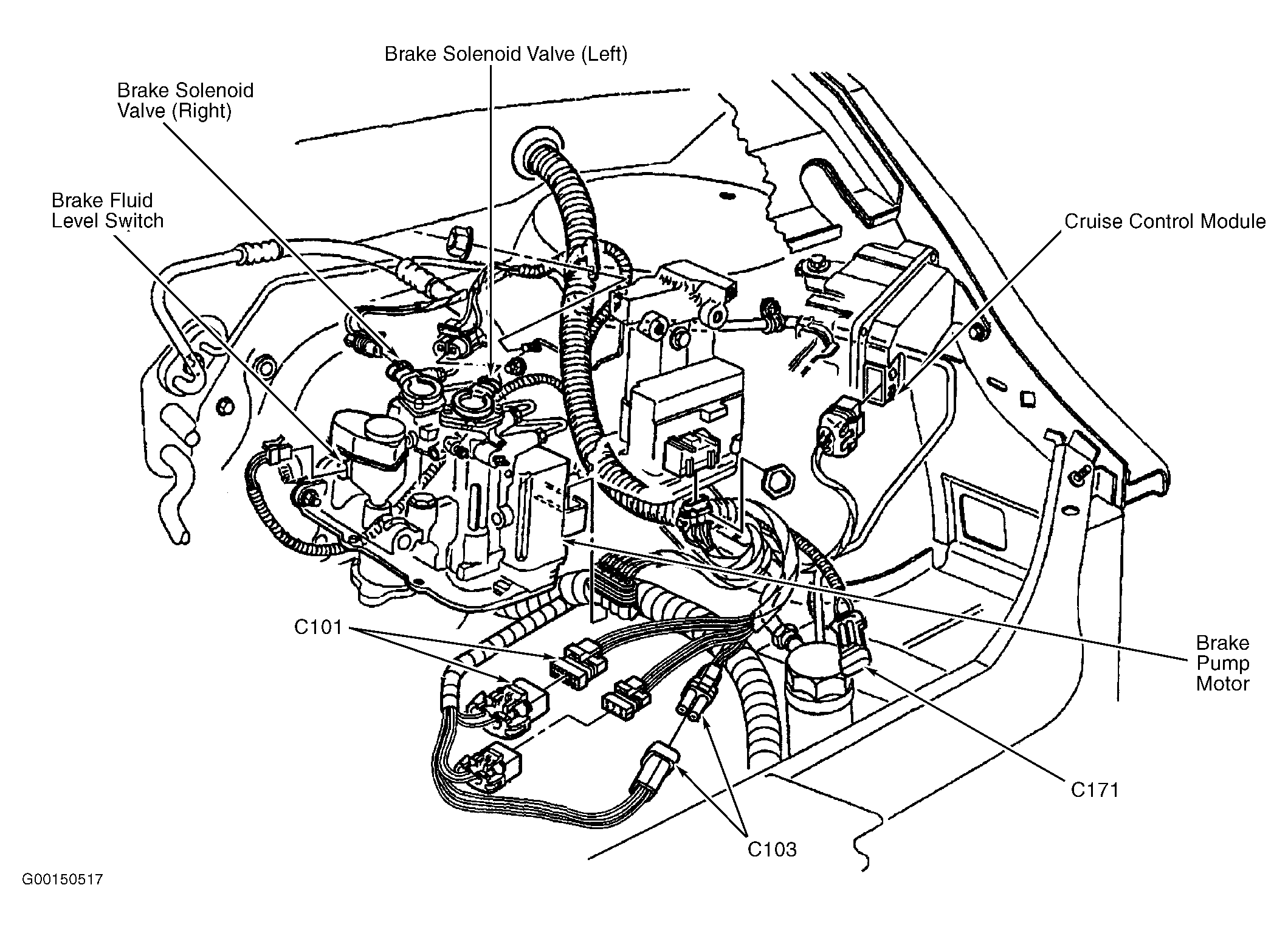

| Cruise Control Module (CCM) | On left side of engine compartment, on strut tower. See Figure . |
| Daytime Running Lamps (DRL) Control Module | Behind dash, right of steering column. |
| Electronic Brake Control Module (EBCM) | At lower left side of engine compartment. |
| Heated Seat Module (2) | Beneath respective front seat. |
| HVAC Control Module | Center of dash, below radio. |
| HVAC Control Module (Auxiliary) | Center of headliner. |
| Ignition Control Module (ICM) | On top right side of engine. See Figure . |
| Inflatable Restraint Side Impact Module (Left) | On left side of driver seat back cover. |
| Inflatable Restraint I/P Module | Right top of dash, above glove box. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below right front seat. |
| Inflatable Restraint Side Impact Module (Right) | On right side of passenger seat back cover. |
| Inflatable Restraint Steering Wheel Module | Center of steering wheel. |
| Left Rear Side Door Actuator Control Module | Behind left rear quarter trim panel. |
| Memory Seat Module (MSM) | Beneath driver's seat. |
| Powertrain Control Module (PCM) | Secured in air cleaner assembly, left front of engine compartment. See Figure . |
| Rear Object Sensor Control Module | Behind trim panel at right front of cargo area. |
| Rear Side Door Actuator Control Module | Behind right rear quarter trim panel. |
| Remote Control Door Lock Receiver (RCDLR) | Behind center of dash, underside of dash trim, near windshield defrost vent. |
| Theft Deterrent Control Module | In steering column, at ignition switch. |
| Turn Signal/Hazard Flasher Module | Below left side of dash, left side base of steering column. |
| Vehicle Communication Unit (VCU) | Below left side of dash. |
| Vehicle Interface Unit (VIU) | Below left side of dash. |
| Video/Audio/HVAC Module (Rear) | Part of overhead console. |
