Component Locations

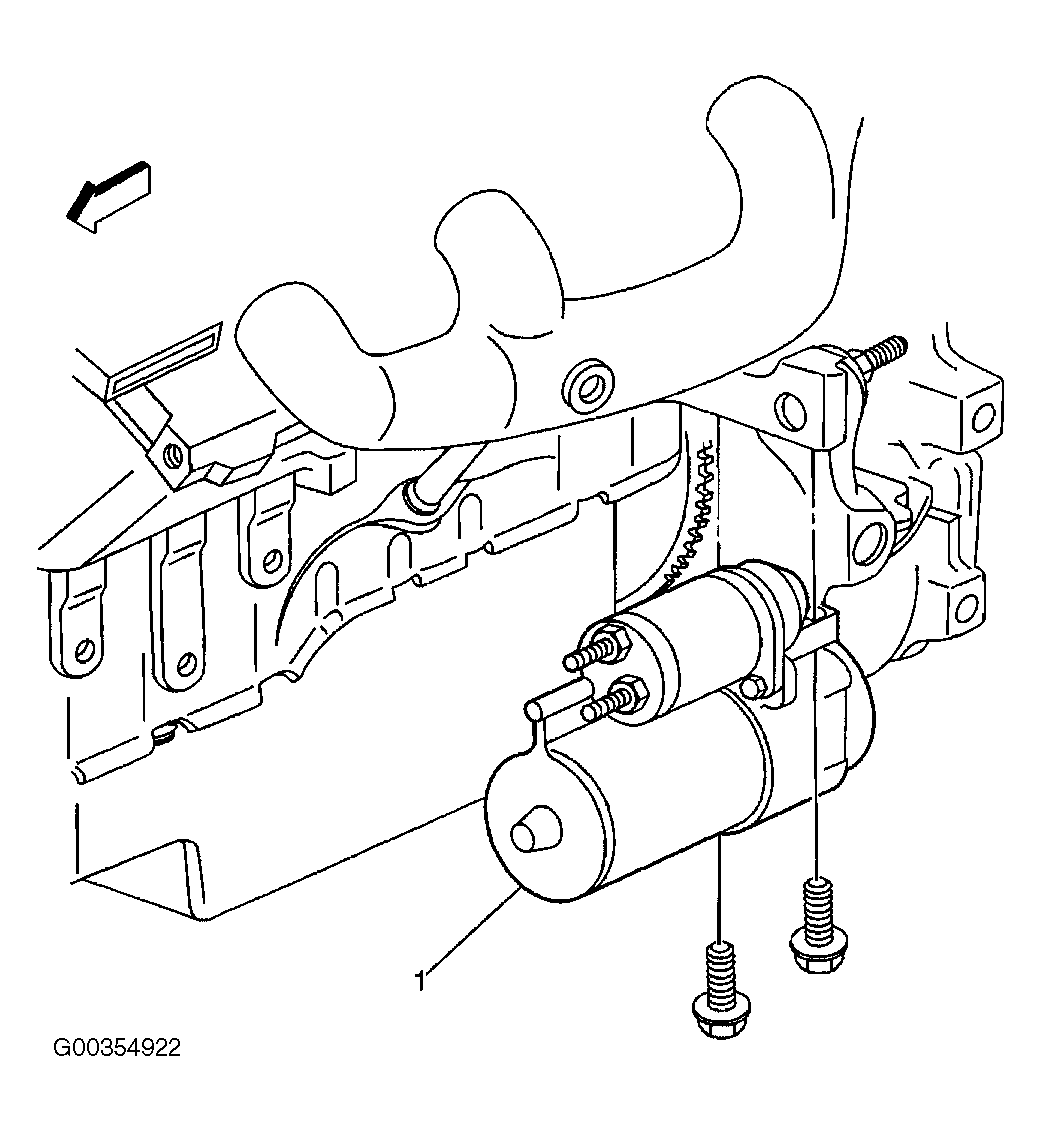

Fig 1: Locating Starter
G00354922Courtesy of GENERAL MOTORS CORP.

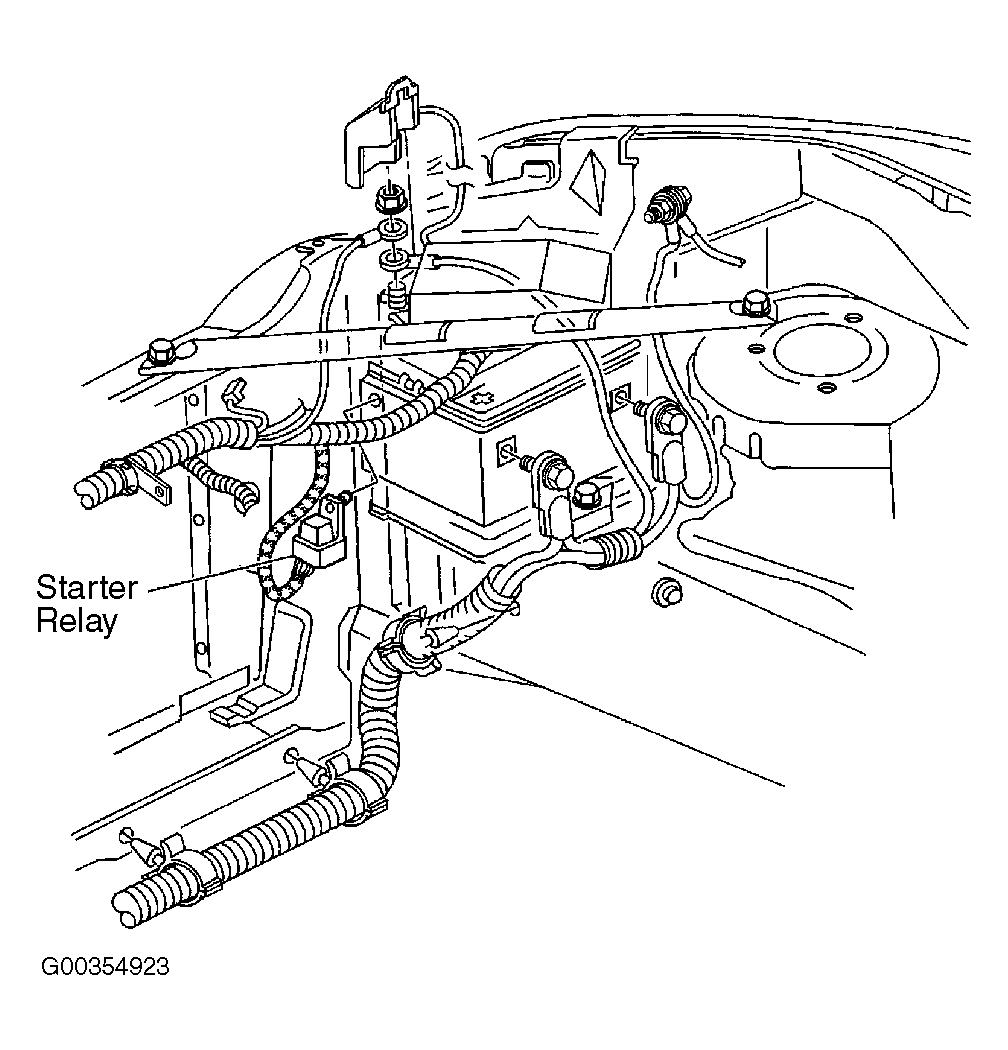

Fig 2: Locating Starter Relay
G00354923Courtesy of GENERAL MOTORS CORP.

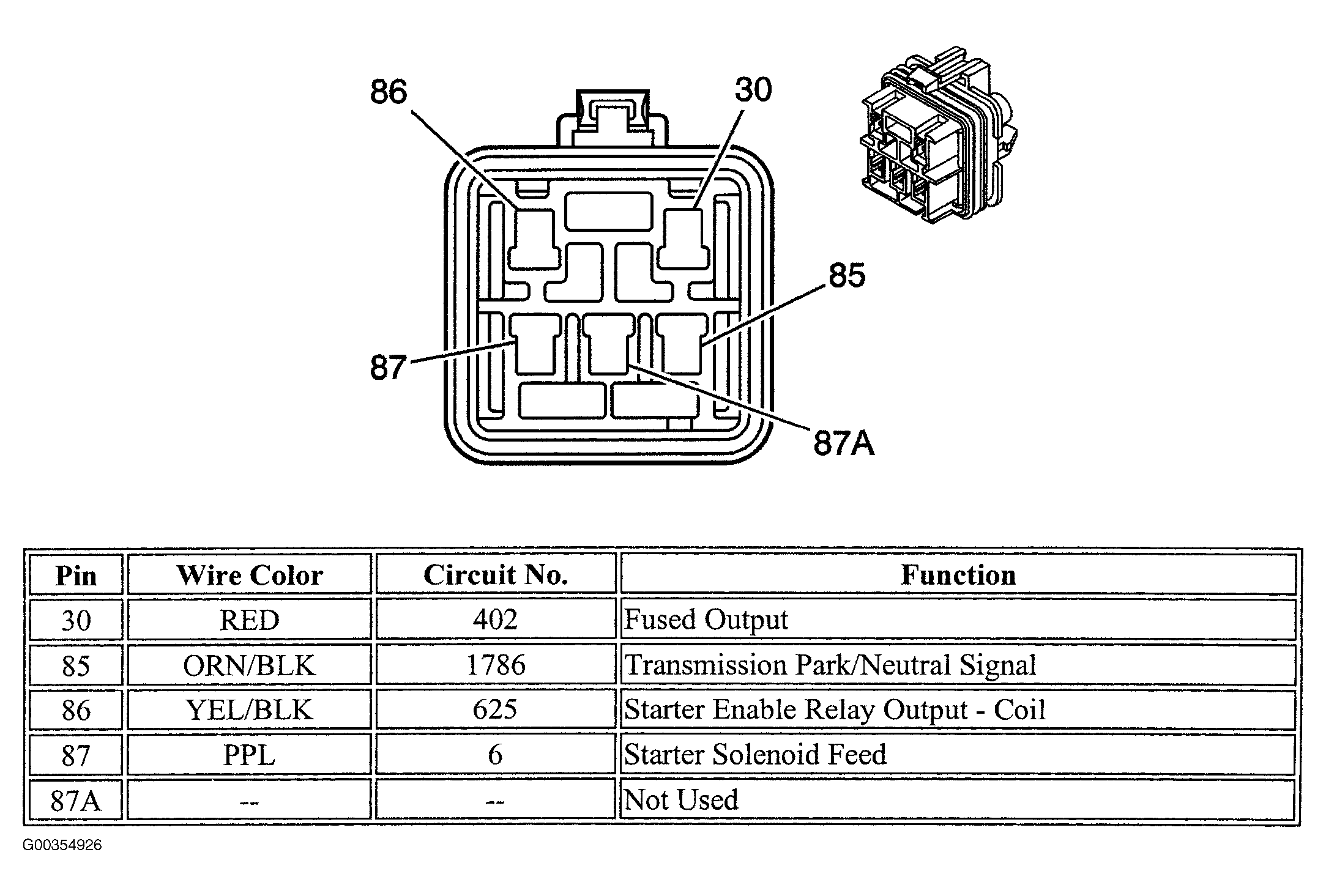

Fig 3: Identifying Starter Relay Terminals
G00354926Courtesy of GENERAL MOTORS CORP.
