Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Open the driver door.
Remove the close-out insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

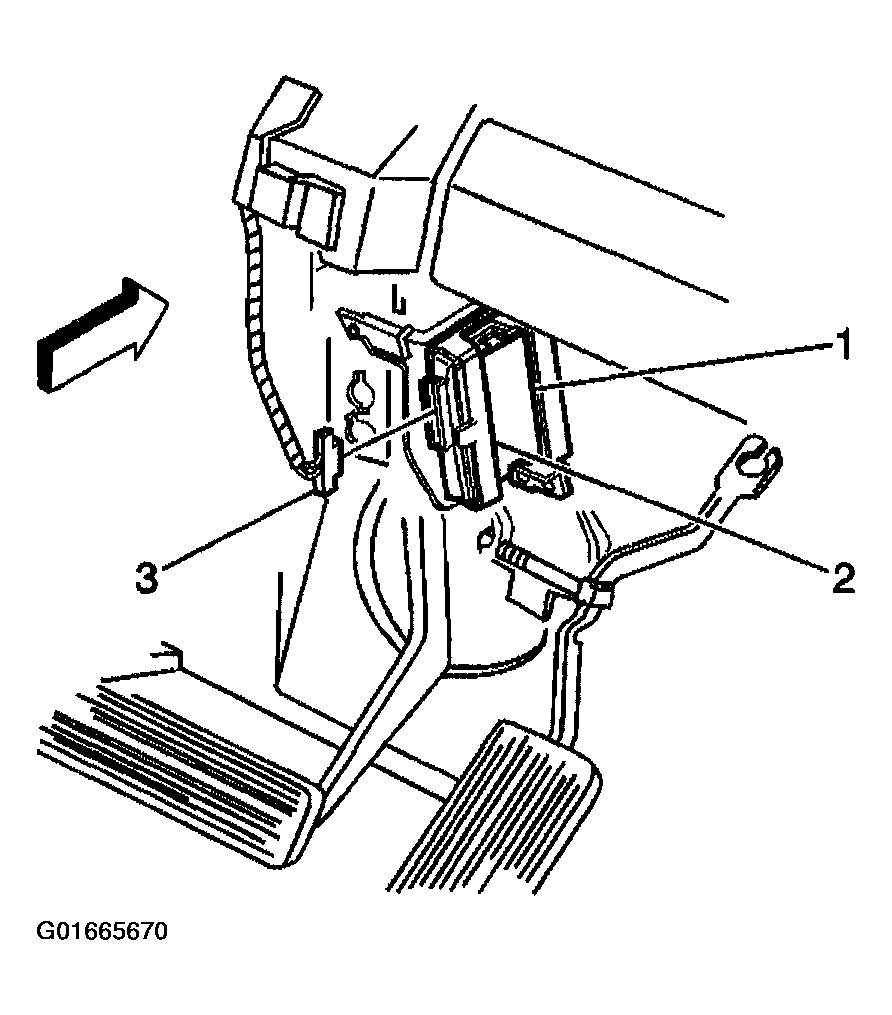

Disconnect the electrical connector (3) from the memory mirror module (MMM) (1).
Release the locking tab (2) in order to remove the module (1).
Slide the (MMM) rearward in order to remove from the bracket.

Fig 1: Memory Mirror Module & Components
Courtesy of GENERAL MOTORS CORP.

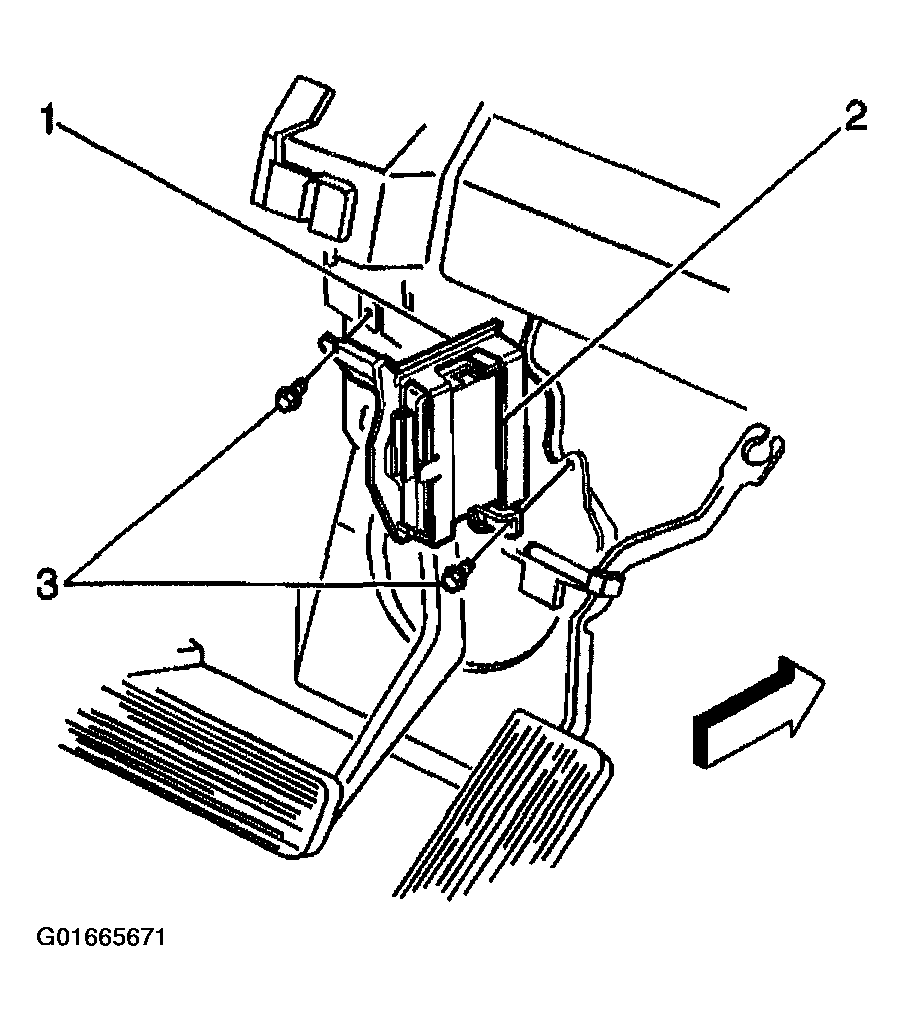

Remove the fasteners (3) from the (MMM) bracket (1).
Remove the bracket.

Fig 2: Memory Mirror Module & Components
Courtesy of GENERAL MOTORS CORP.
