Electronic Ignition System (2.2L): Notes

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

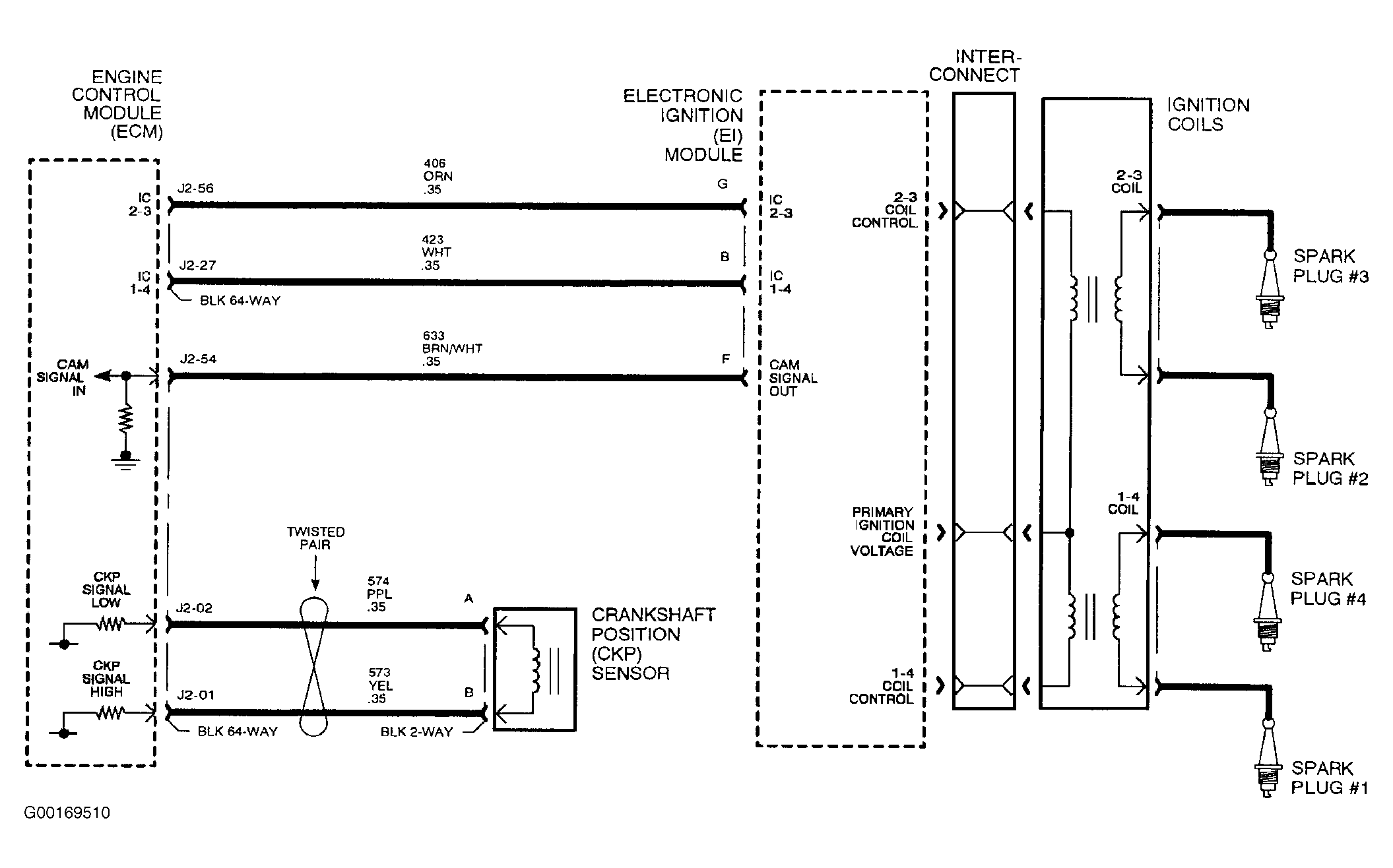

Fig 1: Ignition Circuit Schematic (2.2L)
G00169510Courtesy of GENERAL MOTORS CORP.
