Installation Procedure

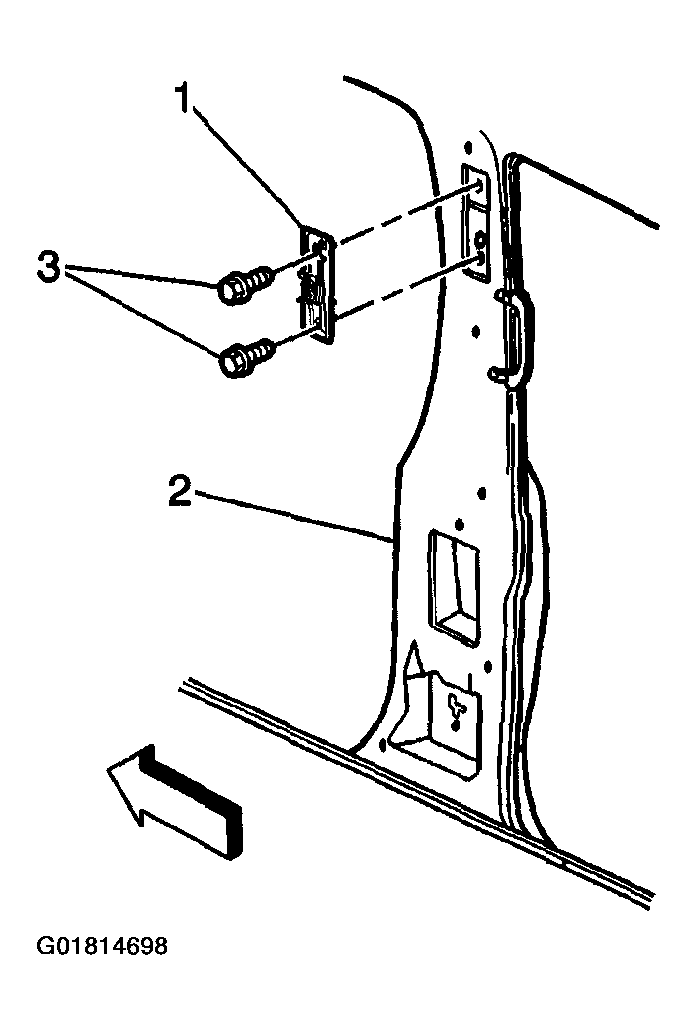

- Install the shoulder belt guide adjuster bracket (1) to the B-pillar (2).NOTE: Refer to FASTENER NOTICE .
- Use the J 29843-9
in order to install the bolts (3) to the shoulder belt guide adjuster bracket (1).
Tighten
Tighten the front shoulder belt guide adjuster bracket bolts to 50 N.m (37 lb ft).
- Install the center pillar upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
- Install the nut securing the upper guide loop anchor nut.
Tighten
Tighten the front seat belt upper guide loop anchor nut to 29 N.m (21 lb ft).
- Install the plastic cover to the shoulder belt guide.
