Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. If the vehicle is equipped with all wheel drive, remove the right side engine splash shield in order to access the heat shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .

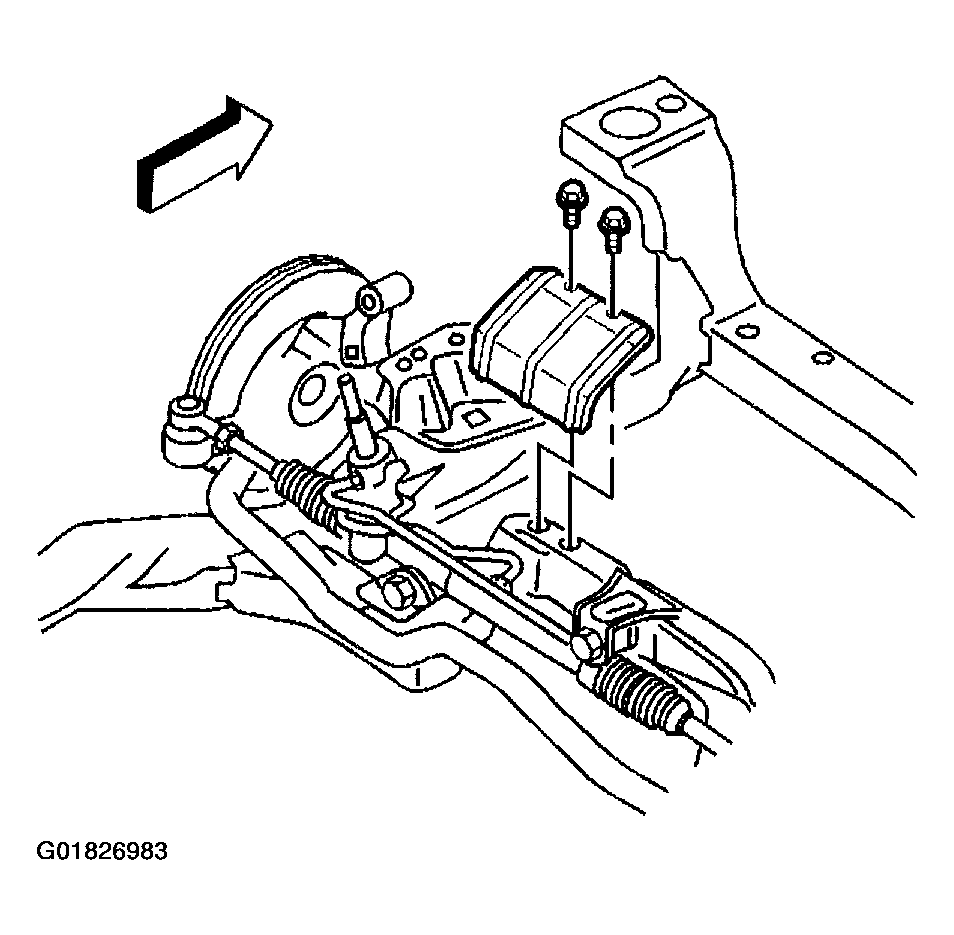

    Fig 1: Right Side Engine Splash Shield
    G01826983Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering gear heat shield bolts.

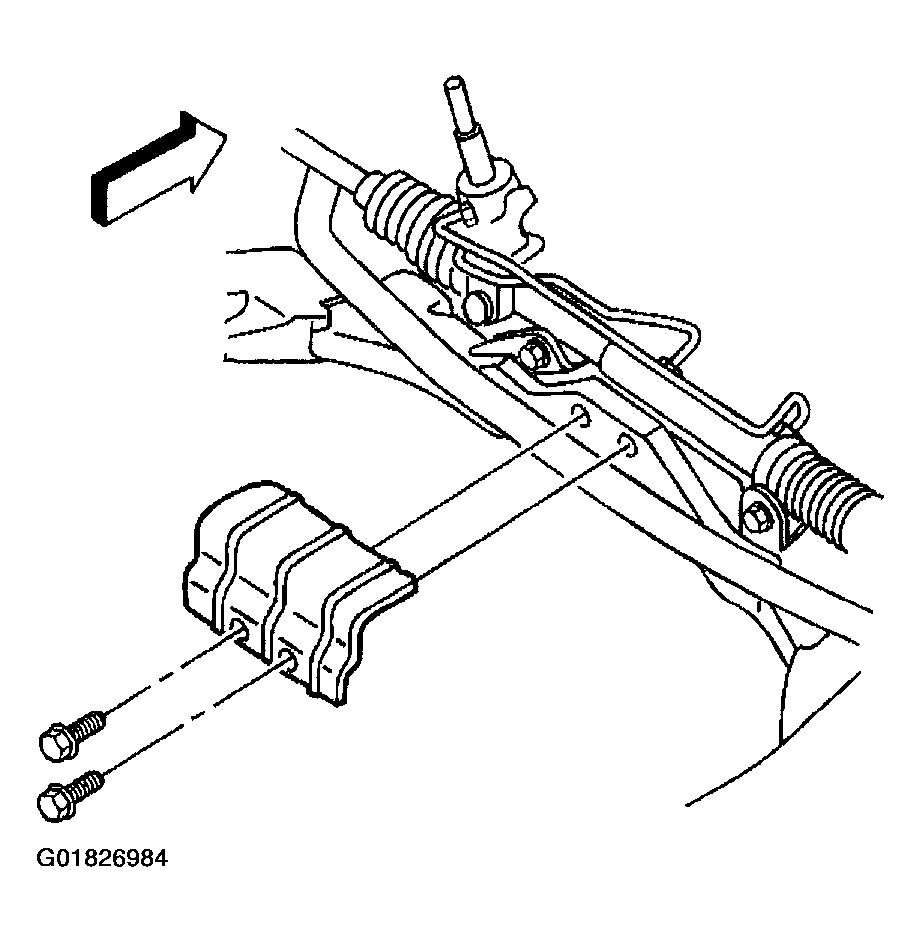

    Fig 2: Steering Gear Heat Shield
    G01826984Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering gear heat shield.
