Installation Procedure

IMPORTANT:
  • Ensure that the face of the pulley hub is flush with the end of the pump shaft.
  • Do not use the arbor press to install the pulley.

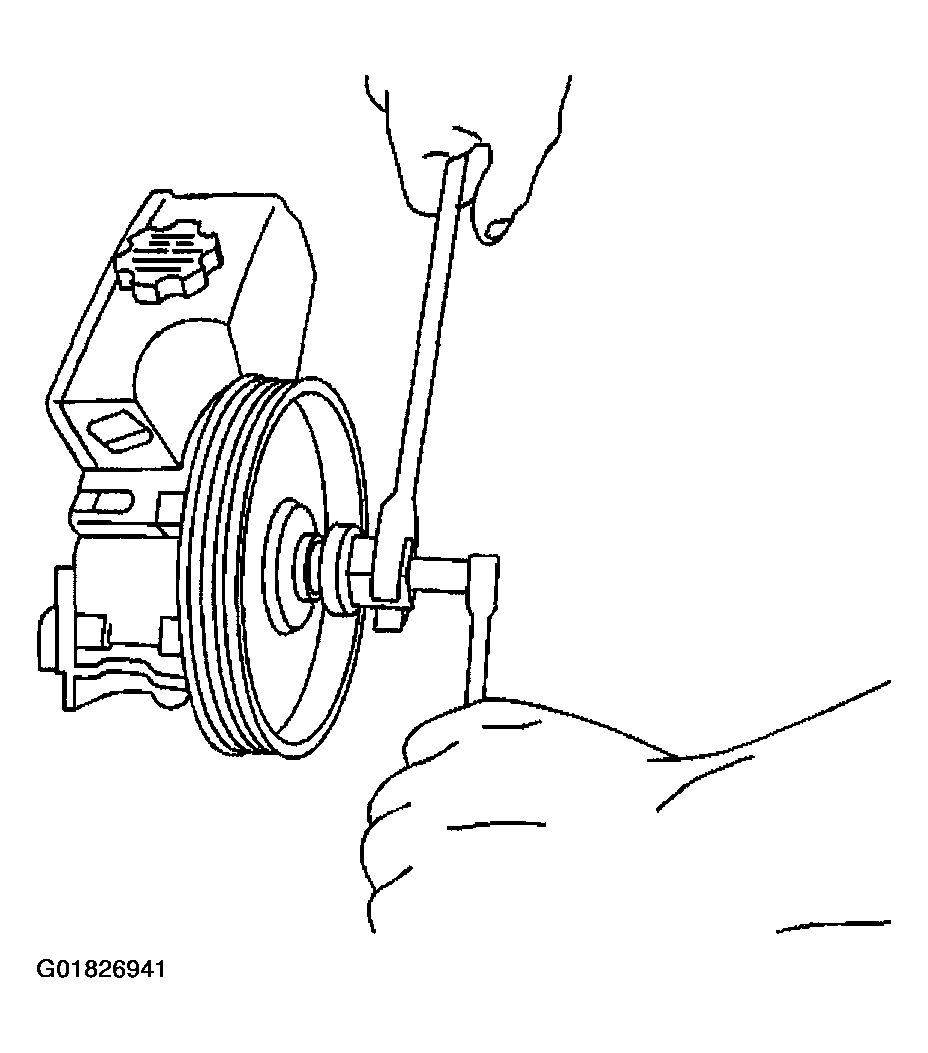

    Fig 1: Installing Power Steering Pulley Using J 25033-C
    G01826941Courtesy of GENERAL MOTORS CORP.
  1. Use J 25033-C  in order to install the power steering pump pulley.
  2. Install the power steering pump to the engine. Refer to Power Steering Pump Replacement .
  3. Install the drive belt. Refer to DRIVE BELT REPLACEMENT .
  4. Bleed the power steering system if the pump was removed. Refer to Bleeding the Power Steering System .
  5. Inspect the system for leaks. Refer to Power Steering System Test Procedure .
