Installation Procedure

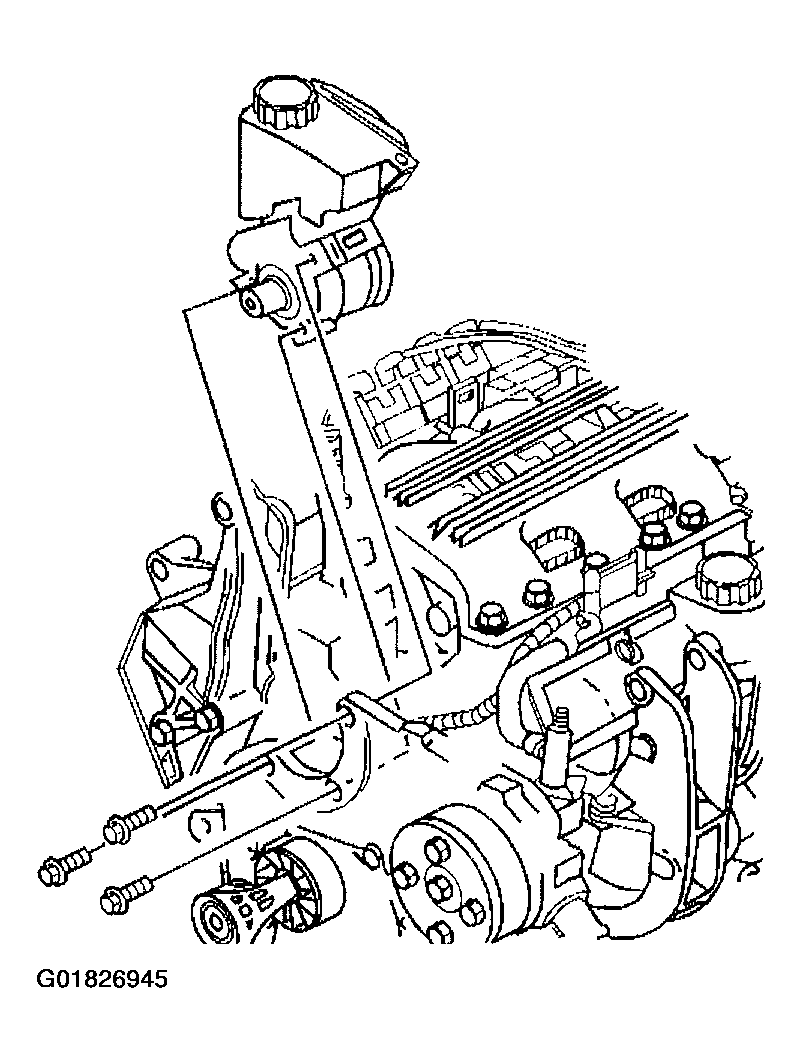

    Fig 1: Installing Power Steering Pump
    G01826945Courtesy of GENERAL MOTORS CORP.
  1. Install the reservoir to the pump.
  2. Install the power steering pump pulley. Refer to Power Steering Pulley Replacement .
  3. Install the pump to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the power steering pump bolts.

    Tighten

    Tighten the power steering pump bolts to 34 N.m (25 lb ft).

    5. Fig 2: Power Steering Return Hose At Pump
    G01826946Courtesy of GENERAL MOTORS CORP.
  5. Install the return hose to the pump. Refer to Power Steering Return Hose Replacement .

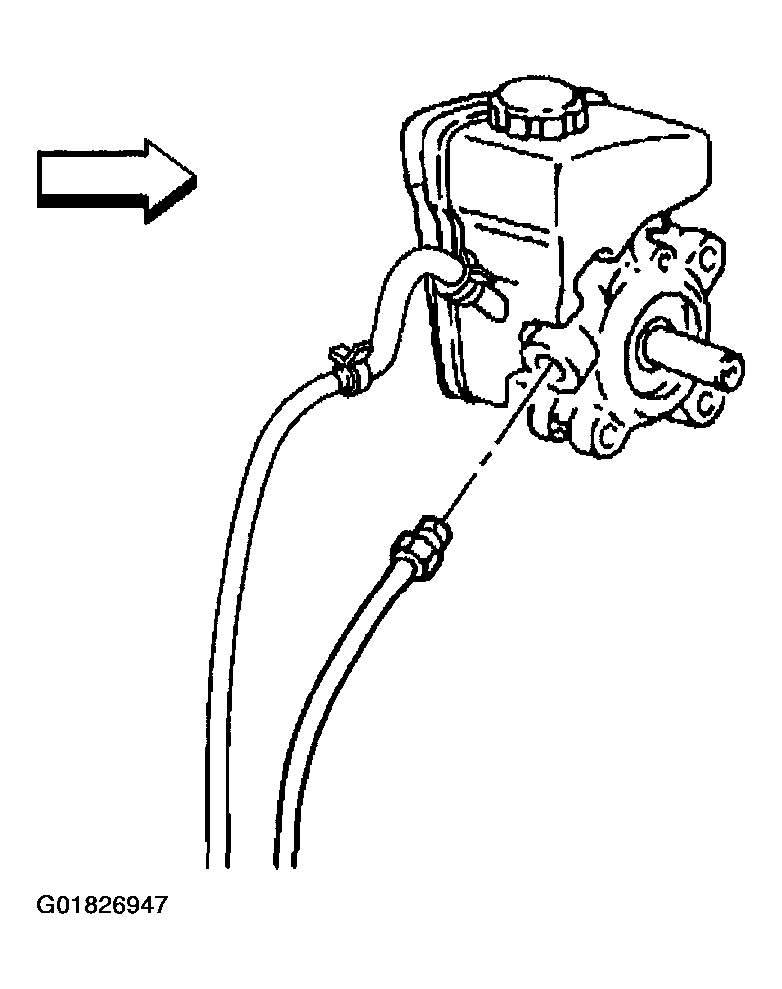

    6. Fig 3: Power Steering Pressure Hose At Pump
    G01826947Courtesy of GENERAL MOTORS CORP.
  6. Install the pressure hose to the pump. Refer to Power Steering Pressure Hose Replacement .
  7. Install the drive belt. Refer to DRIVE BELT REPLACEMENT .
  8. Fill the power steering system. Refer to Checking and Adding Power Steering Fluid .
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  10. Inspect the system for leaks. Refer to Power Steering System Test Procedure .
