Installation Procedure

Fig 1: Installing Outer Tie Rod To Inner Tie Rod

G01826956

Courtesy of GENERAL MOTORS CORP.

Install the outer tie rod (3) to the inner tie rod (1). Do not tighten the tie rod jam nut (2).

Fig 2: Installing Outer Tie Rod To Steering Knuckle

G01826957

Courtesy of GENERAL MOTORS CORP.

Install the outer tie rod (2) to the steering knuckle (1).
IMPORTANT:
This is a prevailing torque type fastener. You may reuse this fastener ONLY under the following conditions:
- The fastener and its counterpart are clean and free from rust.
- The fastener develops 2 N.m (18 lb in) of torque/drag against its counterpart prior to the fastener seating.
If the fastener does not meet these criteria, REPLACE the fastener.

NOTE: Refer to FASTENER NOTICE .

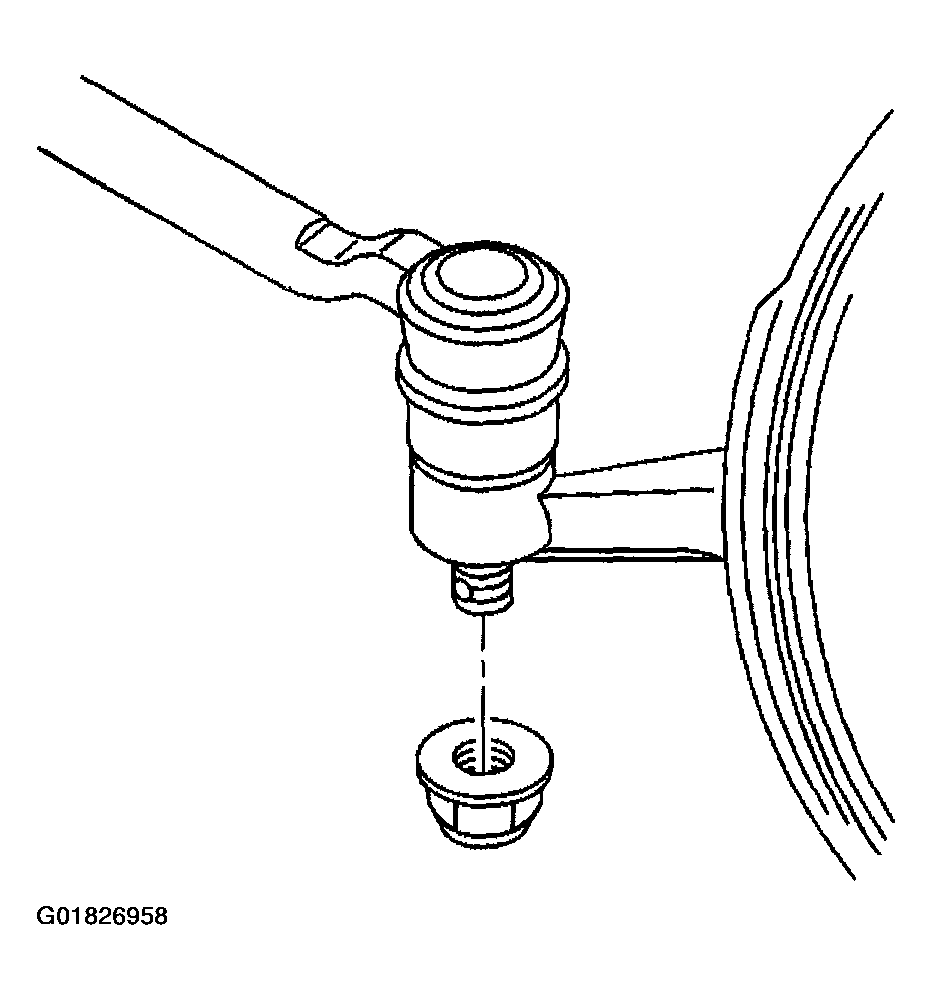

Fig 3: Tie Rod Ball Stud Nut

G01826958

Courtesy of GENERAL MOTORS CORP.

Install the tie rod ball stud nut.
Tighten

Tighten the tie rod ball stud nut to 30 N.m (22 lb ft) + 120 degrees-2 flats.

IMPORTANT: Ensure that 2.5-4.5 tie rod end threads are visible beyond the tie rod nut nylon.
Inspect and adjust the toe as necessary. Refer to FRONT TOE ADJUSTMENT .
