Special Tools and Equipment

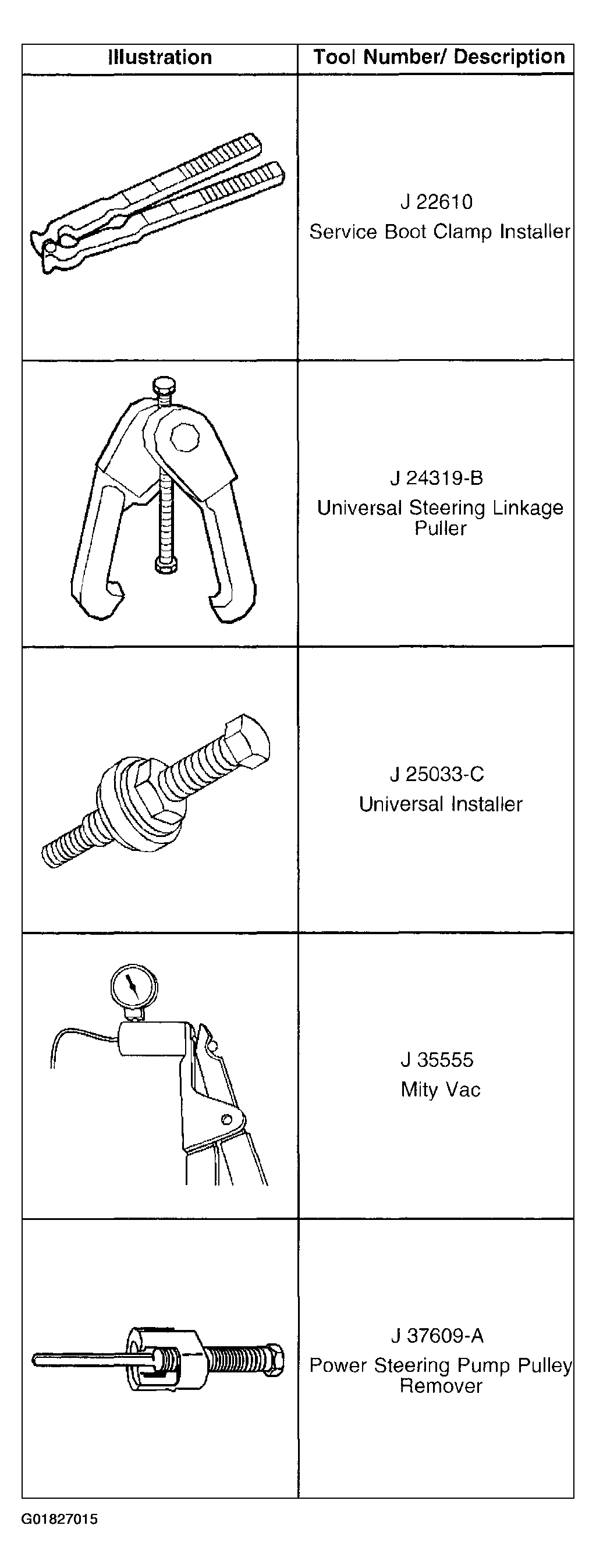

Fig 1: Special Tools & Equipment (1 Of 3)
G01827015Courtesy of GENERAL MOTORS CORP.

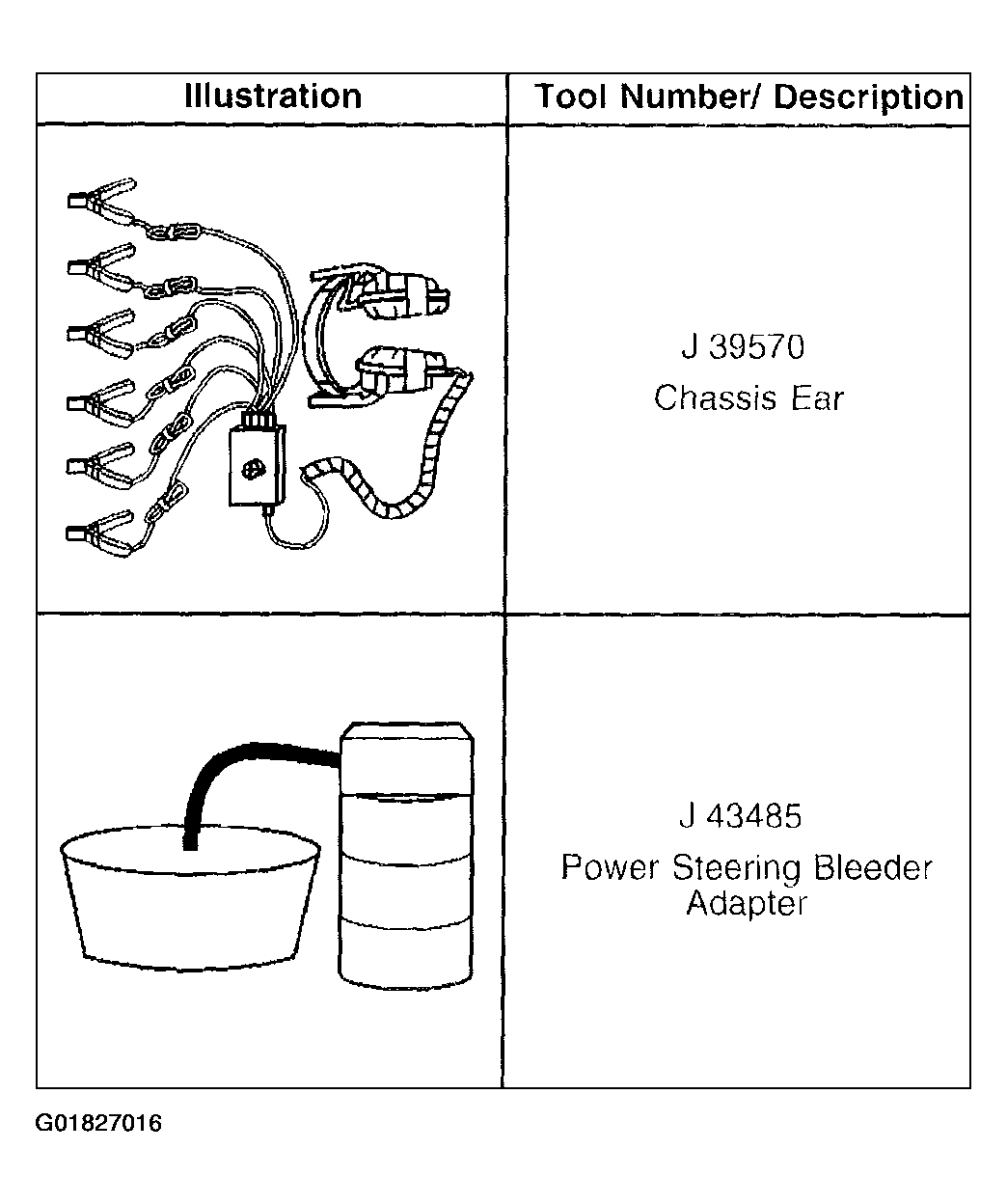

Fig 2: Special Tools & Equipment (2 Of 3)
G01827016Courtesy of GENERAL MOTORS CORP.
Fig 3: Special Tools & Equipment (3 Of 3)
G01827017Courtesy of GENERAL MOTORS CORP.
