Rear Toe Adjustment

IMPORTANT: Make any adjustments to camber before setting toe.

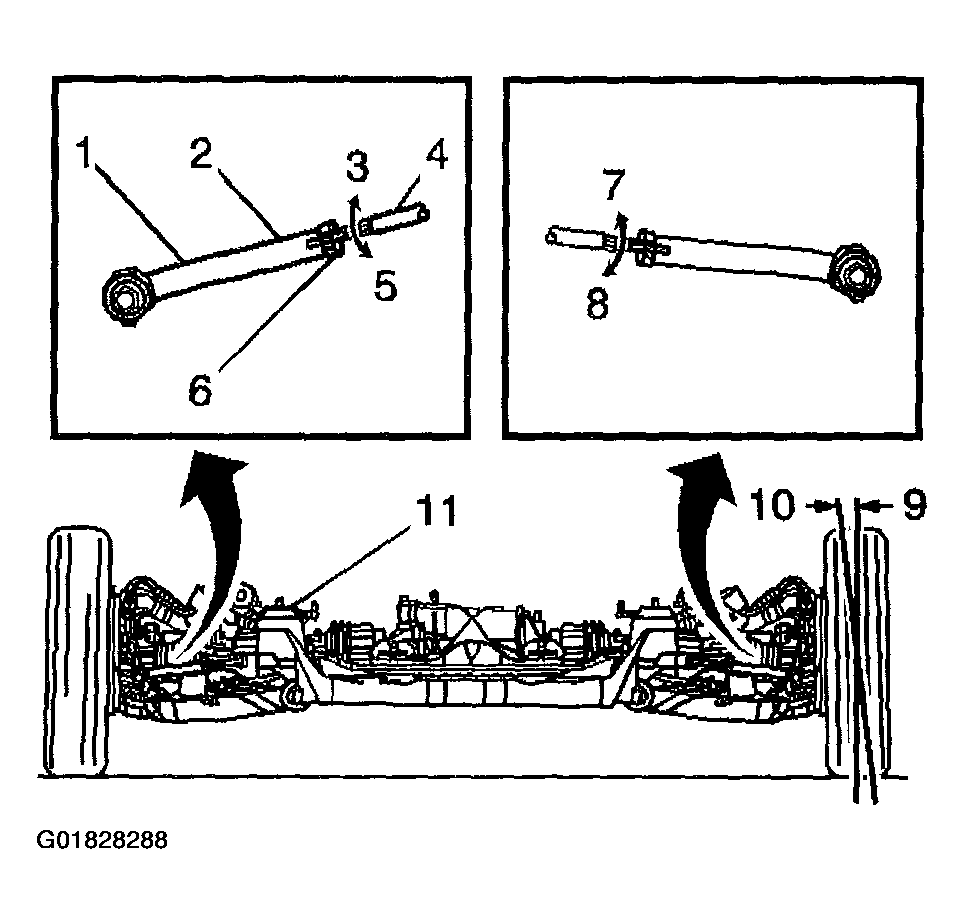

    Fig 1: Rear Toe Adjustment
    G01828288Courtesy of GENERAL MOTORS CORP.
  1. Loosen the jam nut (6) at the rear wheel tie rod.
  2. Adjust the toe to the proper setting by turning the inner link adjustment hex (4). Refer to Wheel Alignment Specifications .
    NOTE: Refer to FASTENER NOTICE .
  3. When the toe adjustment is correct, tighten the jam nut.

    Tighten

    Tighten the nut to 62 N.m (45 lb ft).

  4. Recheck the toe alignment.
