Wheel Alignment Specifications
>>
Specifications
>>
BRAVADA, Envoy & Trailblazer
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
BRAVADA, Envoy & Trailblazer

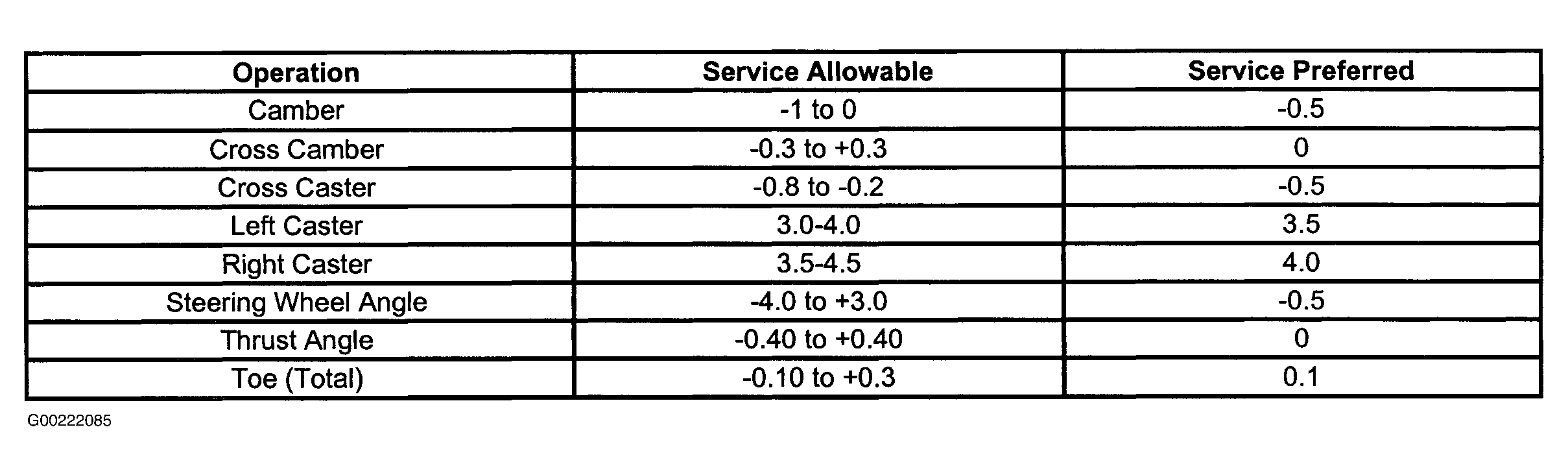

Fig 1: Wheel Alignment Specifications (Bravada, Envoy & TrailBlazer)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
