Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

• Shift Lever Does Not Move with Brake Pedal Depressed
• Shift Lever Can Be Moved without Brake Pedal Depressed

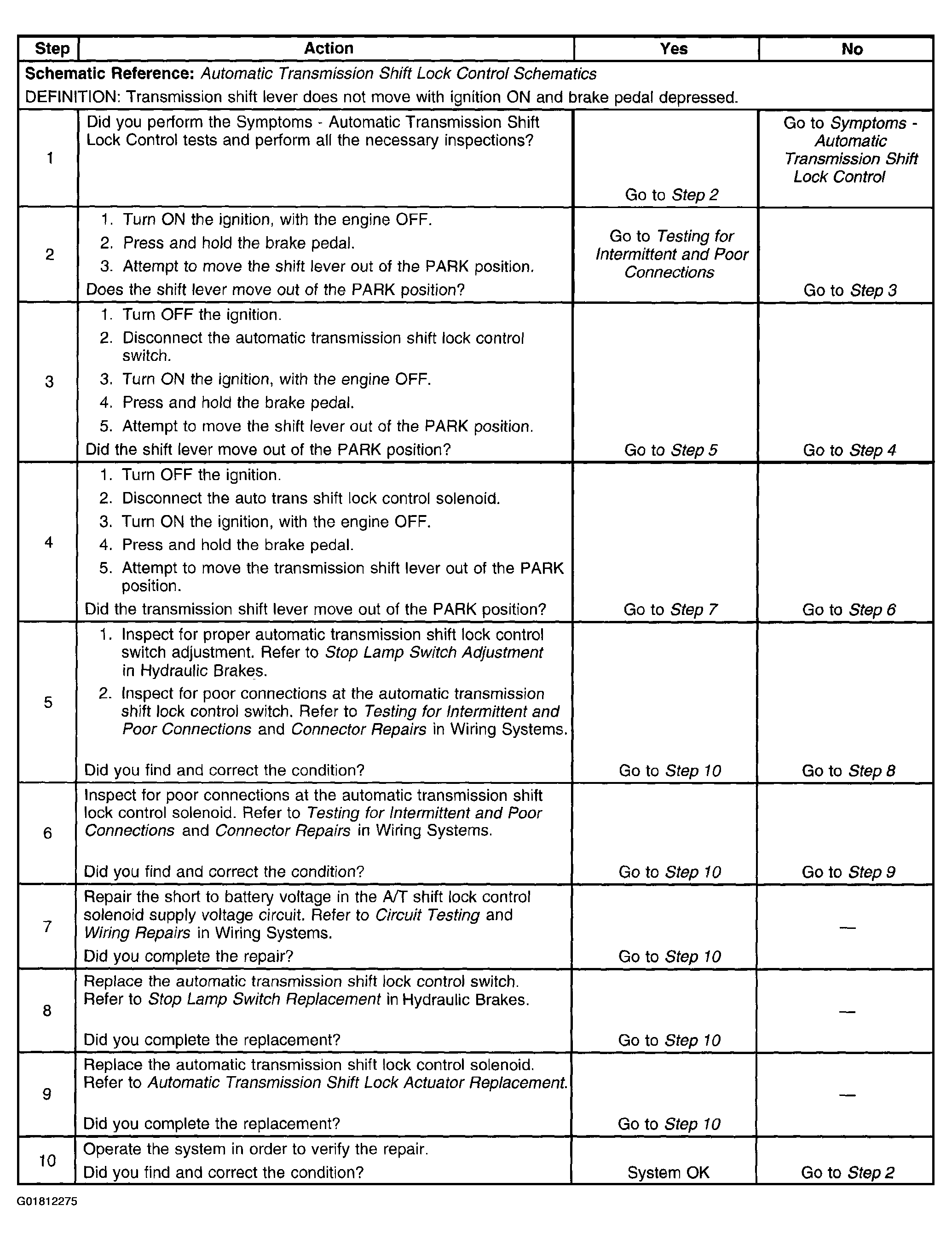

Fig 1: Shift Lever Does Not Move With Brake Pedal Depressed

Courtesy of GENERAL MOTORS CORP.

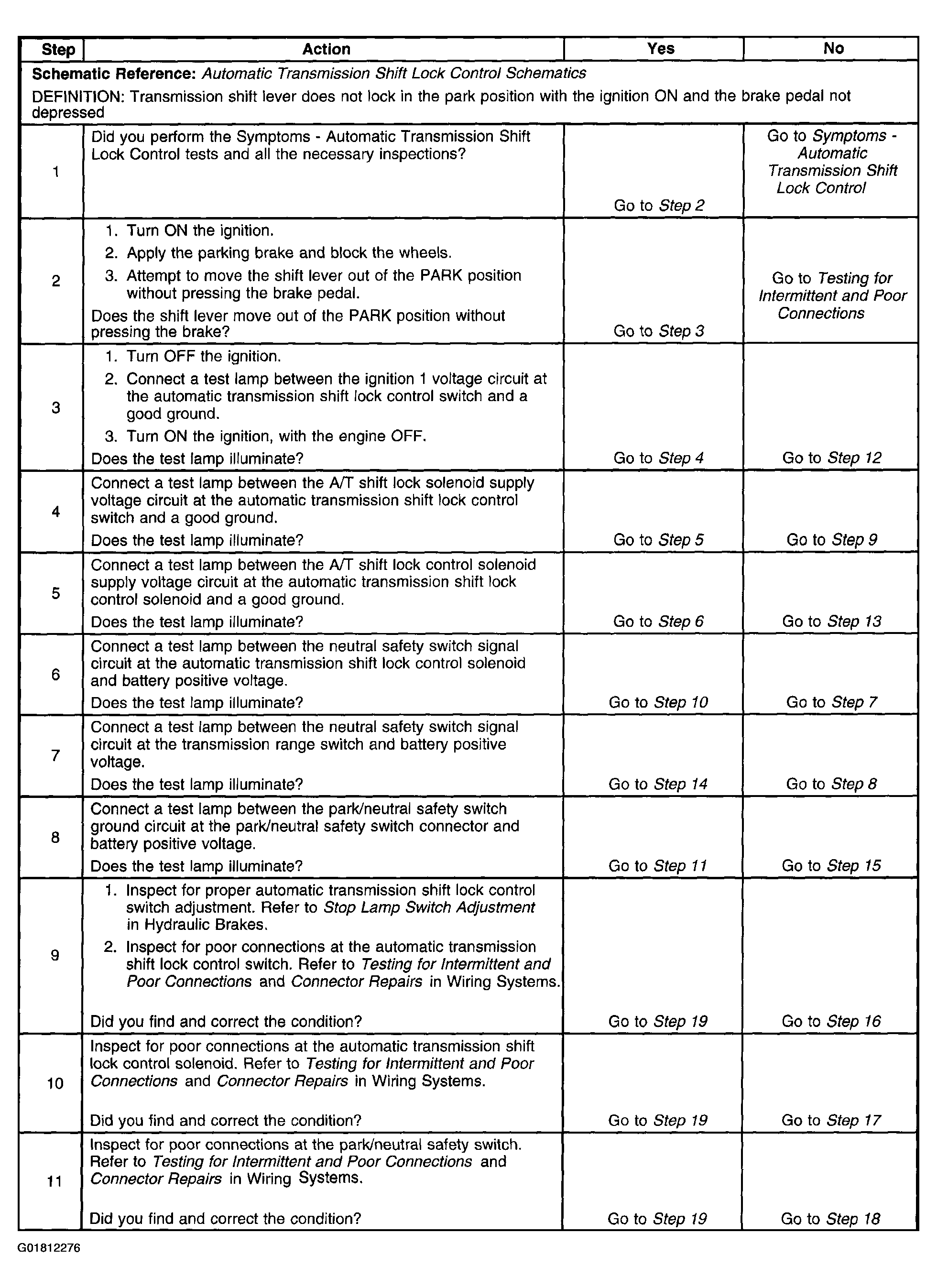

Fig 2: Shift Lever Can Be Moved Without Brake Pedal Depressed (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

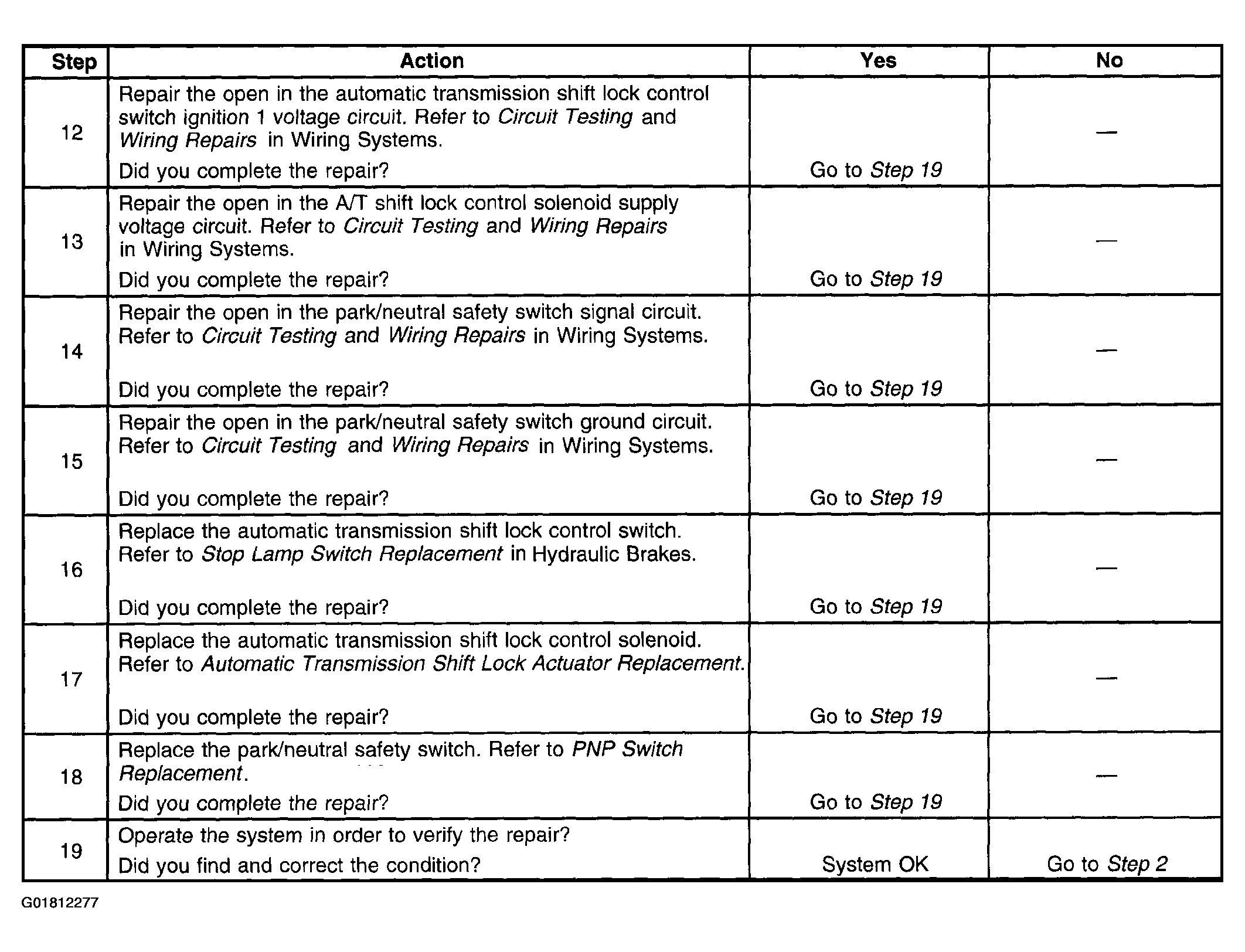

Fig 3: Shift Lever Can Be Moved Without Brake Pedal Depressed (Steps 12-19)

Courtesy of GENERAL MOTORS CORP.
