Installation Procedure

  1. Install the automatic shift lock control actuator onto the steering column ball studs.
  2. Connect the electrical connector to the automatic shift lock control actuator.
  3. Install the shift lever actuator. Refer to SHIFT LEVER REPLACEMENT -- ON VEHICLE Place the column in the neutral position.

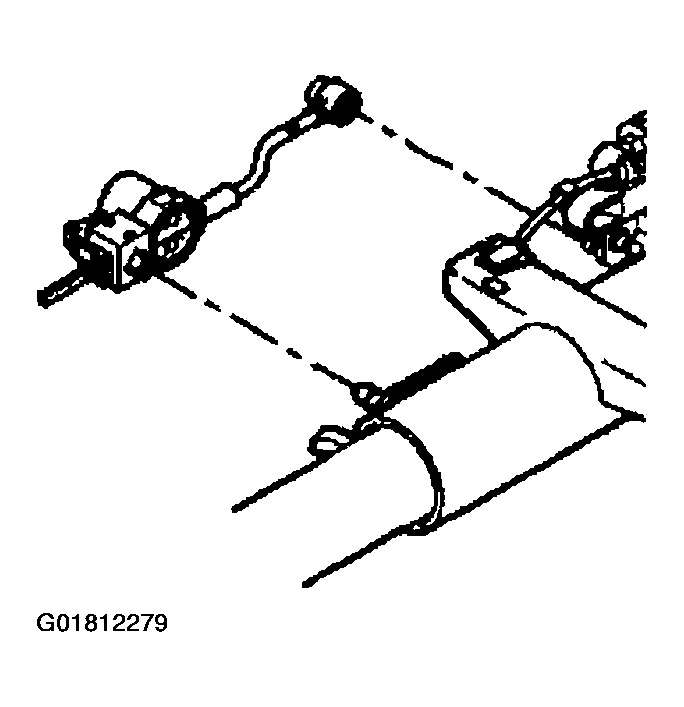

    Fig 1: Installing Automatic Shift Lock Control Actuator
    G01812279Courtesy of GENERAL MOTORS CORP.
  4. Adjust the automatic shift lock control actuator.

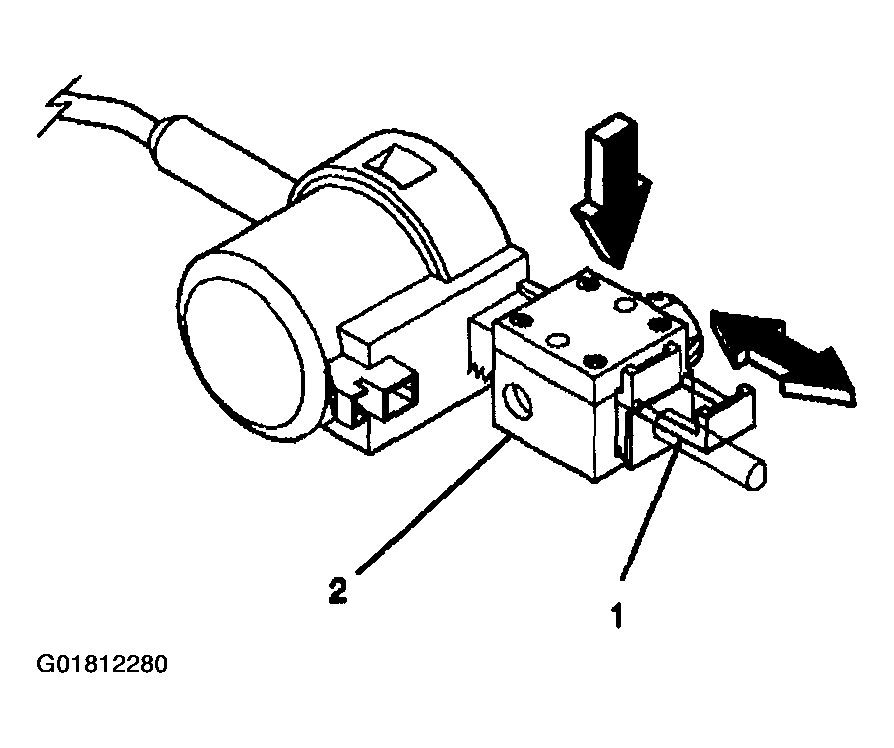

    Fig 2: Adjuster Block Side & Actuator
    G01812280Courtesy of GENERAL MOTORS CORP.
    • Pull out the tab (1) on the adjuster block side (2) of actuator.
    • Press on the adjuster block (2) in order to compress the internal adjuster spring and disengage the adjuster teeth. Slide the adjuster block as far away from the actuator as possible.
    • Lock in place by pushing in on the tab (1).
  5. Inspect the actuator.
    • The actuator must lock the shift lever clevis when you place the clevis in the park position.
    • If you can move the shift lever without pressing on the brake pedal, readjust the actuator.
  6. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON .
  7. Install the knee bolster.
