Removal Procedure

  1. Remove the steering column trim covers. Refer to xSTEERING COLUMN TRIM COVERS REPLACEMENT - ON .
  2. Remove the knee bolster.
  3. Remove the shift lever actuator. Refer to SHIFT LEVER REPLACEMENT -- ON VEHICLE .
  4. Disconnect the electrical connector from the automatic shift lock control actuator.
  5. Remove the automatic shift lock control actuator from the steering column ball studs.

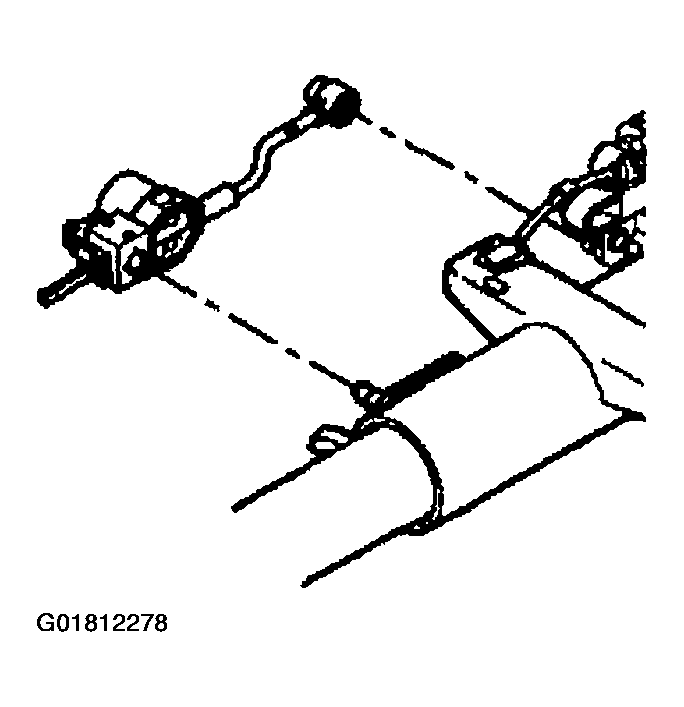

    Fig 1: Removing Automatic Shift Lock Control Actuator
    G01812278Courtesy of GENERAL MOTORS CORP.
