Automatic Transmission Shift Lock Control Component Views

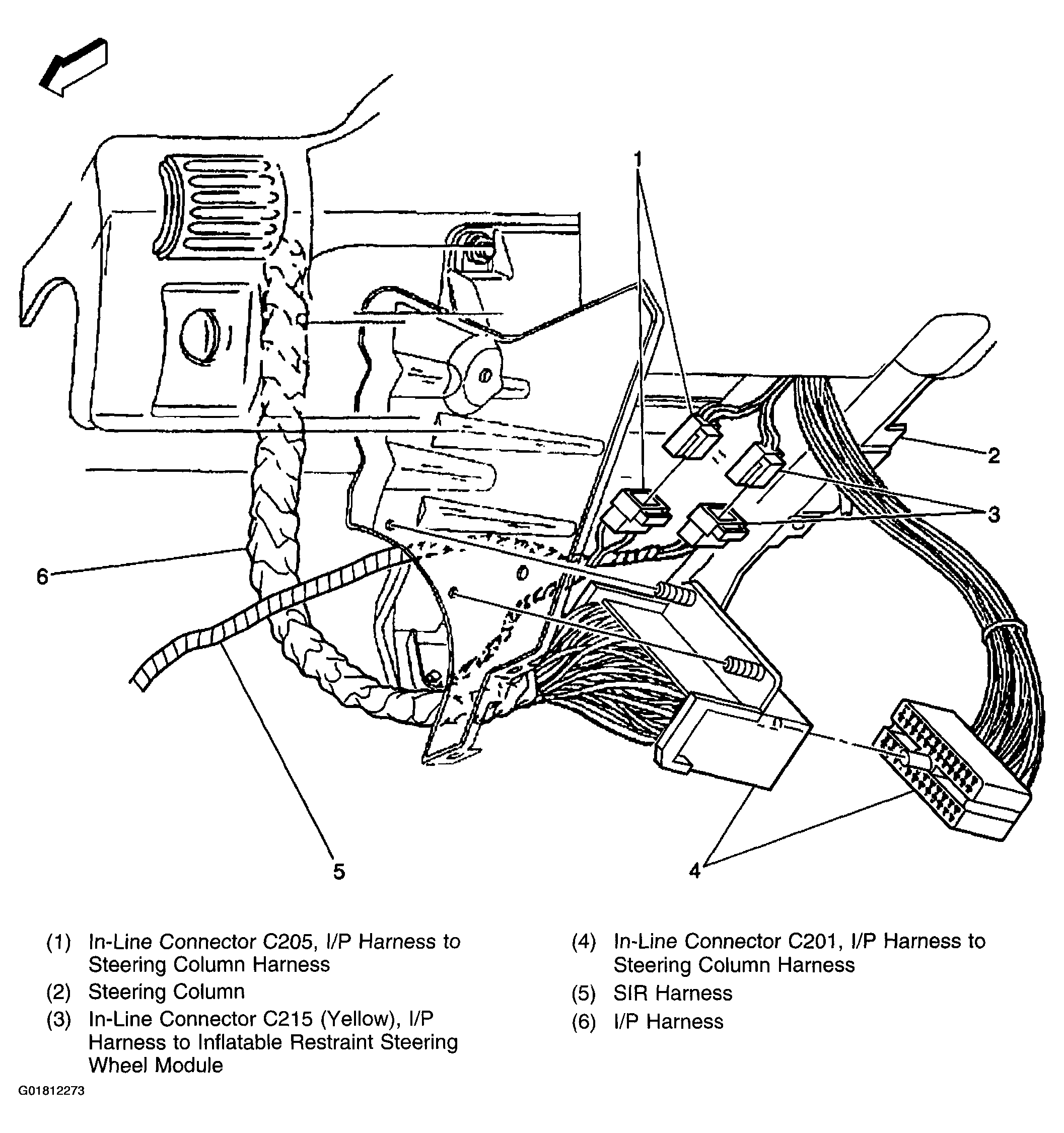

Fig 1: Base of Steering Column
G01812273Courtesy of GENERAL MOTORS CORP.
