Body Control System Connector End Views

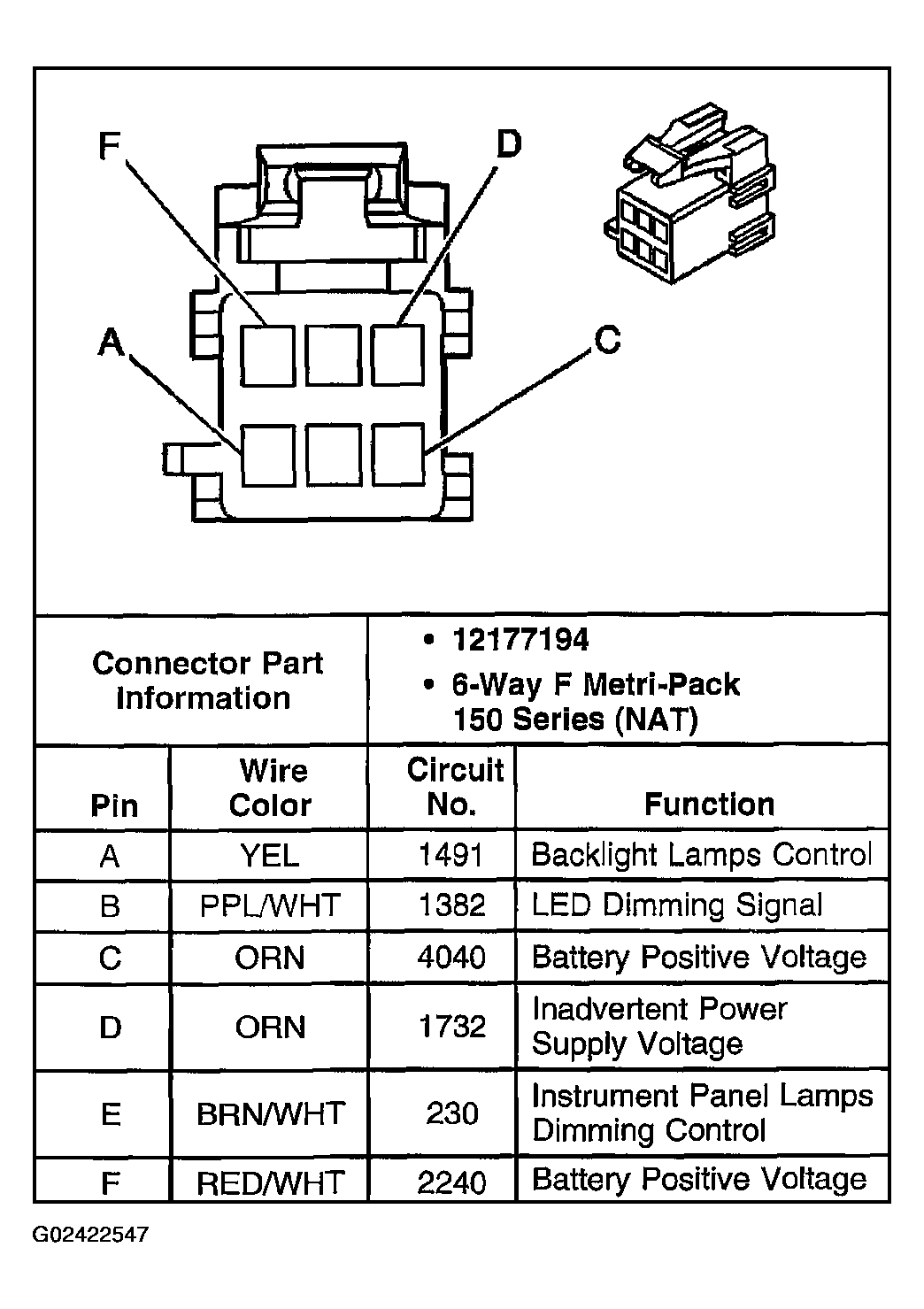

Fig 1: Body Control Module (BCM) Connector End View - C1
G02422547Courtesy of GENERAL MOTORS CORP.

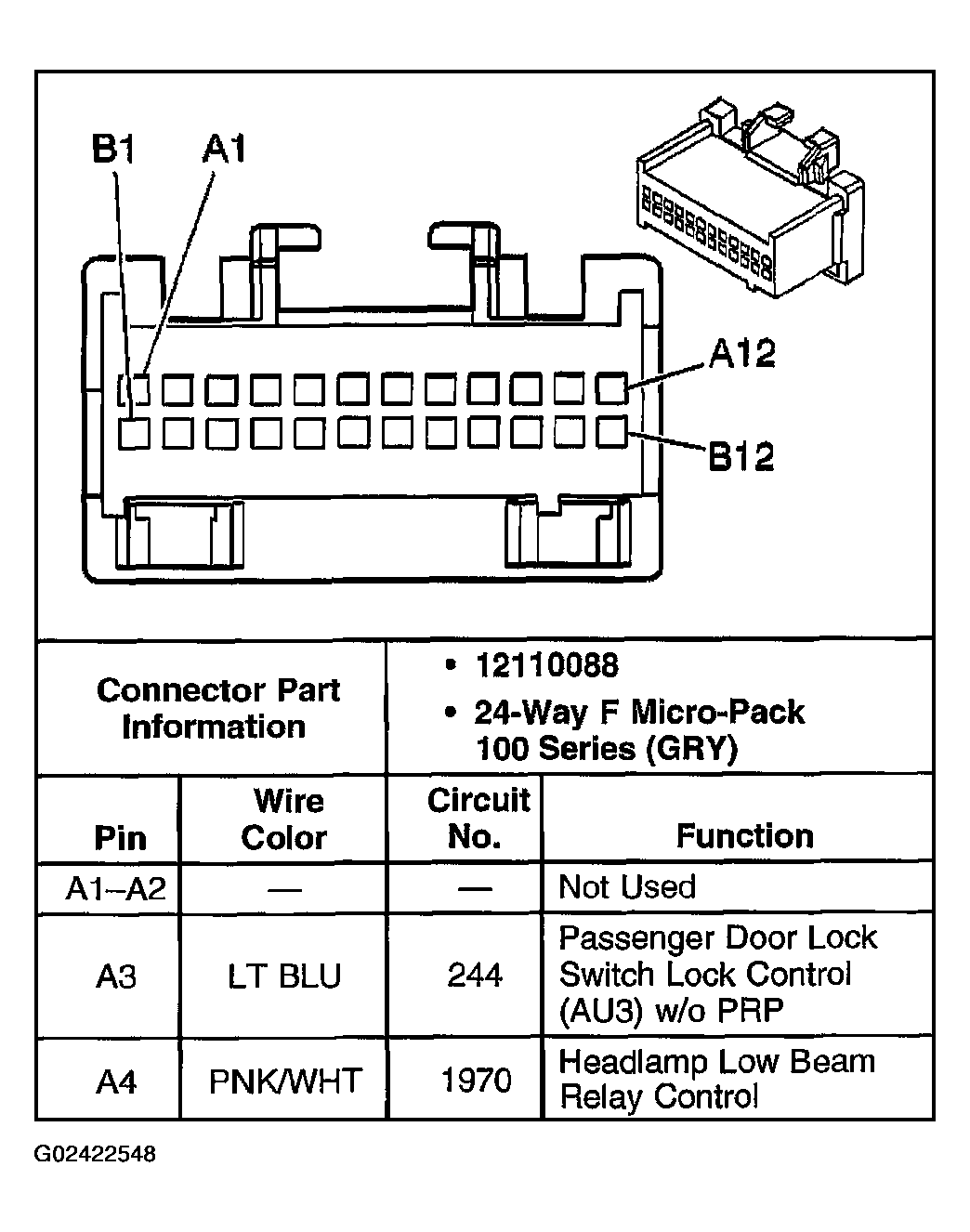

Fig 2: Body Control Module (BCM) Connector End View - C2 (1 Of 3)
G02422548Courtesy of GENERAL MOTORS CORP.

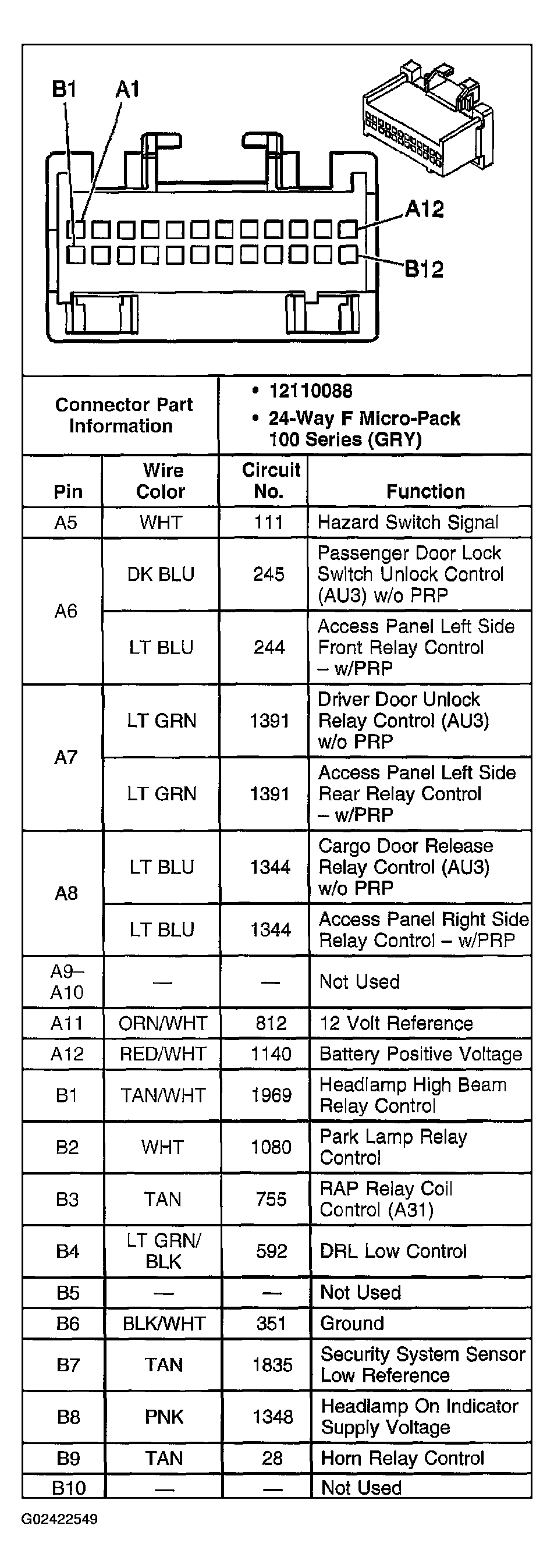

Fig 3: Body Control Module (BCM) Connector End View - C2 (2 Of 3)
G02422549Courtesy of GENERAL MOTORS CORP.

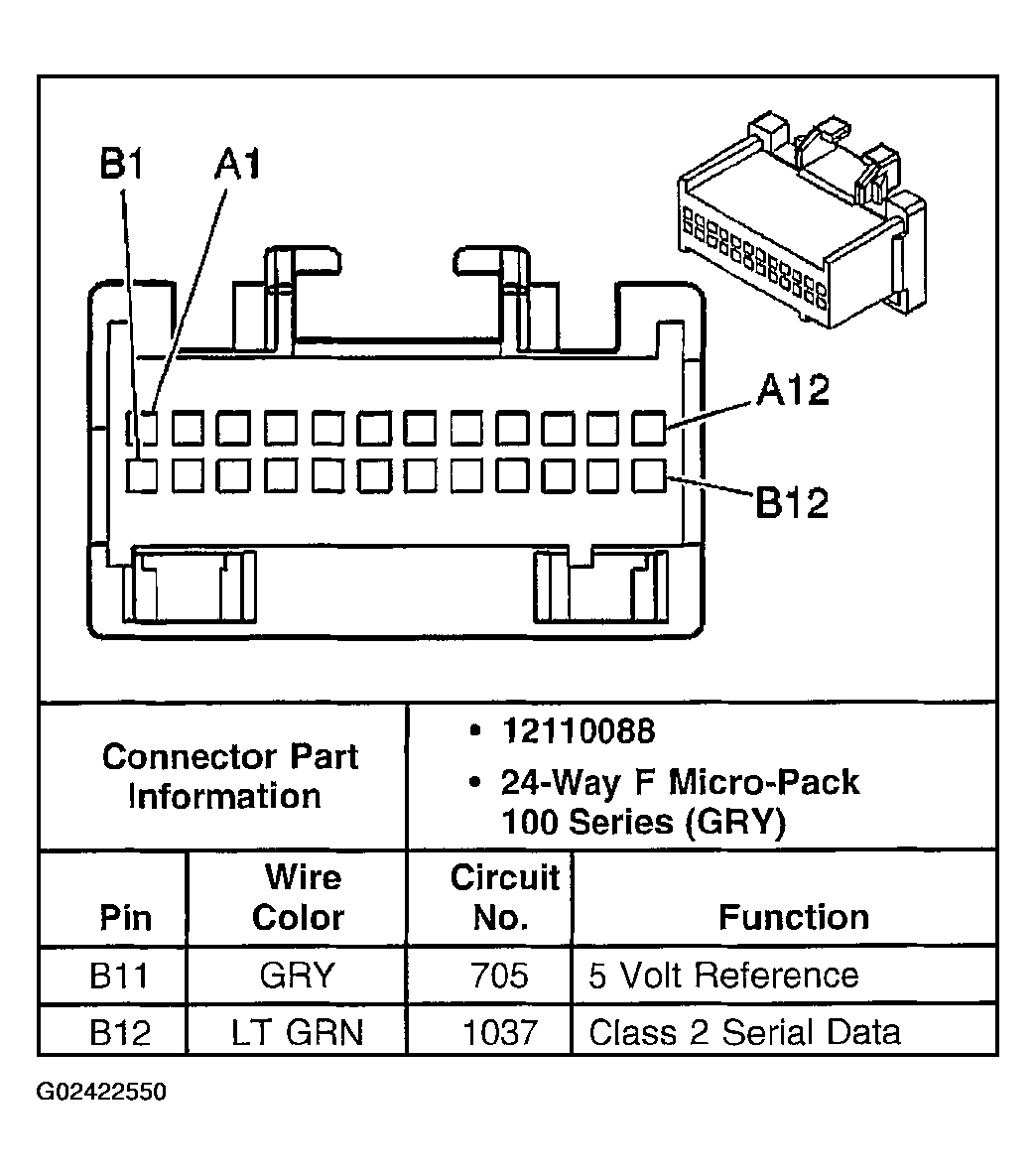

Fig 4: Body Control Module (BCM) Connector End View - C2 (3 Of 3)
G02422550Courtesy of GENERAL MOTORS CORP.

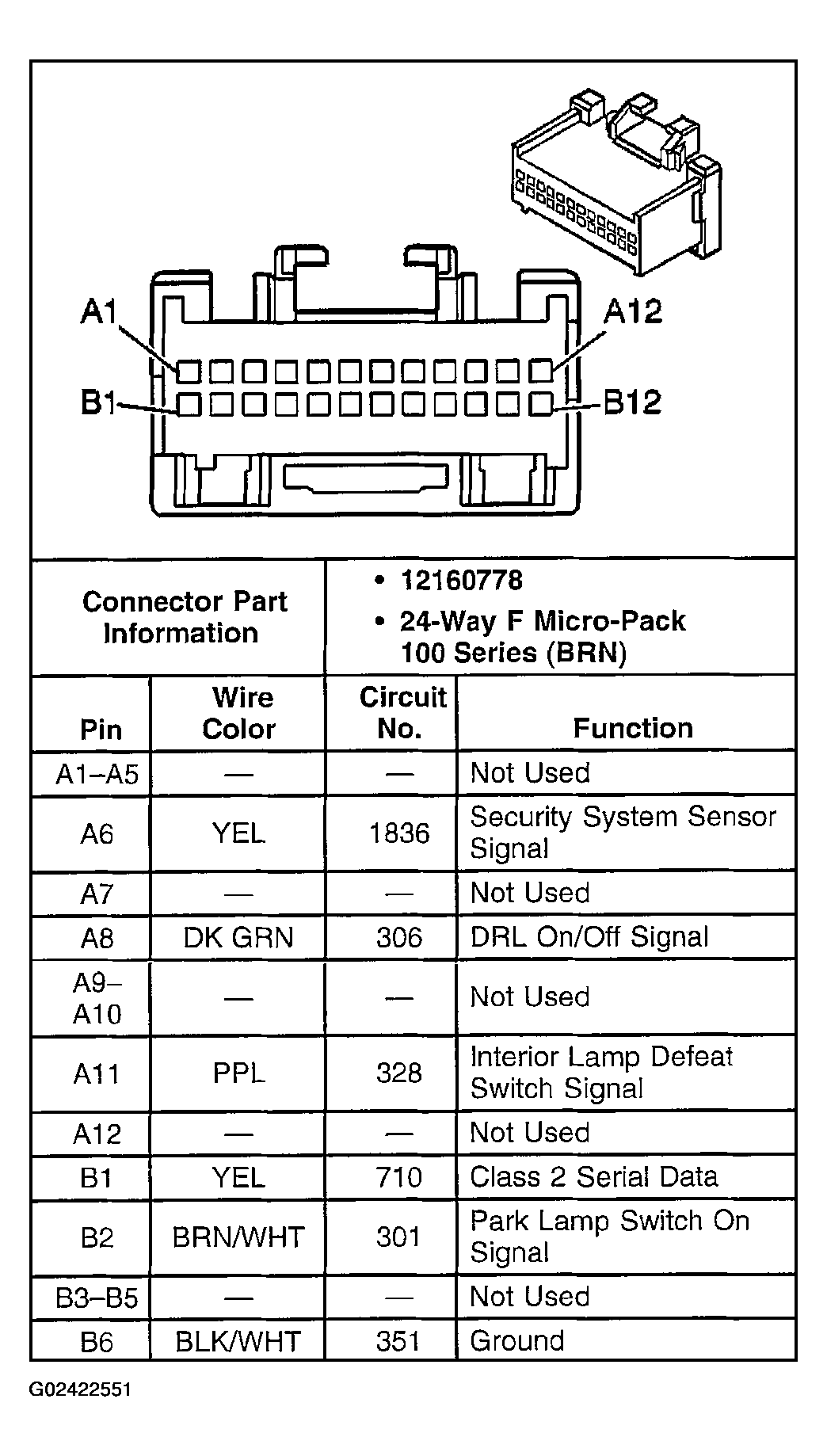

Fig 5: Body Control Module (BCM) Connector End View - C3 (1 Of 2)
G02422551Courtesy of GENERAL MOTORS CORP.

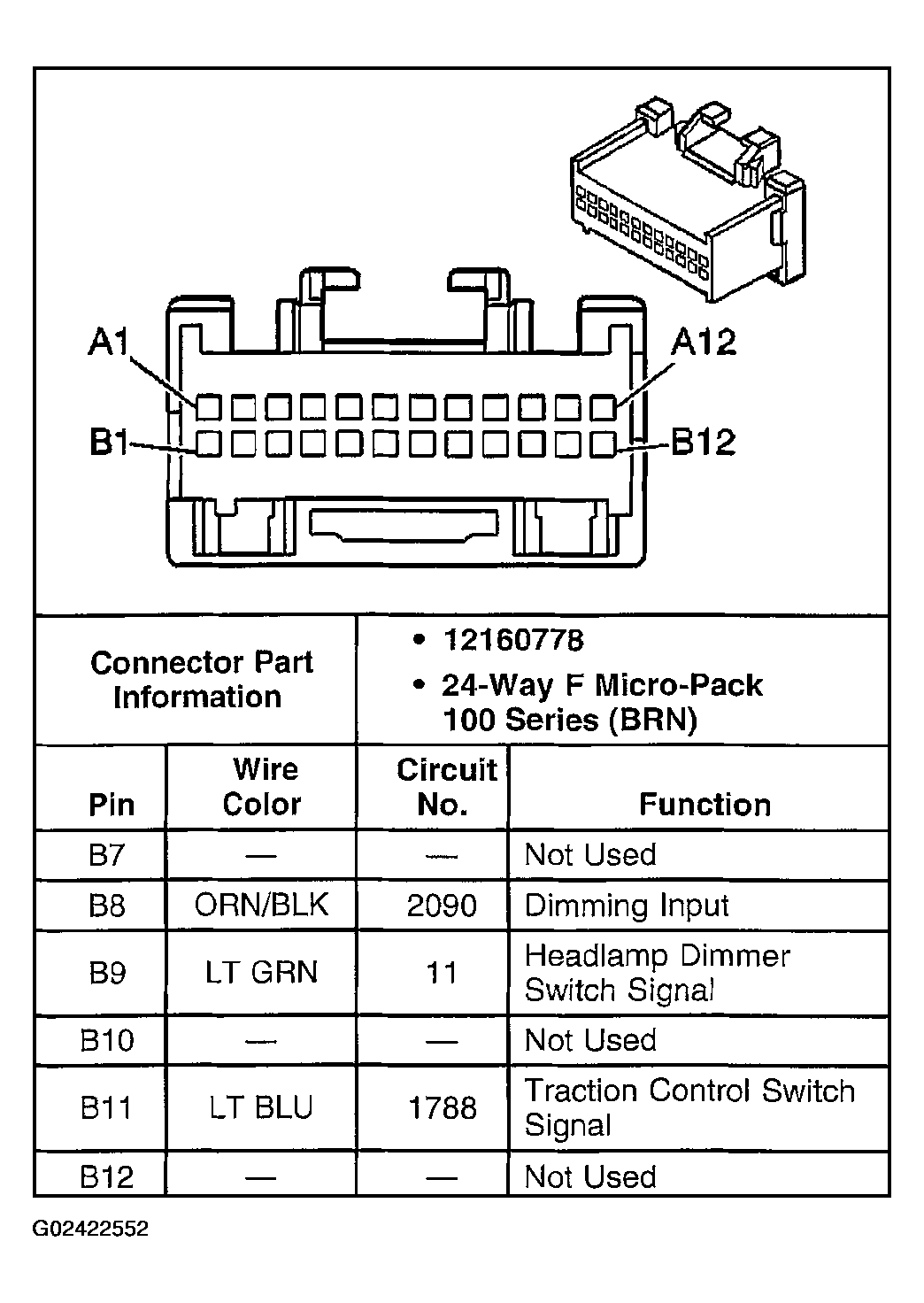

Fig 6: Body Control Module (BCM) Connector End View - C3 (2 Of 2)
G02422552Courtesy of GENERAL MOTORS CORP.

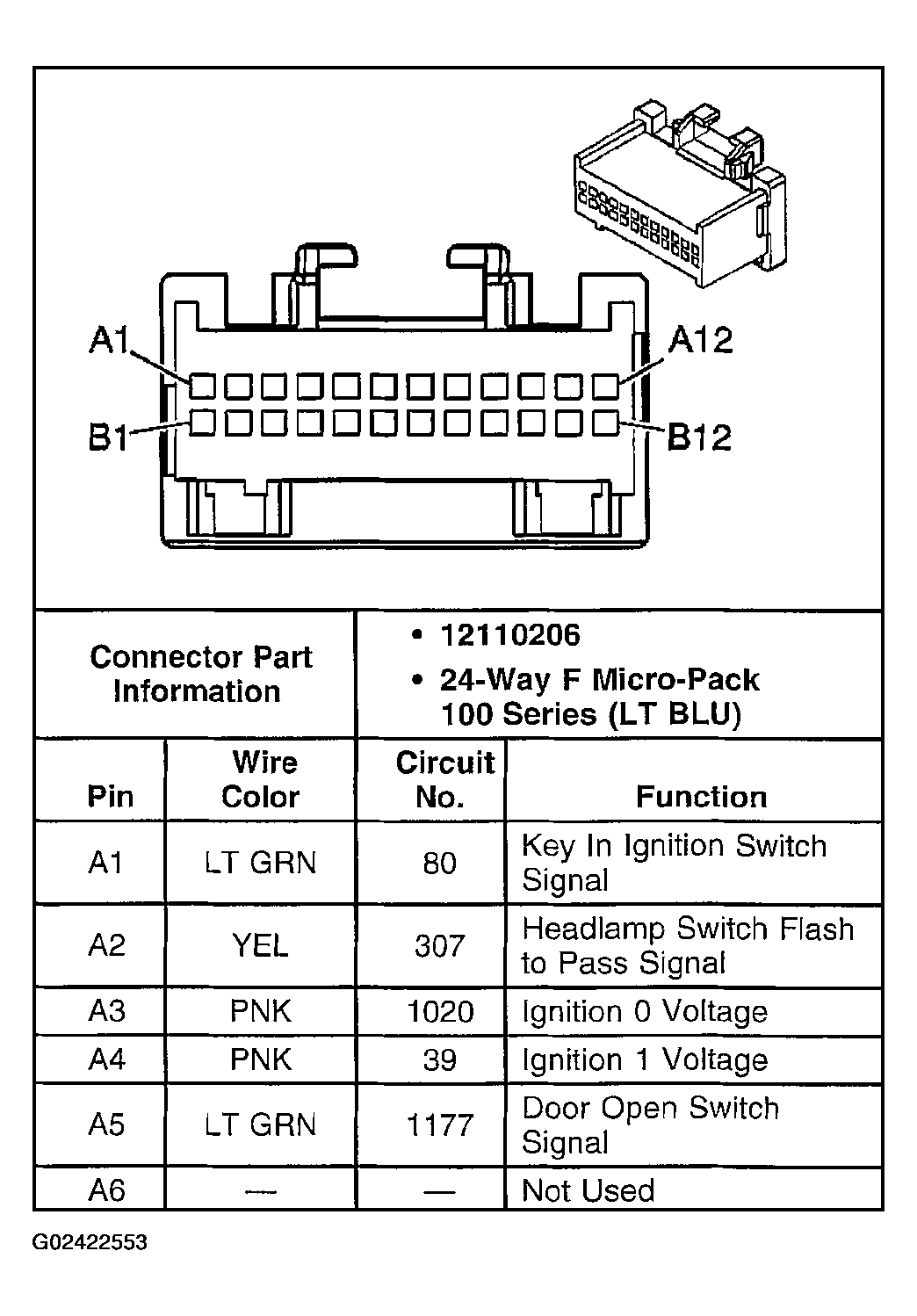

Fig 7: Body Control Module (BCM) Connector End View - C4 (1 Of 2)
G02422553Courtesy of GENERAL MOTORS CORP.

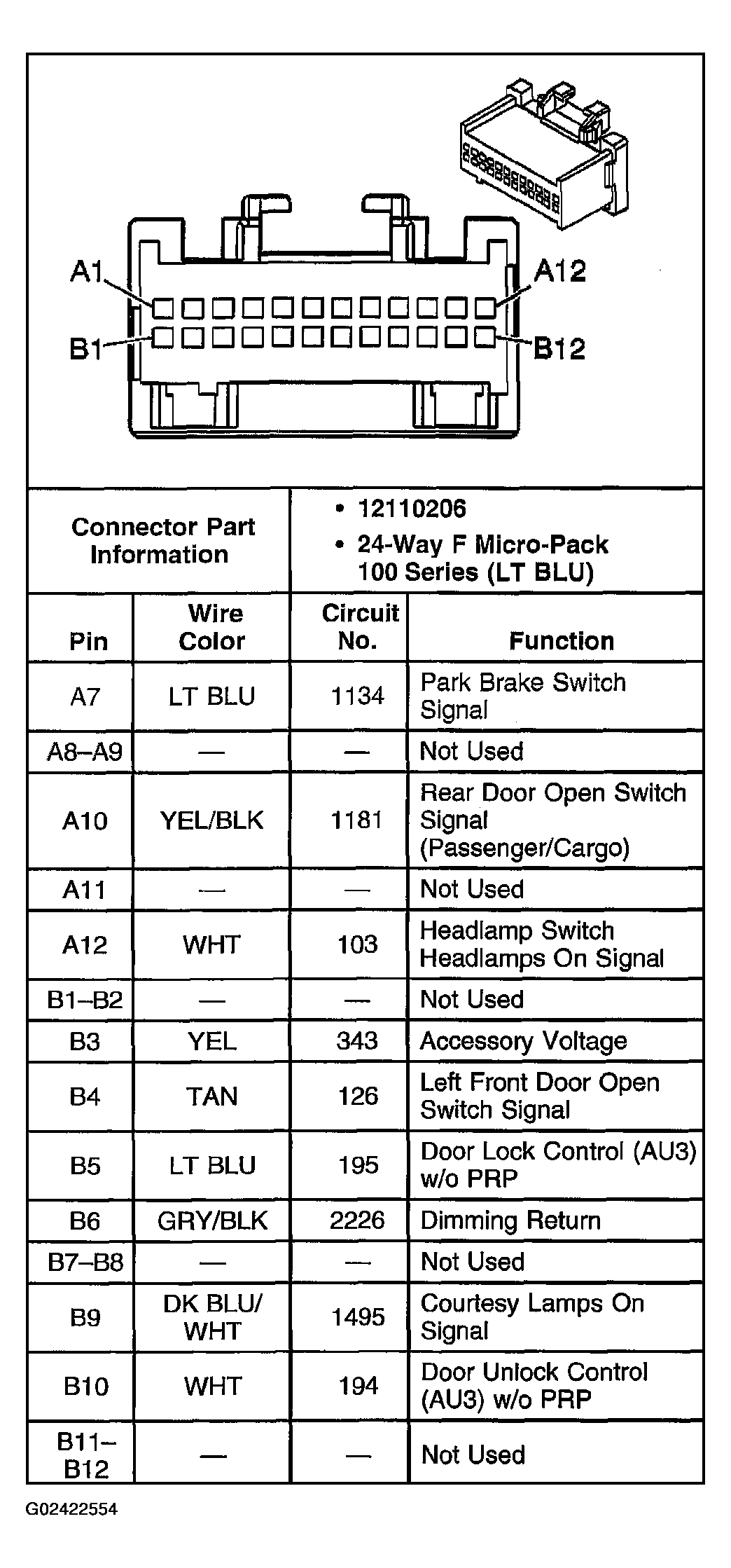

Fig 8: Body Control Module (BCM) Connector End View - C4 (2 Of 2)
G02422554Courtesy of GENERAL MOTORS CORP.

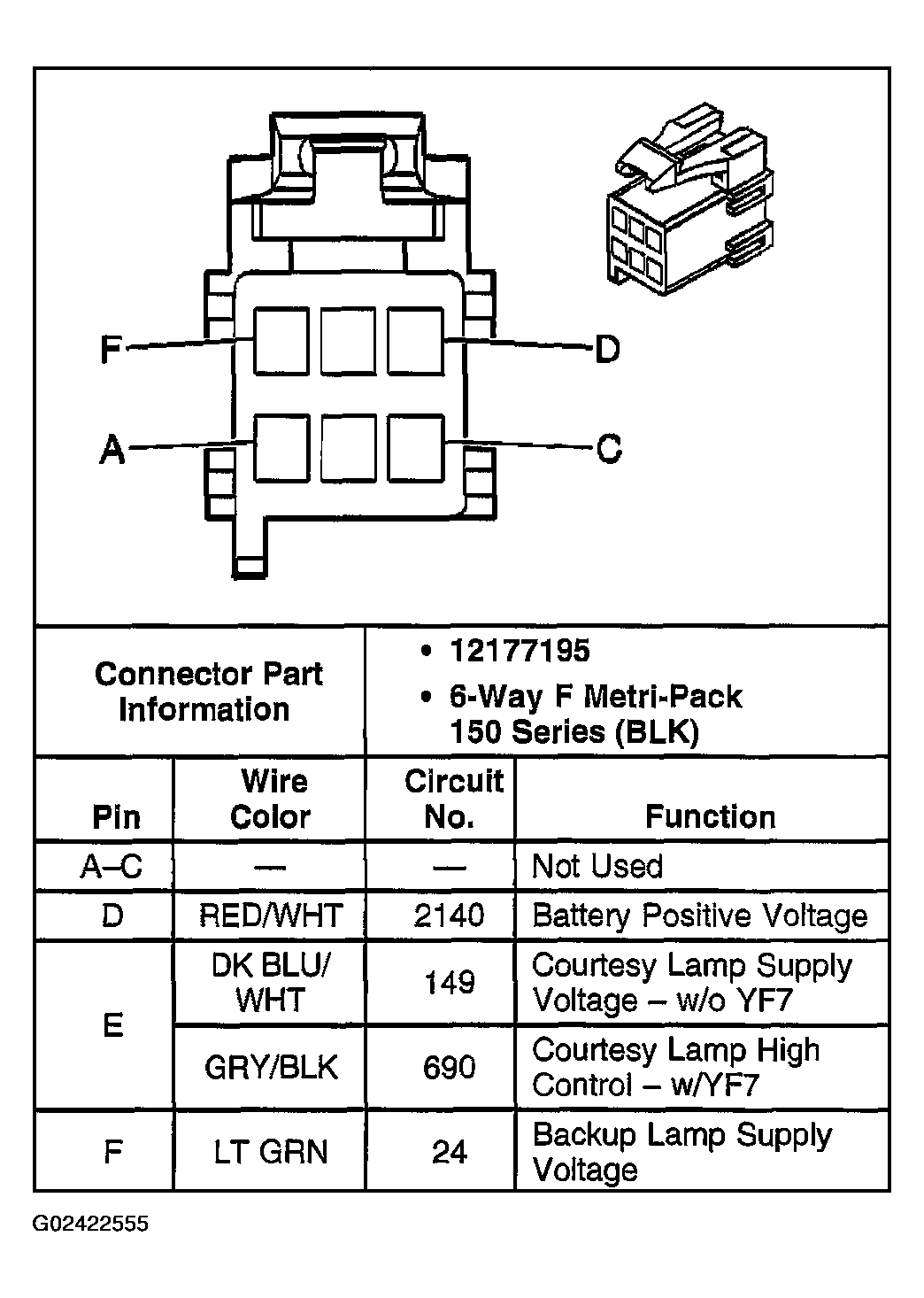

Fig 9: Body Control Module (BCM) Connector End View - C5
G02422555Courtesy of GENERAL MOTORS CORP.
