Installation Procedure

Install the BCM (1) into the bracket. Ensure the BCM (1) is engaged in the bracket, under the retaining tabs (2).

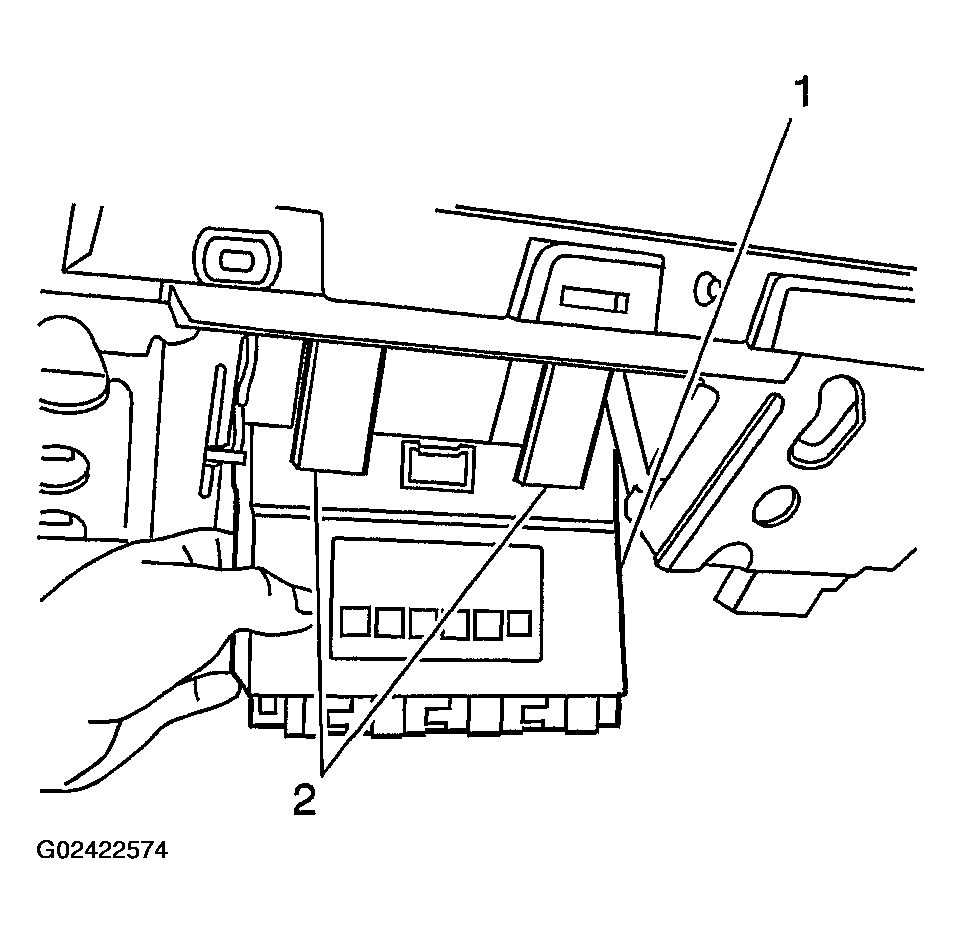

Fig 1: Installing BCM
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors (2) to the BCM (1).

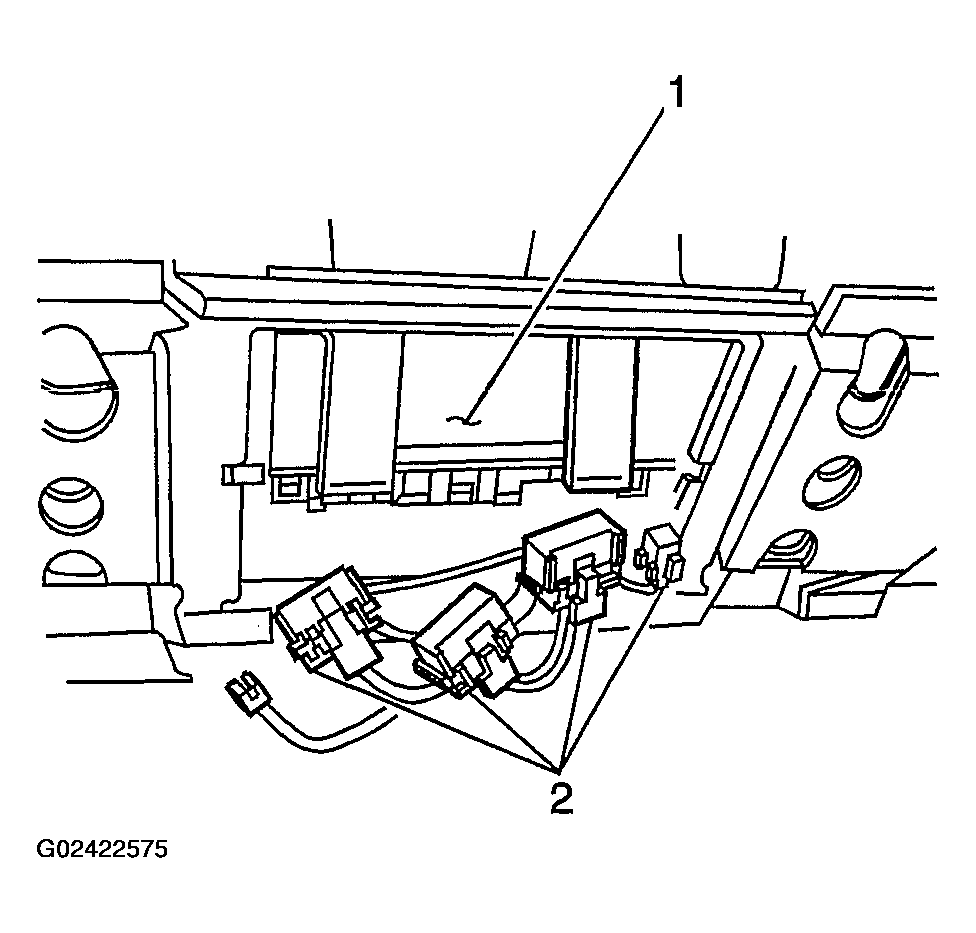

Fig 2: Connecting BCM Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the right side knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .
If the BCM has been replaced the module will need to be programed.
Program the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration .

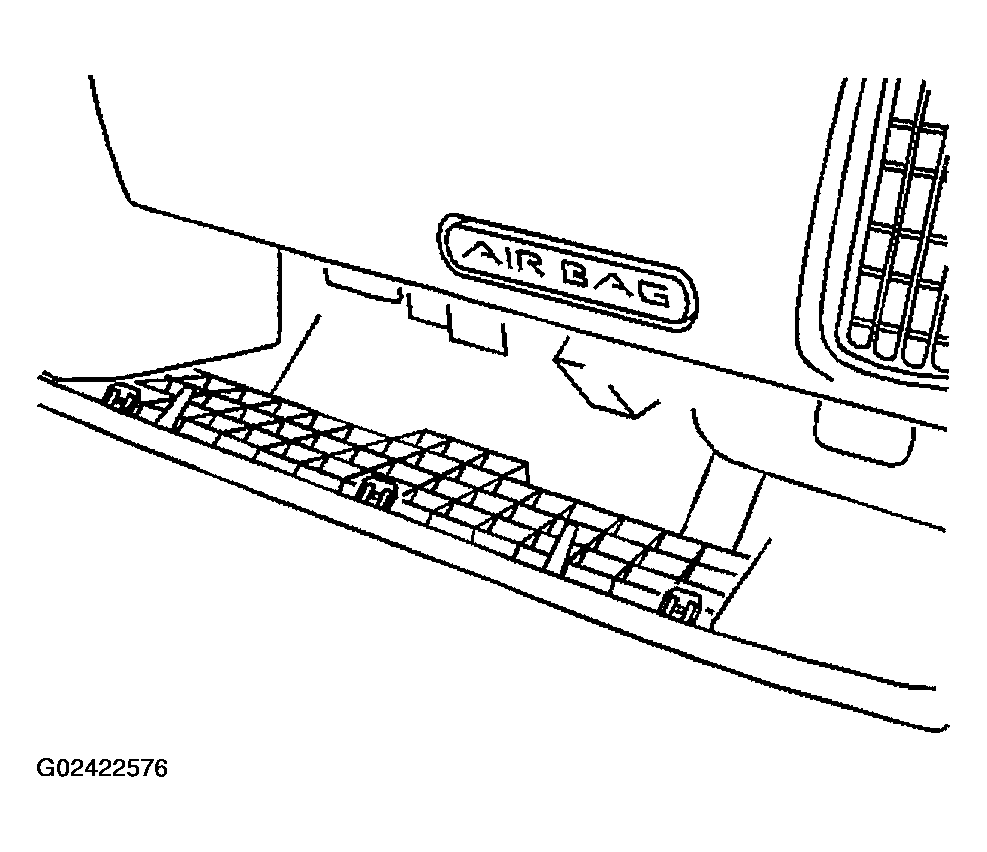

Fig 3: Installing Right Side Knee Bolster Trim Panel
Courtesy of GENERAL MOTORS CORP.
