Removal Procedure

  1. Remove the right side knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .

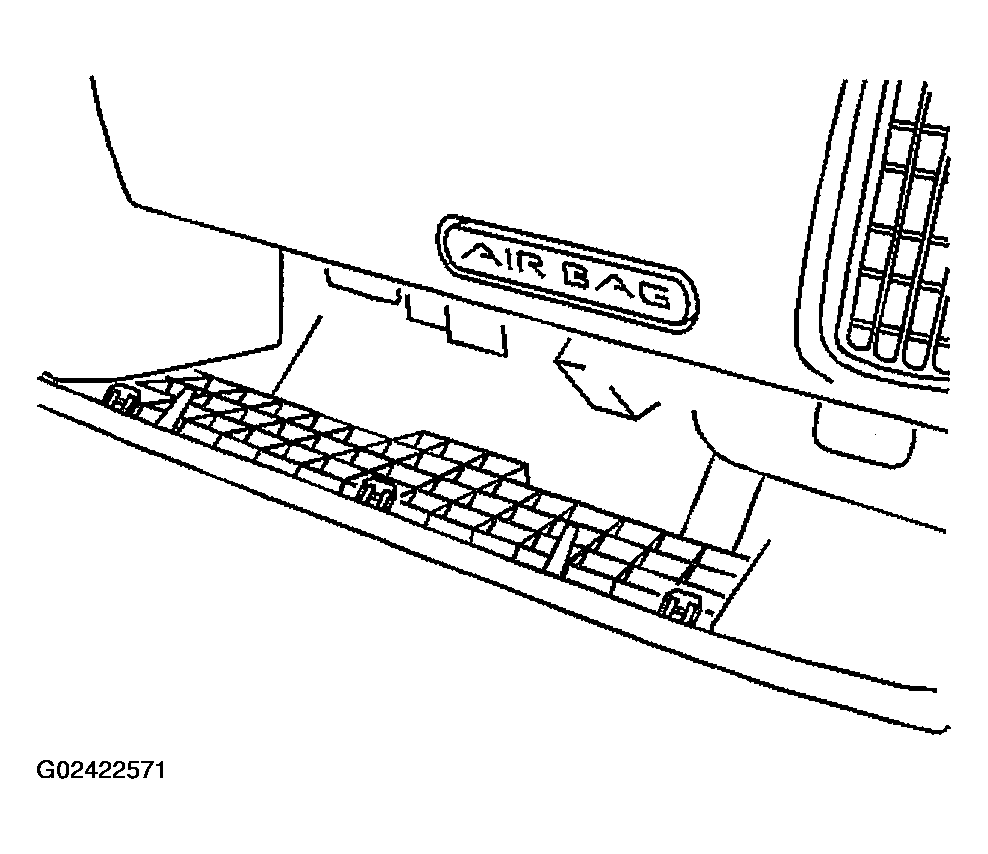

    Fig 1: Removing Right Side Knee Bolster Trim Panel
    G02422571Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors (2) from the Body Control Module (BCM) (1).

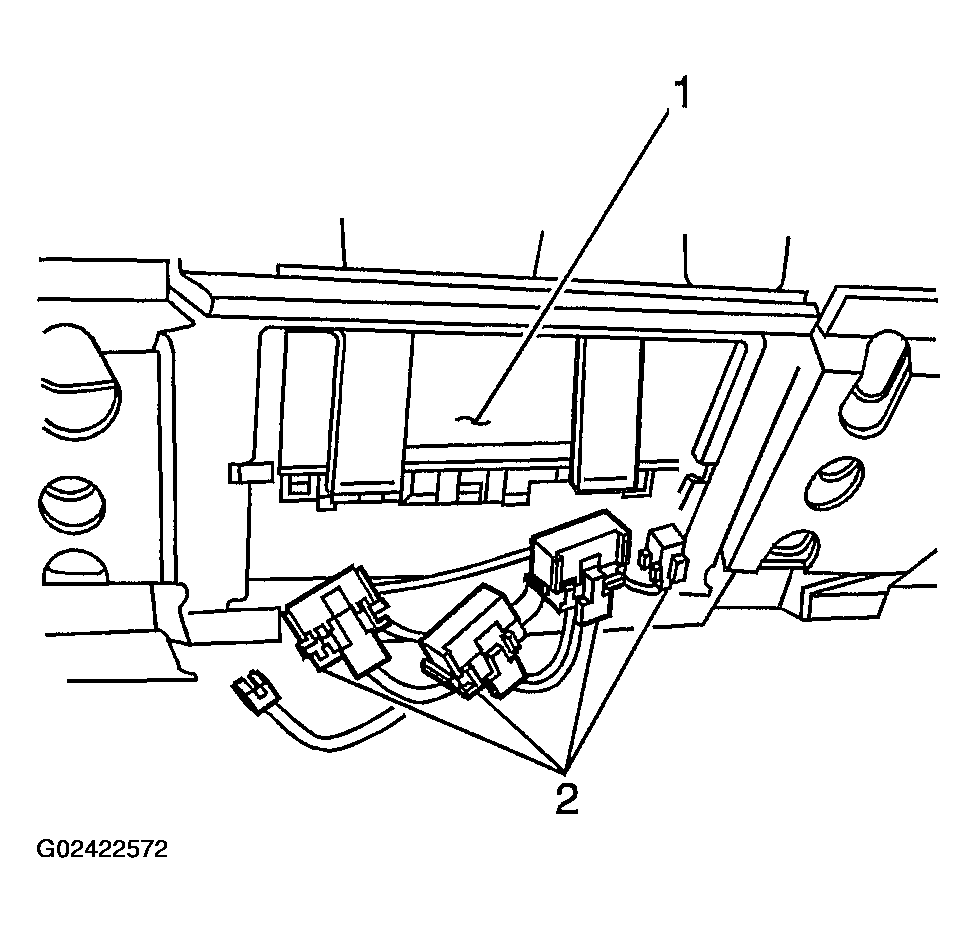

    Fig 2: Disconnecting BCM Electrical Connectors
    G02422572Courtesy of GENERAL MOTORS CORP.
  3. Release the tabs (2) retaining the BCM (1) to the bracket.
  4. Remove the BCM (1) from the vehicle.

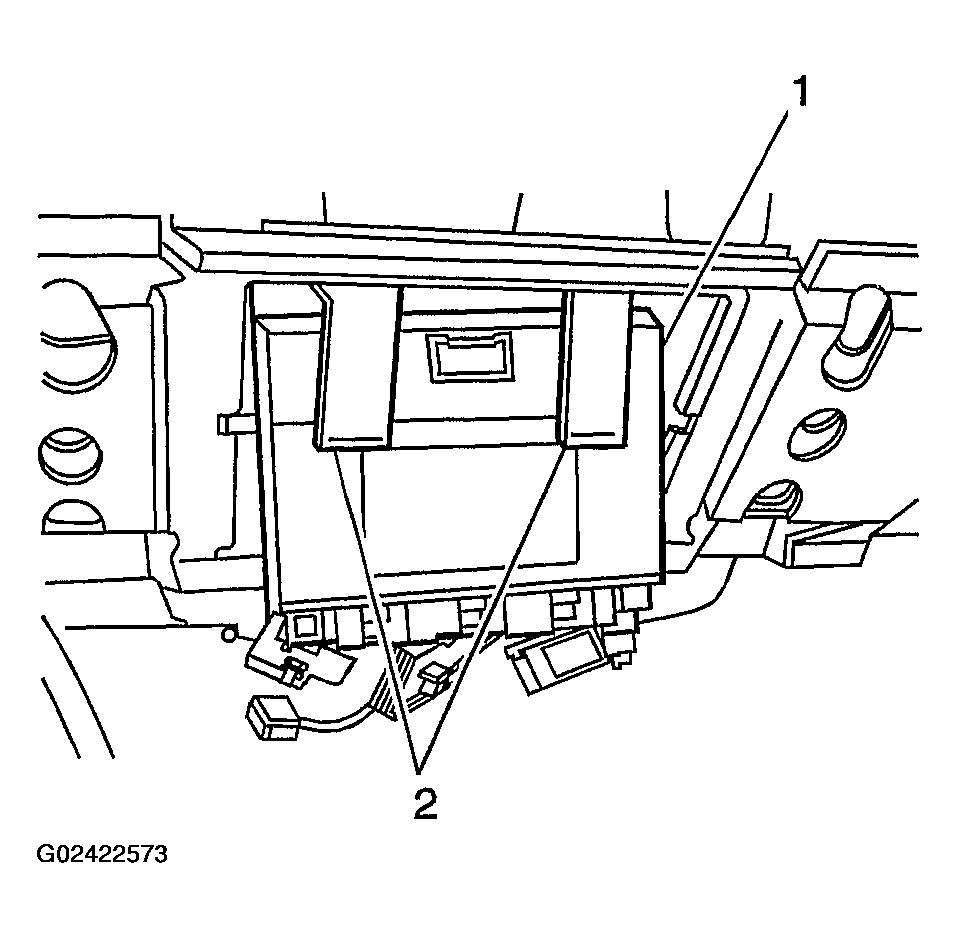

    Fig 3: Removing BCM
    G02422573Courtesy of GENERAL MOTORS CORP.
