Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

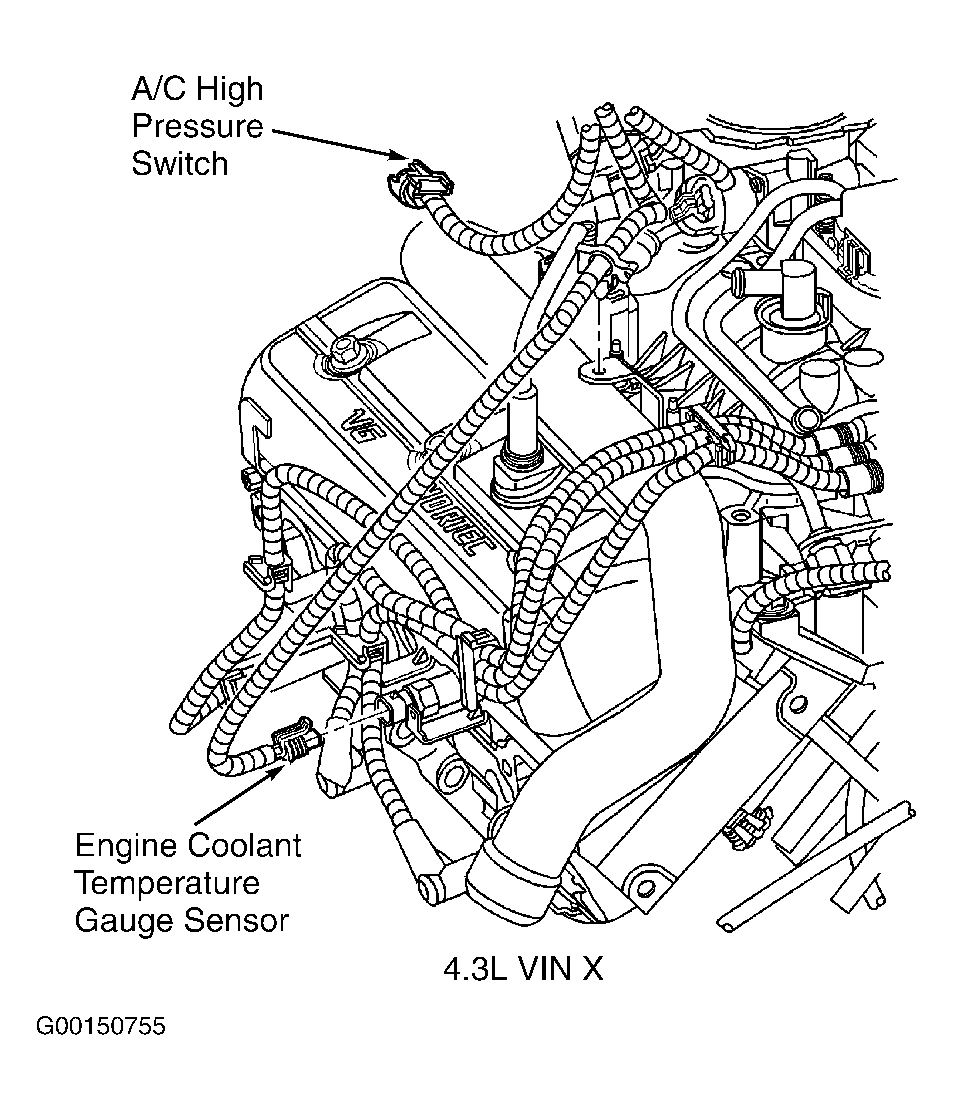

Fig 1: Top Right Side Of Engine (4.3L VIN X)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Side Of Engine (4.3L VIN X)

Courtesy of GENERAL MOTORS CORP.

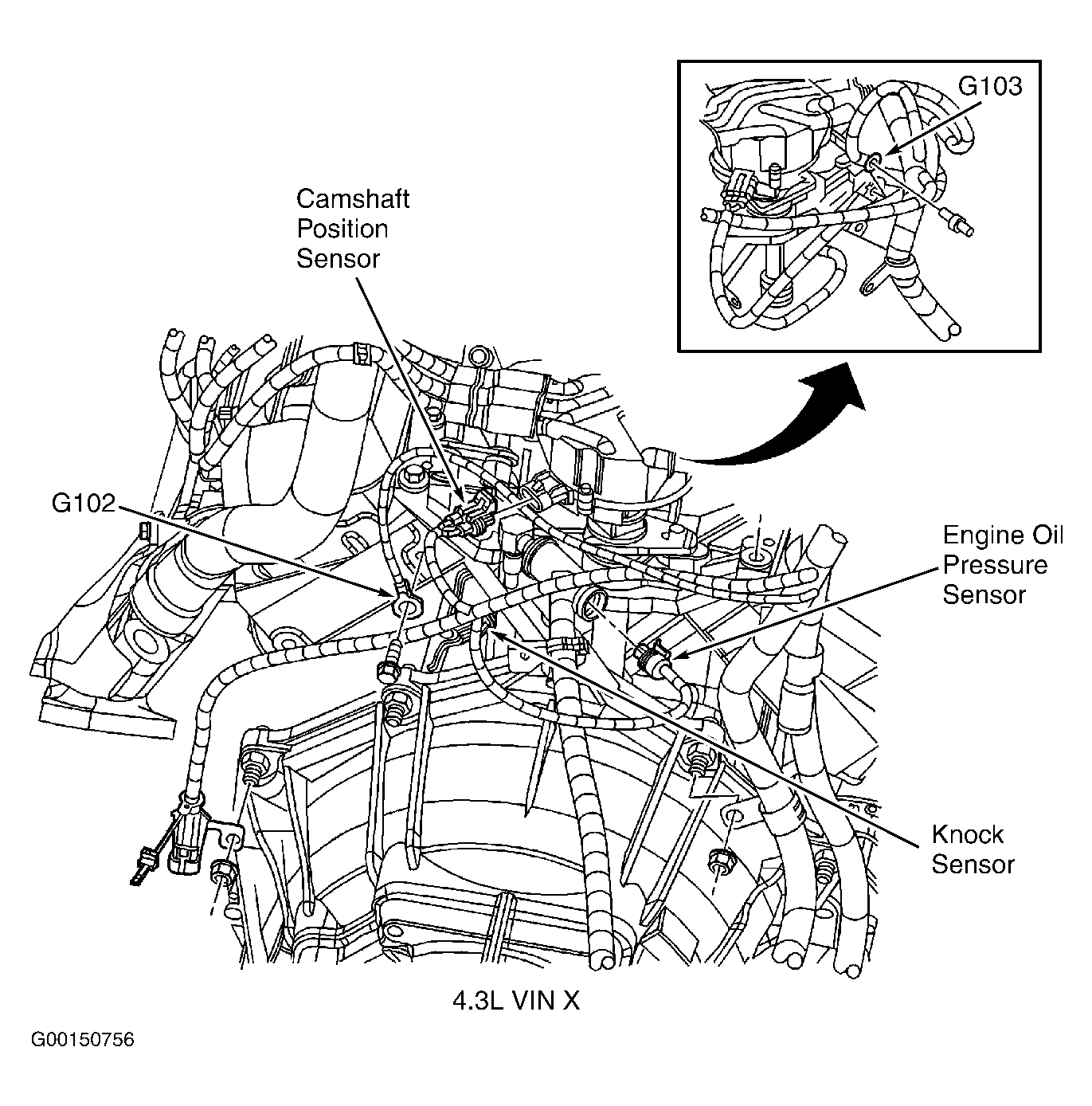

Fig 3: Rear Of Engine (4.3L VIN X)

Courtesy of GENERAL MOTORS CORP.

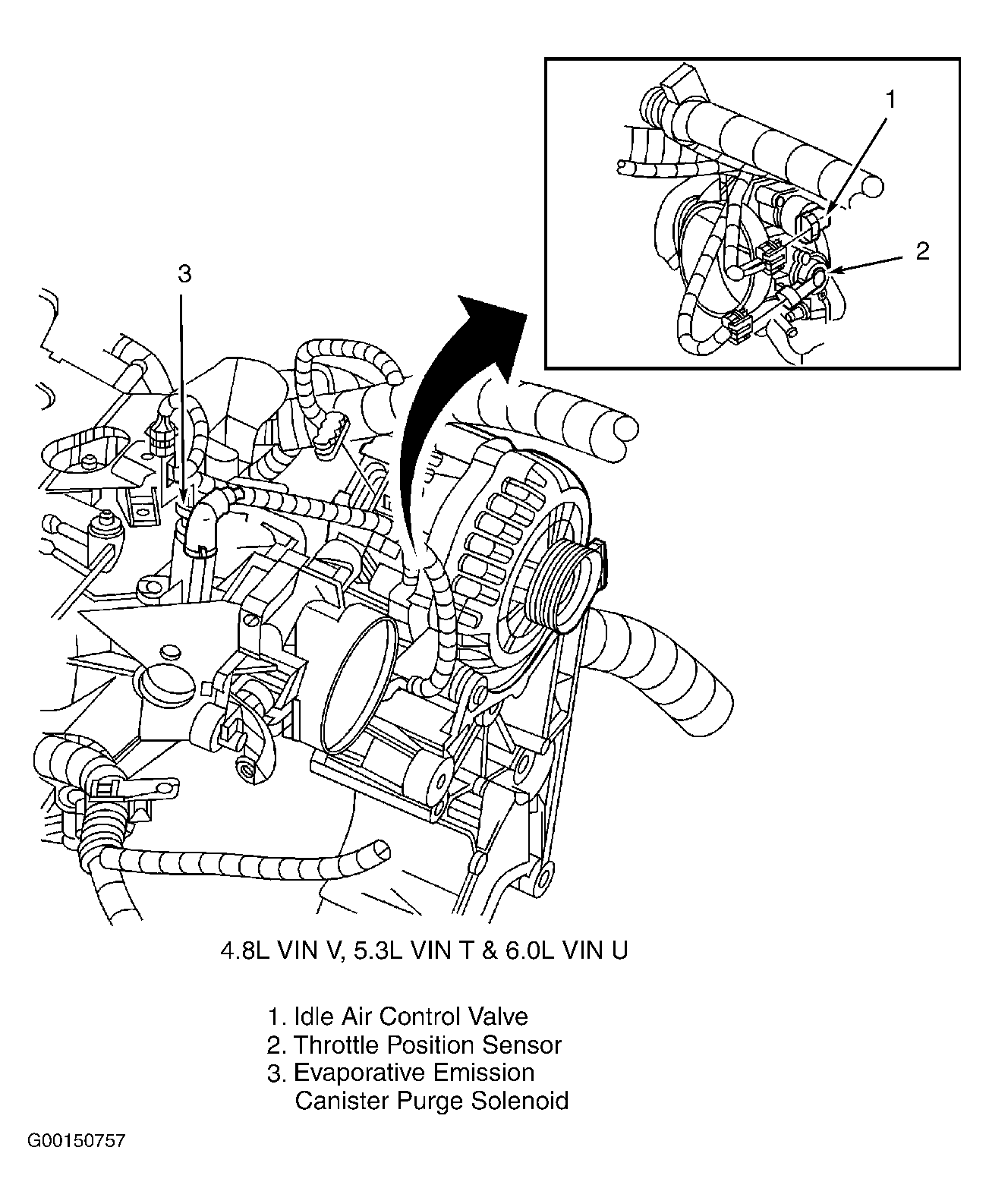

Fig 4: Front Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Right Side Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

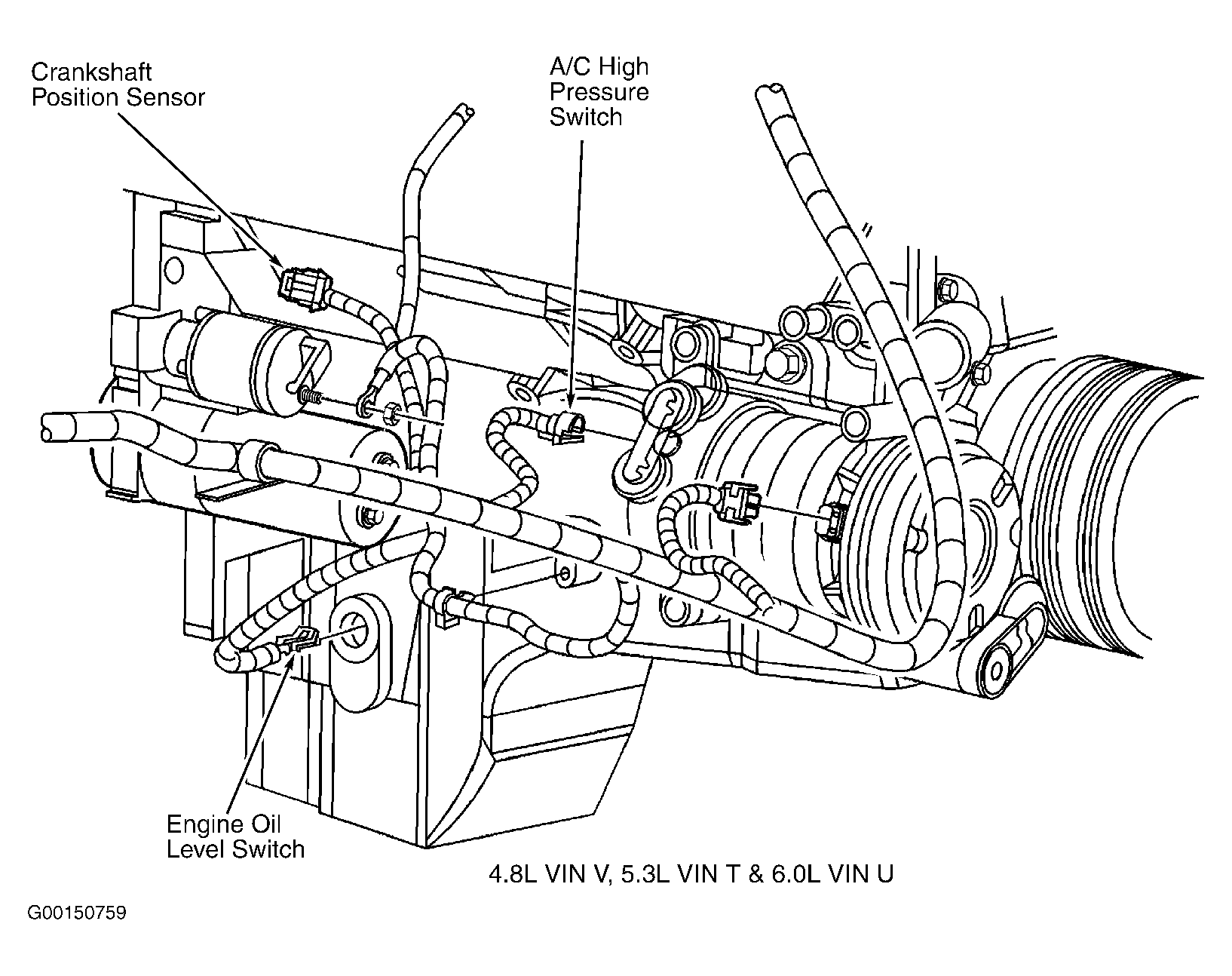

Fig 6: Lower Right Side Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

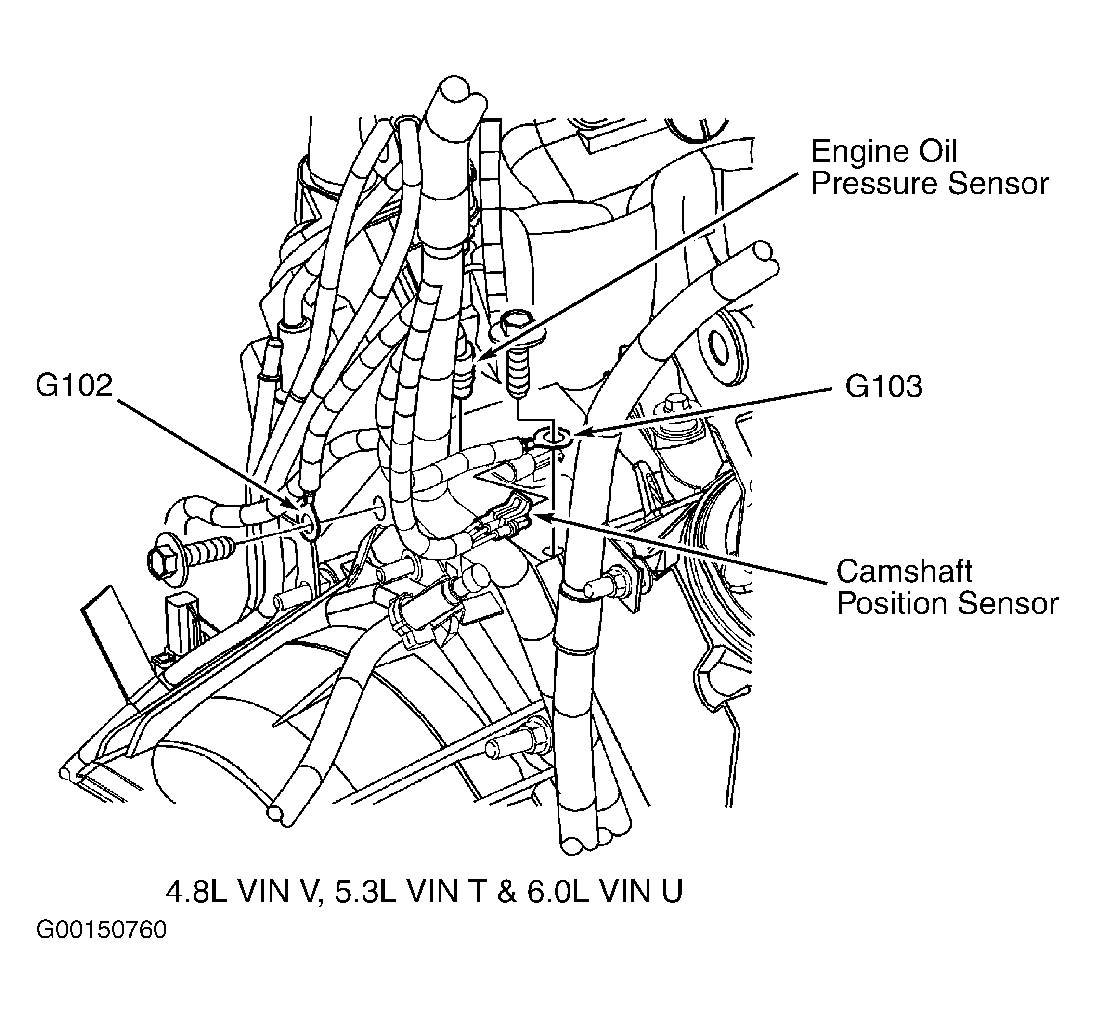

Fig 7: Rear Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

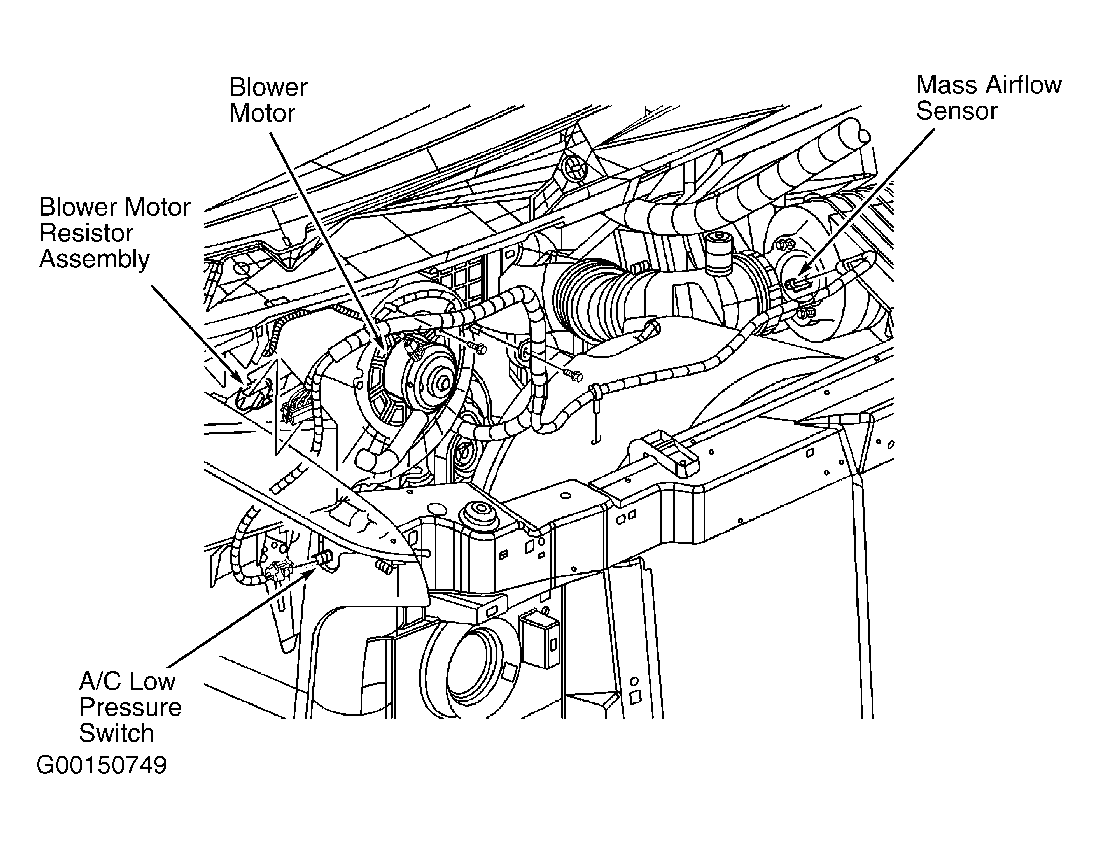

Fig 8: Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 10: Behind Left Side Of Dash

Courtesy of GENERAL MOTORS CORP.

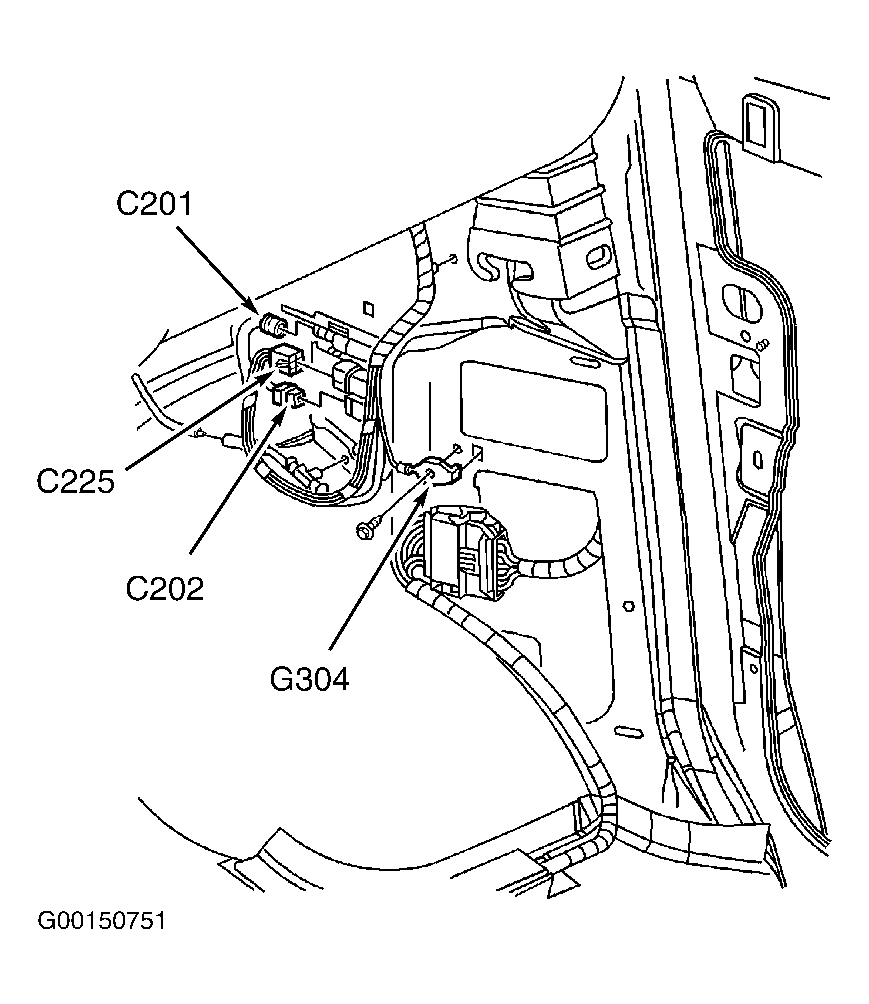

Fig 11: Right Kick Panel

Courtesy of GENERAL MOTORS CORP.

Fig 12: Left Kick Panel

Courtesy of GENERAL MOTORS CORP.

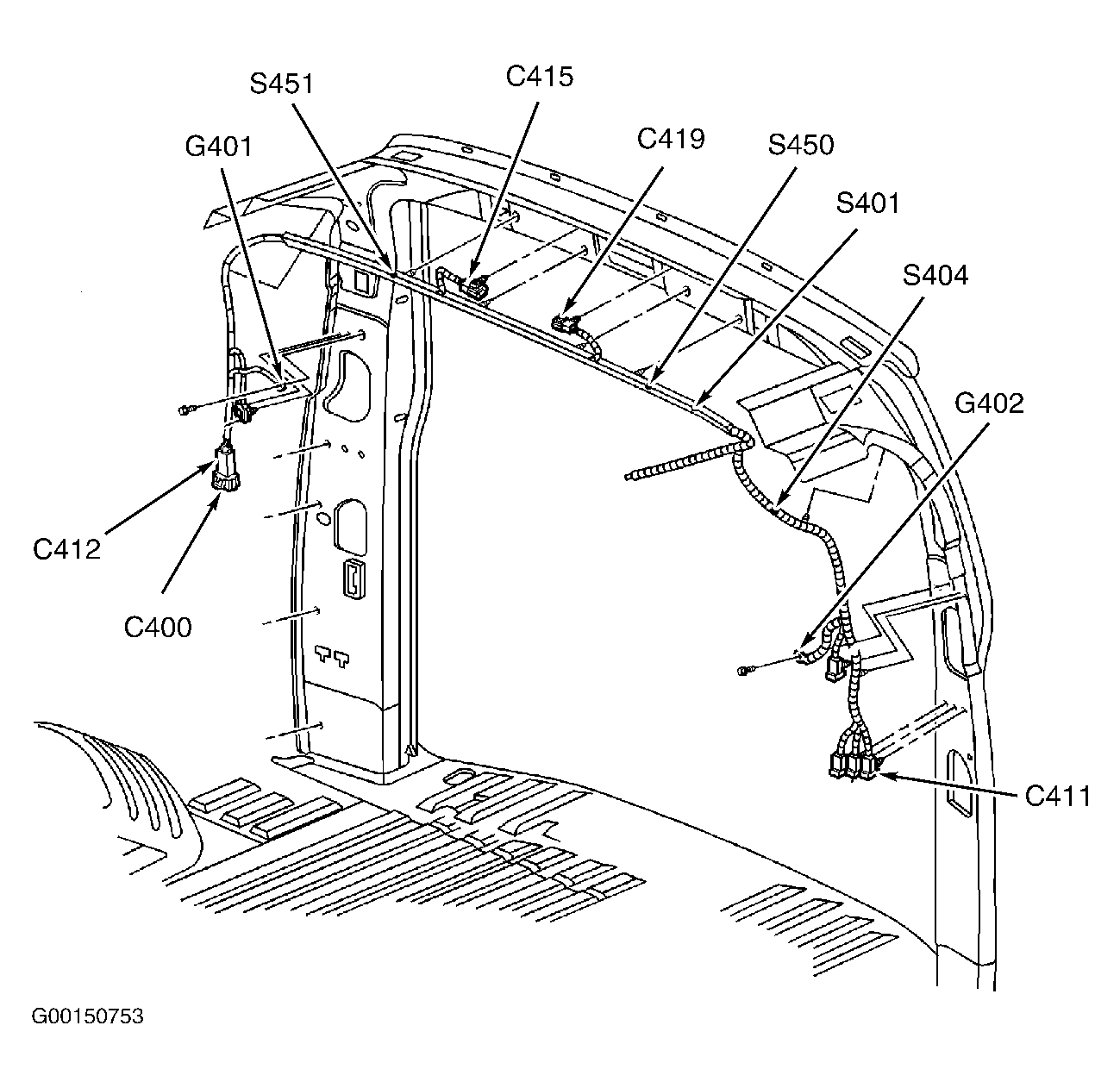

Fig 13: Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.
