Installation Procedure

  1. Install the shoulder/seat belt retractor assembly to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the shoulder/seat belt retractor retaining bolt to the lower pillar.

    Tighten

    Tighten the shoulder/seat belt retractor retaining bolt to 52 N.m (38 lb ft).

  3. Install the front door lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  4. Install the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .

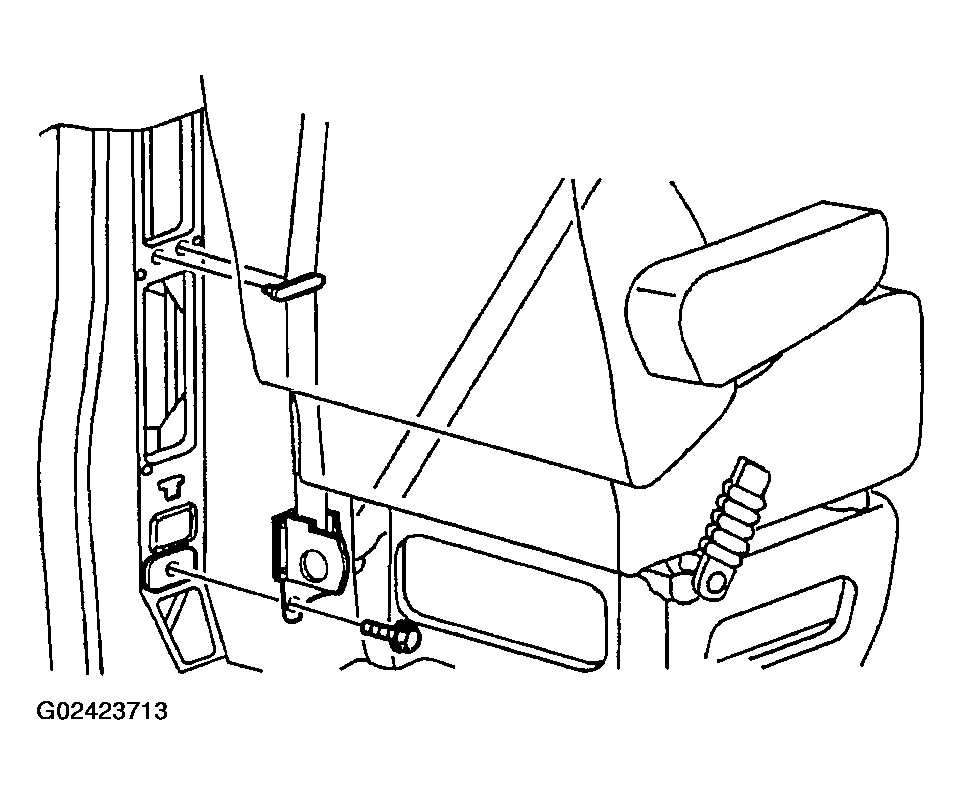

    Fig 1: Installing Front Shoulder/Seat Belt Retractor Assembly
    G02423713Courtesy of GENERAL MOTORS CORP.
  5. Install the shoulder/seat belt guide to the shoulder belt guide adjuster.
  6. Install the upper shoulder/seat belt guide retaining bolt to the vehicle.

    Tighten

    Tighten the upper shoulder/seat belt guide retaining bolt to 10 N.m (89 lb in).

    Fig 2: Installing Shoulder/Seat Belt Guide To Shoulder Belt Guide Adjuster
    G02423714Courtesy of GENERAL MOTORS CORP.
  7. Install the shoulder/seat belt guide to the guide adjuster cover (1).

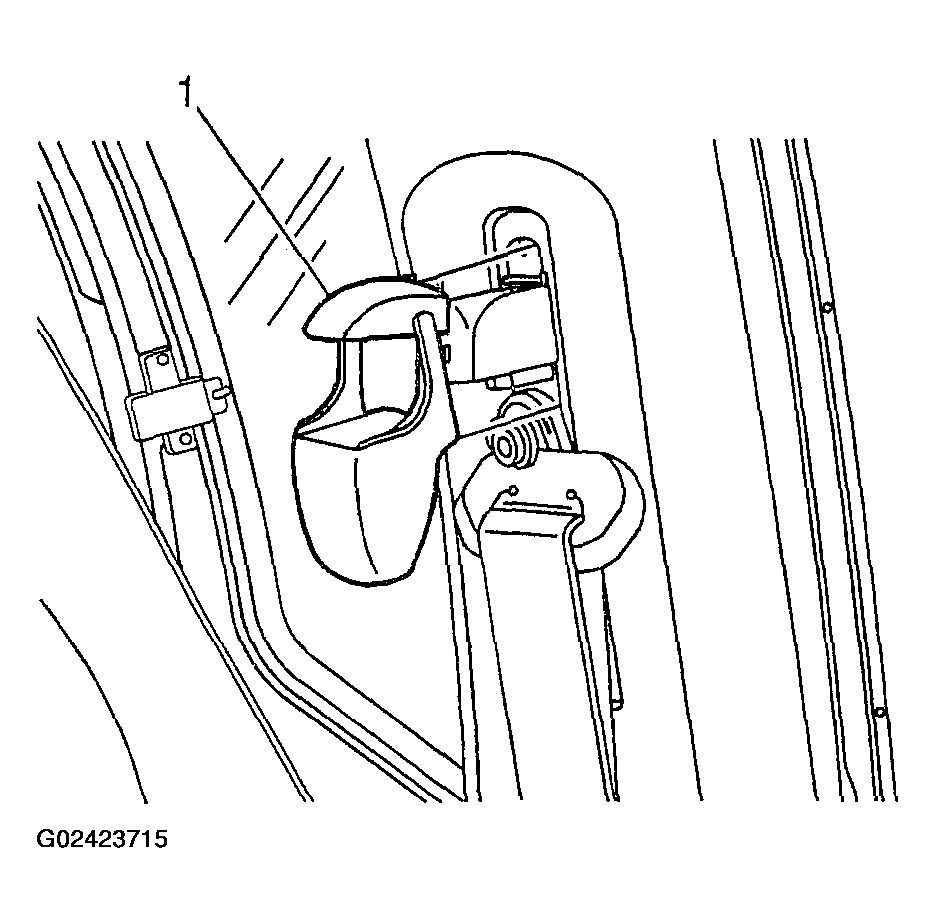

    Fig 3: Installing Shoulder/Seat Belt Guide To Guide Adjuster Cover
    G02423715Courtesy of GENERAL MOTORS CORP.
