Special Tools and Equipment

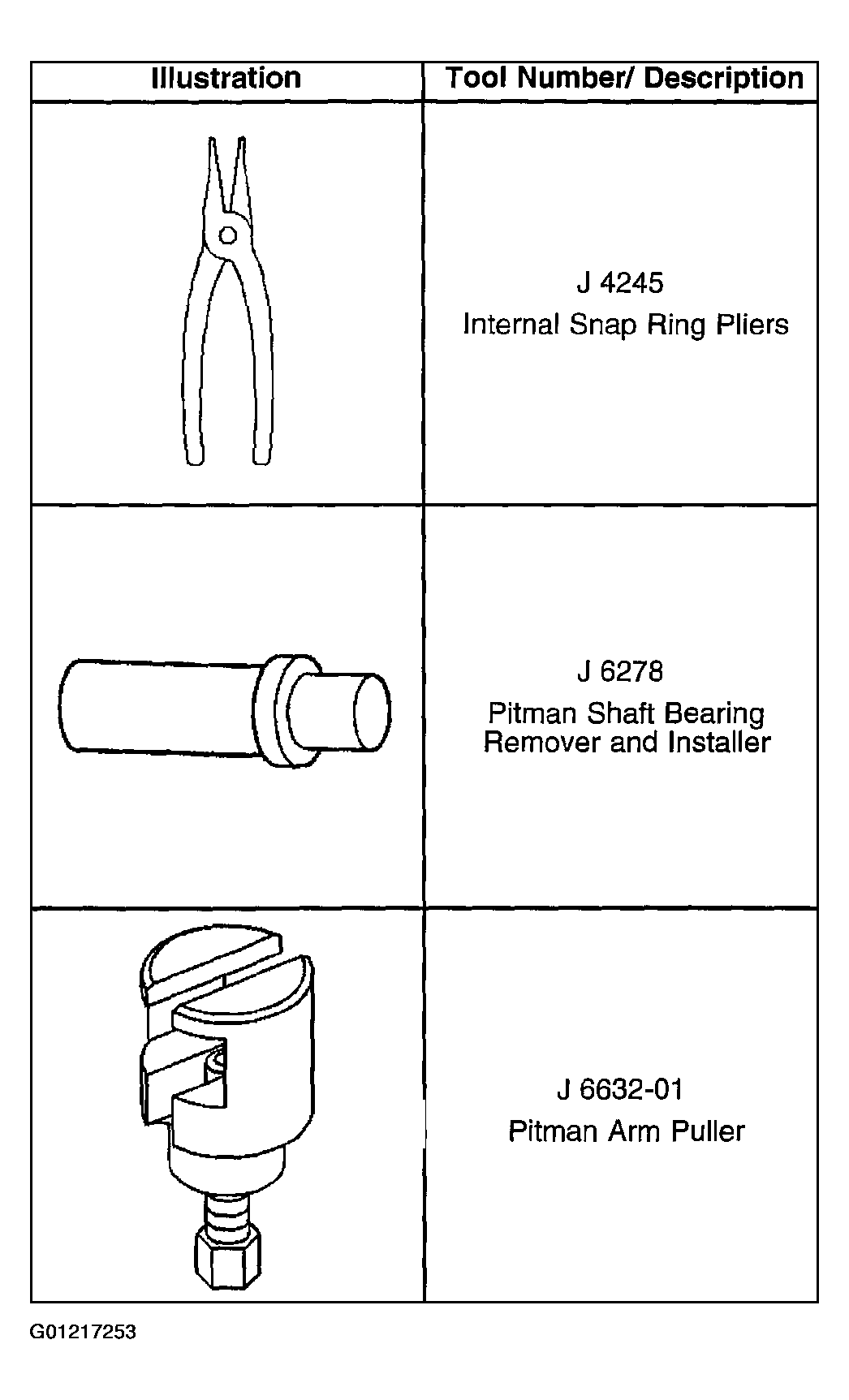

Fig 1: Special Tools J-42456 To J-6632-01
G01217253Courtesy of GENERAL MOTORS CORP.

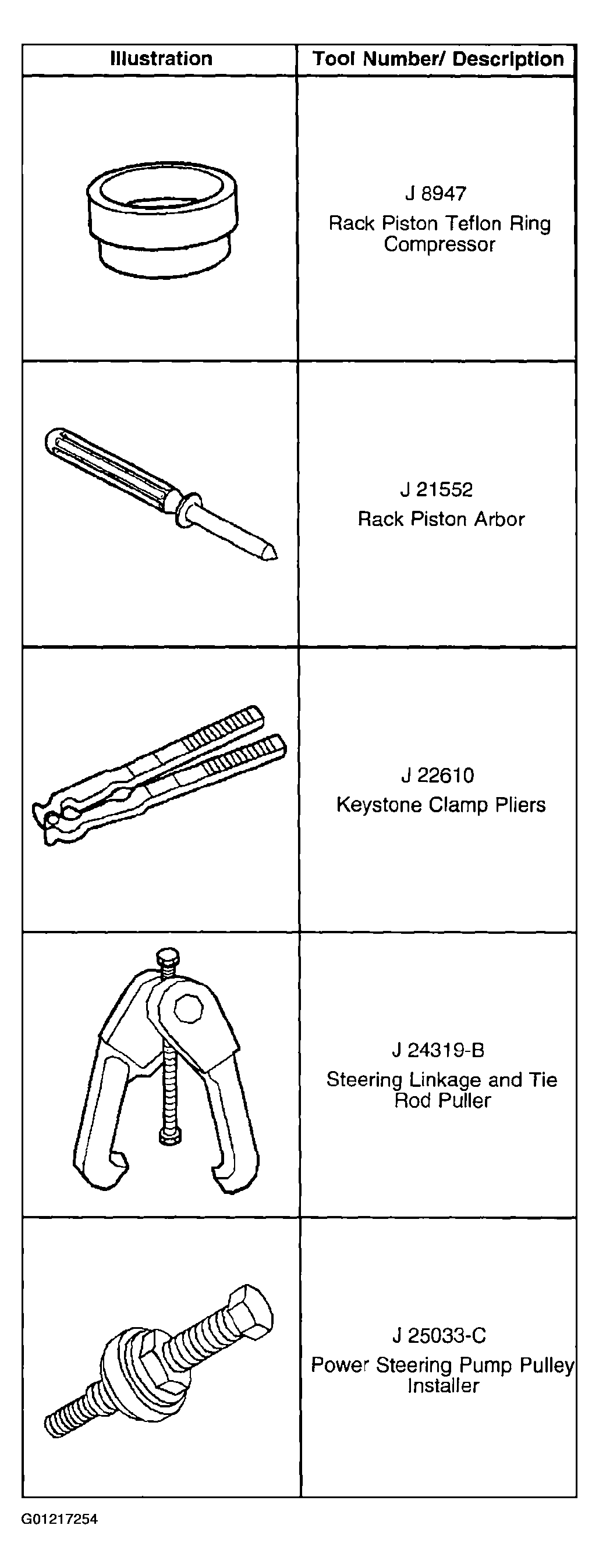

Fig 2: Special Tools J-8947 To J-25033-C
G01217254Courtesy of GENERAL MOTORS CORP.

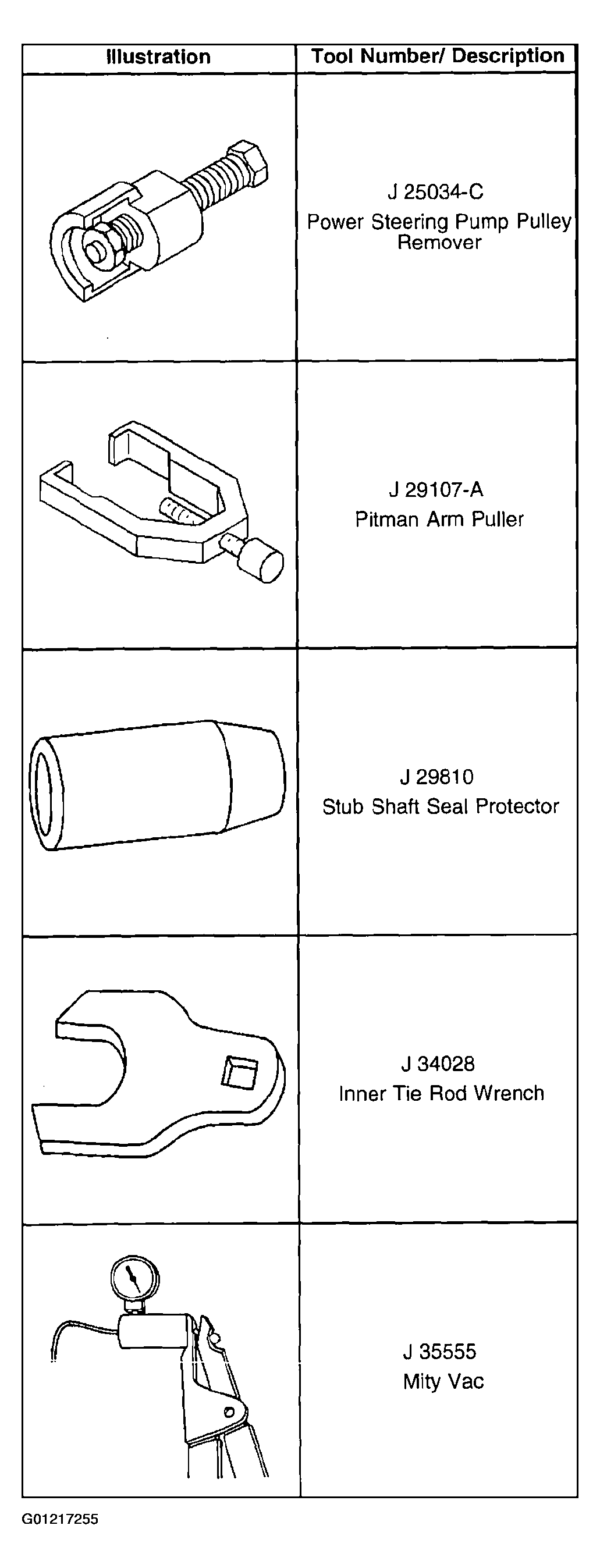

Fig 3: Special Tools J-25034-C To J-35555
G01217255Courtesy of GENERAL MOTORS CORP.

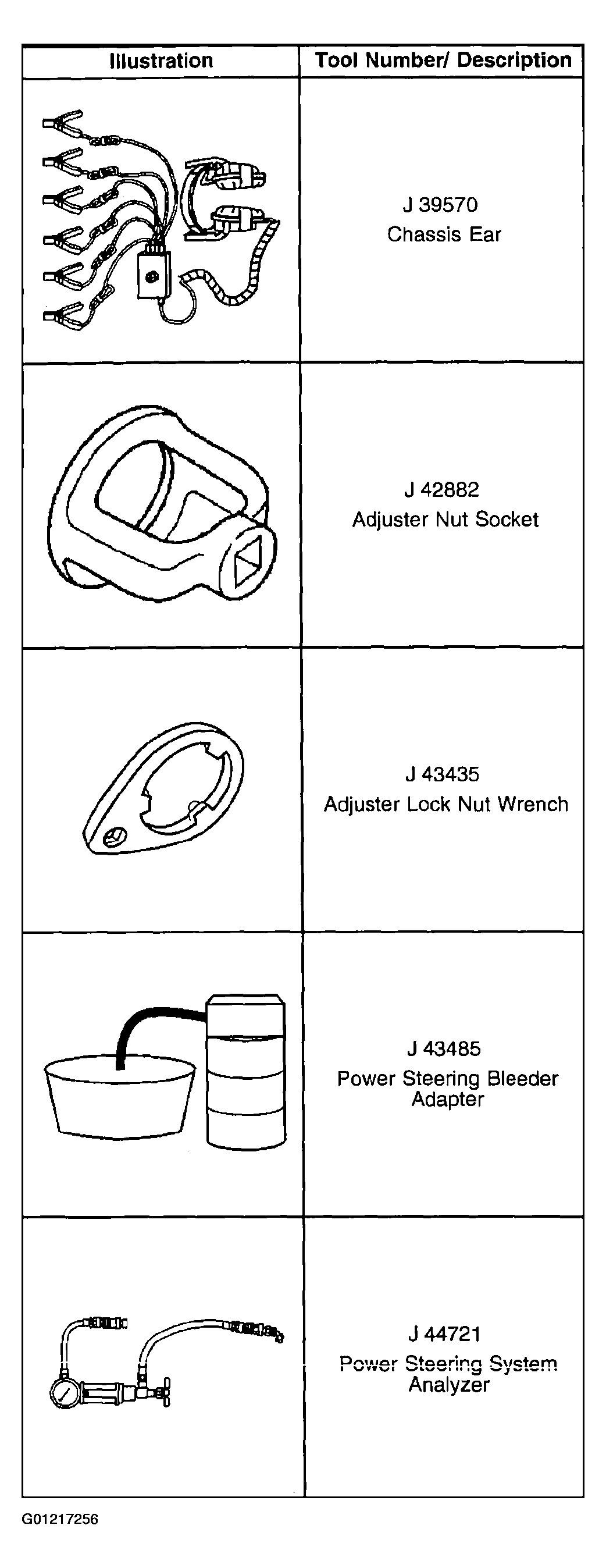

Fig 4: Special Tools J-39570 To J-44721
G01217256Courtesy of GENERAL MOTORS CORP.
