PCM Harness Resistance

Turn ignition switch to LOCK position. Disconnect PCM and related component harness connectors. Check for open or short circuits between PCM harness connector terminal and component harness connector terminal. See Fig 1 -Fig 6 . See WIRING DIAGRAMS  . If harness is open or shorted, repair as necessary.

Fig 1: Identifying PCM Connector C1 Terminals (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

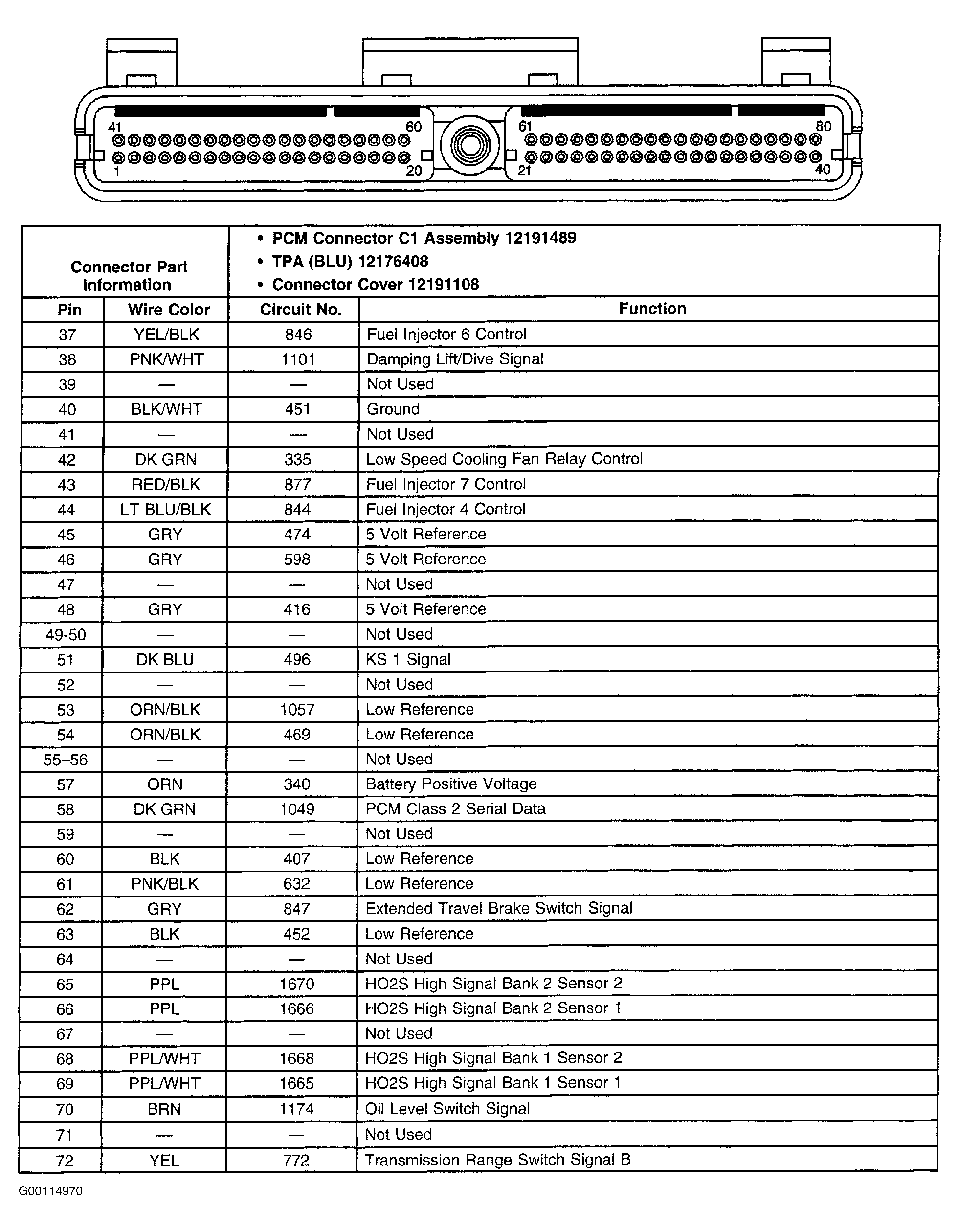

Fig 2: Identifying PCM Connector C1 Terminals (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

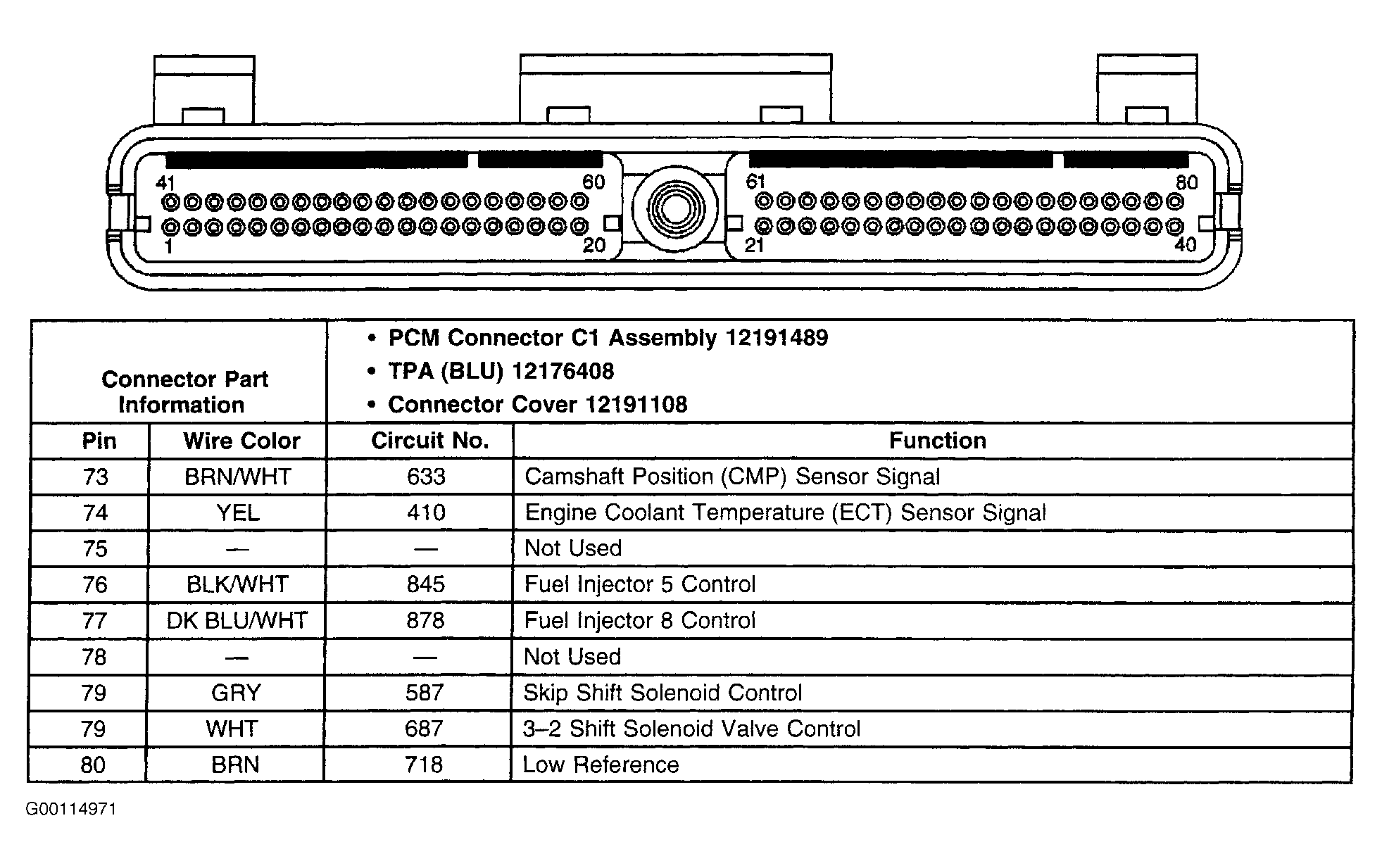

Fig 3: Identifying PCM Connector C1 Terminals (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

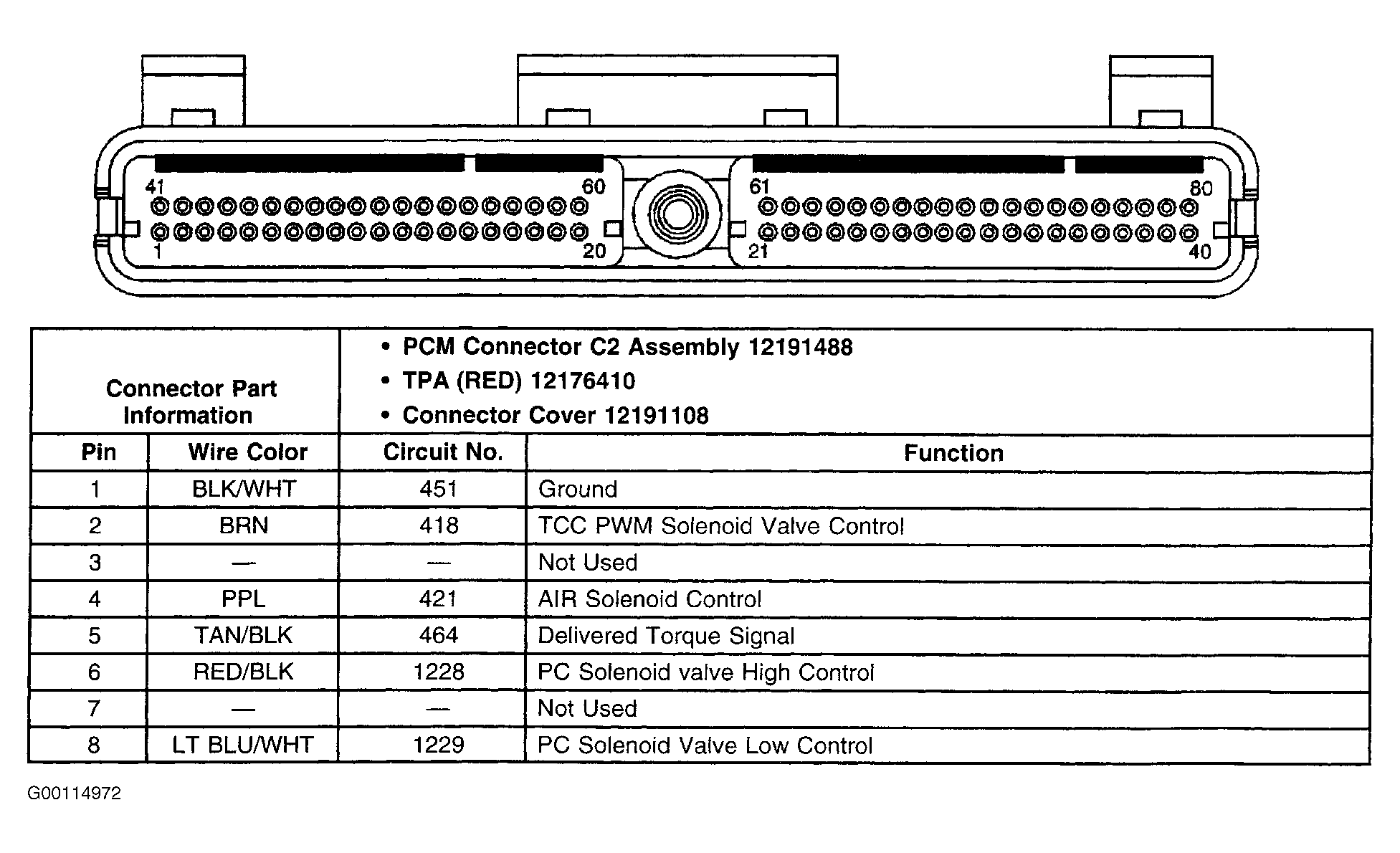

Fig 4: Identifying PCM Connector C2 Terminals (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

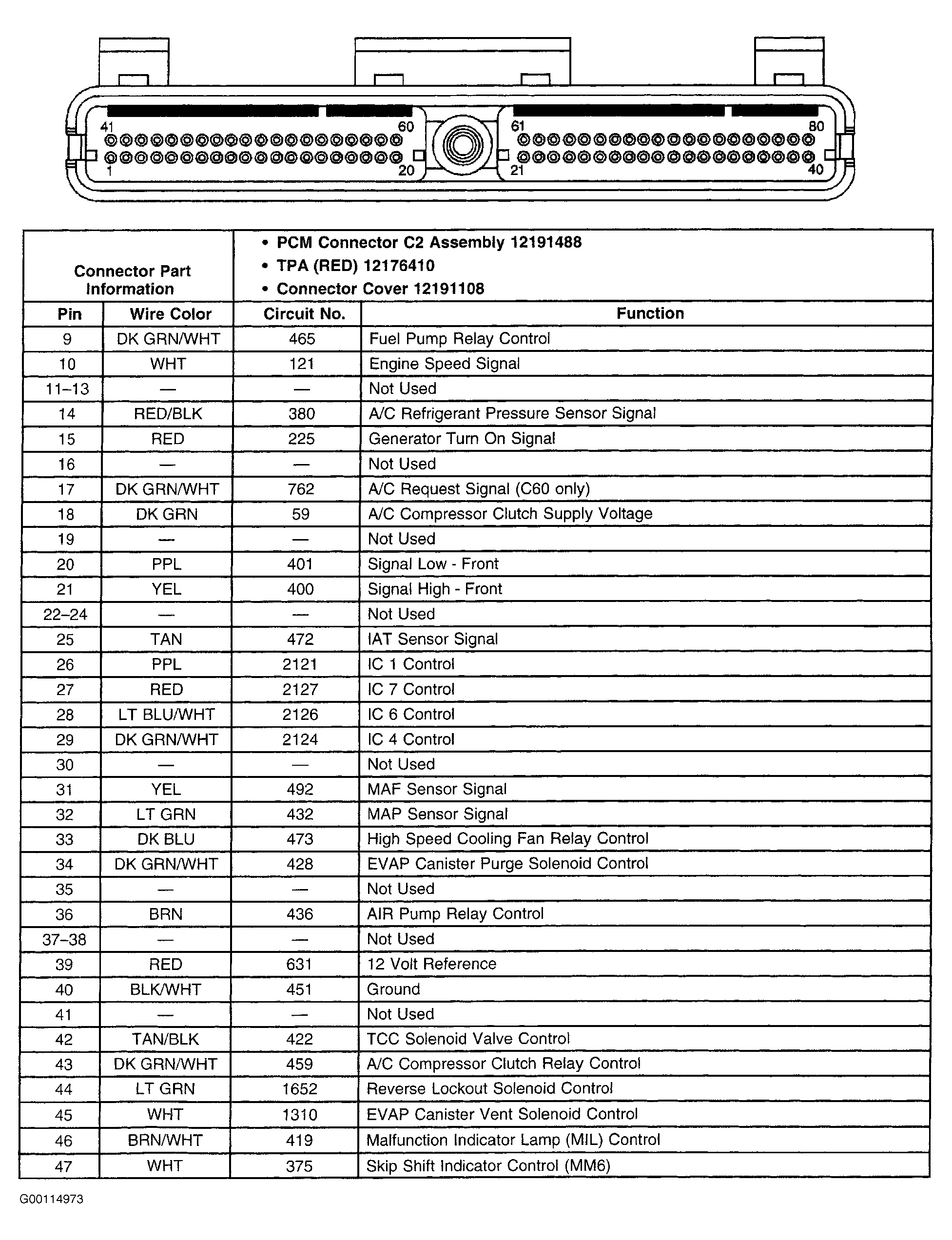

Fig 5: Identifying PCM Connector C2 Terminals (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying PCM Connector C2 Terminals (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
