Positive Crankcase Ventilation

For crankcase ventilation system inspection/diagnosis, see Fig 1 .

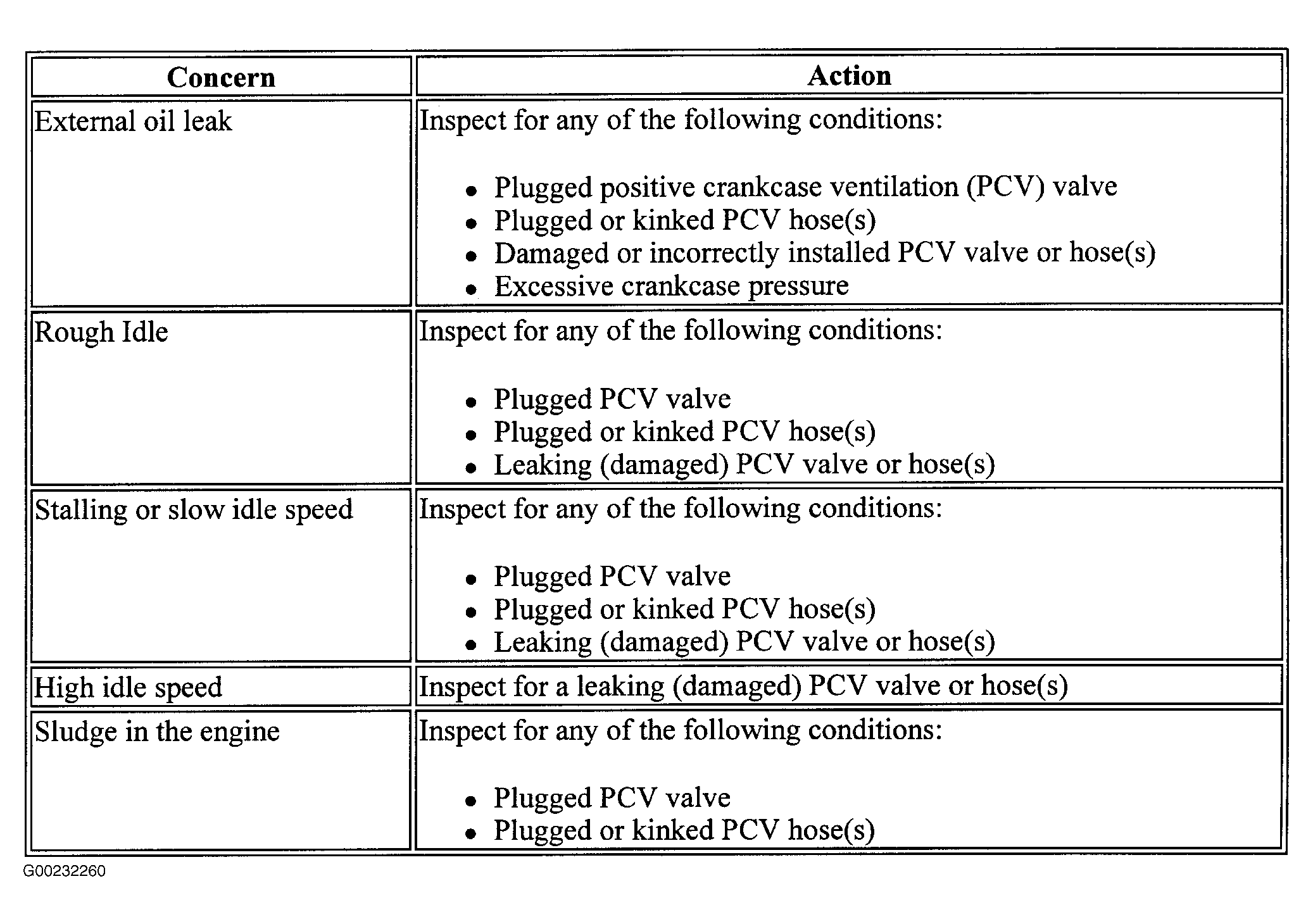

Fig 1: Crankcase Ventilation System Inspection/Diagnosis
G00232260Courtesy of GENERAL MOTORS CORP.
