Connector Identification

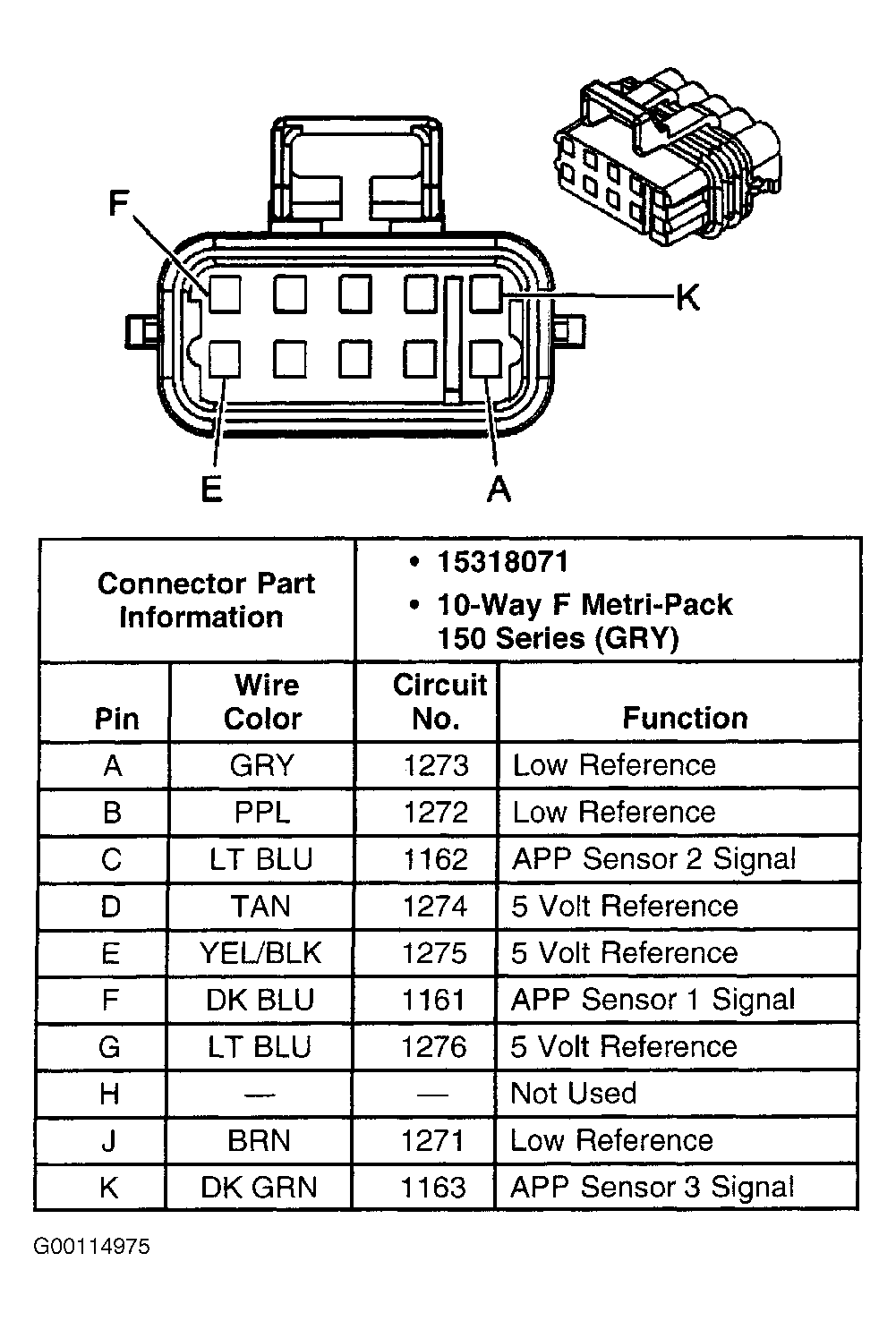

Fig 1: Identifying APP Sensor Connector Terminals

G00114975

Courtesy of GENERAL MOTORS CORP.

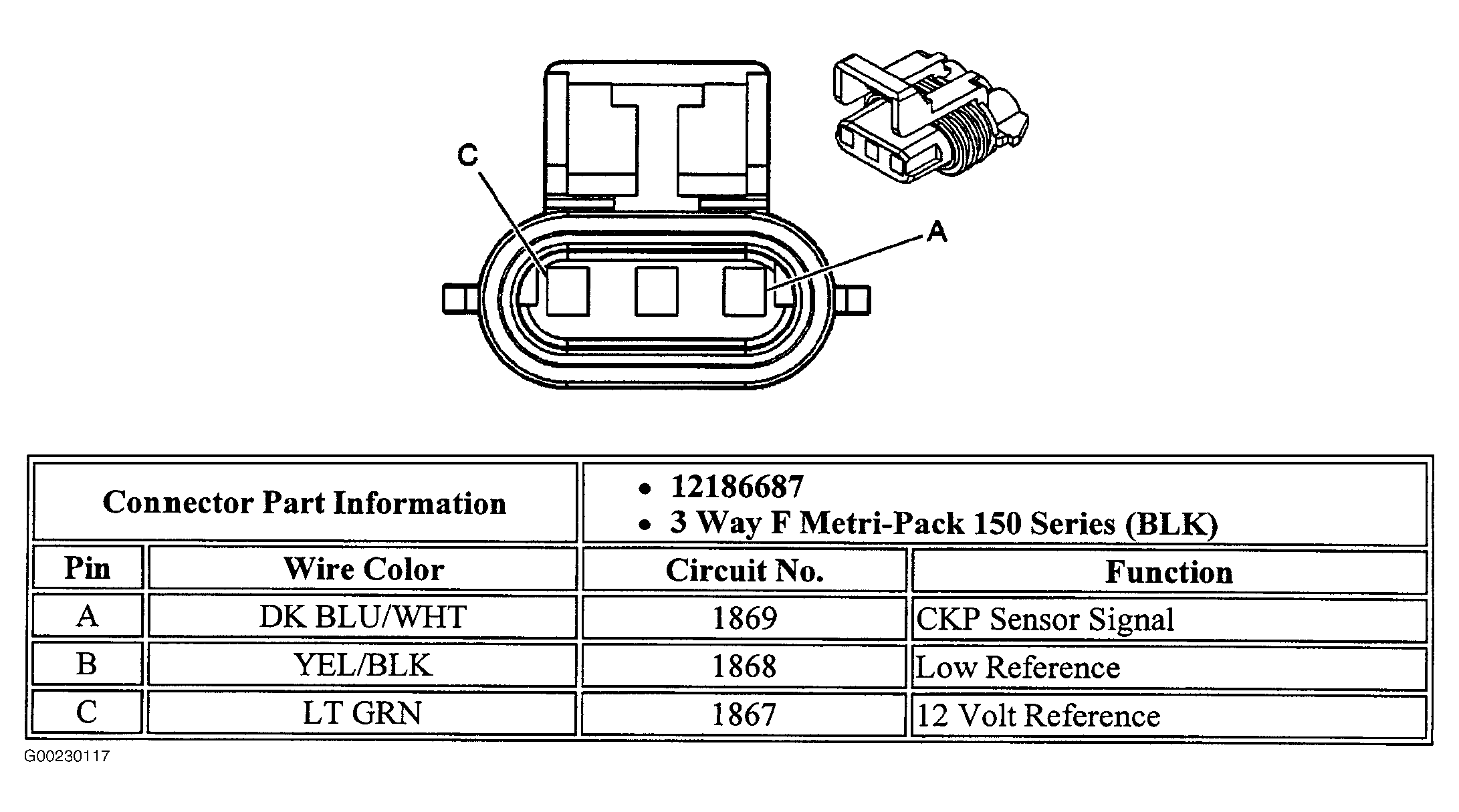

Fig 2: Identifying CKP Sensor Connector Terminals

G00230117

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying CMP Sensor Connector Terminals

G00230118

Courtesy of GENERAL MOTORS CORP.

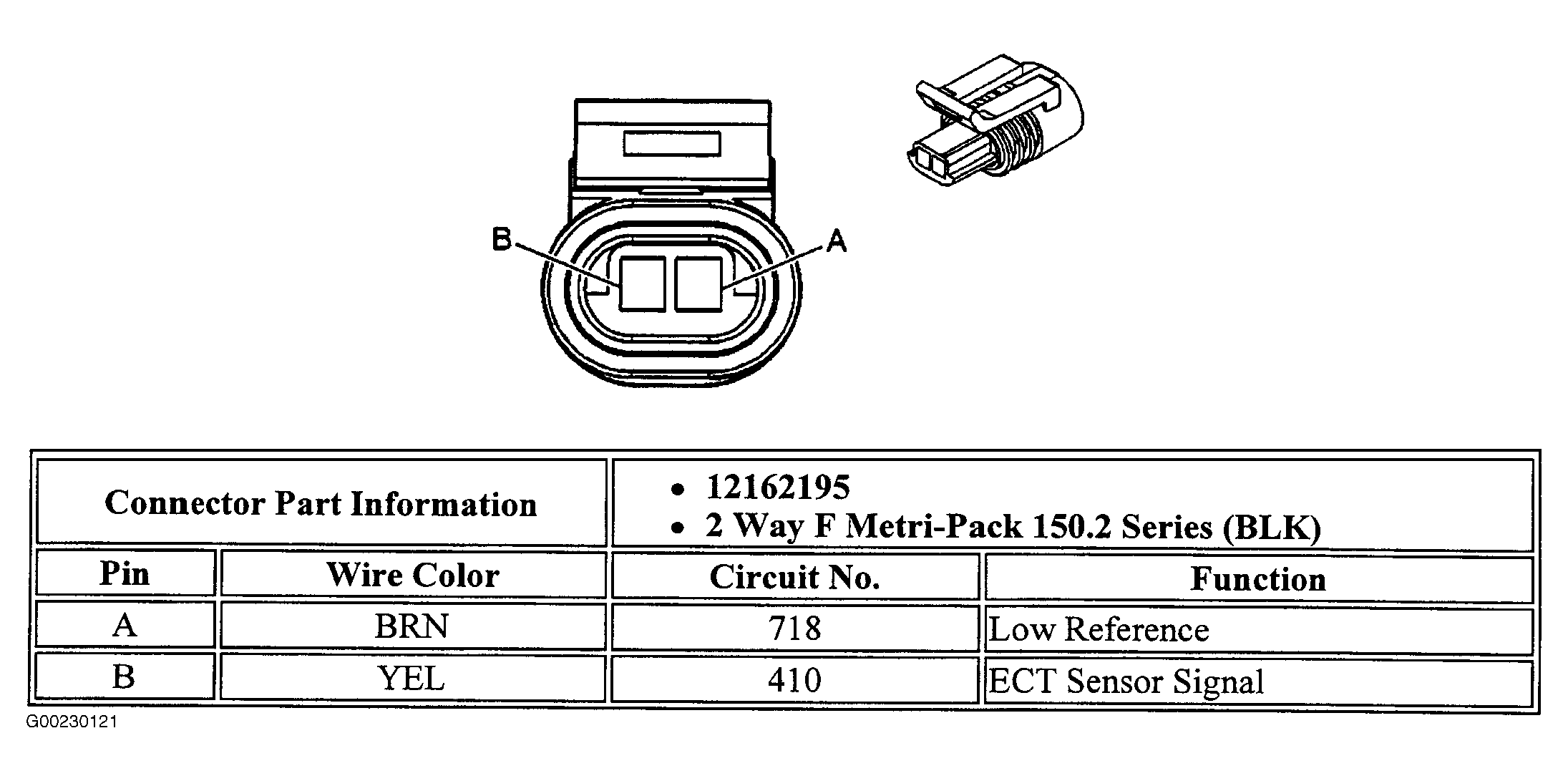

Fig 4: Identifying ECT Sensor Connector Terminals

G00230121

Courtesy of GENERAL MOTORS CORP.

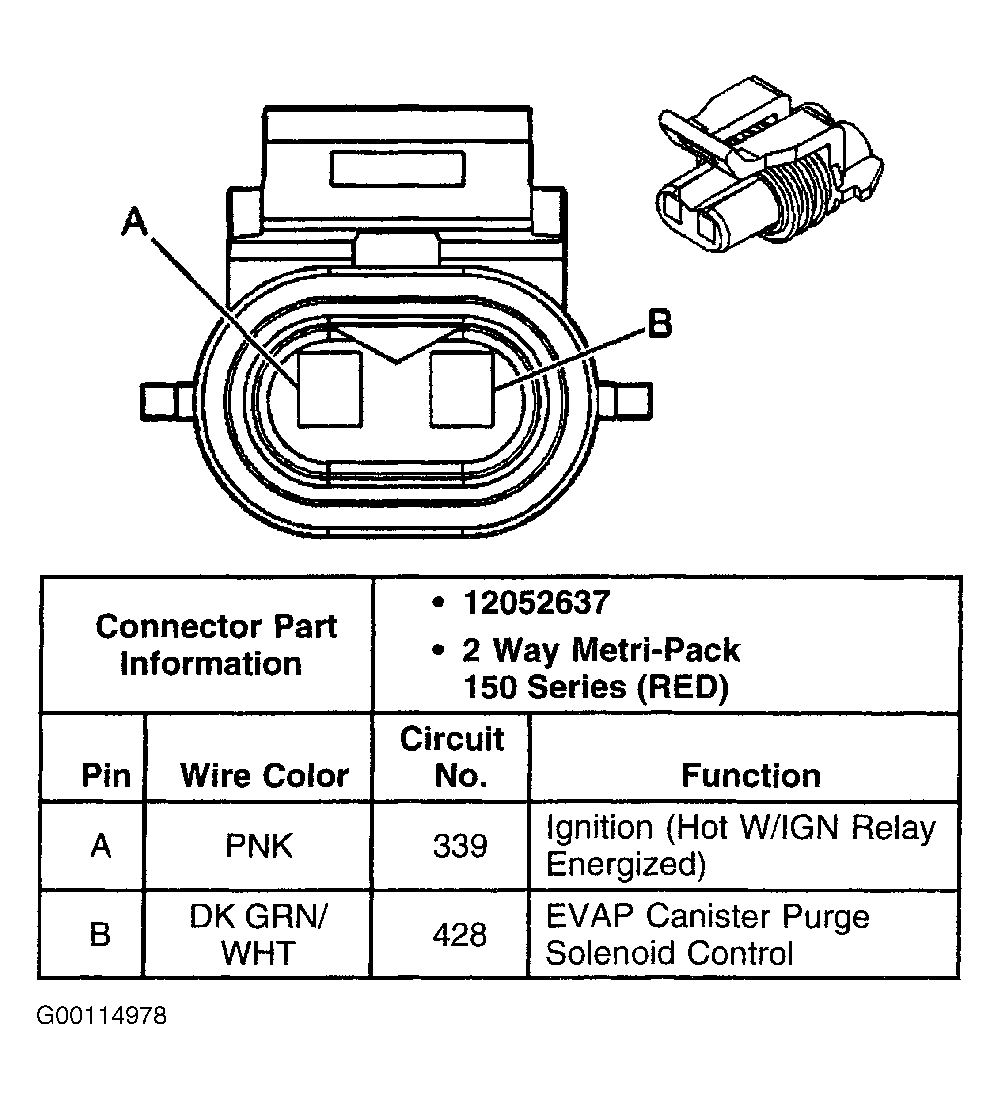

Fig 5: Identifying EVAP Purge Valve Connector Terminals

G00114978

Courtesy of GENERAL MOTORS CORP.

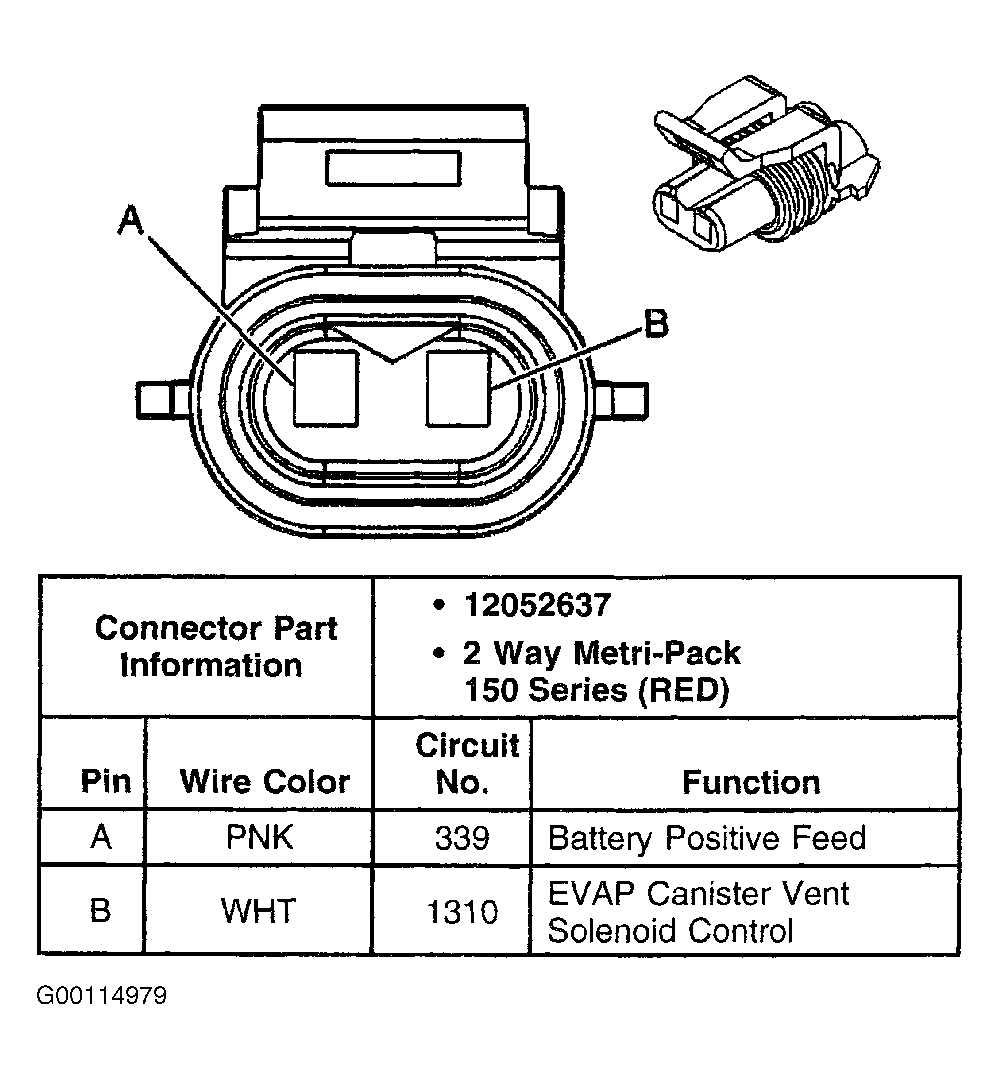

Fig 6: Identifying EVAP Vent Valve Connector Terminals

G00114979

Courtesy of GENERAL MOTORS CORP.

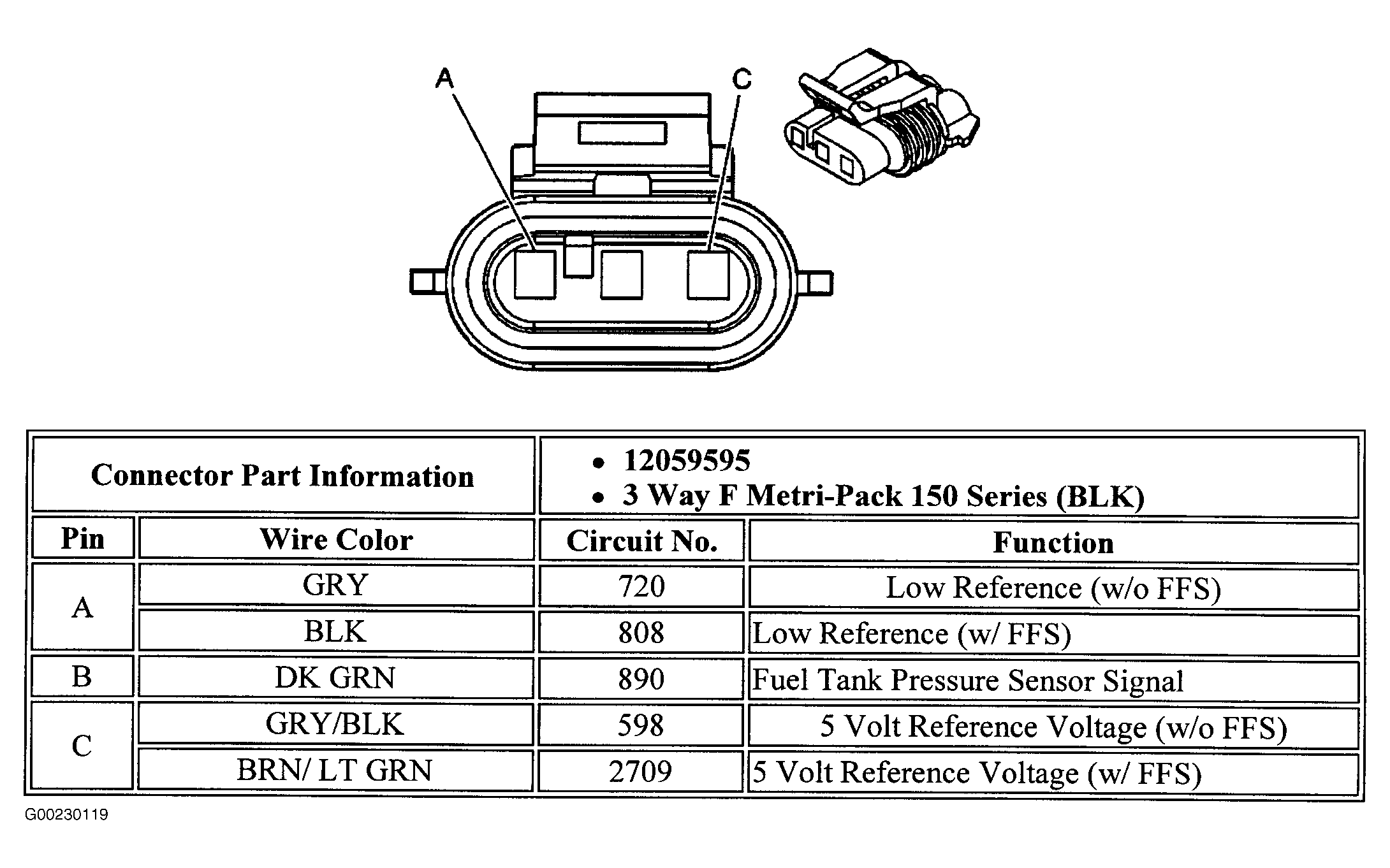

Fig 7: Identifying FTP Sensor Connector Terminals

G00230119

Courtesy of GENERAL MOTORS CORP.

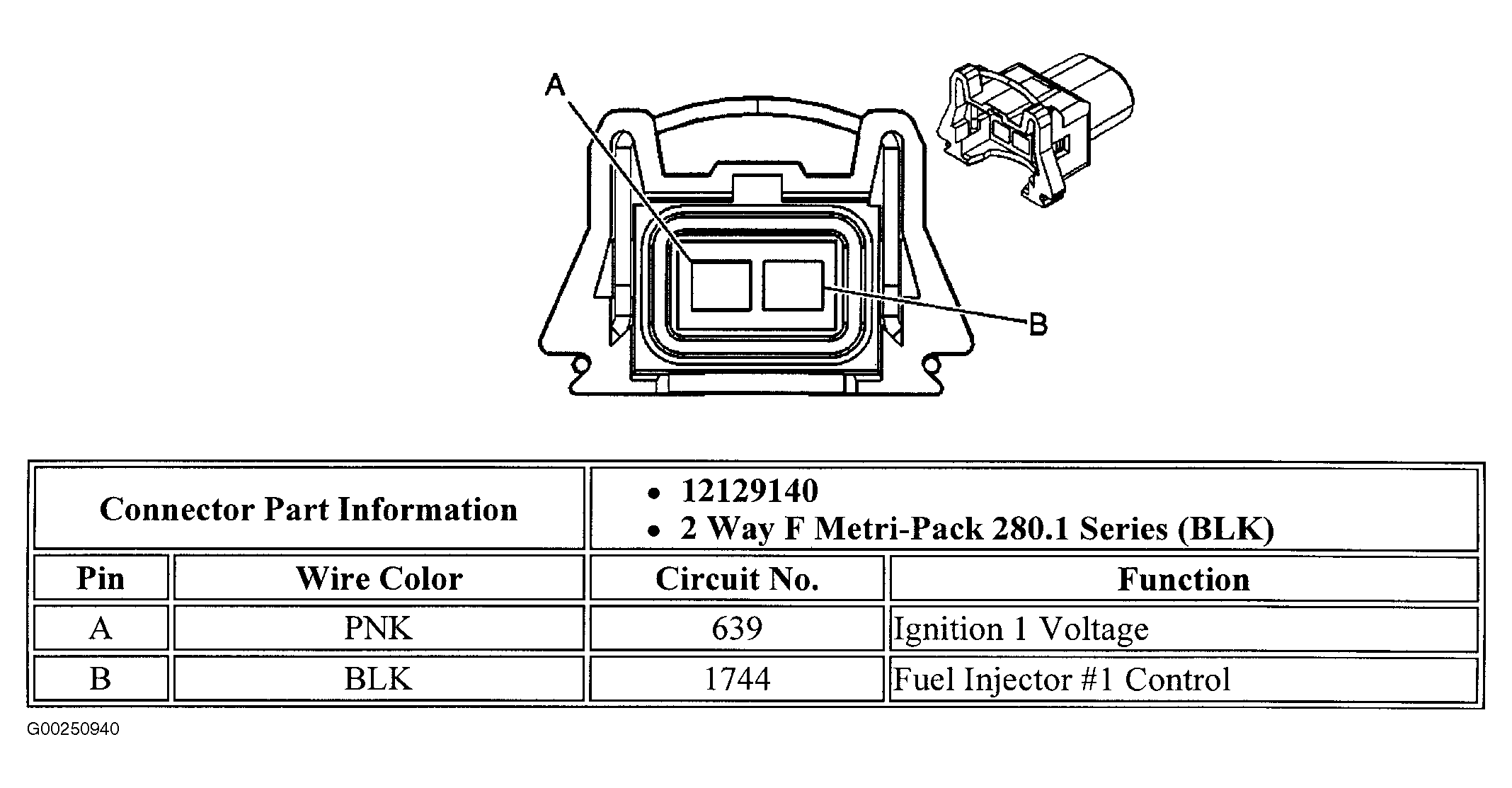

Fig 8: Identifying Fuel Injector 1 Connector Terminals

G00250940

Courtesy of GENERAL MOTORS CORP.

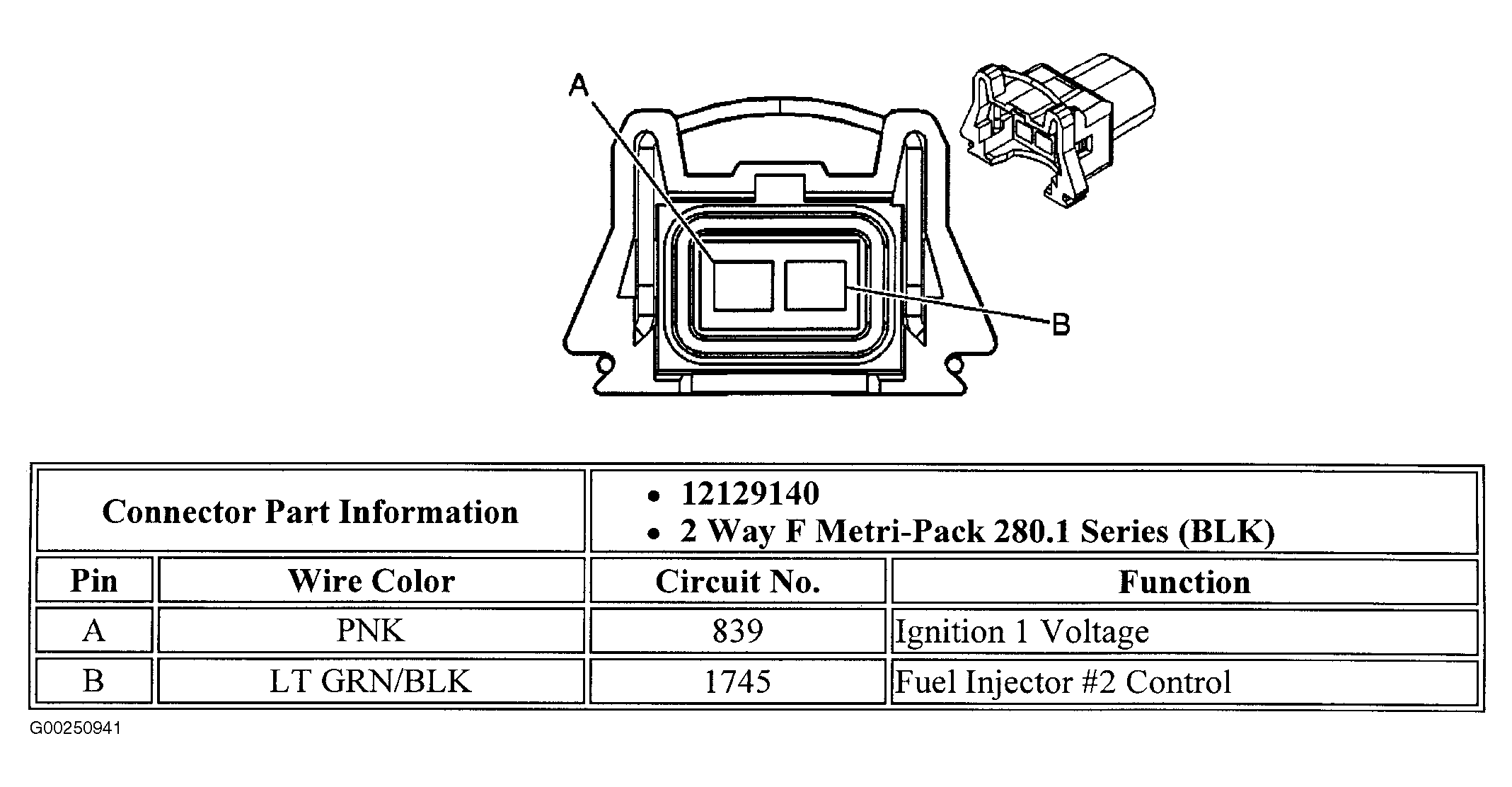

Fig 9: Identifying Fuel Injector 2 Connector Terminals

G00250941

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Fuel Injector 3 Connector Terminals

G00250942

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Fuel Injector 4 Connector Terminals

G00250943

Courtesy of GENERAL MOTORS CORP.

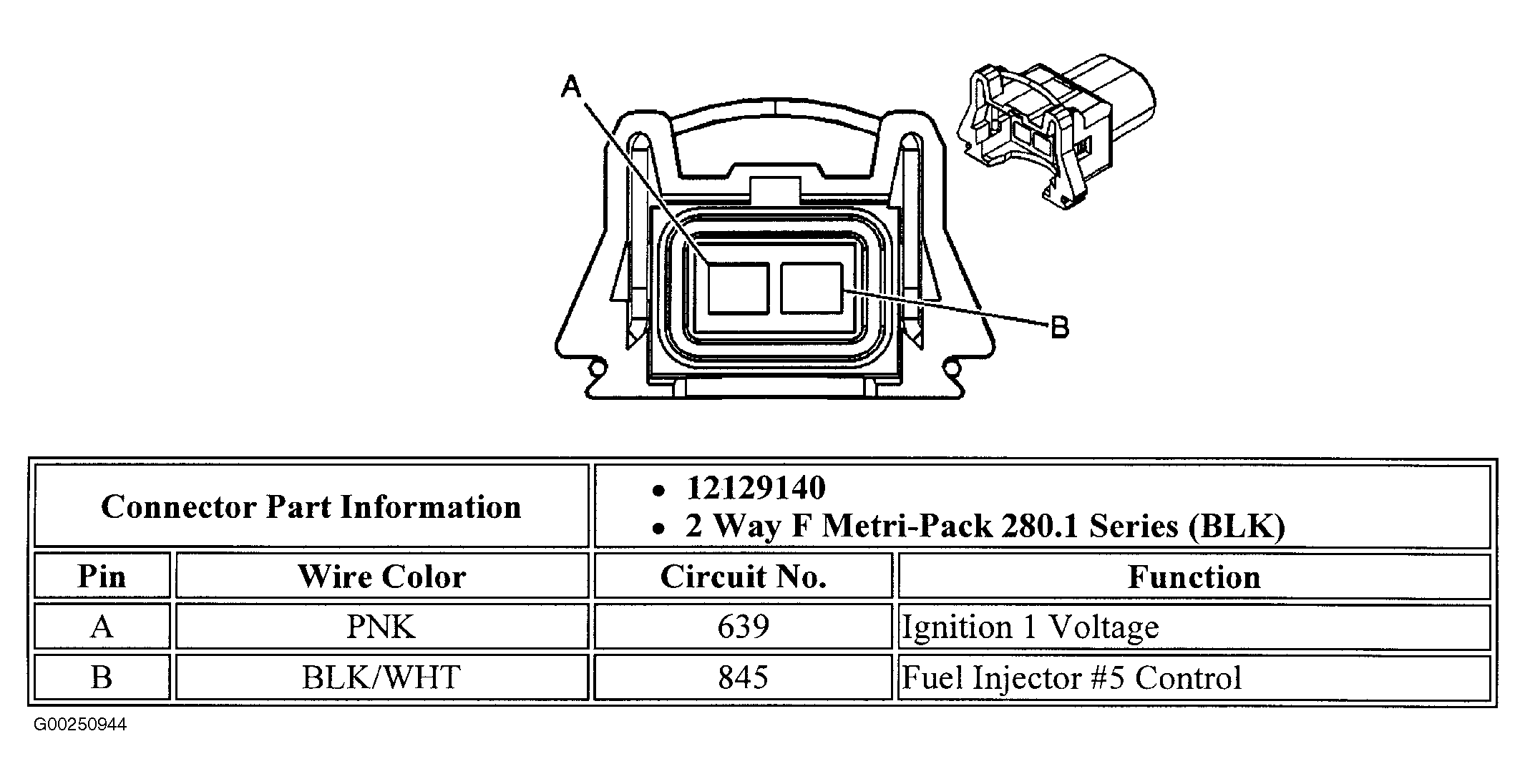

Fig 12: Identifying Fuel Injector 5 Connector Terminals

G00250944

Courtesy of GENERAL MOTORS CORP.

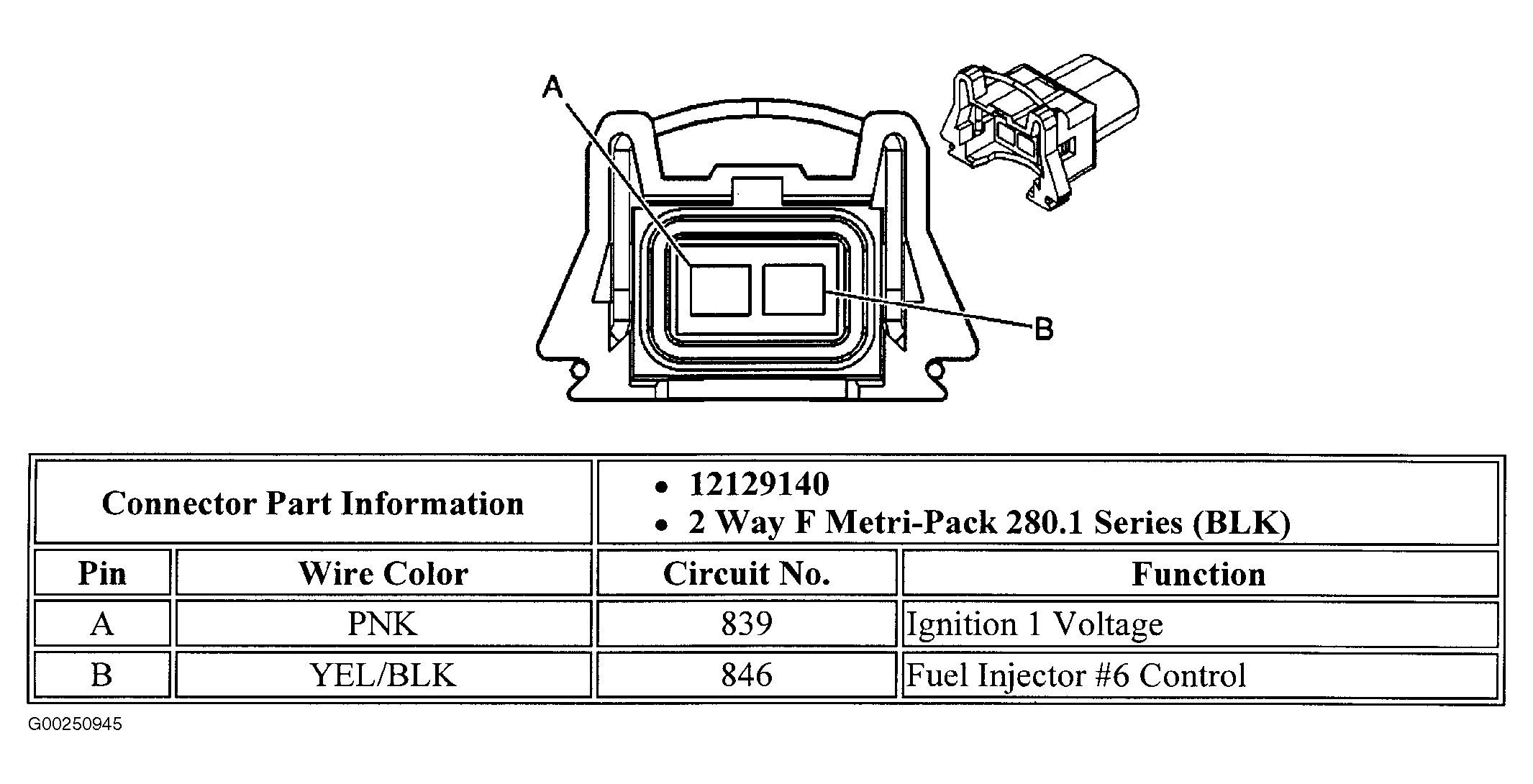

Fig 13: Identifying Fuel Injector 6 Connector Terminals

G00250945

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Fuel Injector 7 Connector Terminals

G00250946

Courtesy of GENERAL MOTORS CORP.

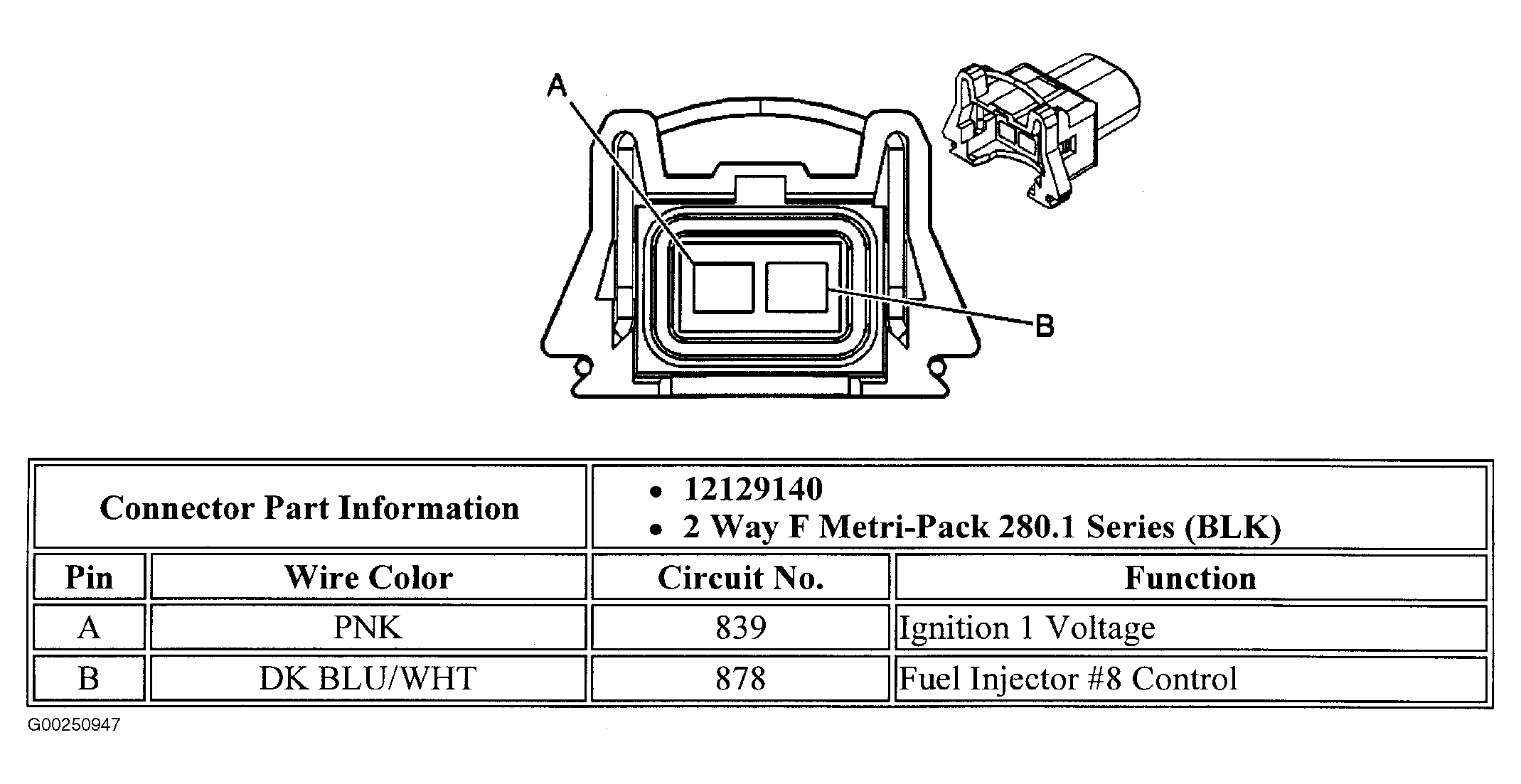

Fig 15: Identifying Fuel Injector 8 Connector Terminals

G00250947

Courtesy of GENERAL MOTORS CORP.

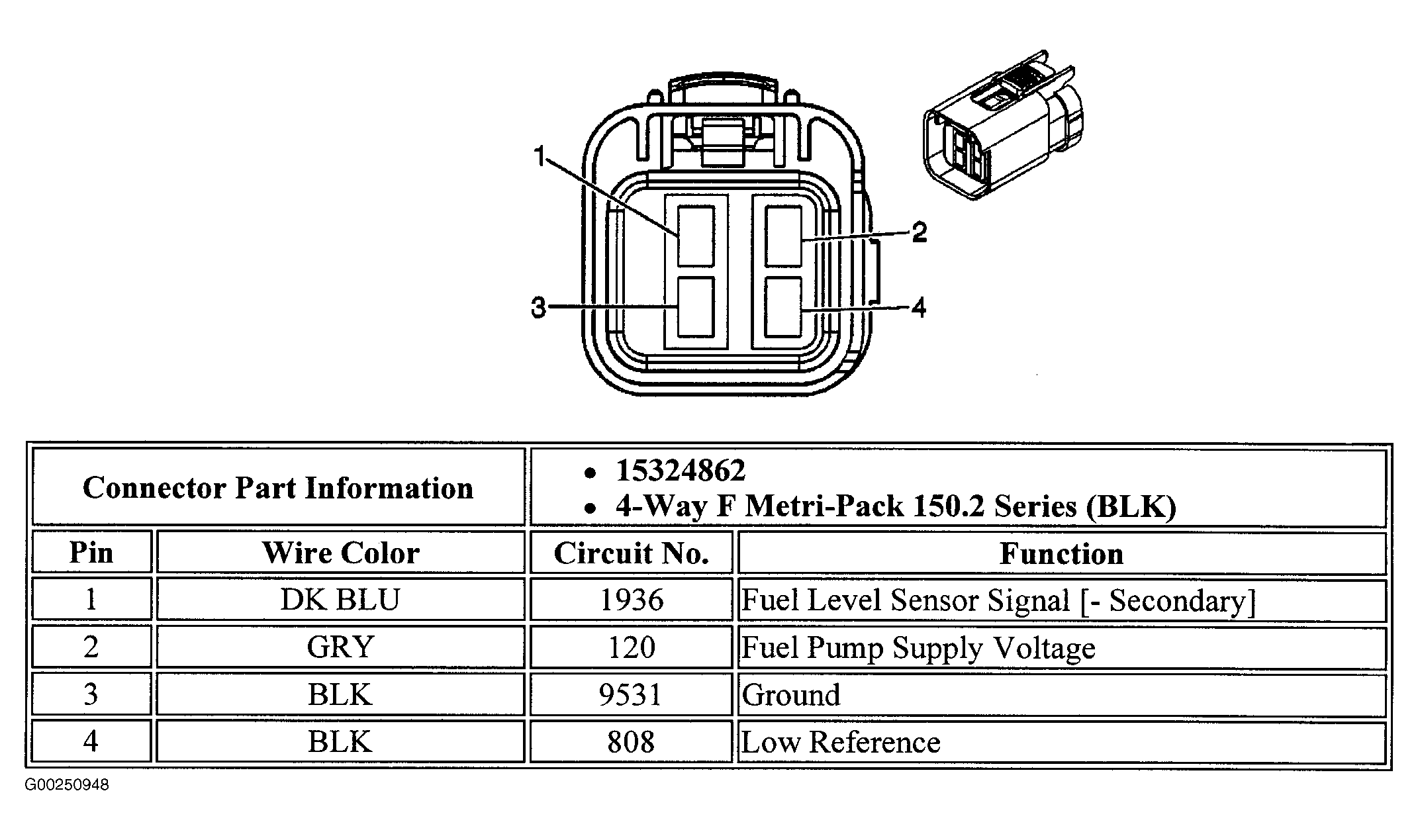

Fig 16: Identifying Fuel Pump/Sender Assembly Connector Terminals (With Feedback Fuel System)

G00250948

Courtesy of GENERAL MOTORS CORP.

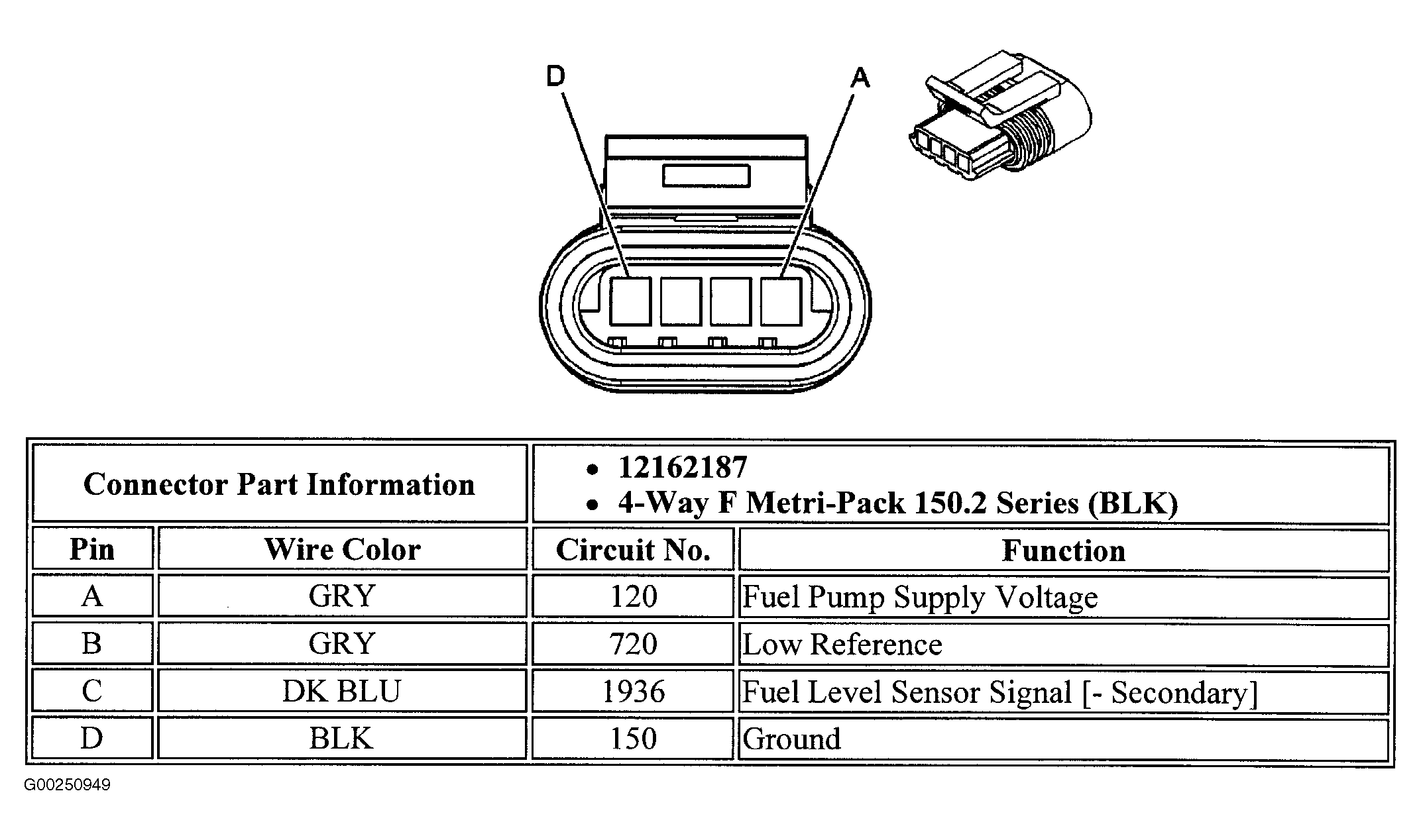

Fig 17: Identifying Fuel Pump/Sender Assembly Connector Terminals (Without Feedback Fuel System)

G00250949

Courtesy of GENERAL MOTORS CORP.

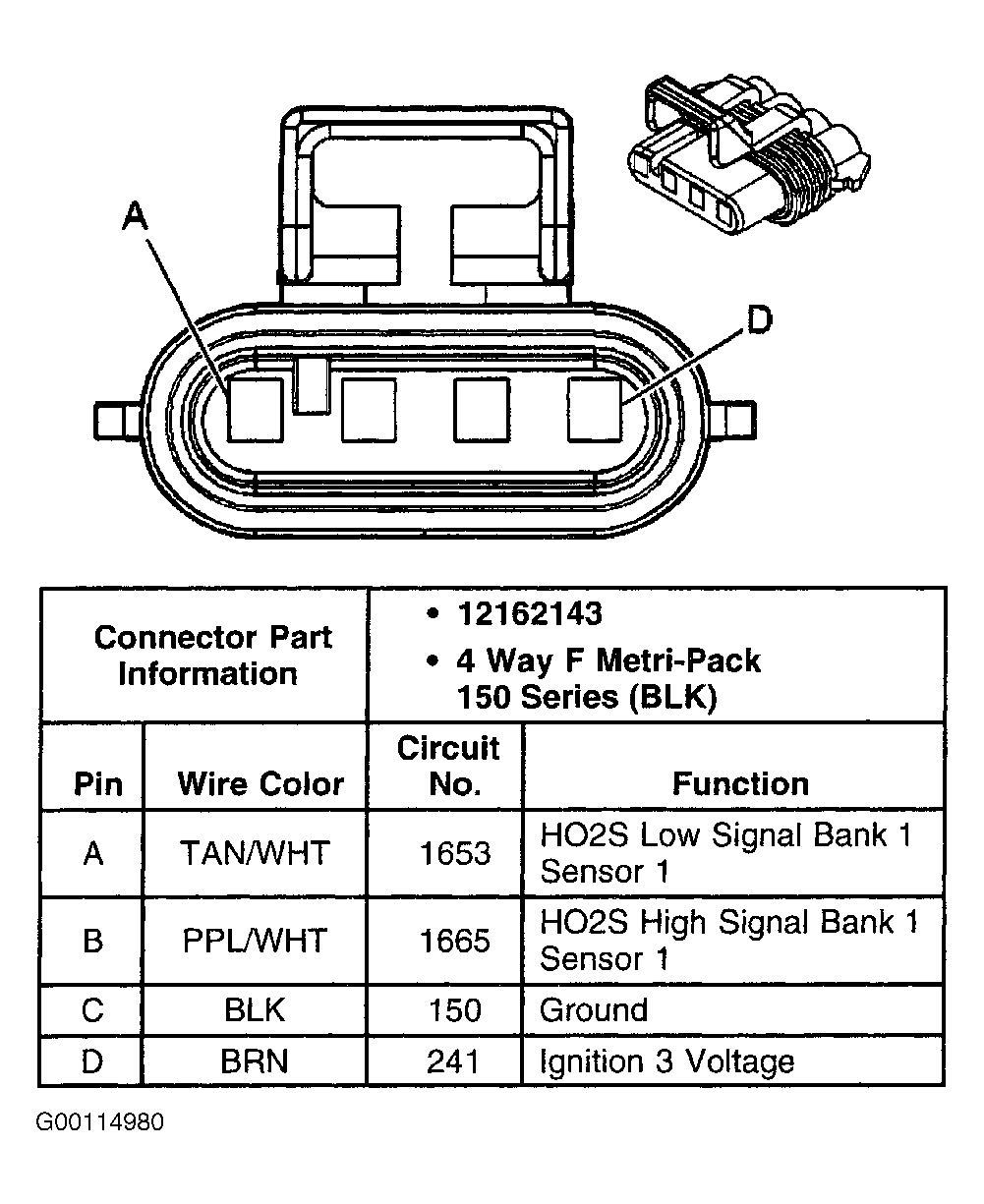

Fig 18: Identifying HO2S Bank 1, Sensor 1 Connector Terminals

G00114980

Courtesy of GENERAL MOTORS CORP.

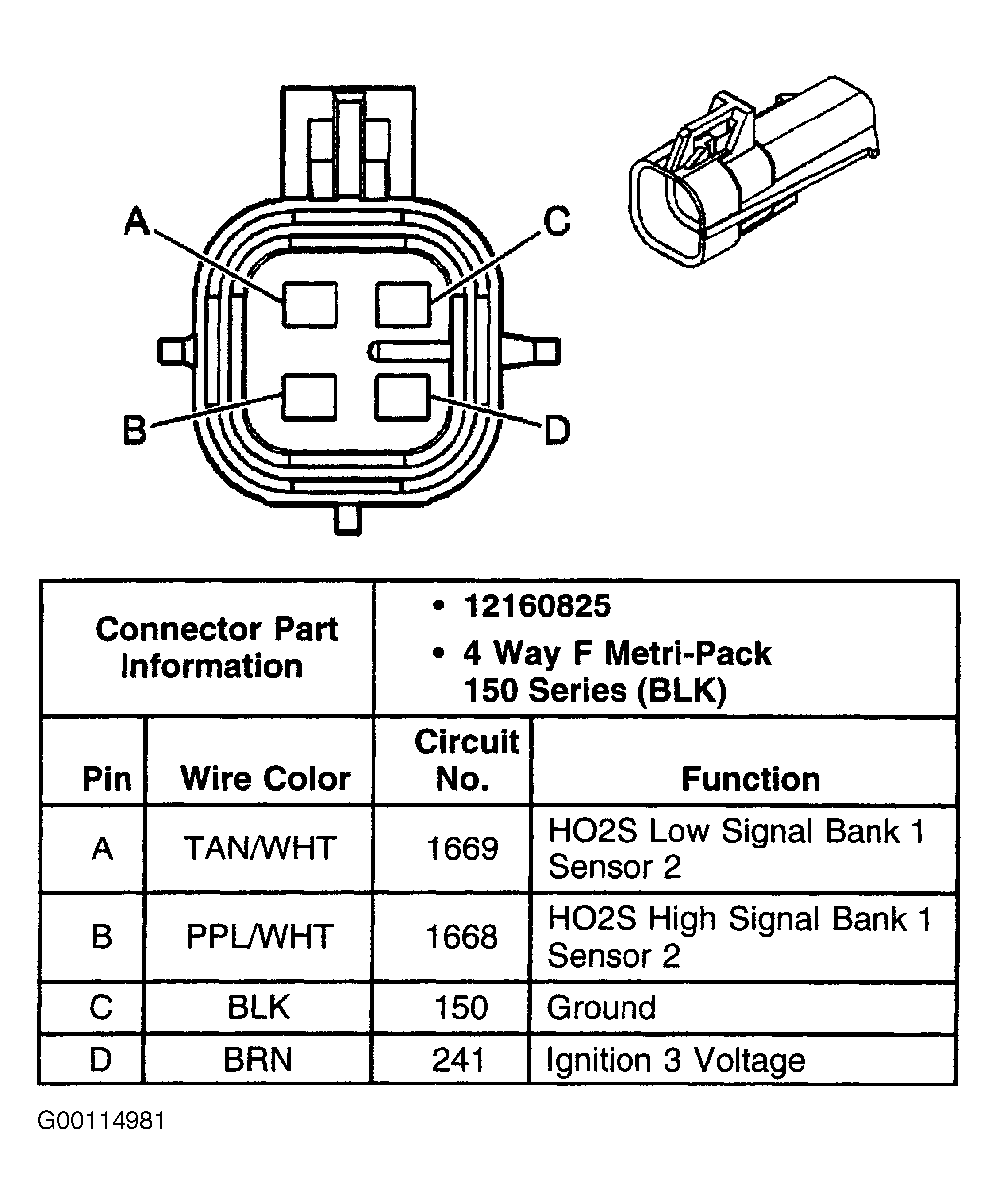

Fig 19: Identifying HO2S Bank 1, Sensor 2 Connector Terminals

G00114981

Courtesy of GENERAL MOTORS CORP.

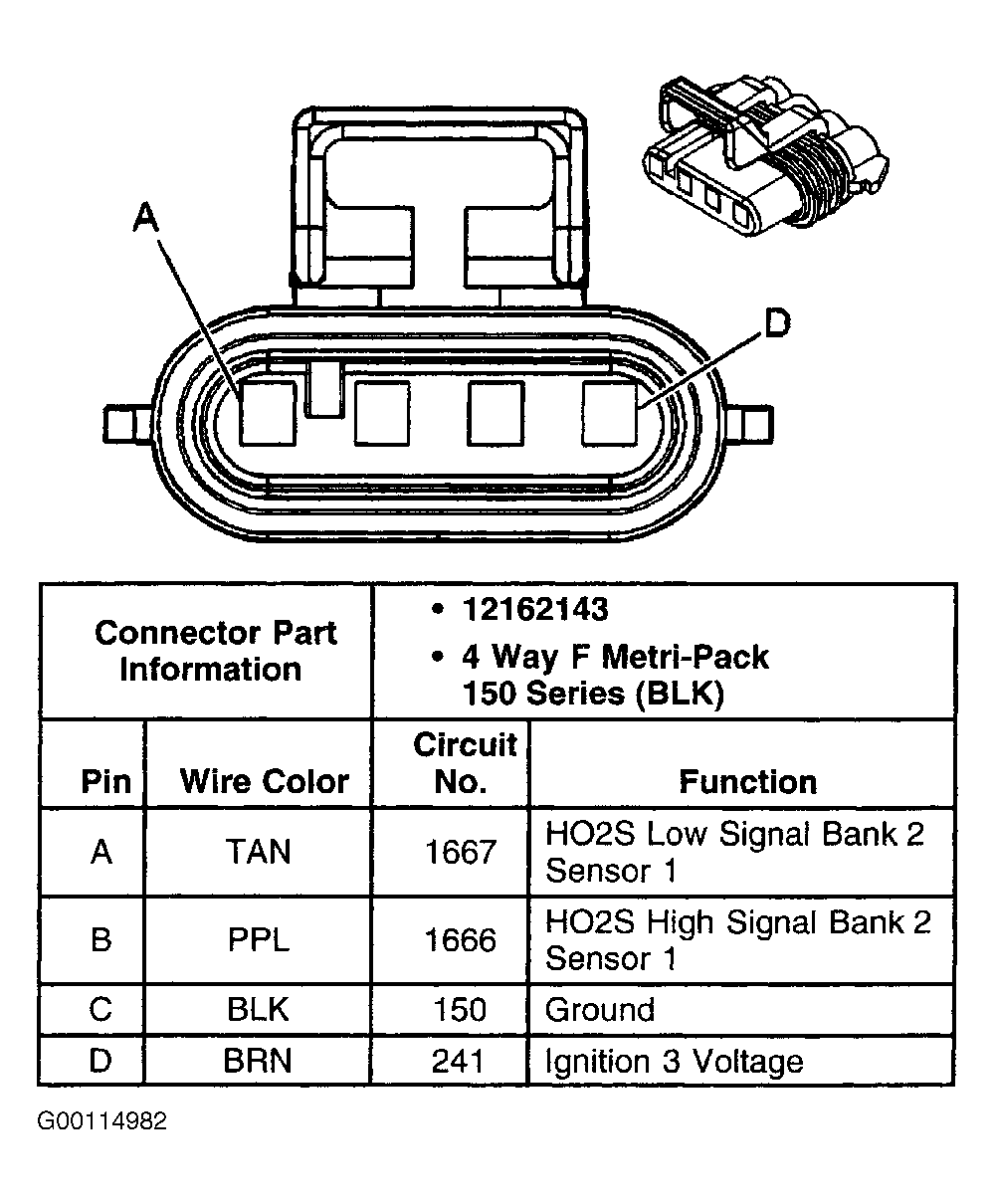

Fig 20: Identifying HO2S Bank 2, Sensor 1 Connector Terminals

G00114982

Courtesy of GENERAL MOTORS CORP.

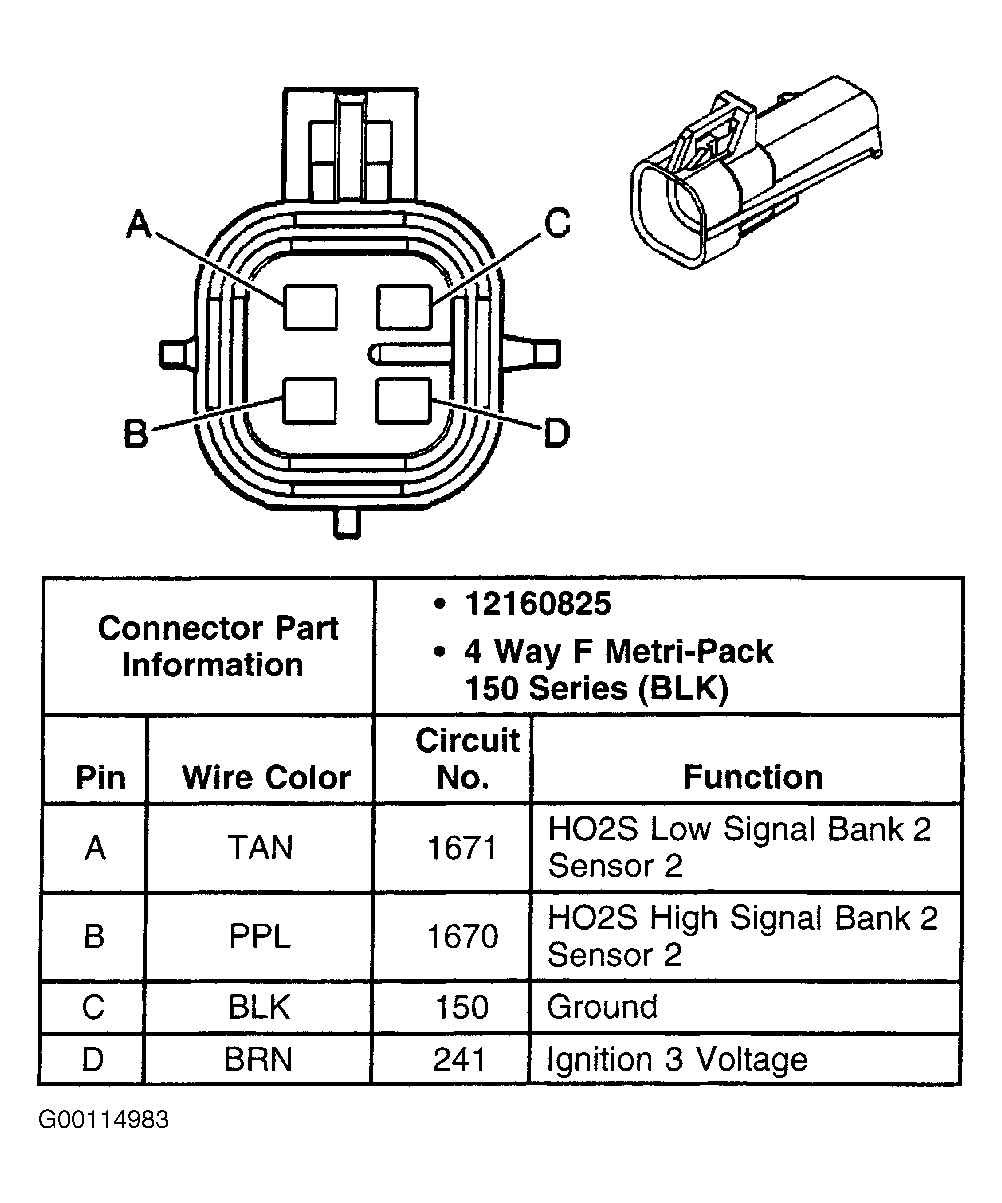

Fig 21: Identifying HO2S Bank 2, Sensor 2 Connector Terminals

G00114983

Courtesy of GENERAL MOTORS CORP.

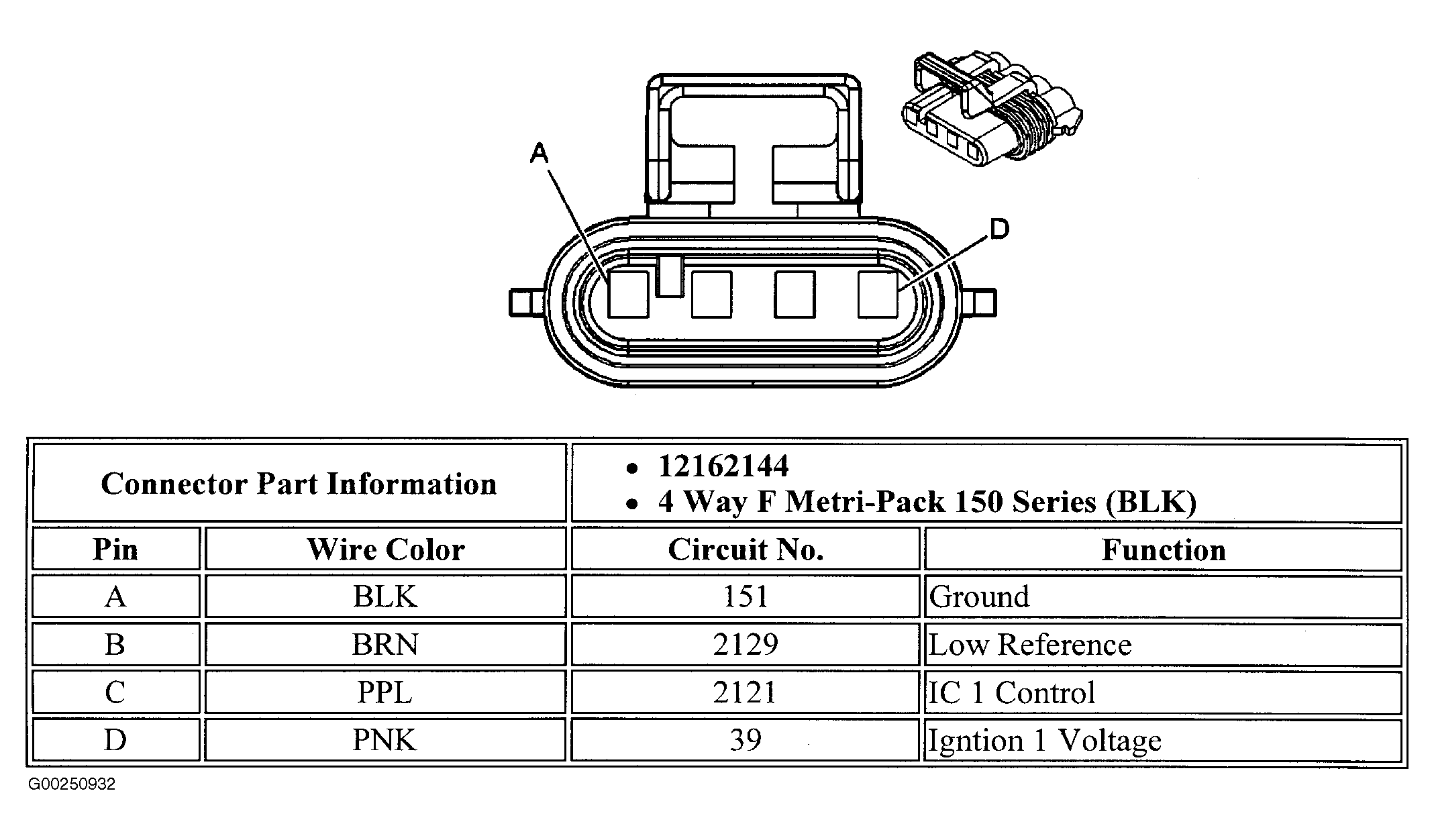

Fig 22: Identifying Ignition Coil 1 Connector Terminals

G00250932

Courtesy of GENERAL MOTORS CORP.

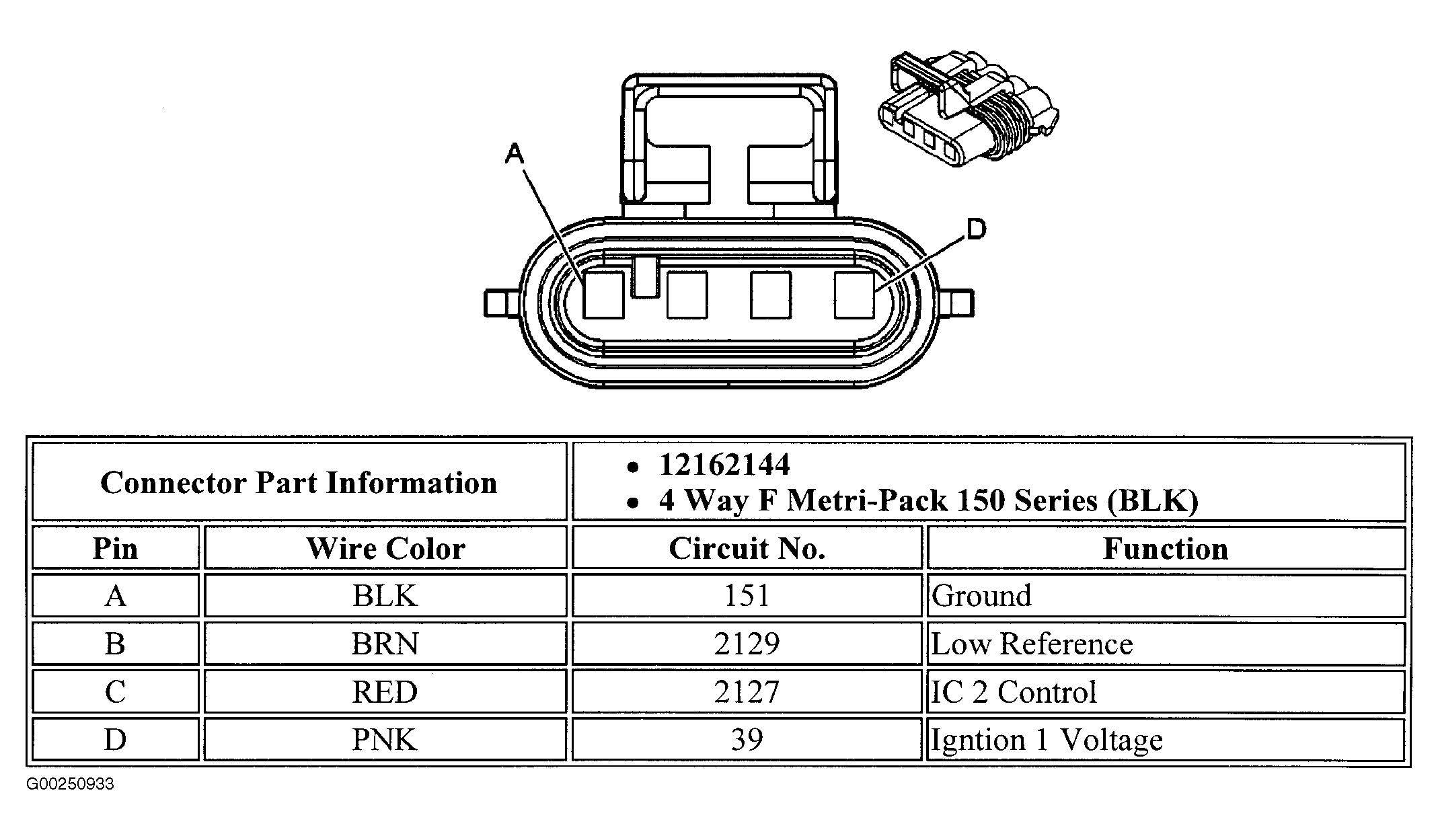

Fig 23: Identifying Ignition Coil 2 Connector Terminals

G00250933

Courtesy of GENERAL MOTORS CORP.

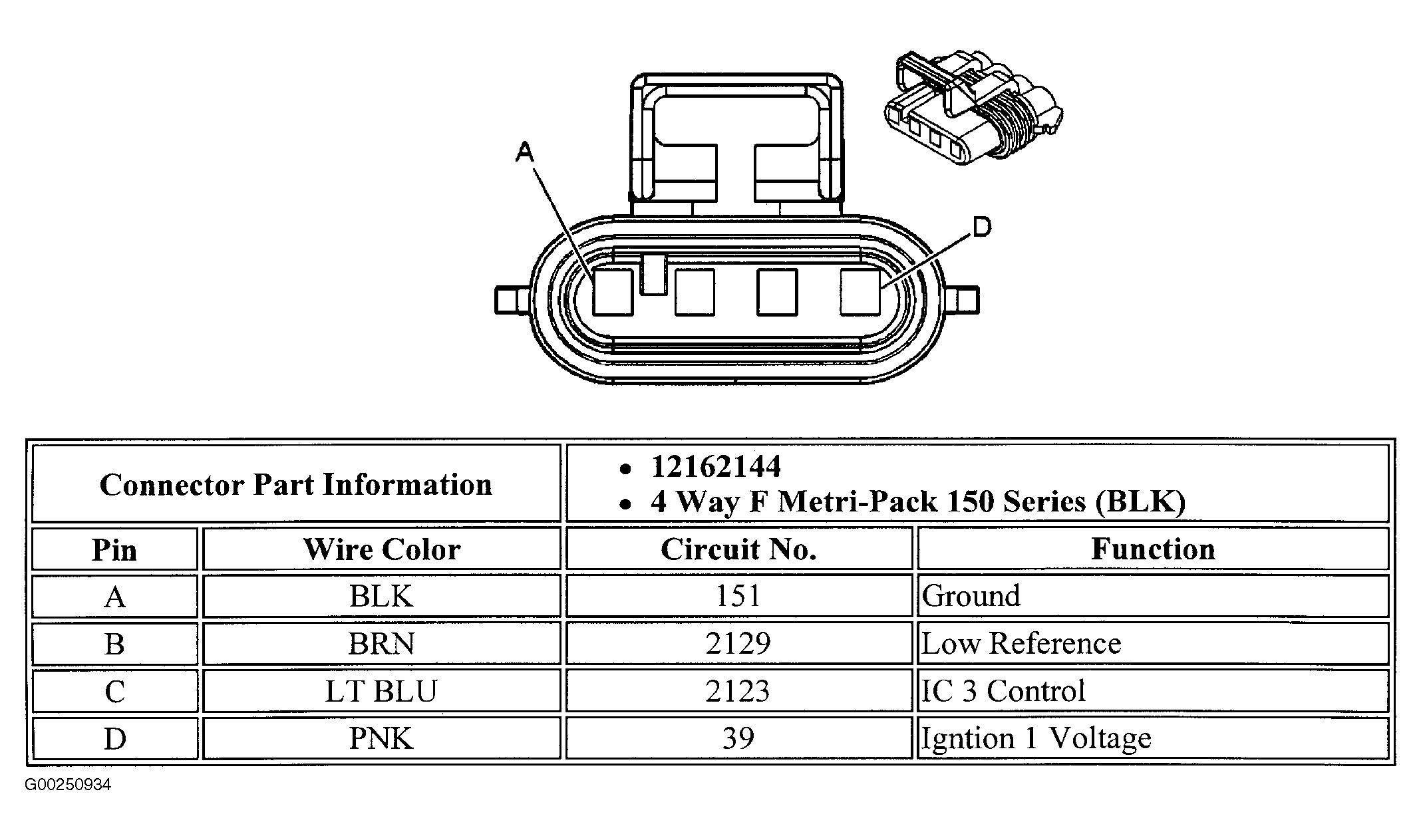

Fig 24: Identifying Ignition Coil 3 Connector Terminals

G00250934

Courtesy of GENERAL MOTORS CORP.

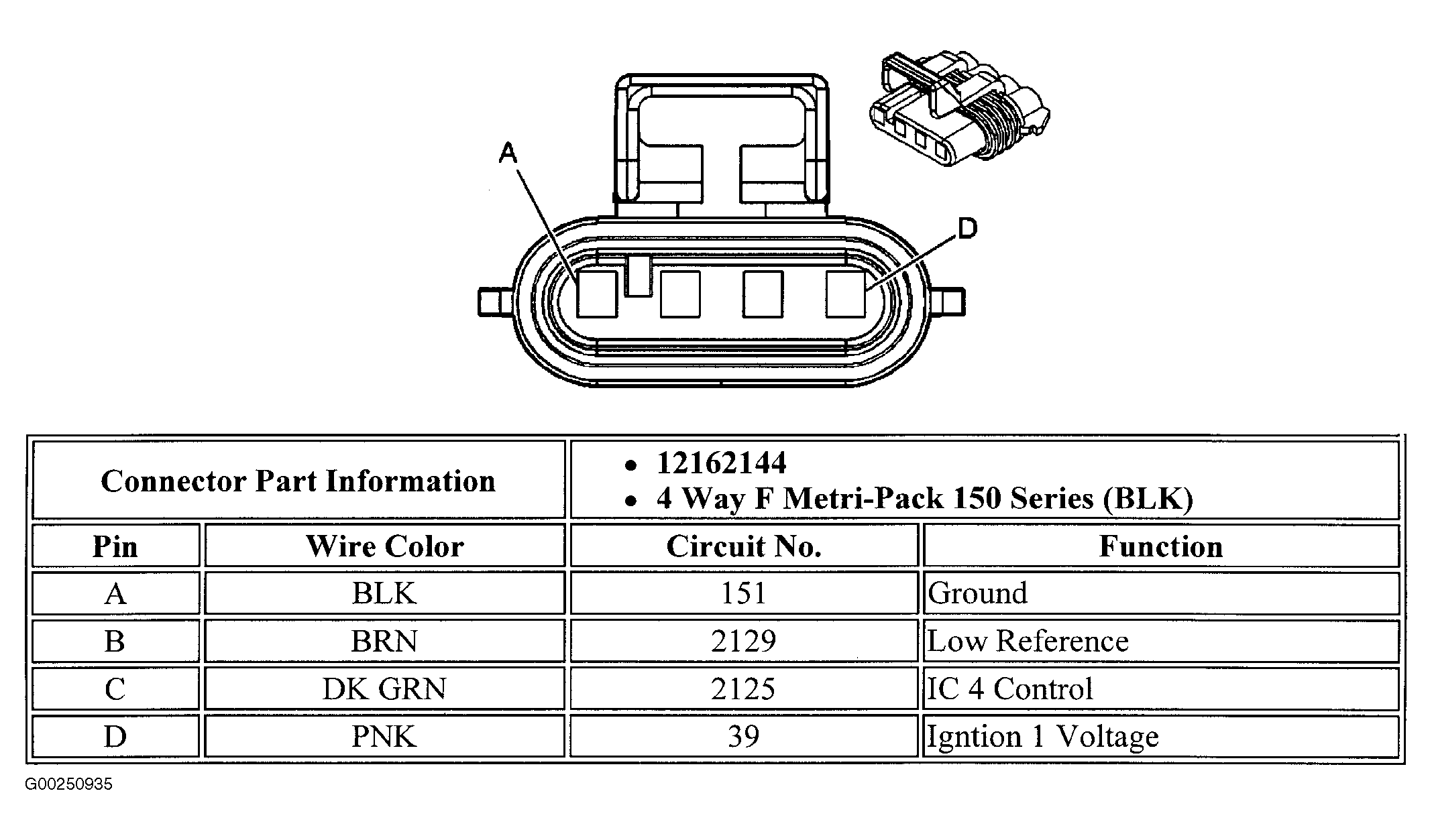

Fig 25: Identifying Ignition Coil 4 Connector Terminals

G00250935

Courtesy of GENERAL MOTORS CORP.

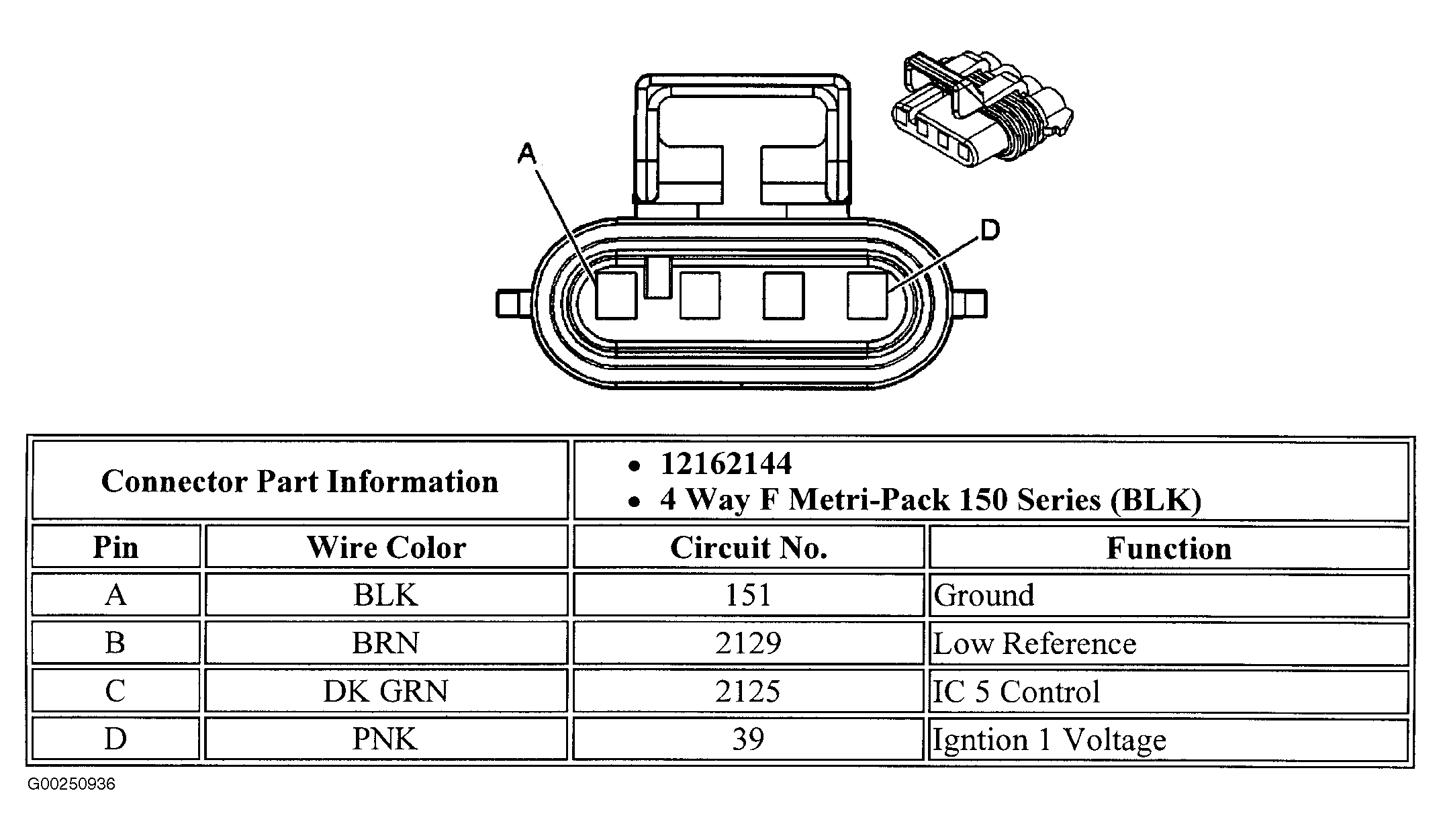

Fig 26: Identifying Ignition Coil 5 Connector Terminals

G00250936

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying Ignition Coil 6 Connector Terminals

G00250937

Courtesy of GENERAL MOTORS CORP.

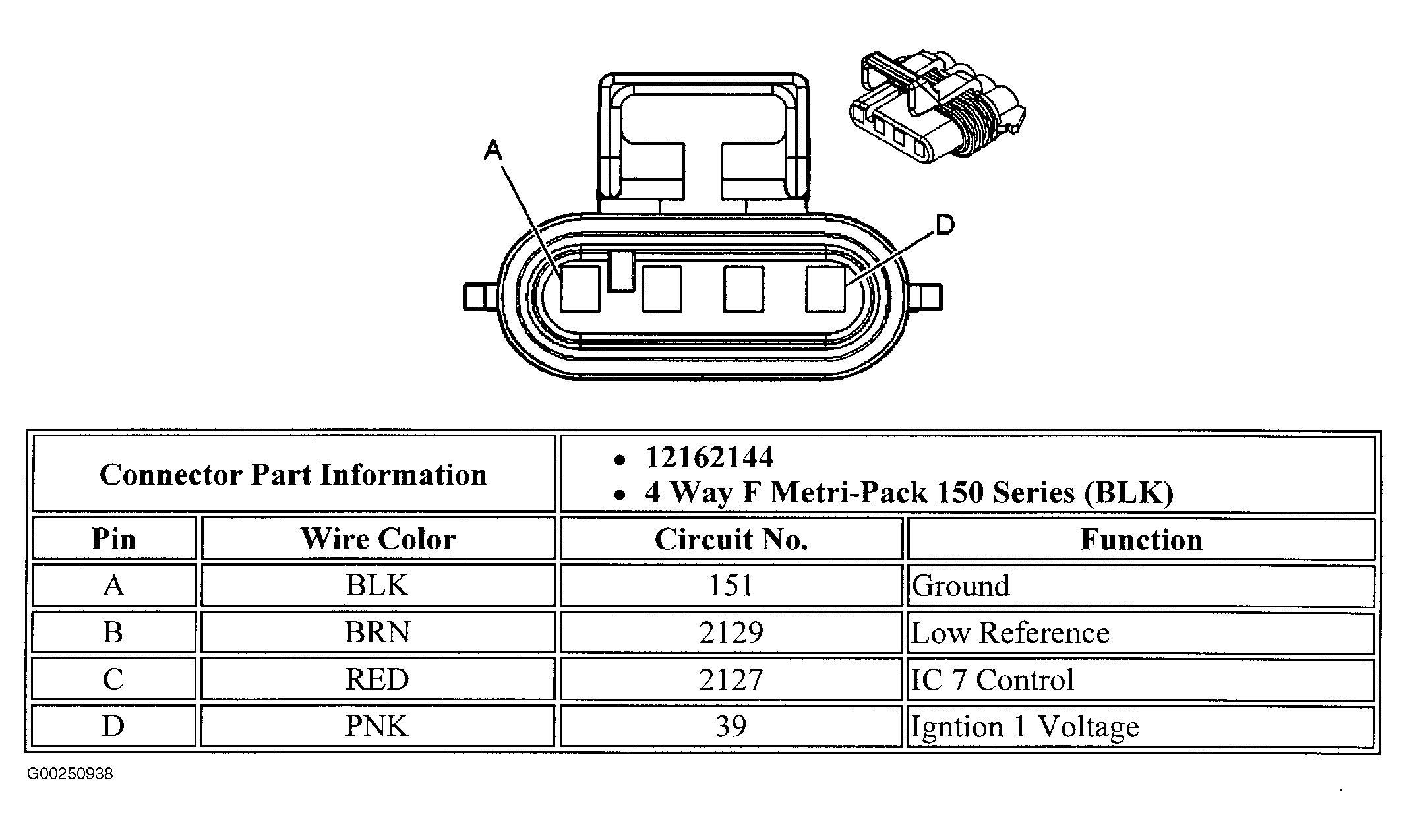

Fig 28: Identifying Ignition Coil 7 Connector Terminals

G00250938

Courtesy of GENERAL MOTORS CORP.

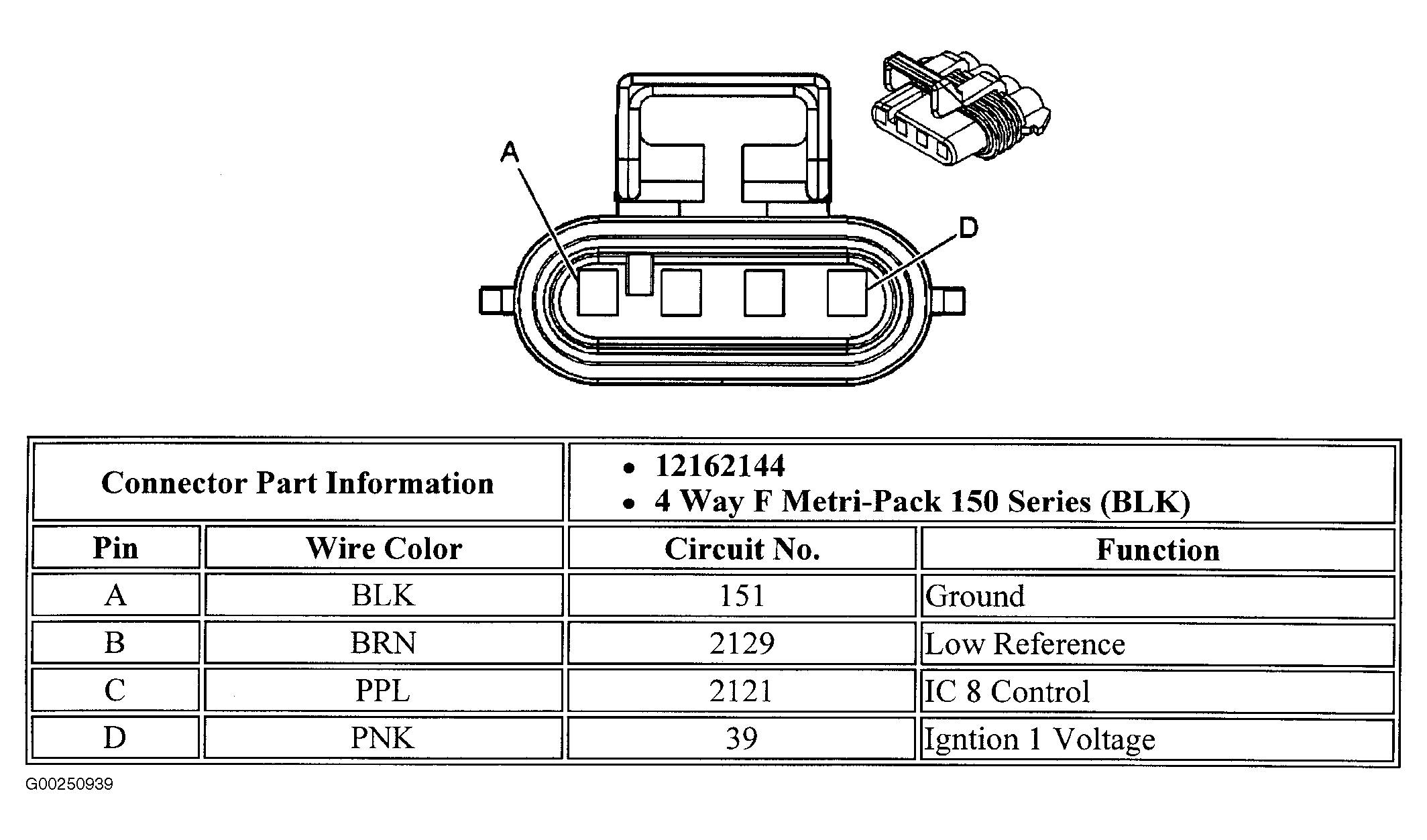

Fig 29: Identifying Ignition Coil 8 Connector Terminals

G00250939

Courtesy of GENERAL MOTORS CORP.

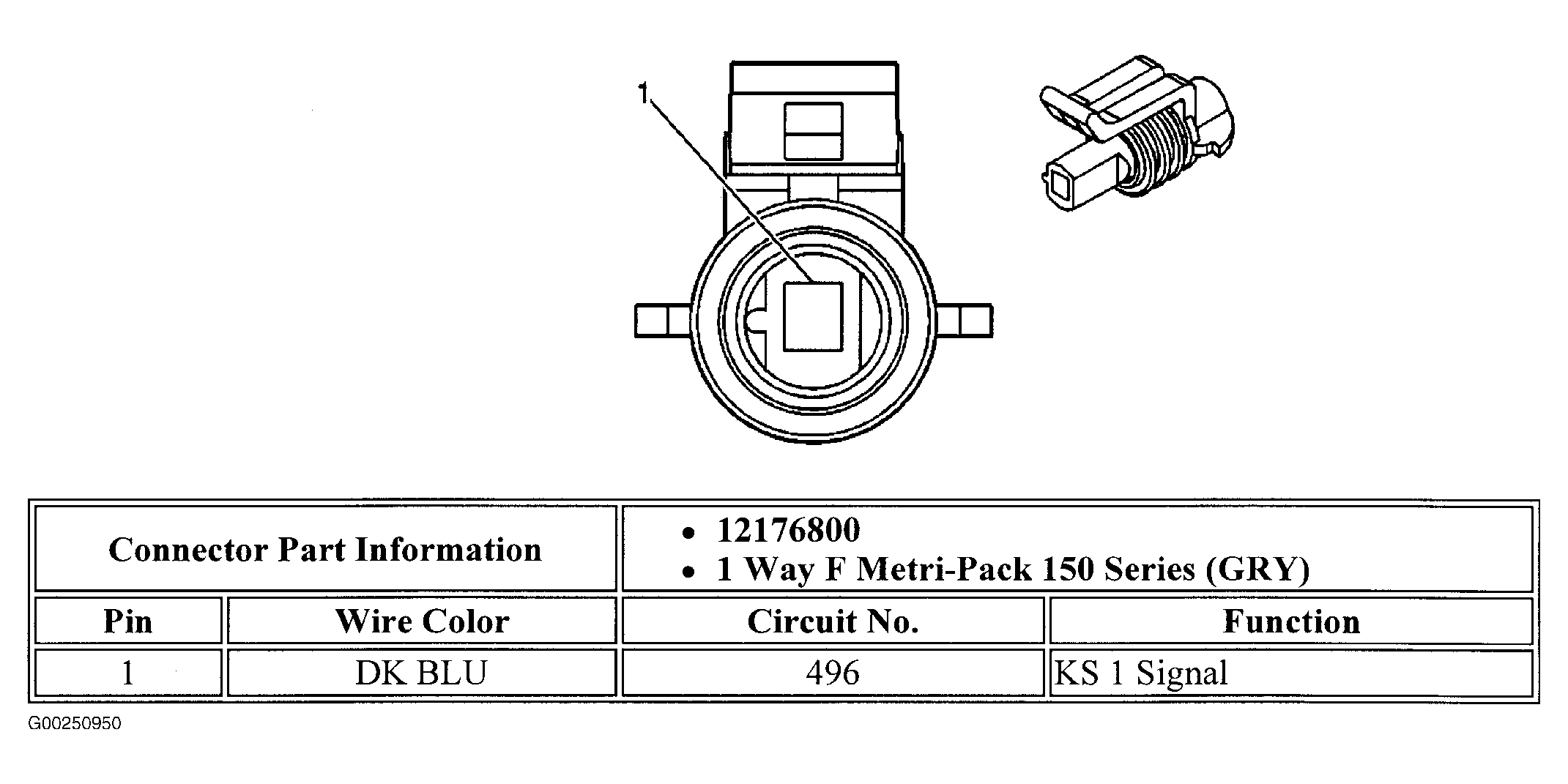

Fig 30: Identifying Knock Sensor 1 Connector Terminals

G00250950

Courtesy of GENERAL MOTORS CORP.

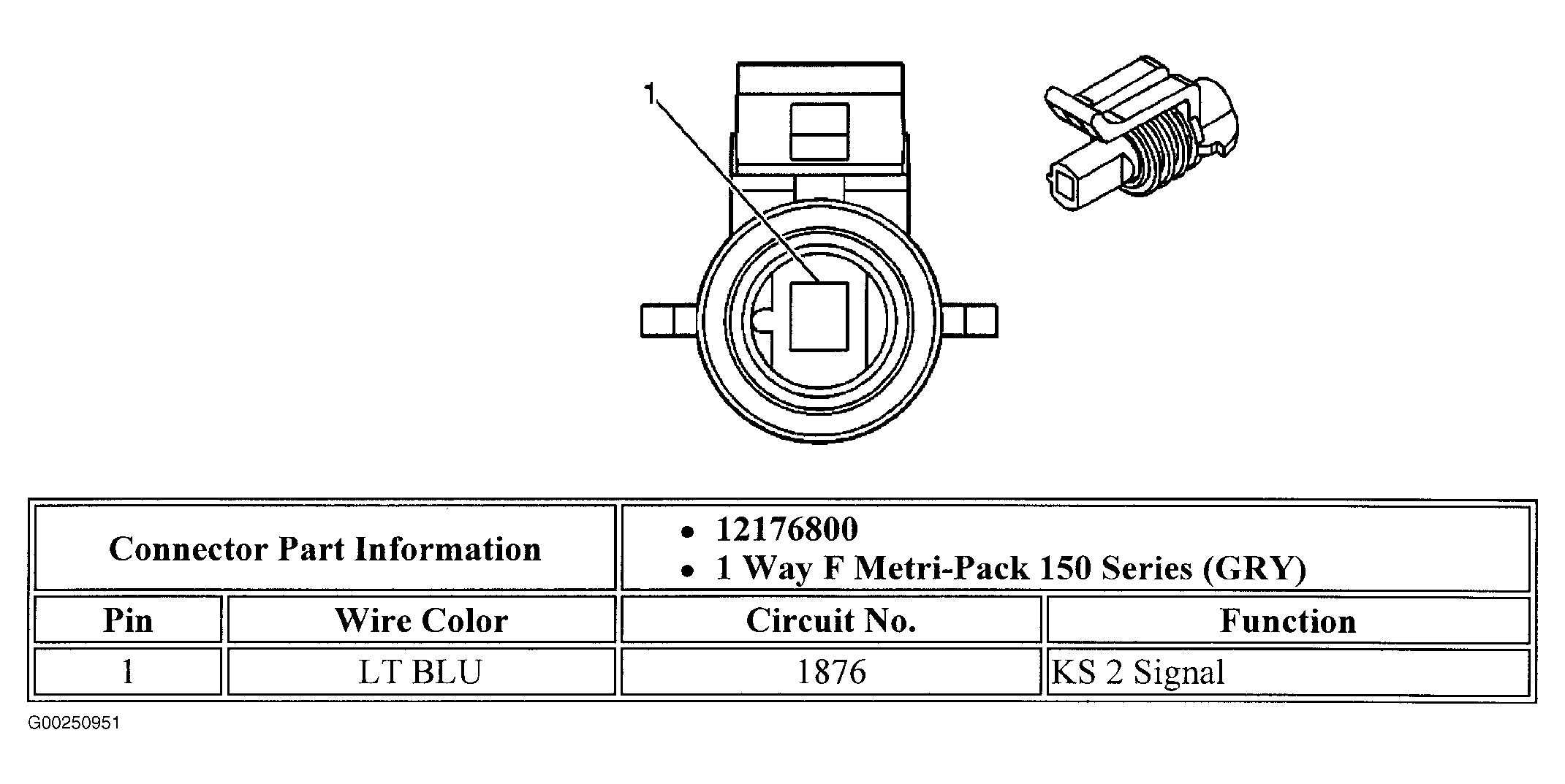

Fig 31: Identifying Knock Sensor 2 Connector Terminals

G00250951

Courtesy of GENERAL MOTORS CORP.

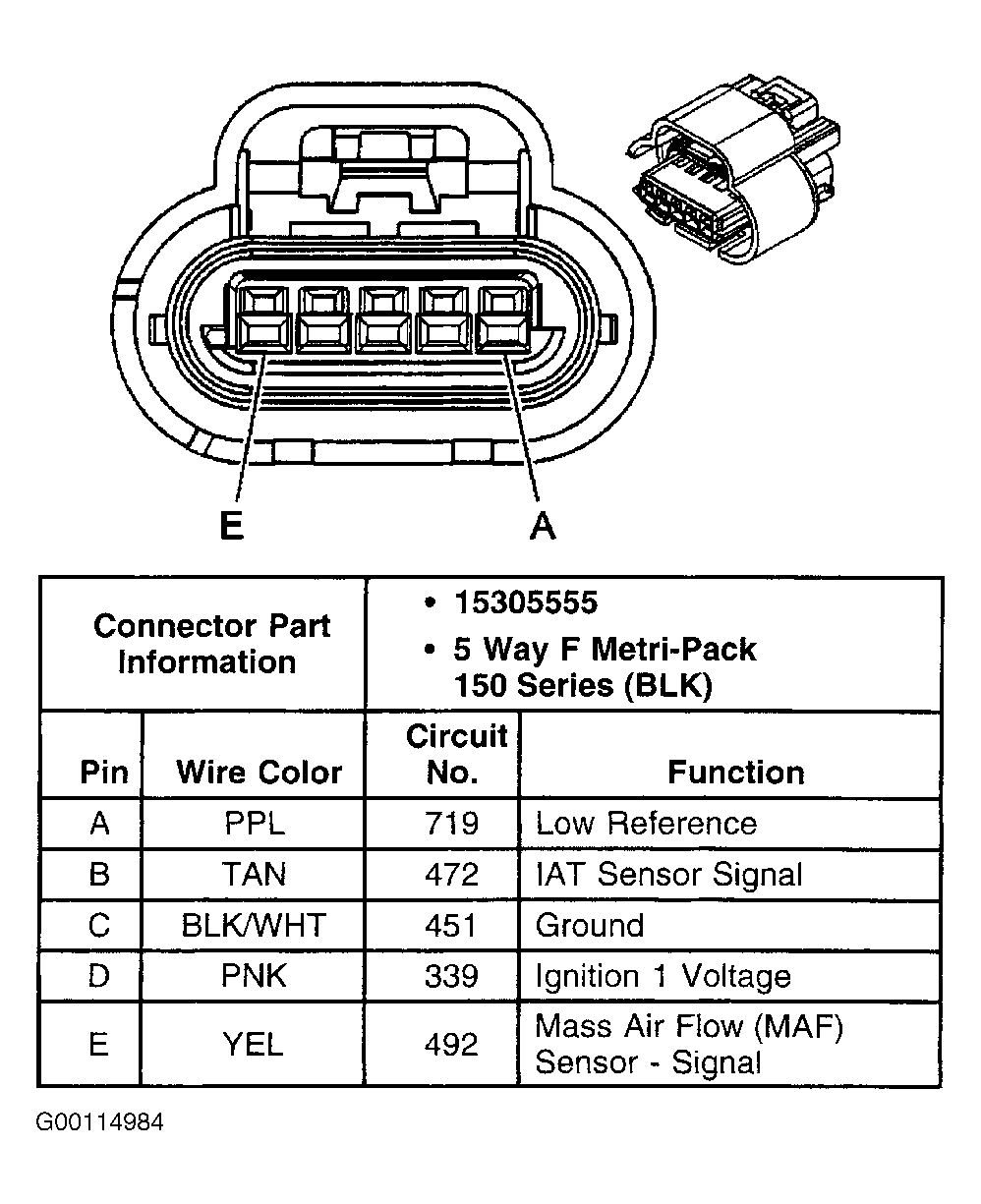

Fig 32: Identifying MAF Sensor Connector Terminals

G00114984

Courtesy of GENERAL MOTORS CORP.

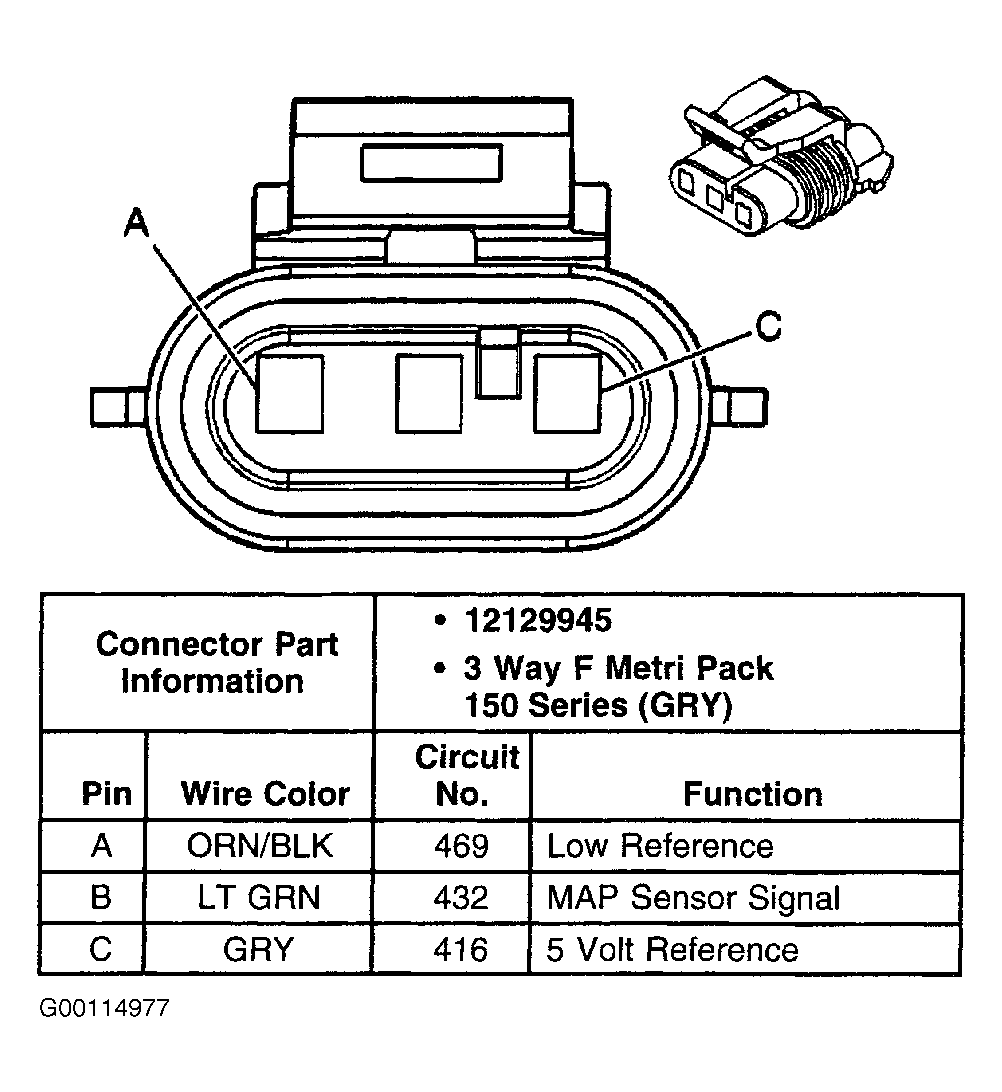

Fig 33: Identifying MAP Sensor Connector Terminals

G00114977

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying PCM Connector C1 Terminals (1 Of 3)

G00114969

Courtesy of GENERAL MOTORS CORP.

Fig 35: Identifying PCM Connector C1 Terminals (2 Of 3)

G00114970

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying PCM Connector C1 Terminals (3 Of 3)

G00114971

Courtesy of GENERAL MOTORS CORP.

Fig 37: Identifying PCM Connector C2 Terminals (1 Of 3)

G00114972

Courtesy of GENERAL MOTORS CORP.

Fig 38: Identifying PCM Connector C2 Terminals (2 Of 3)

G00114973

Courtesy of GENERAL MOTORS CORP.

Fig 39: Identifying PCM Connector C2 Terminals (3 Of 3)

G00114974

Courtesy of GENERAL MOTORS CORP.

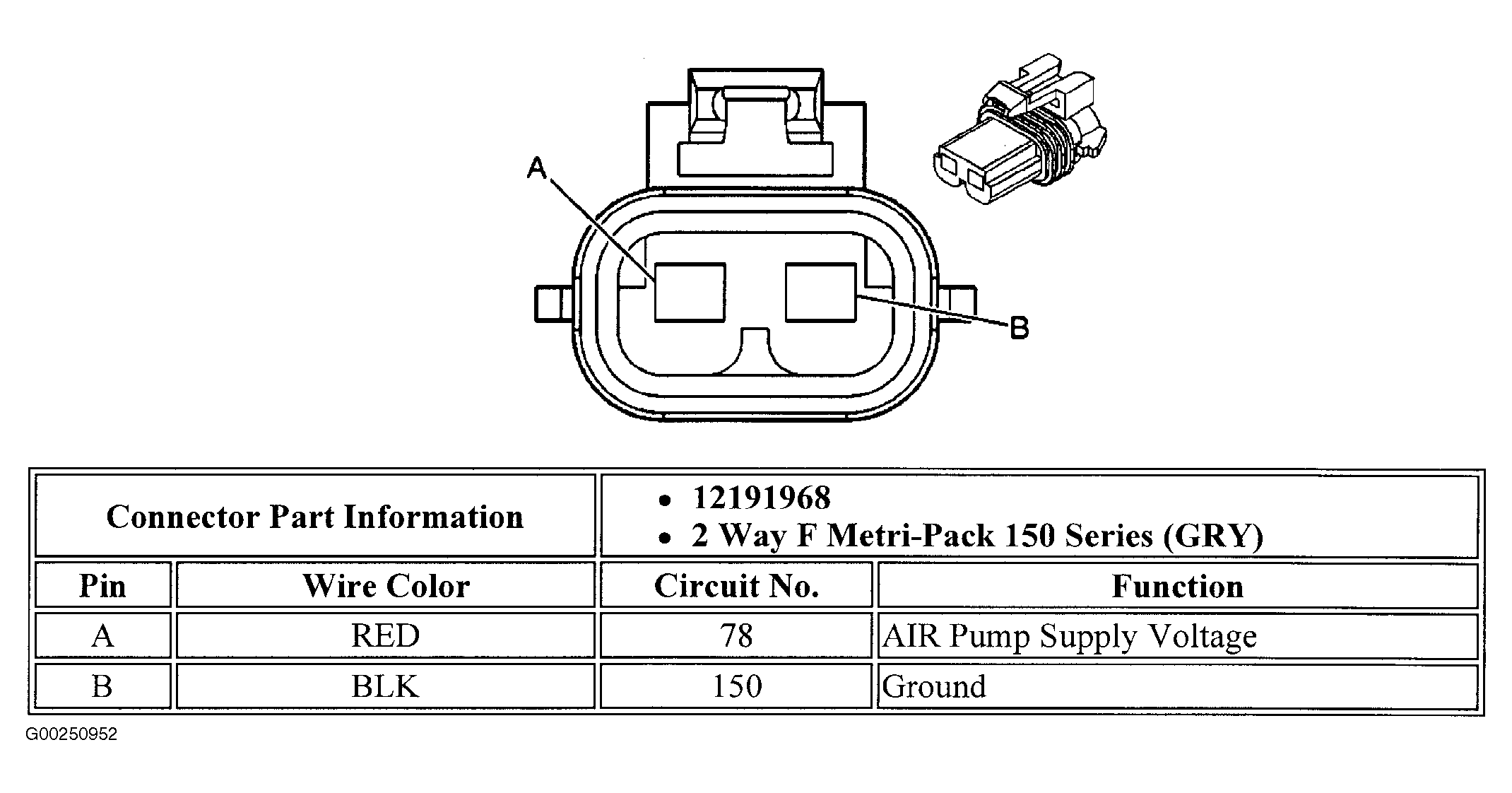

Fig 40: Identifying Secondary Air Injection Pump Connector Terminals

G00250952

Courtesy of GENERAL MOTORS CORP.

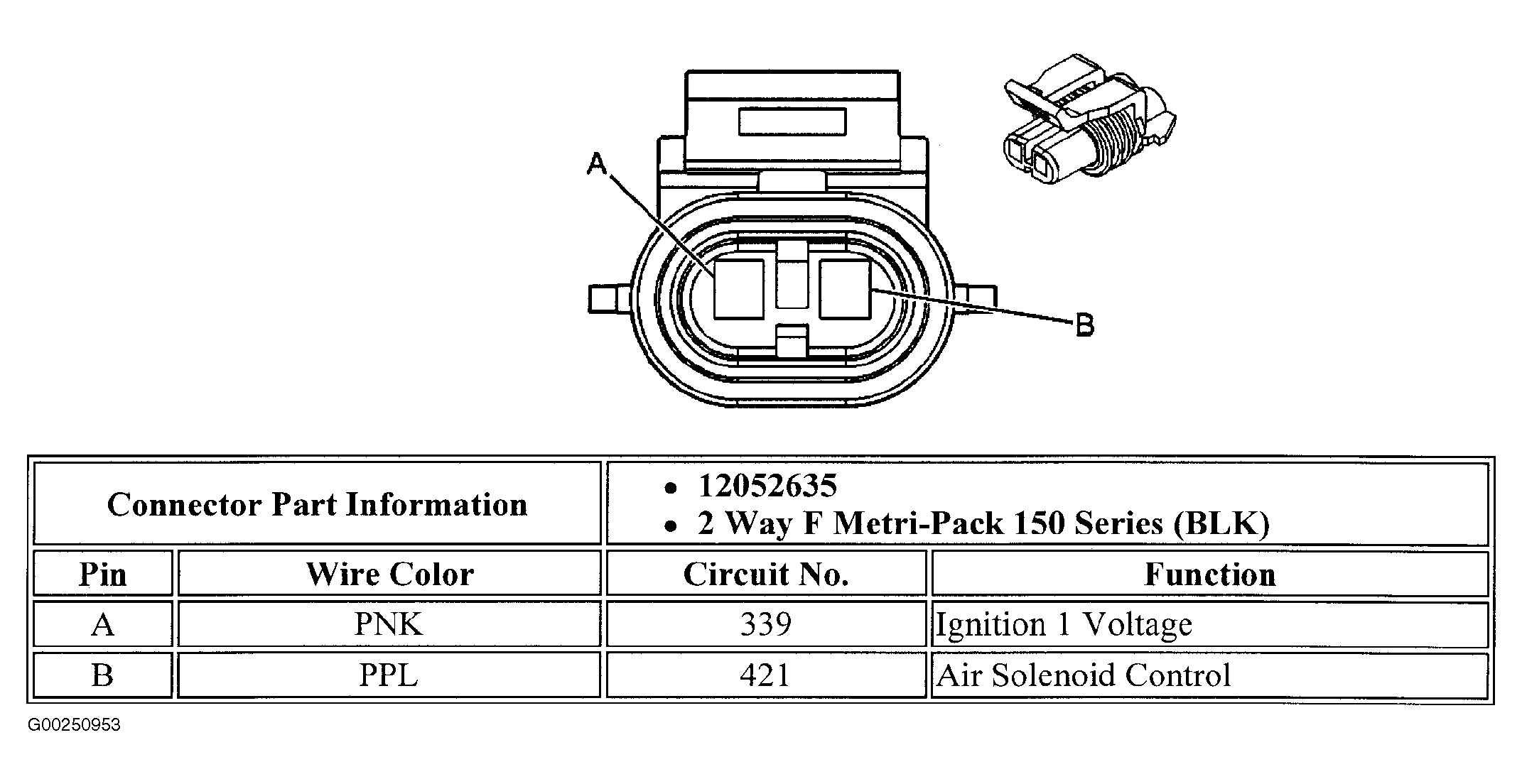

Fig 41: Identifying Secondary Air Injection Solenoid Connector Terminals

G00250953

Courtesy of GENERAL MOTORS CORP.

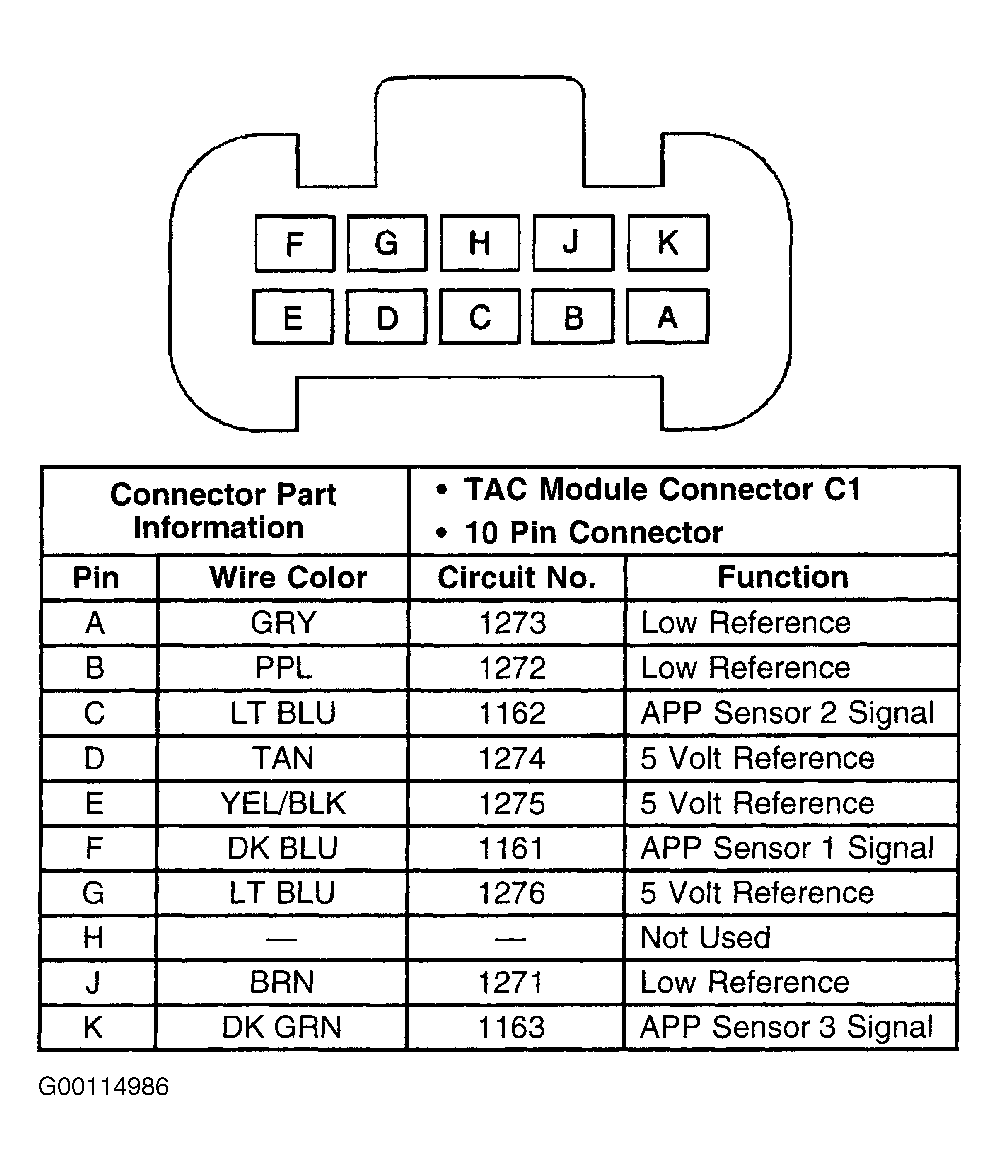

Fig 42: Identifying Throttle Actuator Control Module Connector C1 Terminals

G00114986

Courtesy of GENERAL MOTORS CORP.

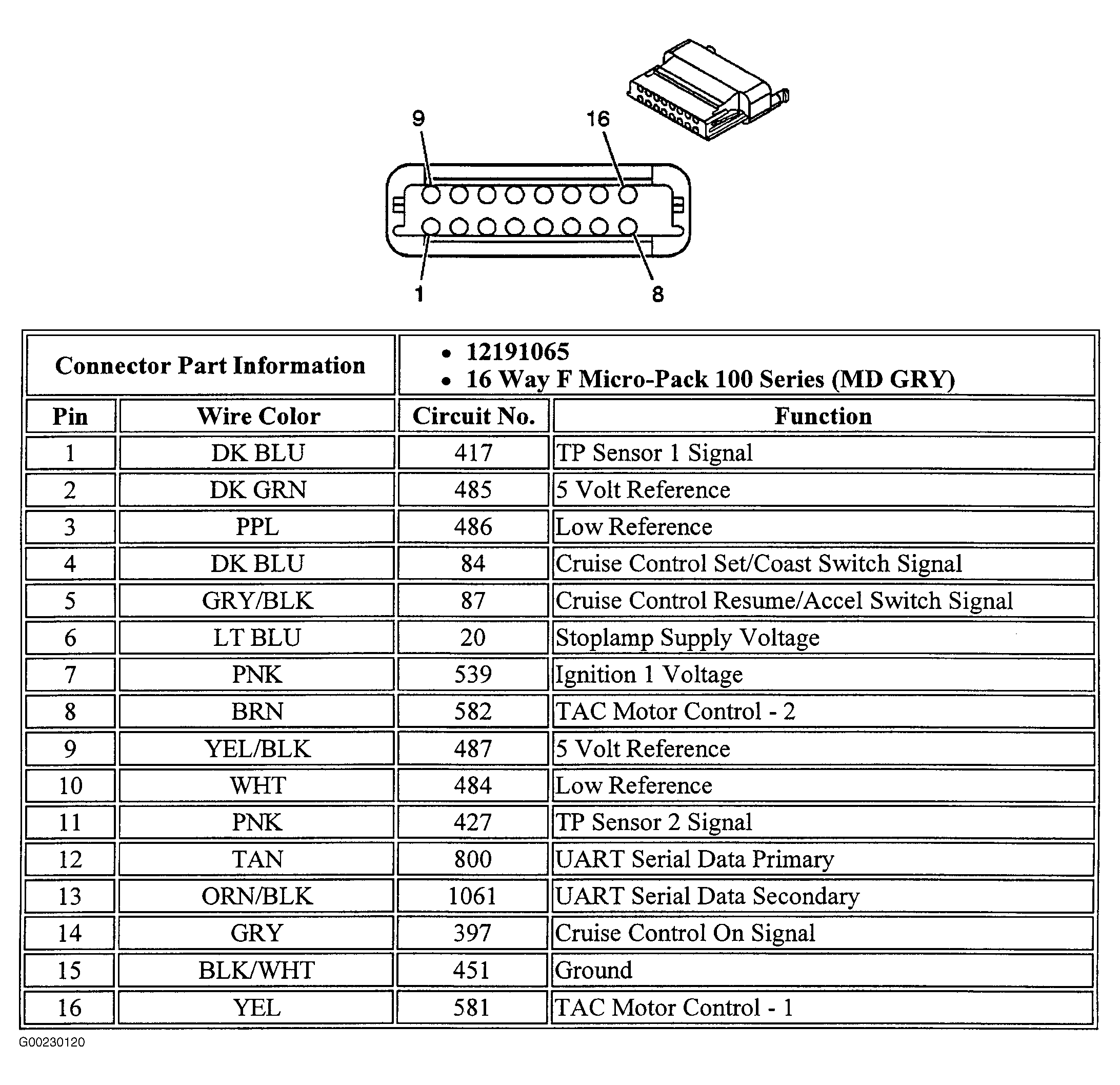

Fig 43: Identifying Throttle Actuator Control Module Connector C2 Terminals

G00230120

Courtesy of GENERAL MOTORS CORP.

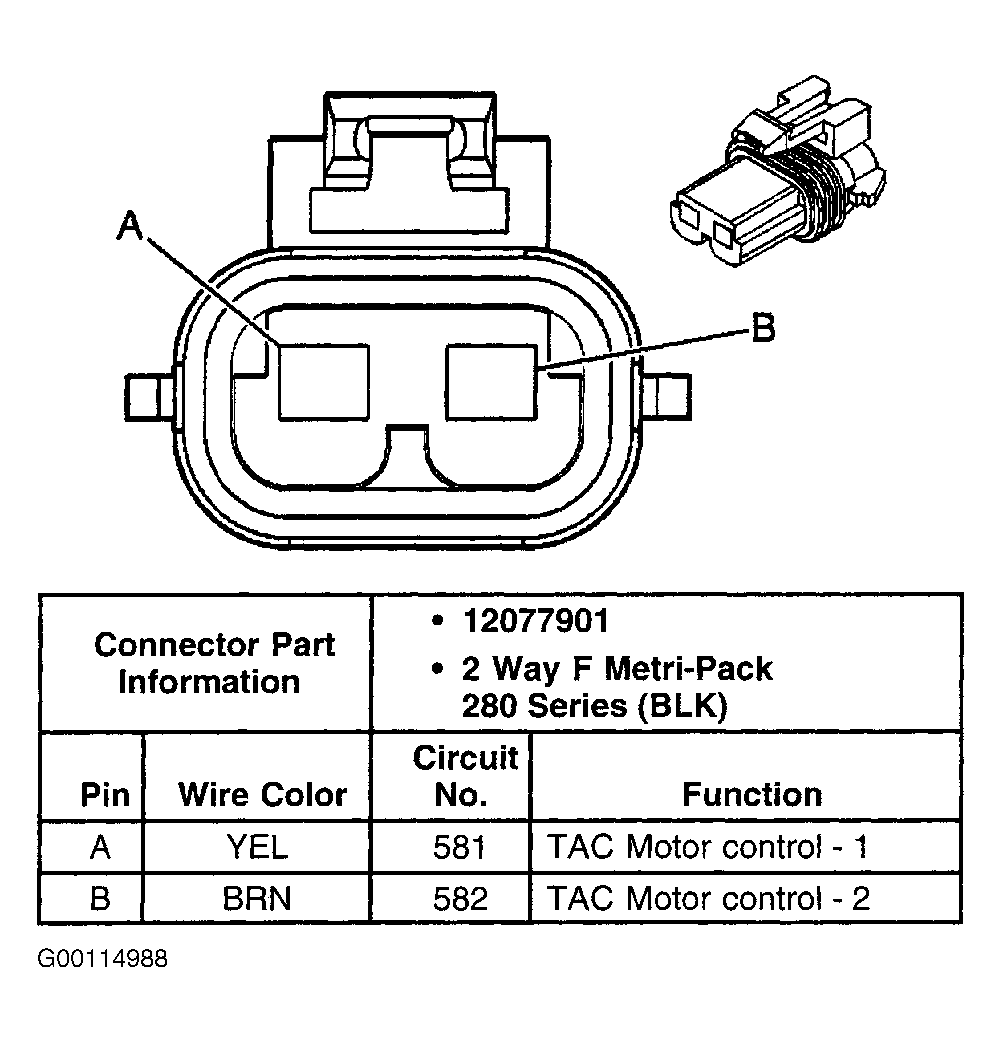

Fig 44: Identifying Throttle Actuator Control Motor Connector Terminals

G00114988

Courtesy of GENERAL MOTORS CORP.

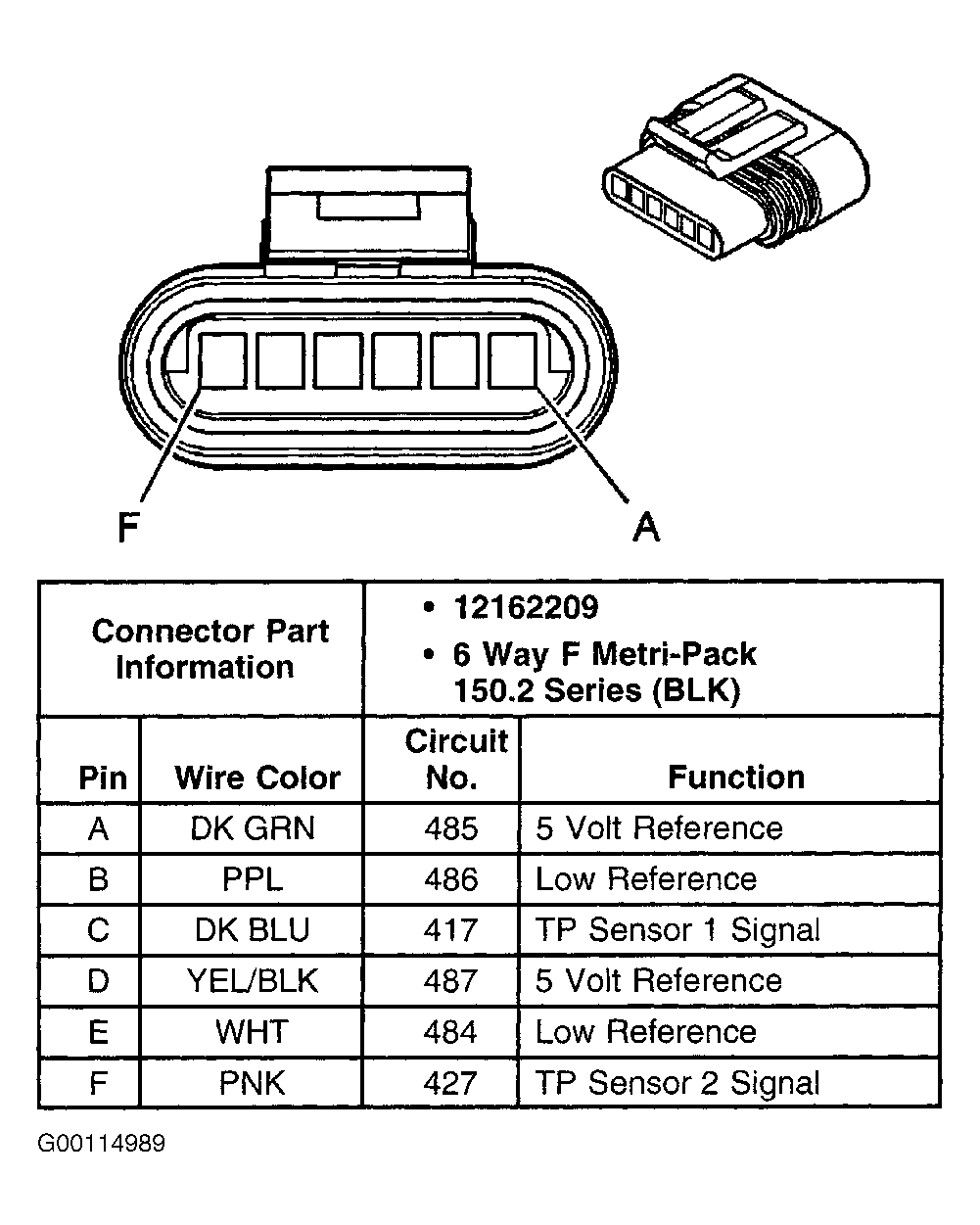

Fig 45: Identifying TP Sensor Connector Terminals

G00114989

Courtesy of GENERAL MOTORS CORP.

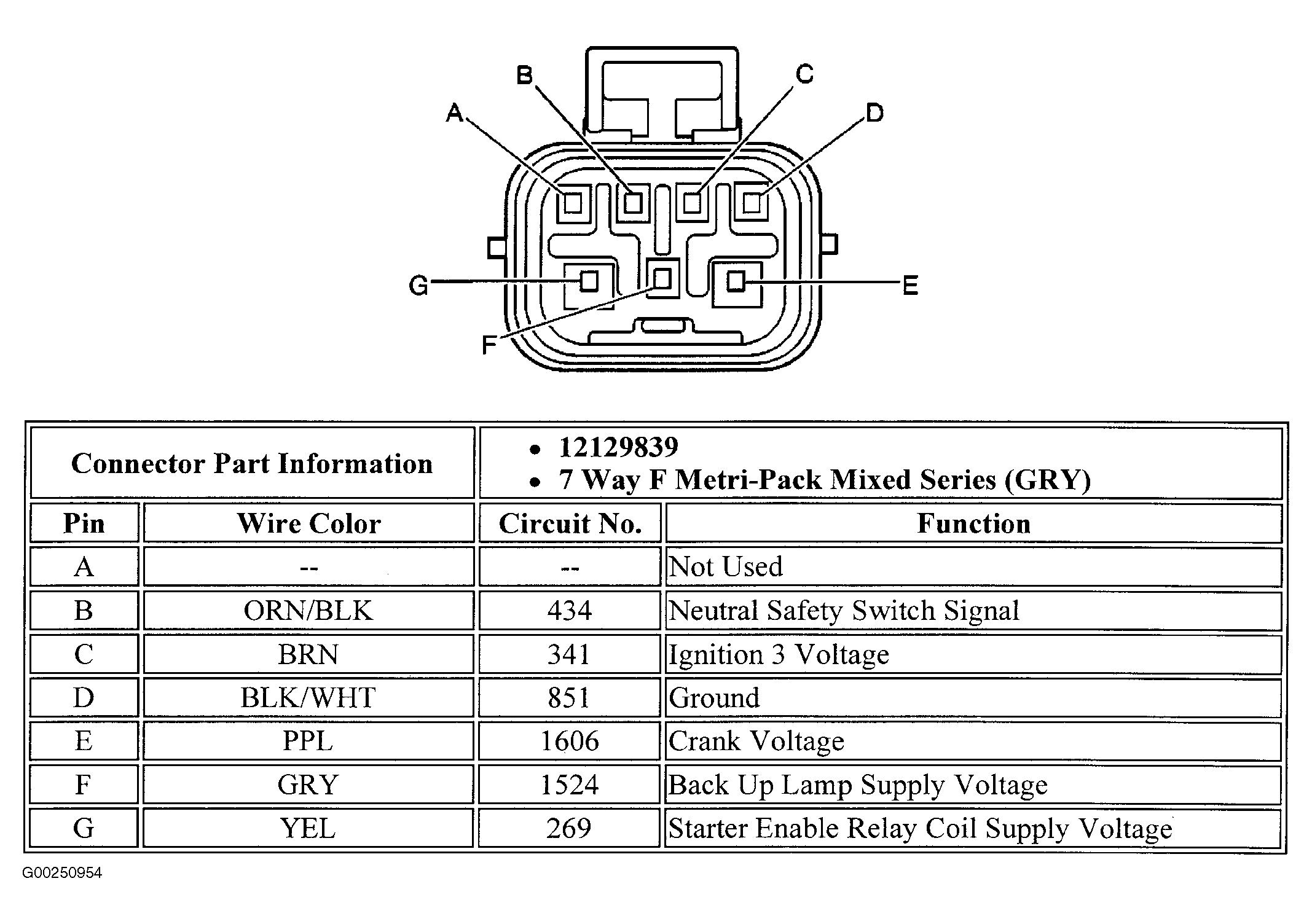

Fig 46: Identifying Transmission Range Switch Connector C1 Terminals

G00250954

Courtesy of GENERAL MOTORS CORP.

Fig 47: Identifying Transmission Range Switch Connector C2 Terminals

G00080101

Courtesy of GENERAL MOTORS CORP.
