Automatic Transmission Shift Lock Control Component Views

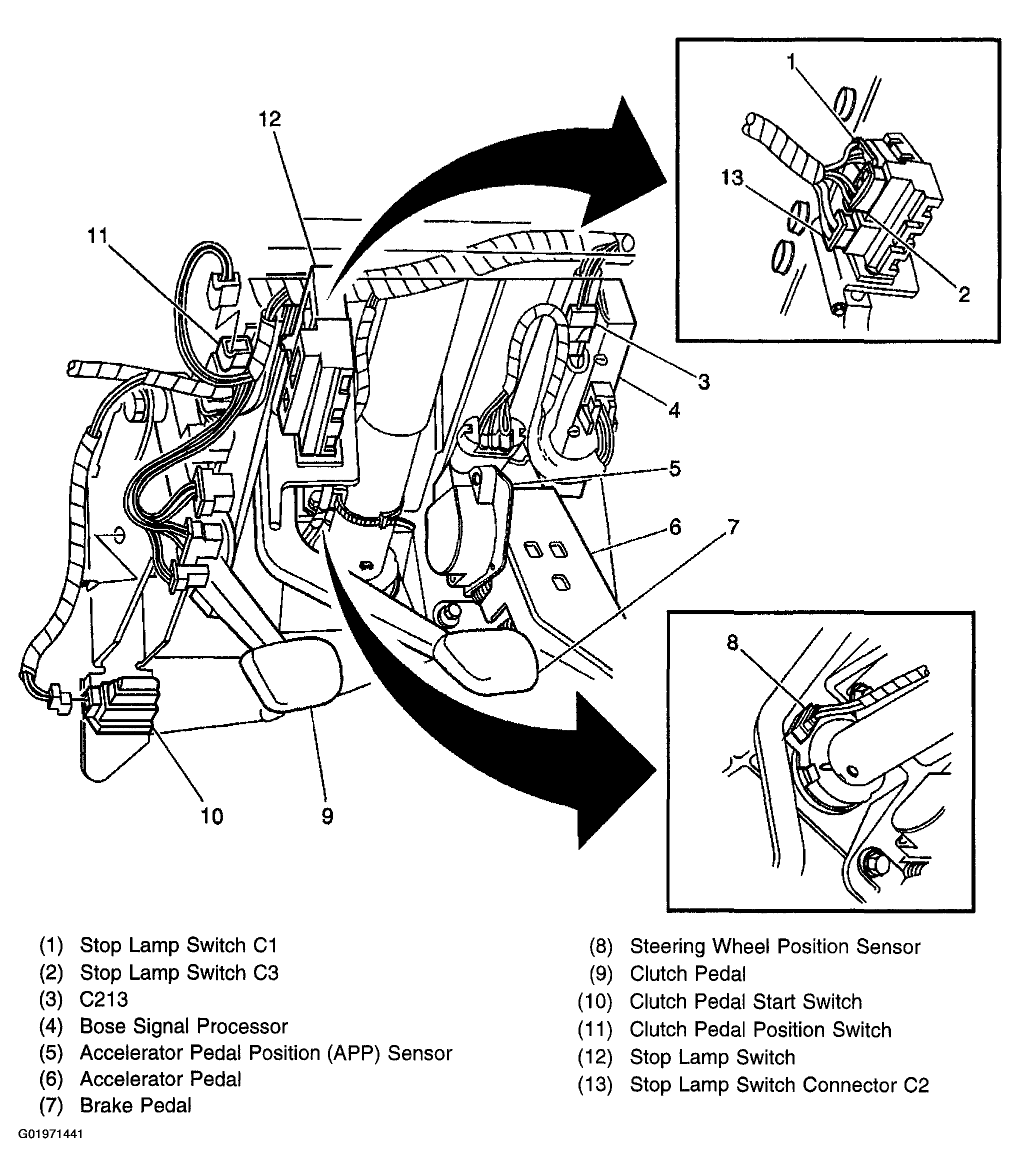

Fig 1: Under Side Of Dash-Left
G01971441Courtesy of GENERAL MOTORS CORP.

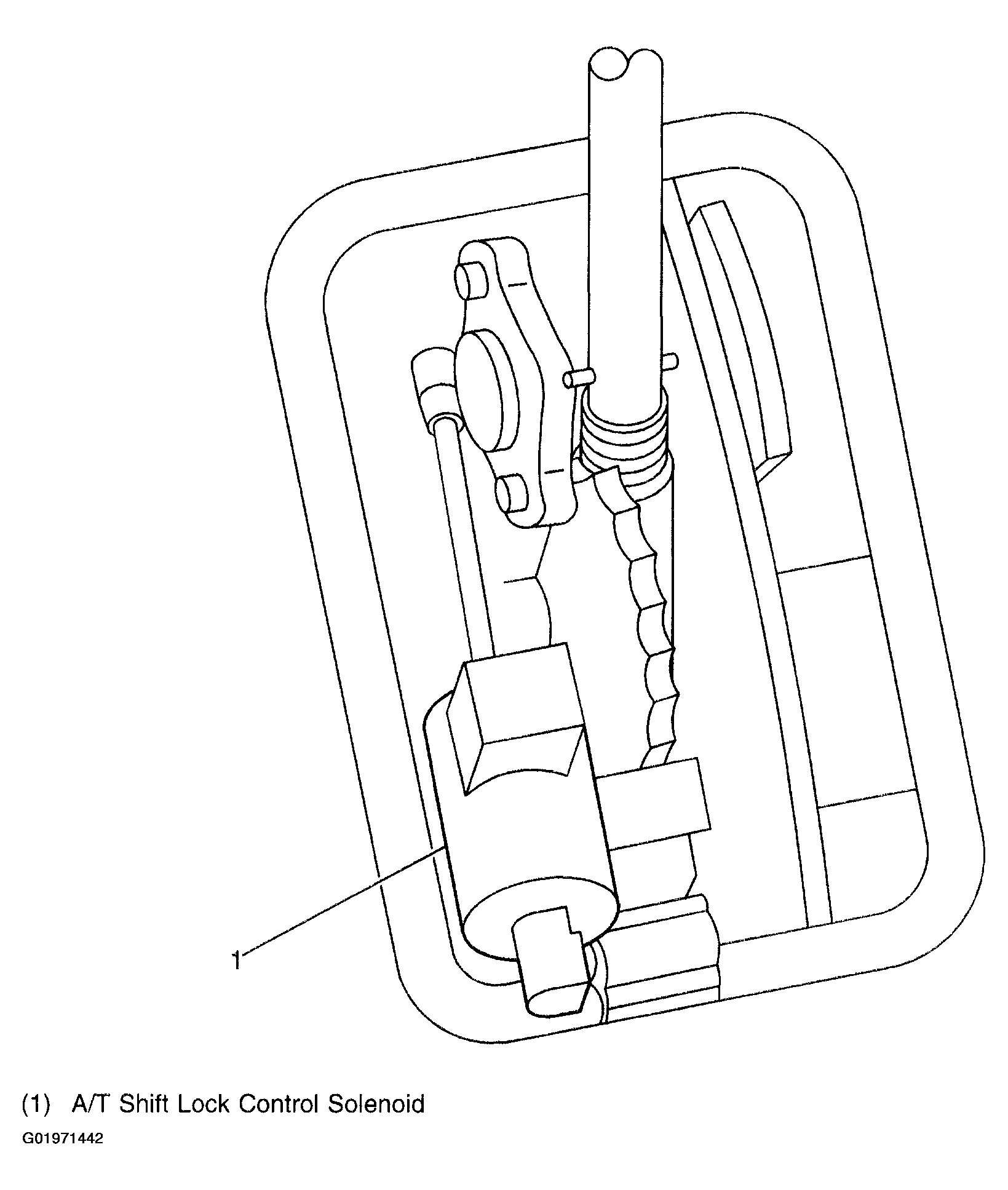

Fig 2: A/T Shift Lock Control Solenoid (1 Of 2)
G01971442Courtesy of GENERAL MOTORS CORP.
