ABS Component Views

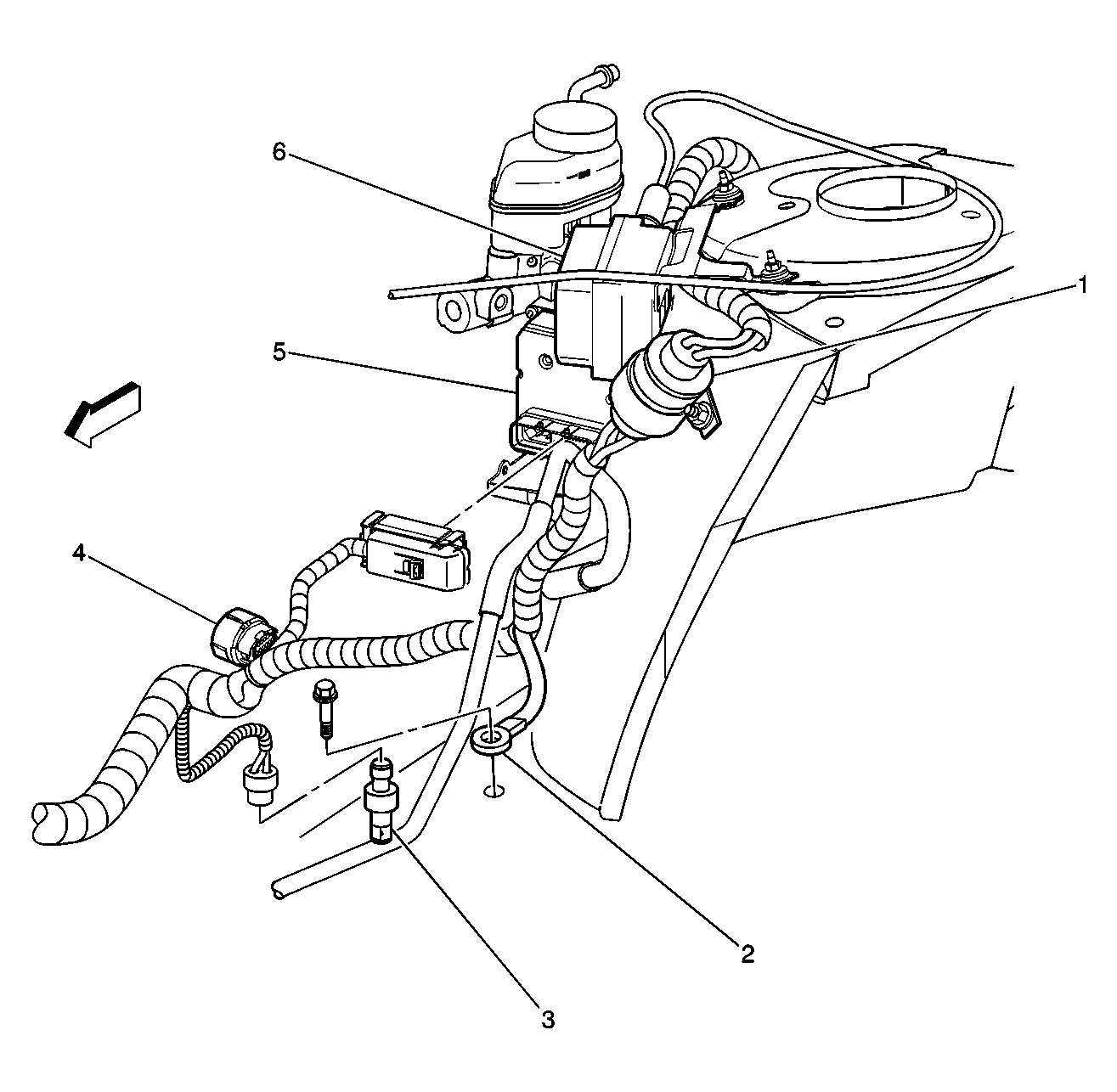

Fig 1: Left Center Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C101
2	G151
3	A/C Refrigerant Pressure Sensor
4	C113
5	Electronic Brake Control Module (EBCM)
6	Cruise Control Module (CCM)

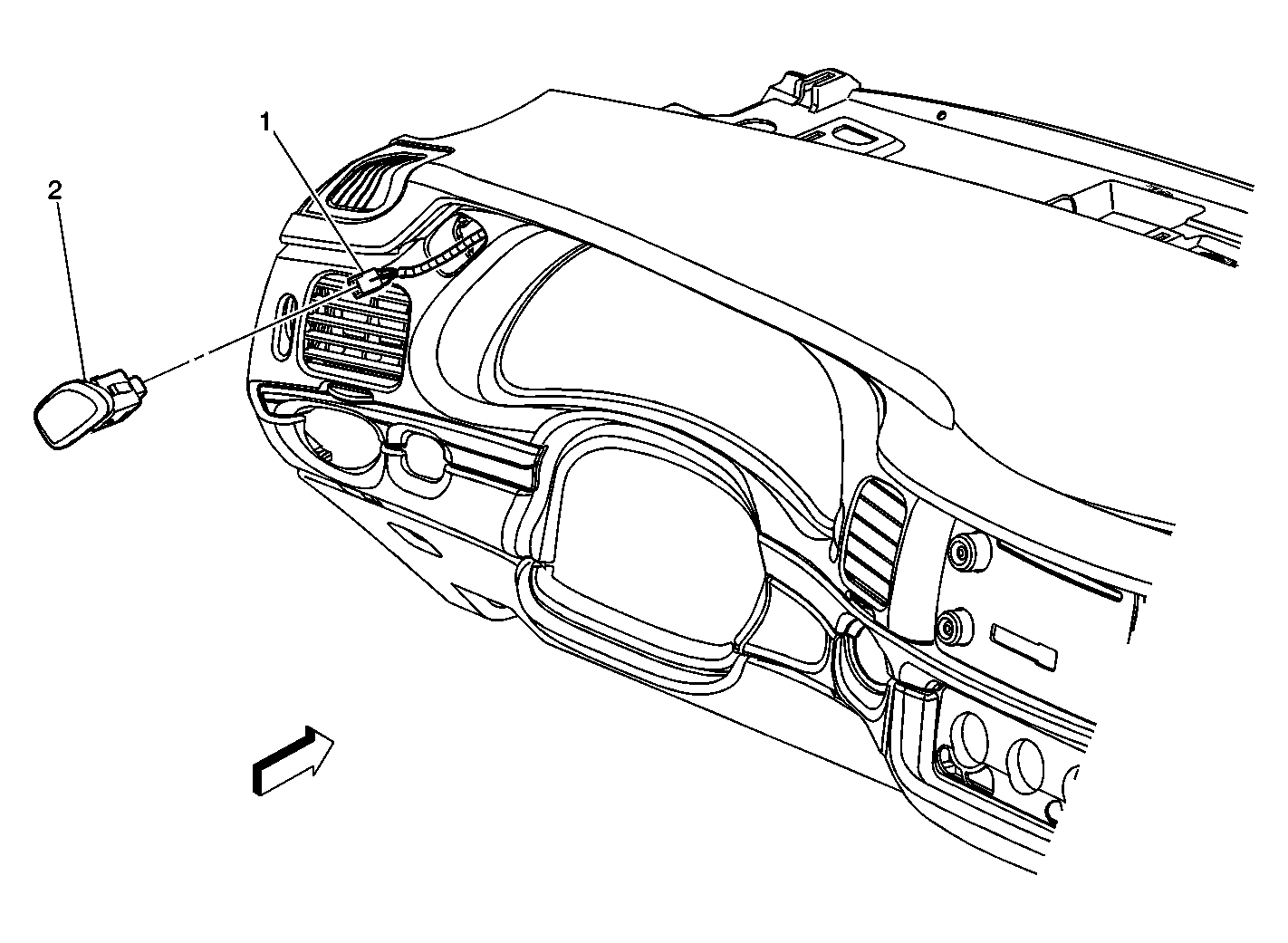

Fig 2: Left Side Of Instrument Panel Component View (Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch Connector
2	Traction Control Switch

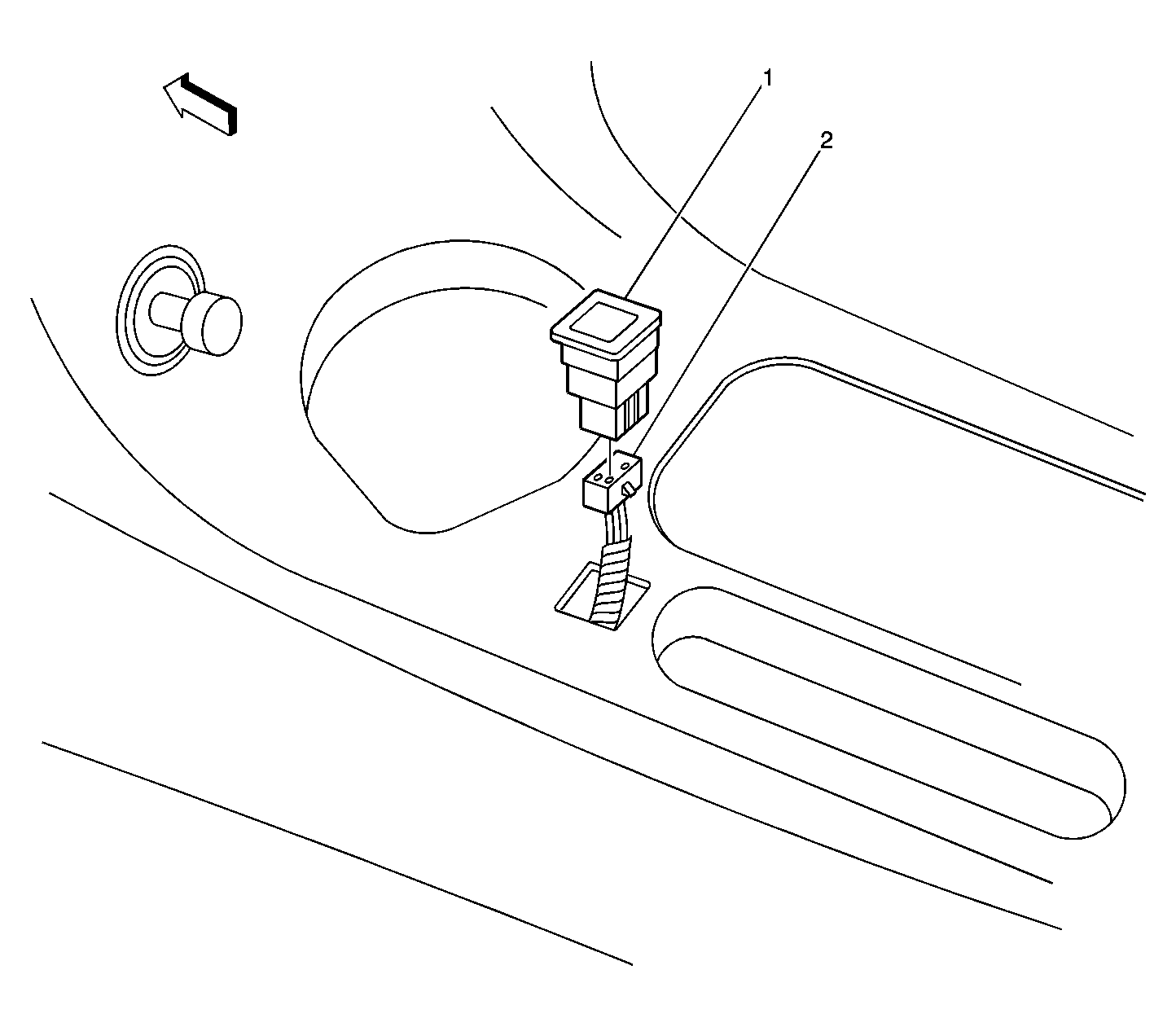

Fig 3: Front Of Floor Console Component View (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch
2	Traction Control Switch Connector

Fig 4: Right Front Suspension Component View, Left Front Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS)-RF

Fig 5: Right Rear Suspension Component View, Left Rear Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS)-RR
2	Strut Assembly
