Installation Procedure

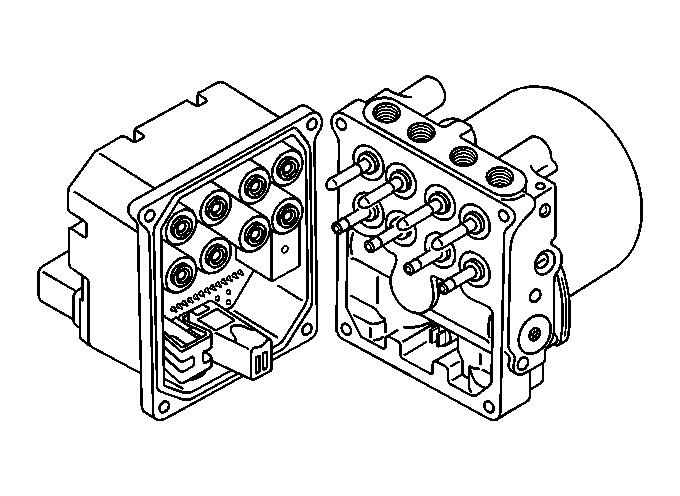

- Install the EBCM to the BPMV.
- Install the 4 retainers that attach the EBCM to BPMV.
Tighten: Tighten the retainers to 5 N.m (44 lb in).
- Connect the EBCM harness connector.
- Push down lock tab (1) and then move sliding connector cover (2) back in the home position to lock.
- Reengage the red locking tab (1) to the connected lock tab.
- Install the air cleaner intake duct.
- Reposition the module and cables. Connect the cruise control module to the left strut tower. Refer to Cruise Control Module Replacement in Cruise Control.
- Connect the accelerator and cruise control cable to the accelerator control cable bracket.
- Install the front fender upper diagonal brace. Refer to Brace Replacement - Front Fender Upper Diagonal in Body Front End.
- Install the fuel injector sight shield, 3.8L engine only. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical-3.8L.
- Turn the ignition switch to the RUN position, do not start engine.
- Perform the Diagnostic System Check - ABS .
NOTE:
Refer to Fastener Notice
in Cautions and Notices.

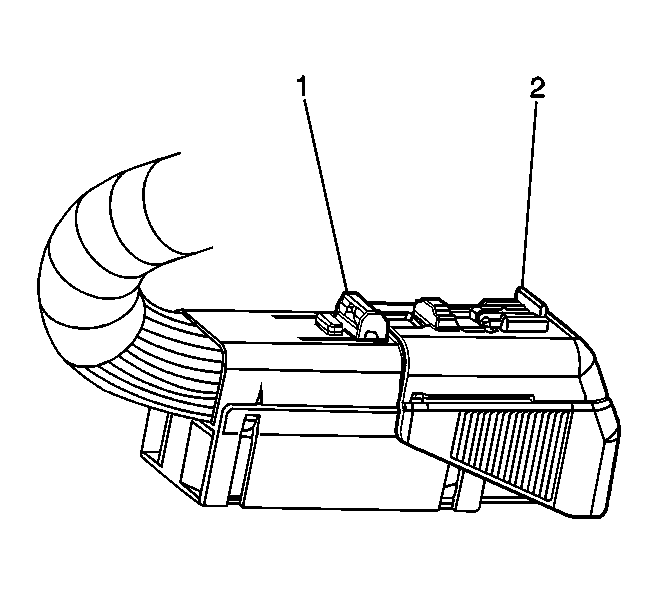

Fig 2: Identifying Connector Position Assurance (CPA) Locking Tab And Connector Sliding Cover Lock Tab
