Installation Procedure

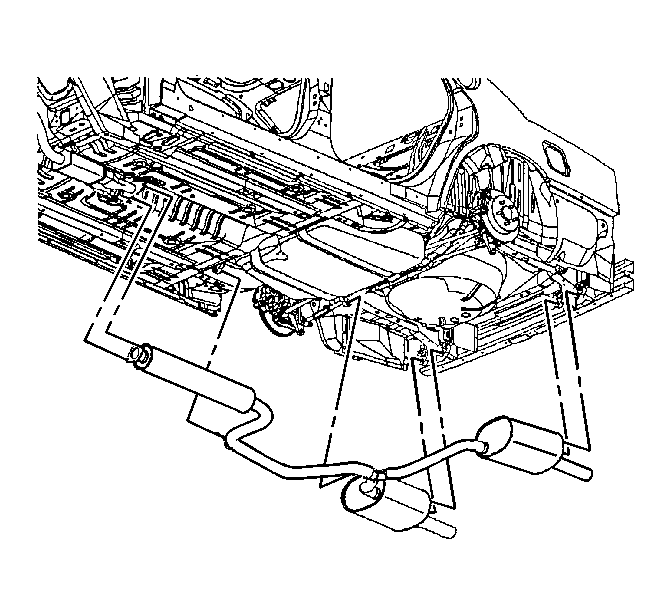

    Fig 1: Identifying Muffler (Dual)
    GM460738Courtesy of GENERAL MOTORS CORP.
  1. Install the muffler to the exhaust hangers.
  2. Support the exhaust system.
  3. Install a new gasket to the catalytic converter and the muffler.
  4. Install the catalytic converter to the muffler. Refer to Catalytic Converter Replacement (3.4L)  or Catalytic Converter Replacement (3.8L) .
  5. Remove the exhaust system support.
  6. Lower the vehicle.
  7. Inspect for exhaust leaks.
